• Korloy Railway Wheel Turning Insert LNUX (TU / TF / TM / TR)
1 1

Korloy Railway Wheel Turning Insert LNUX (TU / TF / TM / TR)

Korloy Railway Wheel Turning Insert LNUX (TU / TF / TM / TR)

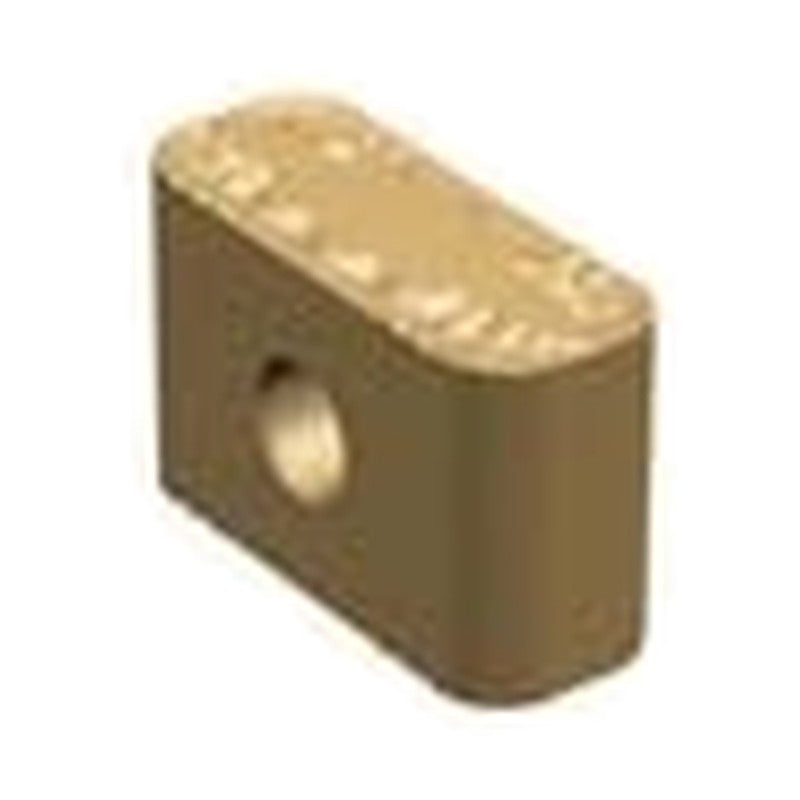

Tangential insert for external profile finishing of new and repaired railway wheels.

Key features

  • Railway wheel profile turning
  • TU, TF, TM and TR chip breakers

Specifications

Application Railway components
Coating Coated
LNUX191940-TU NC6315 L (mm): 19.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.5 ~ 1.0 | Depth of cut ap (mm): 1.0 ~ 8.0 | Grade: NC6315 | Stock: Not marked
LNUX191940-TU NC3215P L (mm): 19.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.5 ~ 1.0 | Depth of cut ap (mm): 1.0 ~ 8.0 | Grade: NC3215P | Stock: Not marked
LNUX191940-TU NC3225P L (mm): 19.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.5 ~ 1.0 | Depth of cut ap (mm): 1.0 ~ 8.0 | Grade: NC3225P | Stock: Not marked
LNUX301940-TU NC6315 L (mm): 30.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.5 ~ 1.0 | Depth of cut ap (mm): 1.0 ~ 18.0 | Grade: NC6315 | Stock: Not marked
LNUX301940-TU NC3215P L (mm): 30.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.5 ~ 1.0 | Depth of cut ap (mm): 1.0 ~ 18.0 | Grade: NC3215P | Stock: Not marked
LNUX301940-TU NC3225P L (mm): 30.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.5 ~ 1.0 | Depth of cut ap (mm): 1.0 ~ 18.0 | Grade: NC3225P | Stock: Not marked
LNUX191940-TF NC6315 L (mm): 19.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.6 ~ 1.1 | Depth of cut ap (mm): 1.5 ~ 9.0 | Grade: NC6315 | Stock: Not marked
LNUX191940-TF NC3215P L (mm): 19.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.6 ~ 1.1 | Depth of cut ap (mm): 1.5 ~ 9.0 | Grade: NC3215P | Stock: Not marked
LNUX191940-TF NC3225P L (mm): 19.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.6 ~ 1.1 | Depth of cut ap (mm): 1.5 ~ 9.0 | Grade: NC3225P | Stock: Not marked
LNUX301940-TF NC6315 L (mm): 30.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.6 ~ 1.1 | Depth of cut ap (mm): 1.5 ~ 19.0 | Grade: NC6315 | Stock: Not marked
LNUX301940-TF NC3215P L (mm): 30.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.6 ~ 1.1 | Depth of cut ap (mm): 1.5 ~ 19.0 | Grade: NC3215P | Stock: Not marked
LNUX301940-TF NC3225P L (mm): 30.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.6 ~ 1.1 | Depth of cut ap (mm): 1.5 ~ 19.0 | Grade: NC3225P | Stock: Not marked
LNUX191940-TM NC6315 L (mm): 19.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.7 ~ 1.2 | Depth of cut ap (mm): 2.0 ~ 10.0 | Grade: NC6315 | Stock: Not marked
LNUX191940-TM NC3215P L (mm): 19.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.7 ~ 1.2 | Depth of cut ap (mm): 2.0 ~ 10.0 | Grade: NC3215P | Stock: Not marked
LNUX191940-TM NC3225P L (mm): 19.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.7 ~ 1.2 | Depth of cut ap (mm): 2.0 ~ 10.0 | Grade: NC3225P | Stock: Not marked
LNUX301940-TM NC6315 L (mm): 30.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.7 ~ 1.2 | Depth of cut ap (mm): 2.5 ~ 20.0 | Grade: NC6315 | Stock: Not marked
LNUX301940-TM NC3215P L (mm): 30.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.7 ~ 1.2 | Depth of cut ap (mm): 2.5 ~ 20.0 | Grade: NC3215P | Stock: Not marked
LNUX301940-TM NC3225P L (mm): 30.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.7 ~ 1.2 | Depth of cut ap (mm): 2.5 ~ 20.0 | Grade: NC3225P | Stock: Not marked
LNUX191940-TR NC6315 L (mm): 19.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.8 ~ 1.3 | Depth of cut ap (mm): 2.0 ~ 12.0 | Grade: NC6315 | Stock: Not marked
LNUX191940-TR NC3215P L (mm): 19.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.8 ~ 1.3 | Depth of cut ap (mm): 2.0 ~ 12.0 | Grade: NC3215P | Stock: Not marked
LNUX191940-TR NC3225P L (mm): 19.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.8 ~ 1.3 | Depth of cut ap (mm): 2.0 ~ 12.0 | Grade: NC3225P | Stock: Not marked
LNUX301940-TR NC6315 L (mm): 30.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.8 ~ 1.3 | Depth of cut ap (mm): 2.5 ~ 22.0 | Grade: NC6315 | Stock: Not marked
LNUX301940-TR NC3215P L (mm): 30.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.8 ~ 1.3 | Depth of cut ap (mm): 2.5 ~ 22.0 | Grade: NC3215P | Stock: Not marked
LNUX301940-TR NC3225P L (mm): 30.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.8 ~ 1.3 | Depth of cut ap (mm): 2.5 ~ 22.0 | Grade: NC3225P | Stock: Not marked
Turning InsertsKorloy
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Railway Wheel Turning Insert LNUX (TU / TF / TM / TR)

Brand Korloy·Turning Inserts

Available part numbers (24)

LNUX191940-TU NC6315, LNUX191940-TU NC3215P, LNUX191940-TU NC3225P, LNUX301940-TU NC6315, LNUX301940-TU NC3215P, LNUX301940-TU NC3225P, LNUX191940-TF NC6315, LNUX191940-TF NC3215P, LNUX191940-TF NC3225P, LNUX301940-TF NC6315 + 14 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LNUX191940-TU NC6315L (mm): 19.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.5 ~ 1.0 | Depth of cut ap (mm): 1.0 ~ 8.0 | Grade: NC6315 | Stock: Not marked
LNUX191940-TU NC3215PL (mm): 19.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.5 ~ 1.0 | Depth of cut ap (mm): 1.0 ~ 8.0 | Grade: NC3215P | Stock: Not marked
LNUX191940-TU NC3225PL (mm): 19.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.5 ~ 1.0 | Depth of cut ap (mm): 1.0 ~ 8.0 | Grade: NC3225P | Stock: Not marked
LNUX301940-TU NC6315L (mm): 30.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.5 ~ 1.0 | Depth of cut ap (mm): 1.0 ~ 18.0 | Grade: NC6315 | Stock: Not marked
LNUX301940-TU NC3215PL (mm): 30.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.5 ~ 1.0 | Depth of cut ap (mm): 1.0 ~ 18.0 | Grade: NC3215P | Stock: Not marked
LNUX301940-TU NC3225PL (mm): 30.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.5 ~ 1.0 | Depth of cut ap (mm): 1.0 ~ 18.0 | Grade: NC3225P | Stock: Not marked
LNUX191940-TF NC6315L (mm): 19.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.6 ~ 1.1 | Depth of cut ap (mm): 1.5 ~ 9.0 | Grade: NC6315 | Stock: Not marked
LNUX191940-TF NC3215PL (mm): 19.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.6 ~ 1.1 | Depth of cut ap (mm): 1.5 ~ 9.0 | Grade: NC3215P | Stock: Not marked
LNUX191940-TF NC3225PL (mm): 19.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.6 ~ 1.1 | Depth of cut ap (mm): 1.5 ~ 9.0 | Grade: NC3225P | Stock: Not marked
LNUX301940-TF NC6315L (mm): 30.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.6 ~ 1.1 | Depth of cut ap (mm): 1.5 ~ 19.0 | Grade: NC6315 | Stock: Not marked
LNUX301940-TF NC3215PL (mm): 30.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.6 ~ 1.1 | Depth of cut ap (mm): 1.5 ~ 19.0 | Grade: NC3215P | Stock: Not marked
LNUX301940-TF NC3225PL (mm): 30.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.6 ~ 1.1 | Depth of cut ap (mm): 1.5 ~ 19.0 | Grade: NC3225P | Stock: Not marked
LNUX191940-TM NC6315L (mm): 19.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.7 ~ 1.2 | Depth of cut ap (mm): 2.0 ~ 10.0 | Grade: NC6315 | Stock: Not marked
LNUX191940-TM NC3215PL (mm): 19.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.7 ~ 1.2 | Depth of cut ap (mm): 2.0 ~ 10.0 | Grade: NC3215P | Stock: Not marked
LNUX191940-TM NC3225PL (mm): 19.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.7 ~ 1.2 | Depth of cut ap (mm): 2.0 ~ 10.0 | Grade: NC3225P | Stock: Not marked
LNUX301940-TM NC6315L (mm): 30.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.7 ~ 1.2 | Depth of cut ap (mm): 2.5 ~ 20.0 | Grade: NC6315 | Stock: Not marked
LNUX301940-TM NC3215PL (mm): 30.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.7 ~ 1.2 | Depth of cut ap (mm): 2.5 ~ 20.0 | Grade: NC3215P | Stock: Not marked
LNUX301940-TM NC3225PL (mm): 30.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.7 ~ 1.2 | Depth of cut ap (mm): 2.5 ~ 20.0 | Grade: NC3225P | Stock: Not marked
LNUX191940-TR NC6315L (mm): 19.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.8 ~ 1.3 | Depth of cut ap (mm): 2.0 ~ 12.0 | Grade: NC6315 | Stock: Not marked
LNUX191940-TR NC3215PL (mm): 19.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.8 ~ 1.3 | Depth of cut ap (mm): 2.0 ~ 12.0 | Grade: NC3215P | Stock: Not marked
LNUX191940-TR NC3225PL (mm): 19.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.8 ~ 1.3 | Depth of cut ap (mm): 2.0 ~ 12.0 | Grade: NC3225P | Stock: Not marked
LNUX301940-TR NC6315L (mm): 30.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.8 ~ 1.3 | Depth of cut ap (mm): 2.5 ~ 22.0 | Grade: NC6315 | Stock: Not marked
LNUX301940-TR NC3215PL (mm): 30.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.8 ~ 1.3 | Depth of cut ap (mm): 2.5 ~ 22.0 | Grade: NC3215P | Stock: Not marked
LNUX301940-TR NC3225PL (mm): 30.0 | W (mm): 19.0 | S (mm): 19.2 | RE (mm): 4.0 | D1 (mm): 6.35 | Feed fn (mm/rev): 0.8 ~ 1.3 | Depth of cut ap (mm): 2.5 ~ 22.0 | Grade: NC3225P | Stock: Not marked
