• Korloy Rich Mill RM16 Milling Insert ONHX / ONMX
1 1

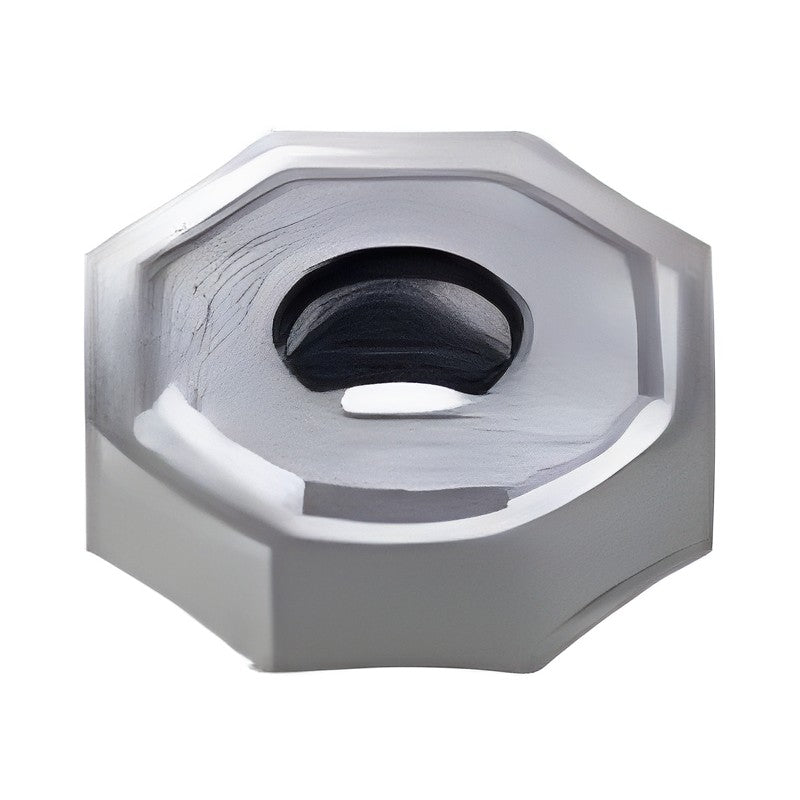

Korloy Rich Mill RM16 Milling Insert ONHX / ONMX

Korloy Rich Mill RM16 Milling Insert ONHX / ONMX

Rich Mill RM16 face milling system with double-sided octagonal inserts providing 16 cutting edges.

Key features

  • Economical 16 cutting edges
  • Wiper insert for good surface roughness
  • Well designed chip pocket
  • Through-coolant system
ONHX060608-ML PC5300 Chip breaker: ML | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
ONHX060608-ML PC5400 Chip breaker: ML | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5400 | Stock: Yes
ONHX080608-ML PC5300 Chip breaker: ML | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
ONHX080608-ML PC5400 Chip breaker: ML | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5400 | Stock: Yes
ONHX060608-MM PC5300 Chip breaker: MM | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
ONHX060608-MM PC5400 Chip breaker: MM | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5400 | Stock: Yes
ONHX080608-MM PC5300 Chip breaker: MM | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
ONHX080608-MM PC5400 Chip breaker: MM | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5400 | Stock: Yes
ONHX0606ANN-MM PC5300 Chip breaker: MM | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.03 | Grade: PC5300 | Stock: Yes
ONHX0606ANN-MM PC5400 Chip breaker: MM | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.03 | Grade: PC5400 | Stock: Yes
ONHX0806ANN-MM PC5300 Chip breaker: MM | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.53 | Grade: PC5300 | Stock: Yes
ONHX0806ANN-MM PC5400 Chip breaker: MM | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.53 | Grade: PC5400 | Stock: Yes
ONHX060608-MA H01 Chip breaker: MA | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: H01 | Stock: Yes
ONHX080608-MA H01 Chip breaker: MA | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: H01 | Stock: Yes
ONHX060608-W PC5300 Chip breaker: W | l (mm): 6.5 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
ONHX080608-W PC5300 Chip breaker: W | l (mm): 8.2 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
ONMX060608-MF PC3600 Chip breaker: MF | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC3600 | Stock: Yes
ONMX060608-MF PC5300 Chip breaker: MF | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
ONMX060608-MF PC5400 Chip breaker: MF | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5400 | Stock: Yes
ONMX080608-MF PC3600 Chip breaker: MF | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC3600 | Stock: Yes
ONMX080608-MF PC5300 Chip breaker: MF | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
ONMX080608-MF PC5400 Chip breaker: MF | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5400 | Stock: Yes
ONMX0606ANN-MF PC3600 Chip breaker: MF | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.03 | Grade: PC3600 | Stock: Yes
ONMX0606ANN-MF PC5300 Chip breaker: MF | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.03 | Grade: PC5300 | Stock: Yes
ONMX0606ANN-MF PC5400 Chip breaker: MF | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.03 | Grade: PC5400 | Stock: Yes
ONMX0806ANN-MF PC3600 Chip breaker: MF | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.53 | Grade: PC3600 | Stock: Yes
ONMX0806ANN-MF PC5300 Chip breaker: MF | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.53 | Grade: PC5300 | Stock: Yes
ONMX0806ANN-MF PC5400 Chip breaker: MF | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.53 | Grade: PC5400 | Stock: Yes
ONMX060608-MM PC3500 Chip breaker: MM | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC3500 | Stock: Yes
ONMX060608-MM PC3600 Chip breaker: MM | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC3600 | Stock: Yes
ONMX060608-MM PC5300 Chip breaker: MM | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
ONMX060608-MM PC5400 Chip breaker: MM | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5400 | Stock: Yes
ONMX080608-MM PC3500 Chip breaker: MM | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC3500 | Stock: Yes
ONMX080608-MM PC3600 Chip breaker: MM | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC3600 | Stock: Yes
ONMX080608-MM PC5300 Chip breaker: MM | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
ONMX080608-MM PC5400 Chip breaker: MM | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5400 | Stock: Yes
ONMX0606ANN-MM PC3500 Chip breaker: MM | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.03 | Grade: PC3500 | Stock: Yes
ONMX0606ANN-MM PC3600 Chip breaker: MM | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.03 | Grade: PC3600 | Stock: Yes
ONMX0606ANN-MM PC5300 Chip breaker: MM | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.03 | Grade: PC5300 | Stock: Yes
ONMX0606ANN-MM PC5400 Chip breaker: MM | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.03 | Grade: PC5400 | Stock: Yes
ONMX0806ANN-MM PC3500 Chip breaker: MM | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.53 | Grade: PC3500 | Stock: Yes
ONMX0806ANN-MM PC3600 Chip breaker: MM | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.53 | Grade: PC3600 | Stock: Yes
ONMX0806ANN-MM PC5300 Chip breaker: MM | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.53 | Grade: PC5300 | Stock: Yes
ONMX0806ANN-MM PC5400 Chip breaker: MM | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.53 | Grade: PC5400 | Stock: Yes
Milling InsertsKorloy
44 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Rich Mill RM16 Milling Insert ONHX / ONMX

Brand Korloy·Milling Inserts

Available part numbers (44)

ONHX060608-ML PC5300, ONHX060608-ML PC5400, ONHX080608-ML PC5300, ONHX080608-ML PC5400, ONHX060608-MM PC5300, ONHX060608-MM PC5400, ONHX080608-MM PC5300, ONHX080608-MM PC5400, ONHX0606ANN-MM PC5300, ONHX0606ANN-MM PC5400 + 34 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ONHX060608-ML PC5300Chip breaker: ML | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
ONHX060608-ML PC5400Chip breaker: ML | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5400 | Stock: Yes
ONHX080608-ML PC5300Chip breaker: ML | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
ONHX080608-ML PC5400Chip breaker: ML | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5400 | Stock: Yes
ONHX060608-MM PC5300Chip breaker: MM | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
ONHX060608-MM PC5400Chip breaker: MM | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5400 | Stock: Yes
ONHX080608-MM PC5300Chip breaker: MM | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
ONHX080608-MM PC5400Chip breaker: MM | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5400 | Stock: Yes
ONHX0606ANN-MM PC5300Chip breaker: MM | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.03 | Grade: PC5300 | Stock: Yes
ONHX0606ANN-MM PC5400Chip breaker: MM | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.03 | Grade: PC5400 | Stock: Yes
ONHX0806ANN-MM PC5300Chip breaker: MM | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.53 | Grade: PC5300 | Stock: Yes
ONHX0806ANN-MM PC5400Chip breaker: MM | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.53 | Grade: PC5400 | Stock: Yes
ONHX060608-MA H01Chip breaker: MA | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: H01 | Stock: Yes
ONHX080608-MA H01Chip breaker: MA | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: H01 | Stock: Yes
ONHX060608-W PC5300Chip breaker: W | l (mm): 6.5 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
ONHX080608-W PC5300Chip breaker: W | l (mm): 8.2 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
ONMX060608-MF PC3600Chip breaker: MF | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC3600 | Stock: Yes
ONMX060608-MF PC5300Chip breaker: MF | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
ONMX060608-MF PC5400Chip breaker: MF | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5400 | Stock: Yes
ONMX080608-MF PC3600Chip breaker: MF | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC3600 | Stock: Yes
ONMX080608-MF PC5300Chip breaker: MF | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
ONMX080608-MF PC5400Chip breaker: MF | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5400 | Stock: Yes
ONMX0606ANN-MF PC3600Chip breaker: MF | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.03 | Grade: PC3600 | Stock: Yes
ONMX0606ANN-MF PC5300Chip breaker: MF | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.03 | Grade: PC5300 | Stock: Yes
ONMX0606ANN-MF PC5400Chip breaker: MF | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.03 | Grade: PC5400 | Stock: Yes
ONMX0806ANN-MF PC3600Chip breaker: MF | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.53 | Grade: PC3600 | Stock: Yes
ONMX0806ANN-MF PC5300Chip breaker: MF | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.53 | Grade: PC5300 | Stock: Yes
ONMX0806ANN-MF PC5400Chip breaker: MF | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.53 | Grade: PC5400 | Stock: Yes
ONMX060608-MM PC3500Chip breaker: MM | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC3500 | Stock: Yes
ONMX060608-MM PC3600Chip breaker: MM | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC3600 | Stock: Yes
ONMX060608-MM PC5300Chip breaker: MM | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
ONMX060608-MM PC5400Chip breaker: MM | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5400 | Stock: Yes
ONMX080608-MM PC3500Chip breaker: MM | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC3500 | Stock: Yes
ONMX080608-MM PC3600Chip breaker: MM | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC3600 | Stock: Yes
ONMX080608-MM PC5300Chip breaker: MM | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
ONMX080608-MM PC5400Chip breaker: MM | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5400 | Stock: Yes
ONMX0606ANN-MM PC3500Chip breaker: MM | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.03 | Grade: PC3500 | Stock: Yes
ONMX0606ANN-MM PC3600Chip breaker: MM | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.03 | Grade: PC3600 | Stock: Yes
ONMX0606ANN-MM PC5300Chip breaker: MM | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.03 | Grade: PC5300 | Stock: Yes
ONMX0606ANN-MM PC5400Chip breaker: MM | l (mm): 6.6 | d (mm): 16.0 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.03 | Grade: PC5400 | Stock: Yes
ONMX0806ANN-MM PC3500Chip breaker: MM | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.53 | Grade: PC3500 | Stock: Yes
ONMX0806ANN-MM PC3600Chip breaker: MM | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.53 | Grade: PC3600 | Stock: Yes
ONMX0806ANN-MM PC5300Chip breaker: MM | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.53 | Grade: PC5300 | Stock: Yes
ONMX0806ANN-MM PC5400Chip breaker: MM | l (mm): 8.4 | d (mm): 20.2 | t (mm): 6.0 | r (mm): 0.8 | d1 (mm): 5.6 | a (mm): 1.53 | Grade: PC5400 | Stock: Yes
