• Korloy Rich Mill RM3 Milling Insert XNKT / XNCT
1 1

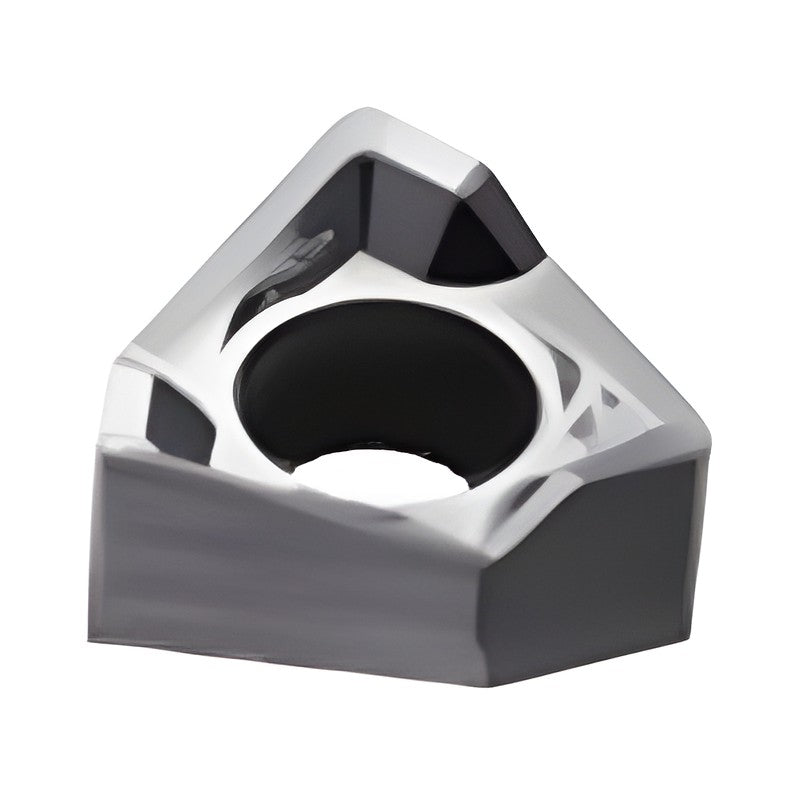

Korloy Rich Mill RM3 Milling Insert XNKT / XNCT

Korloy Rich Mill RM3 Milling Insert XNKT / XNCT

Rich Mill RM3 shoulder milling system with true 90-degree shouldering and 3-face clamping of thick inserts.

Key features

  • True 90-degree shouldering
  • Strong thick insert with 3-face clamping
  • Direct through-coolant injection
  • MA, ML and MM chip breakers
XNKT060405PNER-ML PC3600 Chip breaker: ML | l (mm): 5.7 | d (mm): 6.5 | t (mm): 4.0 | r (mm): 0.5 | d1 (mm): 3.4 | a (mm): 1.8 | Grade: PC3600 | Stock: Yes
XNKT060405PNER-ML PC5300 Chip breaker: ML | l (mm): 5.7 | d (mm): 6.5 | t (mm): 4.0 | r (mm): 0.5 | d1 (mm): 3.4 | a (mm): 1.8 | Grade: PC5300 | Stock: Yes
XNKT060405PNER-ML PC5400 Chip breaker: ML | l (mm): 5.7 | d (mm): 6.5 | t (mm): 4.0 | r (mm): 0.5 | d1 (mm): 3.4 | a (mm): 1.8 | Grade: PC5400 | Stock: Yes
XNKT080508PNER-ML PC3600 Chip breaker: ML | l (mm): 8.2 | d (mm): 10.0 | t (mm): 5.5 | r (mm): 0.8 | d1 (mm): 4.5 | a (mm): 2.9 | Grade: PC3600 | Stock: Yes
XNKT080508PNER-ML PC5300 Chip breaker: ML | l (mm): 8.2 | d (mm): 10.0 | t (mm): 5.5 | r (mm): 0.8 | d1 (mm): 4.5 | a (mm): 2.9 | Grade: PC5300 | Stock: Yes
XNKT080508PNER-ML PC5400 Chip breaker: ML | l (mm): 8.2 | d (mm): 10.0 | t (mm): 5.5 | r (mm): 0.8 | d1 (mm): 4.5 | a (mm): 2.9 | Grade: PC5400 | Stock: Yes
XNCT060405PNSR-MM PC3600 Chip breaker: MM | l (mm): 5.7 | d (mm): 6.5 | t (mm): 4.0 | r (mm): 0.5 | d1 (mm): 3.4 | a (mm): 1.8 | Grade: PC3600 | Stock: Yes
XNCT060405PNSR-MM PC5300 Chip breaker: MM | l (mm): 5.7 | d (mm): 6.5 | t (mm): 4.0 | r (mm): 0.5 | d1 (mm): 3.4 | a (mm): 1.8 | Grade: PC5300 | Stock: Yes
XNCT060405PNSR-MM PC5400 Chip breaker: MM | l (mm): 5.7 | d (mm): 6.5 | t (mm): 4.0 | r (mm): 0.5 | d1 (mm): 3.4 | a (mm): 1.8 | Grade: PC5400 | Stock: Yes
XNCT060405PNSR-MM H01 Chip breaker: MM | l (mm): 5.7 | d (mm): 6.5 | t (mm): 4.0 | r (mm): 0.5 | d1 (mm): 3.4 | a (mm): 1.8 | Grade: H01 | Stock: Yes
XNCT080508PNSR-MM PC3600 Chip breaker: MM | l (mm): 8.2 | d (mm): 10.0 | t (mm): 5.5 | r (mm): 0.8 | d1 (mm): 4.5 | a (mm): 2.9 | Grade: PC3600 | Stock: Yes
XNCT080508PNSR-MM PC5300 Chip breaker: MM | l (mm): 8.2 | d (mm): 10.0 | t (mm): 5.5 | r (mm): 0.8 | d1 (mm): 4.5 | a (mm): 2.9 | Grade: PC5300 | Stock: Yes
XNCT080508PNSR-MM PC5400 Chip breaker: MM | l (mm): 8.2 | d (mm): 10.0 | t (mm): 5.5 | r (mm): 0.8 | d1 (mm): 4.5 | a (mm): 2.9 | Grade: PC5400 | Stock: Yes
XNCT080508PNFR-MA H01 Chip breaker: MA | l (mm): 8.2 | d (mm): 10.0 | t (mm): 5.5 | r (mm): 0.8 | d1 (mm): 4.5 | a (mm): 2.9 | Grade: H01 | Stock: Yes
Milling InsertsKorloy
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Rich Mill RM3 Milling Insert XNKT / XNCT

Brand Korloy·Milling Inserts

Available part numbers (14)

XNKT060405PNER-ML PC3600, XNKT060405PNER-ML PC5300, XNKT060405PNER-ML PC5400, XNKT080508PNER-ML PC3600, XNKT080508PNER-ML PC5300, XNKT080508PNER-ML PC5400, XNCT060405PNSR-MM PC3600, XNCT060405PNSR-MM PC5300, XNCT060405PNSR-MM PC5400, XNCT060405PNSR-MM H01 + 4 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
XNKT060405PNER-ML PC3600Chip breaker: ML | l (mm): 5.7 | d (mm): 6.5 | t (mm): 4.0 | r (mm): 0.5 | d1 (mm): 3.4 | a (mm): 1.8 | Grade: PC3600 | Stock: Yes
XNKT060405PNER-ML PC5300Chip breaker: ML | l (mm): 5.7 | d (mm): 6.5 | t (mm): 4.0 | r (mm): 0.5 | d1 (mm): 3.4 | a (mm): 1.8 | Grade: PC5300 | Stock: Yes
XNKT060405PNER-ML PC5400Chip breaker: ML | l (mm): 5.7 | d (mm): 6.5 | t (mm): 4.0 | r (mm): 0.5 | d1 (mm): 3.4 | a (mm): 1.8 | Grade: PC5400 | Stock: Yes
XNKT080508PNER-ML PC3600Chip breaker: ML | l (mm): 8.2 | d (mm): 10.0 | t (mm): 5.5 | r (mm): 0.8 | d1 (mm): 4.5 | a (mm): 2.9 | Grade: PC3600 | Stock: Yes
XNKT080508PNER-ML PC5300Chip breaker: ML | l (mm): 8.2 | d (mm): 10.0 | t (mm): 5.5 | r (mm): 0.8 | d1 (mm): 4.5 | a (mm): 2.9 | Grade: PC5300 | Stock: Yes
XNKT080508PNER-ML PC5400Chip breaker: ML | l (mm): 8.2 | d (mm): 10.0 | t (mm): 5.5 | r (mm): 0.8 | d1 (mm): 4.5 | a (mm): 2.9 | Grade: PC5400 | Stock: Yes
XNCT060405PNSR-MM PC3600Chip breaker: MM | l (mm): 5.7 | d (mm): 6.5 | t (mm): 4.0 | r (mm): 0.5 | d1 (mm): 3.4 | a (mm): 1.8 | Grade: PC3600 | Stock: Yes
XNCT060405PNSR-MM PC5300Chip breaker: MM | l (mm): 5.7 | d (mm): 6.5 | t (mm): 4.0 | r (mm): 0.5 | d1 (mm): 3.4 | a (mm): 1.8 | Grade: PC5300 | Stock: Yes
XNCT060405PNSR-MM PC5400Chip breaker: MM | l (mm): 5.7 | d (mm): 6.5 | t (mm): 4.0 | r (mm): 0.5 | d1 (mm): 3.4 | a (mm): 1.8 | Grade: PC5400 | Stock: Yes
XNCT060405PNSR-MM H01Chip breaker: MM | l (mm): 5.7 | d (mm): 6.5 | t (mm): 4.0 | r (mm): 0.5 | d1 (mm): 3.4 | a (mm): 1.8 | Grade: H01 | Stock: Yes
XNCT080508PNSR-MM PC3600Chip breaker: MM | l (mm): 8.2 | d (mm): 10.0 | t (mm): 5.5 | r (mm): 0.8 | d1 (mm): 4.5 | a (mm): 2.9 | Grade: PC3600 | Stock: Yes
XNCT080508PNSR-MM PC5300Chip breaker: MM | l (mm): 8.2 | d (mm): 10.0 | t (mm): 5.5 | r (mm): 0.8 | d1 (mm): 4.5 | a (mm): 2.9 | Grade: PC5300 | Stock: Yes
XNCT080508PNSR-MM PC5400Chip breaker: MM | l (mm): 8.2 | d (mm): 10.0 | t (mm): 5.5 | r (mm): 0.8 | d1 (mm): 4.5 | a (mm): 2.9 | Grade: PC5400 | Stock: Yes
XNCT080508PNFR-MA H01Chip breaker: MA | l (mm): 8.2 | d (mm): 10.0 | t (mm): 5.5 | r (mm): 0.8 | d1 (mm): 4.5 | a (mm): 2.9 | Grade: H01 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →
