• Korloy Rich Mill RM8 Milling Insert SNMX / SNEX
1 1

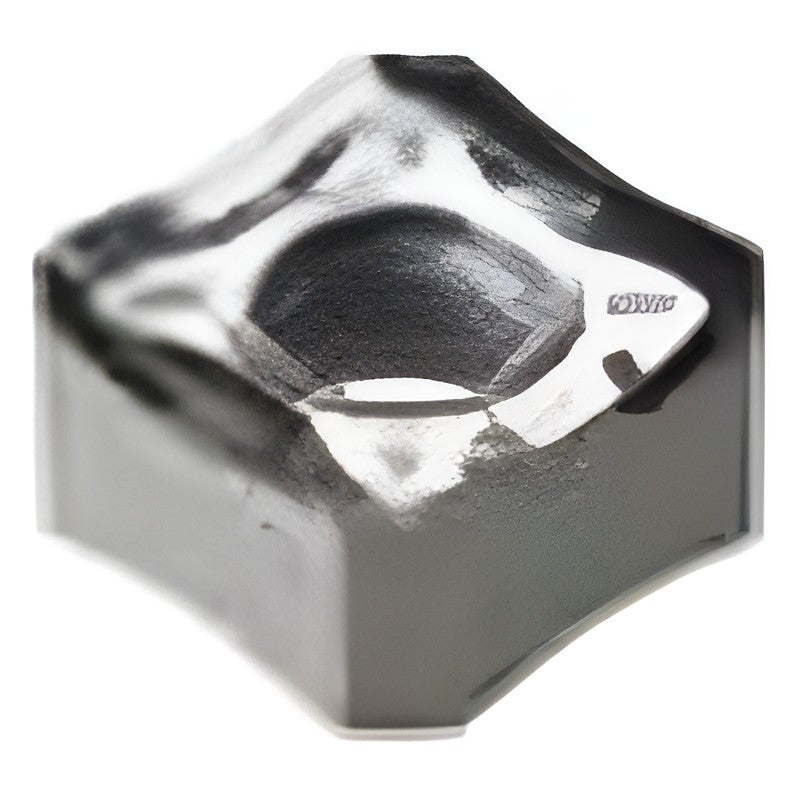

Korloy Rich Mill RM8 Milling Insert SNMX / SNEX

Korloy Rich Mill RM8 Milling Insert SNMX / SNEX

Rich Mill RM8 face milling system with double-sided square inserts providing 8 cutting edges.

Key features

  • Double-sided insert with 8 cutting edges
  • High rake geometry for excellent surface finish
  • Various pitches and chip breakers
  • Suitable for high speed machining and low-power machines
SNEX1206ANN-MA H01 Chip breaker: MA | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: H01 | Stock: Yes
SNEX1206ENN-MA H01 Chip breaker: MA | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 1.82 | Grade: H01 | Stock: Yes
SNEX1206QNN-MA H01 Chip breaker: MA | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 1.39 | Grade: H01 | Stock: Yes
SNEX120612-MA H01 Chip breaker: MA | d (mm): 12.7 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 5.2 | Grade: H01 | Stock: Yes
SNEX1206ANN-ML PC5300 Chip breaker: ML | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
SNEX1206ANN-ML PC5400 Chip breaker: ML | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
SNEX1206ENN-ML PC5300 Chip breaker: ML | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC5300 | Stock: Yes
SNEX1206ENN-ML PC5400 Chip breaker: ML | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC5400 | Stock: Yes
SNEX1206QNN-ML PC5300 Chip breaker: ML | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 1.82 | Grade: PC5300 | Stock: Yes
SNEX1206QNN-ML PC5400 Chip breaker: ML | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 1.82 | Grade: PC5400 | Stock: Yes
SNEX120612-ML PC5300 Chip breaker: ML | d (mm): 12.7 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 4.5 | a (mm): 1.39 | Grade: PC5300 | Stock: Yes
SNEX120612-ML PC5400 Chip breaker: ML | d (mm): 12.7 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 4.5 | a (mm): 1.39 | Grade: PC5400 | Stock: Yes
SNEX1507ANN-ML PC5300 Chip breaker: ML | d (mm): 15.875 | t (mm): 7.94 | d1 (mm): 5.6 | a (mm): 3.16 | Grade: PC5300 | Stock: Yes
SNEX1507ANN-ML PC5400 Chip breaker: ML | d (mm): 15.875 | t (mm): 7.94 | d1 (mm): 5.6 | a (mm): 3.16 | Grade: PC5400 | Stock: Yes
SNEX1507ENN-ML PC5300 Chip breaker: ML | d (mm): 15.875 | t (mm): 7.94 | d1 (mm): 5.6 | a (mm): 2.66 | Grade: PC5300 | Stock: Yes
SNEX1507ENN-ML PC5400 Chip breaker: ML | d (mm): 15.875 | t (mm): 7.94 | d1 (mm): 5.6 | a (mm): 2.66 | Grade: PC5400 | Stock: Yes
SNMX1206ANN-MF PC3500 Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC3500 | Stock: Yes
SNMX1206ANN-MF PC3600 Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC3600 | Stock: Yes
SNMX1206ANN-MF PC5300 Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC5300 | Stock: Yes
SNMX1206ANN-MF PC5400 Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC5400 | Stock: Yes
SNEX1206ANN-MF PC3500 Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC3500 | Stock: Yes
SNEX1206ANN-MF PC3600 Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC3600 | Stock: Yes
SNEX1206ANN-MF PC5300 Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC5300 | Stock: Yes
SNEX1206ANN-MF PC5400 Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC5400 | Stock: Yes
SNMX1206ENN-MF PC3500 Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 1.82 | Grade: PC3500 | Stock: Yes
SNMX1206ENN-MF PC3600 Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 1.82 | Grade: PC3600 | Stock: Yes
SNMX1206ENN-MF PC5300 Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 1.82 | Grade: PC5300 | Stock: Yes
SNMX1206ENN-MF PC5400 Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 1.82 | Grade: PC5400 | Stock: Yes
SNEX1206ENN-MF PC5300 Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 1.82 | Grade: PC5300 | Stock: Yes
SNEX1206ENN-MF PC5400 Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 1.82 | Grade: PC5400 | Stock: Yes
SNMX1206QNN-MF PC3500 Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 2.36 | Grade: PC3500 | Stock: Yes
SNMX1206QNN-MF PC3600 Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 2.36 | Grade: PC3600 | Stock: Yes
SNMX1206QNN-MF PC5300 Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 2.36 | Grade: PC5300 | Stock: Yes
SNMX1206QNN-MF PC5400 Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 2.36 | Grade: PC5400 | Stock: Yes
SNMX120612-MF PC3600 Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 5.2 | Grade: PC3600 | Stock: Yes
SNMX120612-MF PC5300 Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 5.2 | Grade: PC5300 | Stock: Yes
SNMX120612-MF PC5400 Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 5.2 | Grade: PC5400 | Stock: Yes
SNEX1206QNN-MF PC3500 Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 2.36 | Grade: PC3500 | Stock: Yes
SNEX1206QNN-MF PC5300 Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 2.36 | Grade: PC5300 | Stock: Yes
SNEX1206QNN-MF PC5400 Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 2.36 | Grade: PC5400 | Stock: Yes
SNEX120612-MF PC5300 Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 5.2 | Grade: PC5300 | Stock: Yes
SNEX120612-MF PC5400 Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 5.2 | Grade: PC5400 | Stock: Yes
SNMX1206ANN-MM PC3500 Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC3500 | Stock: Yes
SNMX1206ANN-MM PC3600 Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC3600 | Stock: Yes
SNMX1206ANN-MM PC5300 Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC5300 | Stock: Yes
SNMX1206ANN-MM PC5400 Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC5400 | Stock: Yes
SNEX1206ANN-MM PC3500 Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC3500 | Stock: Yes
SNEX1206ANN-MM PC3600 Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC3600 | Stock: Yes
SNEX1206ANN-MM PC5300 Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC5300 | Stock: Yes
SNEX1206ANN-MM PC5400 Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC5400 | Stock: Yes
SNMX1206ENN-MM PC3500 Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 1.82 | Grade: PC3500 | Stock: Yes
SNMX1206ENN-MM PC3600 Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 1.82 | Grade: PC3600 | Stock: Yes
SNMX1206ENN-MM PC5300 Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 1.82 | Grade: PC5300 | Stock: Yes
SNMX1206ENN-MM PC5400 Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 1.82 | Grade: PC5400 | Stock: Yes
SNEX1206ENN-MM PC3600 Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 1.82 | Grade: PC3600 | Stock: Yes
SNEX1206ENN-MM PC5300 Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 1.82 | Grade: PC5300 | Stock: Yes
SNEX1206ENN-MM PC5400 Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 1.82 | Grade: PC5400 | Stock: Yes
SNMX1206QNN-MM PC3500 Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC3500 | Stock: Yes
SNMX1206QNN-MM PC3600 Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC3600 | Stock: Yes
SNMX1206QNN-MM PC5300 Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC5300 | Stock: Yes
SNMX1206QNN-MM PC5400 Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC5400 | Stock: Yes
SNMX120612-MM PC3500 Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 4.5 | Grade: PC3500 | Stock: Yes
SNMX120612-MM PC3600 Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 4.5 | Grade: PC3600 | Stock: Yes
SNMX120612-MM PC5300 Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
SNMX120612-MM PC5400 Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
SNEX1206QNN-MM PC5300 Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC5300 | Stock: Yes
SNEX1206QNN-MM PC5400 Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC5400 | Stock: Yes
Milling InsertsKorloy
67 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Rich Mill RM8 Milling Insert SNMX / SNEX

Brand Korloy·Milling Inserts

Available part numbers (67)

SNEX1206ANN-MA H01, SNEX1206ENN-MA H01, SNEX1206QNN-MA H01, SNEX120612-MA H01, SNEX1206ANN-ML PC5300, SNEX1206ANN-ML PC5400, SNEX1206ENN-ML PC5300, SNEX1206ENN-ML PC5400, SNEX1206QNN-ML PC5300, SNEX1206QNN-ML PC5400 + 57 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SNEX1206ANN-MA H01Chip breaker: MA | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: H01 | Stock: Yes
SNEX1206ENN-MA H01Chip breaker: MA | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 1.82 | Grade: H01 | Stock: Yes
SNEX1206QNN-MA H01Chip breaker: MA | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 1.39 | Grade: H01 | Stock: Yes
SNEX120612-MA H01Chip breaker: MA | d (mm): 12.7 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 5.2 | Grade: H01 | Stock: Yes
SNEX1206ANN-ML PC5300Chip breaker: ML | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
SNEX1206ANN-ML PC5400Chip breaker: ML | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
SNEX1206ENN-ML PC5300Chip breaker: ML | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC5300 | Stock: Yes
SNEX1206ENN-ML PC5400Chip breaker: ML | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC5400 | Stock: Yes
SNEX1206QNN-ML PC5300Chip breaker: ML | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 1.82 | Grade: PC5300 | Stock: Yes
SNEX1206QNN-ML PC5400Chip breaker: ML | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 1.82 | Grade: PC5400 | Stock: Yes
SNEX120612-ML PC5300Chip breaker: ML | d (mm): 12.7 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 4.5 | a (mm): 1.39 | Grade: PC5300 | Stock: Yes
SNEX120612-ML PC5400Chip breaker: ML | d (mm): 12.7 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 4.5 | a (mm): 1.39 | Grade: PC5400 | Stock: Yes
SNEX1507ANN-ML PC5300Chip breaker: ML | d (mm): 15.875 | t (mm): 7.94 | d1 (mm): 5.6 | a (mm): 3.16 | Grade: PC5300 | Stock: Yes
SNEX1507ANN-ML PC5400Chip breaker: ML | d (mm): 15.875 | t (mm): 7.94 | d1 (mm): 5.6 | a (mm): 3.16 | Grade: PC5400 | Stock: Yes
SNEX1507ENN-ML PC5300Chip breaker: ML | d (mm): 15.875 | t (mm): 7.94 | d1 (mm): 5.6 | a (mm): 2.66 | Grade: PC5300 | Stock: Yes
SNEX1507ENN-ML PC5400Chip breaker: ML | d (mm): 15.875 | t (mm): 7.94 | d1 (mm): 5.6 | a (mm): 2.66 | Grade: PC5400 | Stock: Yes
SNMX1206ANN-MF PC3500Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC3500 | Stock: Yes
SNMX1206ANN-MF PC3600Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC3600 | Stock: Yes
SNMX1206ANN-MF PC5300Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC5300 | Stock: Yes
SNMX1206ANN-MF PC5400Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC5400 | Stock: Yes
SNEX1206ANN-MF PC3500Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC3500 | Stock: Yes
SNEX1206ANN-MF PC3600Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC3600 | Stock: Yes
SNEX1206ANN-MF PC5300Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC5300 | Stock: Yes
SNEX1206ANN-MF PC5400Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC5400 | Stock: Yes
SNMX1206ENN-MF PC3500Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 1.82 | Grade: PC3500 | Stock: Yes
SNMX1206ENN-MF PC3600Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 1.82 | Grade: PC3600 | Stock: Yes
SNMX1206ENN-MF PC5300Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 1.82 | Grade: PC5300 | Stock: Yes
SNMX1206ENN-MF PC5400Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 1.82 | Grade: PC5400 | Stock: Yes
SNEX1206ENN-MF PC5300Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 1.82 | Grade: PC5300 | Stock: Yes
SNEX1206ENN-MF PC5400Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 1.82 | Grade: PC5400 | Stock: Yes
SNMX1206QNN-MF PC3500Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 2.36 | Grade: PC3500 | Stock: Yes
SNMX1206QNN-MF PC3600Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 2.36 | Grade: PC3600 | Stock: Yes
SNMX1206QNN-MF PC5300Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 2.36 | Grade: PC5300 | Stock: Yes
SNMX1206QNN-MF PC5400Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 2.36 | Grade: PC5400 | Stock: Yes
SNMX120612-MF PC3600Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 5.2 | Grade: PC3600 | Stock: Yes
SNMX120612-MF PC5300Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 5.2 | Grade: PC5300 | Stock: Yes
SNMX120612-MF PC5400Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 5.2 | Grade: PC5400 | Stock: Yes
SNEX1206QNN-MF PC3500Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 2.36 | Grade: PC3500 | Stock: Yes
SNEX1206QNN-MF PC5300Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 2.36 | Grade: PC5300 | Stock: Yes
SNEX1206QNN-MF PC5400Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 2.36 | Grade: PC5400 | Stock: Yes
SNEX120612-MF PC5300Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 5.2 | Grade: PC5300 | Stock: Yes
SNEX120612-MF PC5400Chip breaker: MF | d (mm): 12.7 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 5.2 | Grade: PC5400 | Stock: Yes
SNMX1206ANN-MM PC3500Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC3500 | Stock: Yes
SNMX1206ANN-MM PC3600Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC3600 | Stock: Yes
SNMX1206ANN-MM PC5300Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC5300 | Stock: Yes
SNMX1206ANN-MM PC5400Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC5400 | Stock: Yes
SNEX1206ANN-MM PC3500Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC3500 | Stock: Yes
SNEX1206ANN-MM PC3600Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC3600 | Stock: Yes
SNEX1206ANN-MM PC5300Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC5300 | Stock: Yes
SNEX1206ANN-MM PC5400Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC5400 | Stock: Yes
SNMX1206ENN-MM PC3500Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 1.82 | Grade: PC3500 | Stock: Yes
SNMX1206ENN-MM PC3600Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 1.82 | Grade: PC3600 | Stock: Yes
SNMX1206ENN-MM PC5300Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 1.82 | Grade: PC5300 | Stock: Yes
SNMX1206ENN-MM PC5400Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 1.82 | Grade: PC5400 | Stock: Yes
SNEX1206ENN-MM PC3600Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 1.82 | Grade: PC3600 | Stock: Yes
SNEX1206ENN-MM PC5300Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 1.82 | Grade: PC5300 | Stock: Yes
SNEX1206ENN-MM PC5400Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 5.2 | a (mm): 1.82 | Grade: PC5400 | Stock: Yes
SNMX1206QNN-MM PC3500Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC3500 | Stock: Yes
SNMX1206QNN-MM PC3600Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC3600 | Stock: Yes
SNMX1206QNN-MM PC5300Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC5300 | Stock: Yes
SNMX1206QNN-MM PC5400Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC5400 | Stock: Yes
SNMX120612-MM PC3500Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 4.5 | Grade: PC3500 | Stock: Yes
SNMX120612-MM PC3600Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 4.5 | Grade: PC3600 | Stock: Yes
SNMX120612-MM PC5300Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
SNMX120612-MM PC5400Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
SNEX1206QNN-MM PC5300Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC5300 | Stock: Yes
SNEX1206QNN-MM PC5400Chip breaker: MM | d (mm): 12.7 | t (mm): 6.35 | d1 (mm): 4.5 | a (mm): 2.36 | Grade: PC5400 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →
