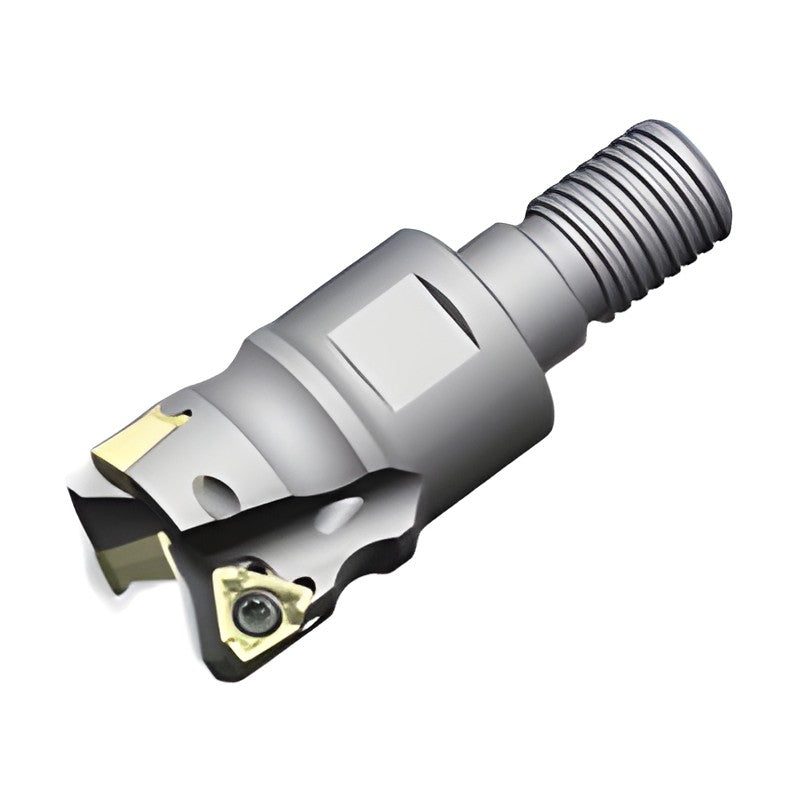

Korloy RM3 Modular Head Milling Cutter RM3PM

Korloy RM3 Modular Head Milling Cutter RM3PM

Screw-in modular head RM3 milling cutter (90 degree approach) for XNKT 0604 (3000 type) and XNCT/XNKT 0805 (4000 type) inserts.

Key features

  • Modular threaded head for MAT adaptors
  • 90 degree approach angle
  • 3000 type and 4000 type insert sizes

Specifications

Approach angle 90 deg
RM3PM3020HR-2-M10 Cutting dia. D (mm): 20 | d (mm): 18 | d1 (mm): 10.5 | l (mm): 30 | L (mm): 50 | Thread M: M10 | Max. depth ap (mm): 5.5 | Inserts (pcs): 2 | Weight (kg): 0.06 | Insert: XNKT 0604 | Screw: FTNA0306 | Adaptor: MAT-M10
RM3PM3025HR-3-M12 Cutting dia. D (mm): 25 | d (mm): 21 | d1 (mm): 12.5 | l (mm): 35 | L (mm): 58 | Thread M: M12 | Max. depth ap (mm): 5.5 | Inserts (pcs): 3 | Weight (kg): 0.1 | Insert: XNKT 0604 | Screw: FTNA0306 | Adaptor: MAT-M12
RM3PM3032HR-4-M16 Cutting dia. D (mm): 32 | d (mm): 29 | d1 (mm): 17 | l (mm): 40 | L (mm): 66 | Thread M: M16 | Max. depth ap (mm): 5.5 | Inserts (pcs): 4 | Weight (kg): 0.21 | Insert: XNKT 0604 | Screw: FTNA0306 | Adaptor: MAT-M16
RM3PM3040HR-5-M16 Cutting dia. D (mm): 40 | d (mm): 29 | d1 (mm): 17 | l (mm): 40 | L (mm): 66 | Thread M: M16 | Max. depth ap (mm): 5.5 | Inserts (pcs): 5 | Weight (kg): 0.26 | Insert: XNKT 0604 | Screw: FTNA0306 | Adaptor: MAT-M16
RM3PM4032HR-3-M16 Cutting dia. D (mm): 32 | d (mm): 29 | d1 (mm): 17 | l (mm): 40 | L (mm): 66 | Thread M: M16 | Max. depth ap (mm): 8 | Inserts (pcs): 3 | Weight (kg): 0.21 | Insert: XNCT/XNKT 0805 | Screw: FTNA0408 | Adaptor: MAT-M16
RM3PM4040HR-4-M16 Cutting dia. D (mm): 40 | d (mm): 29 | d1 (mm): 17 | l (mm): 50 | L (mm): 76 | Thread M: M16 | Max. depth ap (mm): 8 | Inserts (pcs): 4 | Weight (kg): 0.33 | Insert: XNCT/XNKT 0805 | Screw: FTNA0408 | Adaptor: MAT-M16
RM3PM4050HR-5-M16 Cutting dia. D (mm): 50 | d (mm): 29 | d1 (mm): 17 | l (mm): 55 | L (mm): 81 | Thread M: M16 | Max. depth ap (mm): 8 | Inserts (pcs): 5 | Weight (kg): 0.49 | Insert: XNCT/XNKT 0805 | Screw: FTNA0408 | Adaptor: MAT-M16
Milling CuttersKorloy
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy RM3 Modular Head Milling Cutter RM3PM

Brand Korloy·Milling Cutters

Available part numbers (7)

RM3PM3020HR-2-M10, RM3PM3025HR-3-M12, RM3PM3032HR-4-M16, RM3PM3040HR-5-M16, RM3PM4032HR-3-M16, RM3PM4040HR-4-M16, RM3PM4050HR-5-M16

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RM3PM3020HR-2-M10Cutting dia. D (mm): 20 | d (mm): 18 | d1 (mm): 10.5 | l (mm): 30 | L (mm): 50 | Thread M: M10 | Max. depth ap (mm): 5.5 | Inserts (pcs): 2 | Weight (kg): 0.06 | Insert: XNKT 0604 | Screw: FTNA0306 | Adaptor: MAT-M10
RM3PM3025HR-3-M12Cutting dia. D (mm): 25 | d (mm): 21 | d1 (mm): 12.5 | l (mm): 35 | L (mm): 58 | Thread M: M12 | Max. depth ap (mm): 5.5 | Inserts (pcs): 3 | Weight (kg): 0.1 | Insert: XNKT 0604 | Screw: FTNA0306 | Adaptor: MAT-M12
RM3PM3032HR-4-M16Cutting dia. D (mm): 32 | d (mm): 29 | d1 (mm): 17 | l (mm): 40 | L (mm): 66 | Thread M: M16 | Max. depth ap (mm): 5.5 | Inserts (pcs): 4 | Weight (kg): 0.21 | Insert: XNKT 0604 | Screw: FTNA0306 | Adaptor: MAT-M16
RM3PM3040HR-5-M16Cutting dia. D (mm): 40 | d (mm): 29 | d1 (mm): 17 | l (mm): 40 | L (mm): 66 | Thread M: M16 | Max. depth ap (mm): 5.5 | Inserts (pcs): 5 | Weight (kg): 0.26 | Insert: XNKT 0604 | Screw: FTNA0306 | Adaptor: MAT-M16
RM3PM4032HR-3-M16Cutting dia. D (mm): 32 | d (mm): 29 | d1 (mm): 17 | l (mm): 40 | L (mm): 66 | Thread M: M16 | Max. depth ap (mm): 8 | Inserts (pcs): 3 | Weight (kg): 0.21 | Insert: XNCT/XNKT 0805 | Screw: FTNA0408 | Adaptor: MAT-M16
RM3PM4040HR-4-M16Cutting dia. D (mm): 40 | d (mm): 29 | d1 (mm): 17 | l (mm): 50 | L (mm): 76 | Thread M: M16 | Max. depth ap (mm): 8 | Inserts (pcs): 4 | Weight (kg): 0.33 | Insert: XNCT/XNKT 0805 | Screw: FTNA0408 | Adaptor: MAT-M16
RM3PM4050HR-5-M16Cutting dia. D (mm): 50 | d (mm): 29 | d1 (mm): 17 | l (mm): 55 | L (mm): 81 | Thread M: M16 | Max. depth ap (mm): 8 | Inserts (pcs): 5 | Weight (kg): 0.49 | Insert: XNCT/XNKT 0805 | Screw: FTNA0408 | Adaptor: MAT-M16
