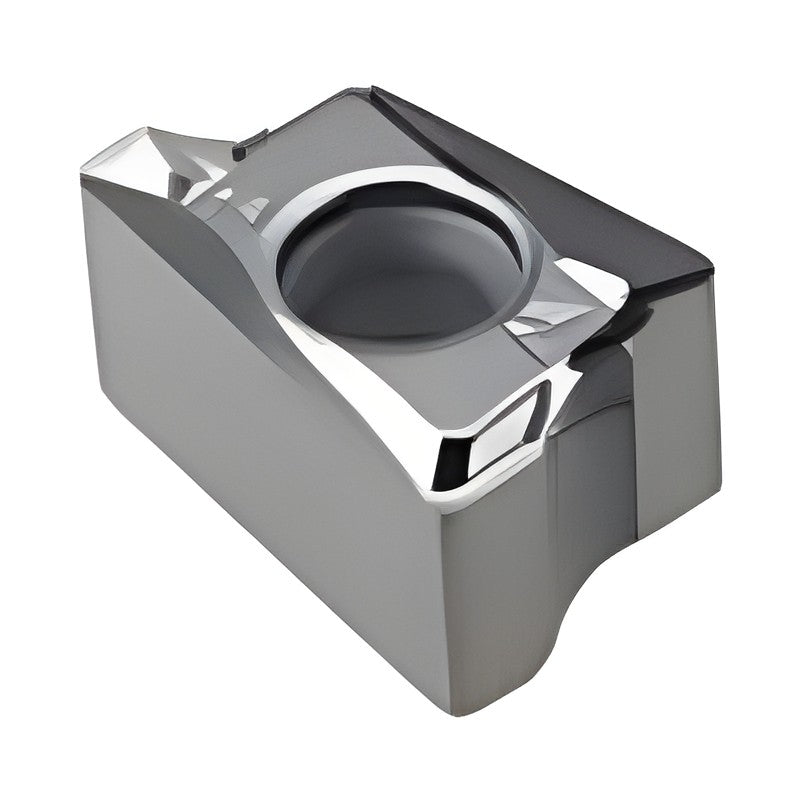

Korloy RM4 Double-Sided Milling Insert LNMX/LNEX

Korloy RM4 Double-Sided Milling Insert LNMX/LNEX

Double-sided negative LNMX/LNEX inserts with four cutting edges for RM4 multi-functional milling cutters.

Key features

  • 4 cutting edges per double-sided insert
  • MA: aluminum and light machining
  • MF: light cutting, low cutting load
  • MM: general cutting

Specifications

Holder RM4
LNMX100605PNR-MF PC6510 Edge length l (mm): 10.0 | Inscribed circle d (mm): 6.5 | Thickness t (mm): 6.5 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 3.5 | Chip breaker: MF | Grade: PC6510 | Stock: Yes
LNMX100608PNR-MF PC6510 Edge length l (mm): 10.0 | Inscribed circle d (mm): 6.5 | Thickness t (mm): 6.5 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 3.5 | Chip breaker: MF | Grade: PC6510 | Stock: Yes
LNMX151004PNR-MF PC6510 Edge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 4.5 | Chip breaker: MF | Grade: PC6510 | Stock: Yes
LNMX151008PNR-MF PC6510 Edge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 4.5 | Chip breaker: MF | Grade: PC6510 | Stock: Yes
LNMX151016PNR-MF PC6510 Edge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 1.6 | Hole dia. d1 (mm): 4.5 | Chip breaker: MF | Grade: PC6510 | Stock: Yes
LNEX100605PNR-MF PC6510 Edge length l (mm): 10.0 | Inscribed circle d (mm): 6.5 | Thickness t (mm): 6.5 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 3.5 | Chip breaker: MF | Grade: PC6510 | Stock: Yes
LNEX100608PNR-MF PC6510 Edge length l (mm): 10.0 | Inscribed circle d (mm): 6.5 | Thickness t (mm): 6.5 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 3.5 | Chip breaker: MF | Grade: PC6510 | Stock: Yes
LNEX151004PNR-MF PC6510 Edge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 4.5 | Chip breaker: MF | Grade: PC6510 | Stock: Yes
LNEX151008PNR-MF PC6510 Edge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 4.5 | Chip breaker: MF | Grade: PC6510 | Stock: Yes
LNEX151016PNR-MF PC6510 Edge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 1.6 | Hole dia. d1 (mm): 4.5 | Chip breaker: MF | Grade: PC6510 | Stock: Yes
LNMX100605PNR-MM PC9530 Edge length l (mm): 10.0 | Inscribed circle d (mm): 6.5 | Thickness t (mm): 6.5 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 3.5 | Chip breaker: MM | Grade: PC9530 | Stock: Yes
LNMX100605PNR-MM PC6510 Edge length l (mm): 10.0 | Inscribed circle d (mm): 6.5 | Thickness t (mm): 6.5 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 3.5 | Chip breaker: MM | Grade: PC6510 | Stock: Yes
LNMX100605PNL-MM Edge length l (mm): 10.0 | Inscribed circle d (mm): 6.5 | Thickness t (mm): 6.5 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 3.5 | Chip breaker: MM
LNMX151004PNR-MM PC6510 Edge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 4.5 | Chip breaker: MM | Grade: PC6510 | Stock: Yes
LNMX151008PNR-MM PC9530 Edge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 4.5 | Chip breaker: MM | Grade: PC9530 | Stock: Yes
LNMX151008PNR-MM PC6510 Edge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 4.5 | Chip breaker: MM | Grade: PC6510 | Stock: Yes
LNMX151016PNR-MM PC6510 Edge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 1.6 | Hole dia. d1 (mm): 4.5 | Chip breaker: MM | Grade: PC6510 | Stock: Yes
LNMX151008PNL-MM Edge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 4.5 | Chip breaker: MM
LNEX100605PNR-MM PC6510 Edge length l (mm): 10.0 | Inscribed circle d (mm): 6.5 | Thickness t (mm): 6.5 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 3.5 | Chip breaker: MM | Grade: PC6510 | Stock: Yes
LNEX100608PNR-MM PC6510 Edge length l (mm): 10.0 | Inscribed circle d (mm): 6.5 | Thickness t (mm): 6.5 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 3.5 | Chip breaker: MM | Grade: PC6510 | Stock: Yes
LNEX151004PNR-MM PC6510 Edge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 4.5 | Chip breaker: MM | Grade: PC6510 | Stock: Yes
LNEX151008PNR-MM PC6510 Edge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 4.5 | Chip breaker: MM | Grade: PC6510 | Stock: Yes
LNEX151016PNR-MM PC6510 Edge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 1.6 | Hole dia. d1 (mm): 4.5 | Chip breaker: MM | Grade: PC6510 | Stock: Yes
LNEX151008PNL-MM Edge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 4.5 | Chip breaker: MM
Milling InsertsKorloy
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy RM4 Double-Sided Milling Insert LNMX/LNEX

Brand Korloy·Milling Inserts

Available part numbers (24)

LNMX100605PNR-MF PC6510, LNMX100608PNR-MF PC6510, LNMX151004PNR-MF PC6510, LNMX151008PNR-MF PC6510, LNMX151016PNR-MF PC6510, LNEX100605PNR-MF PC6510, LNEX100608PNR-MF PC6510, LNEX151004PNR-MF PC6510, LNEX151008PNR-MF PC6510, LNEX151016PNR-MF PC6510 + 14 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LNMX100605PNR-MF PC6510Edge length l (mm): 10.0 | Inscribed circle d (mm): 6.5 | Thickness t (mm): 6.5 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 3.5 | Chip breaker: MF | Grade: PC6510 | Stock: Yes
LNMX100608PNR-MF PC6510Edge length l (mm): 10.0 | Inscribed circle d (mm): 6.5 | Thickness t (mm): 6.5 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 3.5 | Chip breaker: MF | Grade: PC6510 | Stock: Yes
LNMX151004PNR-MF PC6510Edge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 4.5 | Chip breaker: MF | Grade: PC6510 | Stock: Yes
LNMX151008PNR-MF PC6510Edge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 4.5 | Chip breaker: MF | Grade: PC6510 | Stock: Yes
LNMX151016PNR-MF PC6510Edge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 1.6 | Hole dia. d1 (mm): 4.5 | Chip breaker: MF | Grade: PC6510 | Stock: Yes
LNEX100605PNR-MF PC6510Edge length l (mm): 10.0 | Inscribed circle d (mm): 6.5 | Thickness t (mm): 6.5 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 3.5 | Chip breaker: MF | Grade: PC6510 | Stock: Yes
LNEX100608PNR-MF PC6510Edge length l (mm): 10.0 | Inscribed circle d (mm): 6.5 | Thickness t (mm): 6.5 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 3.5 | Chip breaker: MF | Grade: PC6510 | Stock: Yes
LNEX151004PNR-MF PC6510Edge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 4.5 | Chip breaker: MF | Grade: PC6510 | Stock: Yes
LNEX151008PNR-MF PC6510Edge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 4.5 | Chip breaker: MF | Grade: PC6510 | Stock: Yes
LNEX151016PNR-MF PC6510Edge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 1.6 | Hole dia. d1 (mm): 4.5 | Chip breaker: MF | Grade: PC6510 | Stock: Yes
LNMX100605PNR-MM PC9530Edge length l (mm): 10.0 | Inscribed circle d (mm): 6.5 | Thickness t (mm): 6.5 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 3.5 | Chip breaker: MM | Grade: PC9530 | Stock: Yes
LNMX100605PNR-MM PC6510Edge length l (mm): 10.0 | Inscribed circle d (mm): 6.5 | Thickness t (mm): 6.5 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 3.5 | Chip breaker: MM | Grade: PC6510 | Stock: Yes
LNMX100605PNL-MMEdge length l (mm): 10.0 | Inscribed circle d (mm): 6.5 | Thickness t (mm): 6.5 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 3.5 | Chip breaker: MM
LNMX151004PNR-MM PC6510Edge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 4.5 | Chip breaker: MM | Grade: PC6510 | Stock: Yes
LNMX151008PNR-MM PC9530Edge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 4.5 | Chip breaker: MM | Grade: PC9530 | Stock: Yes
LNMX151008PNR-MM PC6510Edge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 4.5 | Chip breaker: MM | Grade: PC6510 | Stock: Yes
LNMX151016PNR-MM PC6510Edge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 1.6 | Hole dia. d1 (mm): 4.5 | Chip breaker: MM | Grade: PC6510 | Stock: Yes
LNMX151008PNL-MMEdge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 4.5 | Chip breaker: MM
LNEX100605PNR-MM PC6510Edge length l (mm): 10.0 | Inscribed circle d (mm): 6.5 | Thickness t (mm): 6.5 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 3.5 | Chip breaker: MM | Grade: PC6510 | Stock: Yes
LNEX100608PNR-MM PC6510Edge length l (mm): 10.0 | Inscribed circle d (mm): 6.5 | Thickness t (mm): 6.5 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 3.5 | Chip breaker: MM | Grade: PC6510 | Stock: Yes
LNEX151004PNR-MM PC6510Edge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 4.5 | Chip breaker: MM | Grade: PC6510 | Stock: Yes
LNEX151008PNR-MM PC6510Edge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 4.5 | Chip breaker: MM | Grade: PC6510 | Stock: Yes
LNEX151016PNR-MM PC6510Edge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 1.6 | Hole dia. d1 (mm): 4.5 | Chip breaker: MM | Grade: PC6510 | Stock: Yes
LNEX151008PNL-MMEdge length l (mm): 15.0 | Inscribed circle d (mm): 10.0 | Thickness t (mm): 10.0 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 4.5 | Chip breaker: MM
