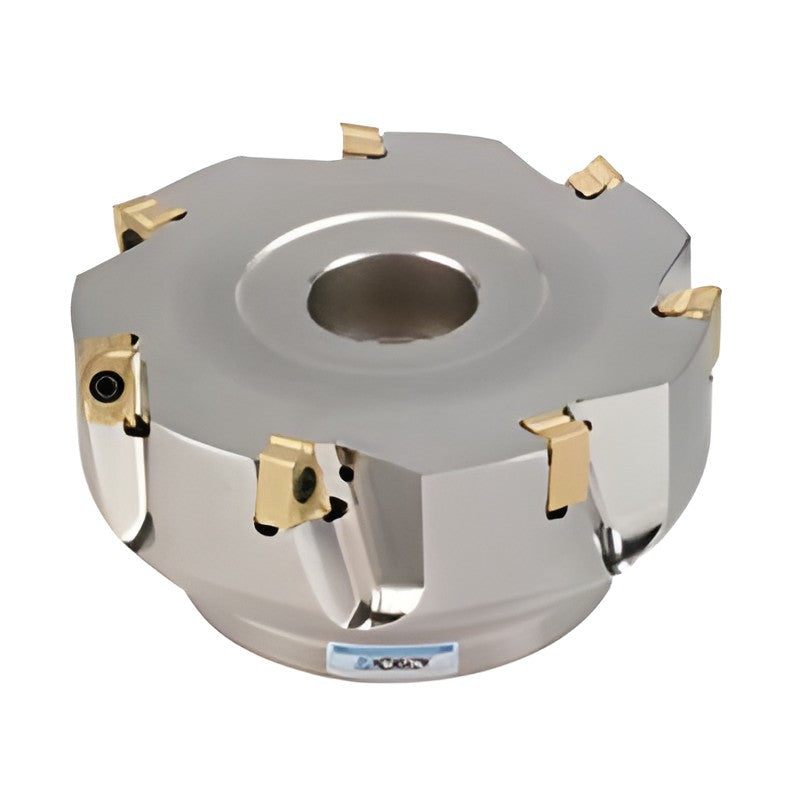

Korloy RM4 Face Mill RM4PC(M)4000

Korloy RM4 Face Mill RM4PC(M)4000

RM4 multi-functional face/shoulder milling cutter (90 degree approach) using double-sided LNMX/LNEX 1510 inserts with four cutting edges.

Key features

  • Facing, shouldering, slotting, ramping and helical cutting
  • Double-sided insert with 4 cutting edges
  • Through coolant with exclusive coolant bolt
  • RM4PC inch bore / RM4PCM metric bore

Specifications

Approach angle 90 deg
Inserts LNMX/LNEX 1510
Screw FTKA0412B
RM4PCM4040HR Cutting dia. D (mm): 40 | D2 (mm): 36 | Bore d (mm): 16 | Keyway a (mm): 8.4 | Keyway b (mm): 5.6 | Height F (mm): 40 | Max. depth ap (mm): 14 | Weight (kg): 0.23 | Inserts (pcs): 3 | Arbor bolt: SB0825 | Stock: Yes
RM4PCM4050HR-H Cutting dia. D (mm): 50 | D2 (mm): 46 | Bore d (mm): 22 | Keyway a (mm): 10.4 | Keyway b (mm): 6.3 | Height F (mm): 40 | Max. depth ap (mm): 14 | Weight (kg): 0.36 | Inserts (pcs): 5 | Arbor bolt: SB1025 | Stock: Yes
RM4PC4080HR-H Cutting dia. D (mm): 80 | D2 (mm): 57 | Bore d (mm): 25.4 | Keyway a (mm): 9.5 | Keyway b (mm): 6.0 | Height F (mm): 50 | Max. depth ap (mm): 14 | Weight (kg): 1.17 | Inserts (pcs): 8 | Arbor bolt: SB1230 | Bore standard: Inch
RM4PCM4080HR-H Cutting dia. D (mm): 80 | D2 (mm): 57 | Bore d (mm): 27 | Keyway a (mm): 12.4 | Keyway b (mm): 7.0 | Height F (mm): 50 | Max. depth ap (mm): 14 | Weight (kg): 1.14 | Inserts (pcs): 8 | Arbor bolt: SB1230 | Bore standard: Metric | Stock: Yes
RM4PC4100HR-M Cutting dia. D (mm): 100 | D2 (mm): 67 | Bore d (mm): 31.75 | Keyway a (mm): 12.7 | Keyway b (mm): 8.0 | Height F (mm): 63 | Max. depth ap (mm): 14 | Weight (kg): 2.31 | Inserts (pcs): 8 | Arbor bolt: SB1630 | Bore standard: Inch | Stock: Yes
RM4PCM4100HR-M Cutting dia. D (mm): 100 | D2 (mm): 67 | Bore d (mm): 32 | Keyway a (mm): 14.4 | Keyway b (mm): 8.0 | Height F (mm): 50 | Max. depth ap (mm): 14 | Weight (kg): 1.82 | Inserts (pcs): 8 | Arbor bolt: SB1630 | Bore standard: Metric | Stock: Yes
RM4PC4100HR-H Cutting dia. D (mm): 100 | D2 (mm): 67 | Bore d (mm): 31.75 | Keyway a (mm): 12.7 | Keyway b (mm): 8.0 | Height F (mm): 63 | Max. depth ap (mm): 14 | Weight (kg): 2.31 | Inserts (pcs): 9 | Arbor bolt: SB1630 | Bore standard: Inch
RM4PCM4100HR-H Cutting dia. D (mm): 100 | D2 (mm): 67 | Bore d (mm): 32 | Keyway a (mm): 14.4 | Keyway b (mm): 8.0 | Height F (mm): 50 | Max. depth ap (mm): 14 | Weight (kg): 1.82 | Inserts (pcs): 9 | Arbor bolt: SB1630 | Bore standard: Metric | Stock: Yes
Milling CuttersKorloy
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy RM4 Face Mill RM4PC(M)4000

Brand Korloy·Milling Cutters

Available part numbers (8)

RM4PCM4040HR, RM4PCM4050HR-H, RM4PC4080HR-H, RM4PCM4080HR-H, RM4PC4100HR-M, RM4PCM4100HR-M, RM4PC4100HR-H, RM4PCM4100HR-H

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RM4PCM4040HRCutting dia. D (mm): 40 | D2 (mm): 36 | Bore d (mm): 16 | Keyway a (mm): 8.4 | Keyway b (mm): 5.6 | Height F (mm): 40 | Max. depth ap (mm): 14 | Weight (kg): 0.23 | Inserts (pcs): 3 | Arbor bolt: SB0825 | Stock: Yes
RM4PCM4050HR-HCutting dia. D (mm): 50 | D2 (mm): 46 | Bore d (mm): 22 | Keyway a (mm): 10.4 | Keyway b (mm): 6.3 | Height F (mm): 40 | Max. depth ap (mm): 14 | Weight (kg): 0.36 | Inserts (pcs): 5 | Arbor bolt: SB1025 | Stock: Yes
RM4PC4080HR-HCutting dia. D (mm): 80 | D2 (mm): 57 | Bore d (mm): 25.4 | Keyway a (mm): 9.5 | Keyway b (mm): 6.0 | Height F (mm): 50 | Max. depth ap (mm): 14 | Weight (kg): 1.17 | Inserts (pcs): 8 | Arbor bolt: SB1230 | Bore standard: Inch
RM4PCM4080HR-HCutting dia. D (mm): 80 | D2 (mm): 57 | Bore d (mm): 27 | Keyway a (mm): 12.4 | Keyway b (mm): 7.0 | Height F (mm): 50 | Max. depth ap (mm): 14 | Weight (kg): 1.14 | Inserts (pcs): 8 | Arbor bolt: SB1230 | Bore standard: Metric | Stock: Yes
RM4PC4100HR-MCutting dia. D (mm): 100 | D2 (mm): 67 | Bore d (mm): 31.75 | Keyway a (mm): 12.7 | Keyway b (mm): 8.0 | Height F (mm): 63 | Max. depth ap (mm): 14 | Weight (kg): 2.31 | Inserts (pcs): 8 | Arbor bolt: SB1630 | Bore standard: Inch | Stock: Yes
RM4PCM4100HR-MCutting dia. D (mm): 100 | D2 (mm): 67 | Bore d (mm): 32 | Keyway a (mm): 14.4 | Keyway b (mm): 8.0 | Height F (mm): 50 | Max. depth ap (mm): 14 | Weight (kg): 1.82 | Inserts (pcs): 8 | Arbor bolt: SB1630 | Bore standard: Metric | Stock: Yes
RM4PC4100HR-HCutting dia. D (mm): 100 | D2 (mm): 67 | Bore d (mm): 31.75 | Keyway a (mm): 12.7 | Keyway b (mm): 8.0 | Height F (mm): 63 | Max. depth ap (mm): 14 | Weight (kg): 2.31 | Inserts (pcs): 9 | Arbor bolt: SB1630 | Bore standard: Inch
RM4PCM4100HR-HCutting dia. D (mm): 100 | D2 (mm): 67 | Bore d (mm): 32 | Keyway a (mm): 14.4 | Keyway b (mm): 8.0 | Height F (mm): 50 | Max. depth ap (mm): 14 | Weight (kg): 1.82 | Inserts (pcs): 9 | Arbor bolt: SB1630 | Bore standard: Metric | Stock: Yes
