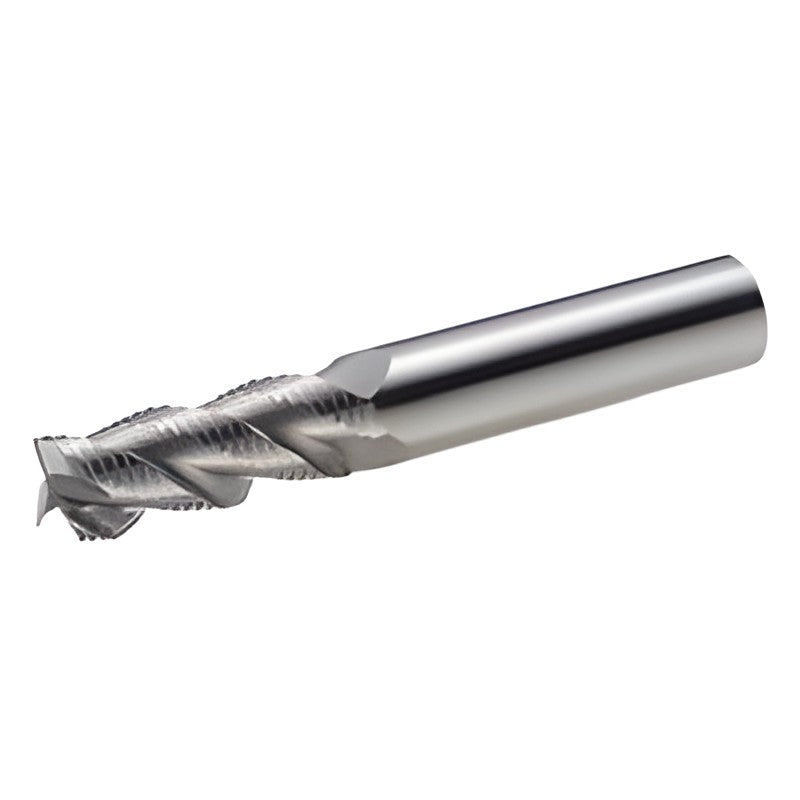

Korloy RPAE Roughing End Mill for Aluminum, Wave Form

Korloy RPAE Roughing End Mill for Aluminum, Wave Form

Cost-effective roughing end mill with irregular flute spacing and lead for highly efficient rough machining.

Key features

  • Cost-effective cutting-edge design for roughing
  • Irregular flute spacing and lead angle

Specifications

Material Carbide
Grade FN30T
Helix angle 45 deg
Shank tolerance h6
RPAE3060-063 Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 18 | Overall length L (mm): 63 | Corner chamfer C (mm): 0.3 | Flutes: 3
RPAE3070-063 Dia. D (mm): 7.0 | Shank dia. d (mm): 8 | Flute length l (mm): 23 | Overall length L (mm): 63 | Corner chamfer C (mm): 0.3 | Flutes: 3
RPAE3080-063 Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 23 | Overall length L (mm): 63 | Corner chamfer C (mm): 0.3 | Flutes: 3
RPAE3090-080 Dia. D (mm): 9.0 | Shank dia. d (mm): 10 | Flute length l (mm): 30 | Overall length L (mm): 80 | Corner chamfer C (mm): 0.3 | Flutes: 3
RPAE3100-080 Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 30 | Overall length L (mm): 80 | Corner chamfer C (mm): 0.3 | Flutes: 3
RPAE3110-080 Dia. D (mm): 11.0 | Shank dia. d (mm): 12 | Flute length l (mm): 32 | Overall length L (mm): 80 | Corner chamfer C (mm): 0.5 | Flutes: 3
RPAE3120-080 Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 32 | Overall length L (mm): 80 | Corner chamfer C (mm): 0.5 | Flutes: 3
RPAE3140-080 Dia. D (mm): 14.0 | Shank dia. d (mm): 14 | Flute length l (mm): 32 | Overall length L (mm): 80 | Corner chamfer C (mm): 0.5 | Flutes: 3
RPAE3160-105 Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 48 | Overall length L (mm): 105 | Corner chamfer C (mm): 0.5 | Flutes: 3
RPAE3180-105 Dia. D (mm): 18.0 | Shank dia. d (mm): 18 | Flute length l (mm): 48 | Overall length L (mm): 105 | Corner chamfer C (mm): 0.5 | Flutes: 3
RPAE3200-105 Dia. D (mm): 20.0 | Shank dia. d (mm): 20 | Flute length l (mm): 50 | Overall length L (mm): 105 | Corner chamfer C (mm): 0.5 | Flutes: 3
RPAE3250-105 Dia. D (mm): 25.0 | Shank dia. d (mm): 25 | Flute length l (mm): 50 | Overall length L (mm): 105 | Corner chamfer C (mm): 0.5 | Flutes: 3
End MillsKorloy
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy RPAE Roughing End Mill for Aluminum, Wave Form

Brand Korloy·End Mills

Available part numbers (12)

RPAE3060-063, RPAE3070-063, RPAE3080-063, RPAE3090-080, RPAE3100-080, RPAE3110-080, RPAE3120-080, RPAE3140-080, RPAE3160-105, RPAE3180-105 + 2 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RPAE3060-063Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 18 | Overall length L (mm): 63 | Corner chamfer C (mm): 0.3 | Flutes: 3
RPAE3070-063Dia. D (mm): 7.0 | Shank dia. d (mm): 8 | Flute length l (mm): 23 | Overall length L (mm): 63 | Corner chamfer C (mm): 0.3 | Flutes: 3
RPAE3080-063Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 23 | Overall length L (mm): 63 | Corner chamfer C (mm): 0.3 | Flutes: 3
RPAE3090-080Dia. D (mm): 9.0 | Shank dia. d (mm): 10 | Flute length l (mm): 30 | Overall length L (mm): 80 | Corner chamfer C (mm): 0.3 | Flutes: 3
RPAE3100-080Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 30 | Overall length L (mm): 80 | Corner chamfer C (mm): 0.3 | Flutes: 3
RPAE3110-080Dia. D (mm): 11.0 | Shank dia. d (mm): 12 | Flute length l (mm): 32 | Overall length L (mm): 80 | Corner chamfer C (mm): 0.5 | Flutes: 3
RPAE3120-080Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 32 | Overall length L (mm): 80 | Corner chamfer C (mm): 0.5 | Flutes: 3
RPAE3140-080Dia. D (mm): 14.0 | Shank dia. d (mm): 14 | Flute length l (mm): 32 | Overall length L (mm): 80 | Corner chamfer C (mm): 0.5 | Flutes: 3
RPAE3160-105Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 48 | Overall length L (mm): 105 | Corner chamfer C (mm): 0.5 | Flutes: 3
RPAE3180-105Dia. D (mm): 18.0 | Shank dia. d (mm): 18 | Flute length l (mm): 48 | Overall length L (mm): 105 | Corner chamfer C (mm): 0.5 | Flutes: 3
RPAE3200-105Dia. D (mm): 20.0 | Shank dia. d (mm): 20 | Flute length l (mm): 50 | Overall length L (mm): 105 | Corner chamfer C (mm): 0.5 | Flutes: 3
RPAE3250-105Dia. D (mm): 25.0 | Shank dia. d (mm): 25 | Flute length l (mm): 50 | Overall length L (mm): 105 | Corner chamfer C (mm): 0.5 | Flutes: 3
