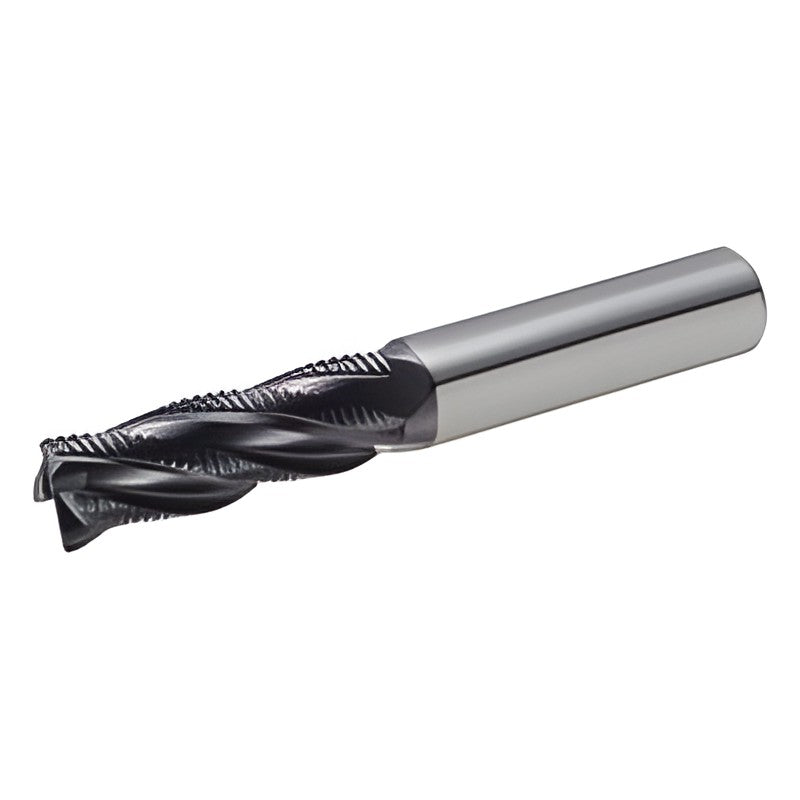

Korloy RPE-FF HSS Roughing End Mill for Fine Pitches

Korloy RPE-FF HSS Roughing End Mill for Fine Pitches

Cost-effective roughing end mill with irregular flute spacing and lead for highly efficient rough machining.

Key features

  • Cost-effective cutting-edge design for roughing
  • Irregular flute spacing and lead angle

Specifications

Material HSS PM
Grade HC30T
Helix angle 25/30 deg
Shank tolerance h6
RPE4060-060-FF Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 20 | Overall length L (mm): 60 | Corner chamfer C (mm): 0.5 | Flutes: 4
RPE4070-070-FF Dia. D (mm): 7.0 | Shank dia. d (mm): 10 | Flute length l (mm): 20 | Overall length L (mm): 70 | Corner chamfer C (mm): 0.5 | Flutes: 4
RPE4080-075-FF Dia. D (mm): 8.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Corner chamfer C (mm): 0.5 | Flutes: 4
RPE4090-075-FF Dia. D (mm): 9.0 | Shank dia. d (mm): 10 | Flute length l (mm): 30 | Overall length L (mm): 75 | Corner chamfer C (mm): 0.5 | Flutes: 4
RPE4100-085-FF Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 35 | Overall length L (mm): 85 | Corner chamfer C (mm): 0.5 | Flutes: 4
RPE4120-100-FF Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 40 | Overall length L (mm): 100 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPE4140-100-FF Dia. D (mm): 14.0 | Shank dia. d (mm): 12 | Flute length l (mm): 40 | Overall length L (mm): 100 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPE4160-110-FF Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 50 | Overall length L (mm): 110 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPE4180-110-FF Dia. D (mm): 18.0 | Shank dia. d (mm): 16 | Flute length l (mm): 50 | Overall length L (mm): 110 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPE4200-125-FF Dia. D (mm): 20.0 | Shank dia. d (mm): 20 | Flute length l (mm): 60 | Overall length L (mm): 125 | Corner chamfer C (mm): 0.6 | Flutes: 4
End MillsKorloy
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy RPE-FF HSS Roughing End Mill for Fine Pitches

Brand Korloy·End Mills

Available part numbers (10)

RPE4060-060-FF, RPE4070-070-FF, RPE4080-075-FF, RPE4090-075-FF, RPE4100-085-FF, RPE4120-100-FF, RPE4140-100-FF, RPE4160-110-FF, RPE4180-110-FF, RPE4200-125-FF

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RPE4060-060-FFDia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 20 | Overall length L (mm): 60 | Corner chamfer C (mm): 0.5 | Flutes: 4
RPE4070-070-FFDia. D (mm): 7.0 | Shank dia. d (mm): 10 | Flute length l (mm): 20 | Overall length L (mm): 70 | Corner chamfer C (mm): 0.5 | Flutes: 4
RPE4080-075-FFDia. D (mm): 8.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Corner chamfer C (mm): 0.5 | Flutes: 4
RPE4090-075-FFDia. D (mm): 9.0 | Shank dia. d (mm): 10 | Flute length l (mm): 30 | Overall length L (mm): 75 | Corner chamfer C (mm): 0.5 | Flutes: 4
RPE4100-085-FFDia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 35 | Overall length L (mm): 85 | Corner chamfer C (mm): 0.5 | Flutes: 4
RPE4120-100-FFDia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 40 | Overall length L (mm): 100 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPE4140-100-FFDia. D (mm): 14.0 | Shank dia. d (mm): 12 | Flute length l (mm): 40 | Overall length L (mm): 100 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPE4160-110-FFDia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 50 | Overall length L (mm): 110 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPE4180-110-FFDia. D (mm): 18.0 | Shank dia. d (mm): 16 | Flute length l (mm): 50 | Overall length L (mm): 110 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPE4200-125-FFDia. D (mm): 20.0 | Shank dia. d (mm): 20 | Flute length l (mm): 60 | Overall length L (mm): 125 | Corner chamfer C (mm): 0.6 | Flutes: 4
