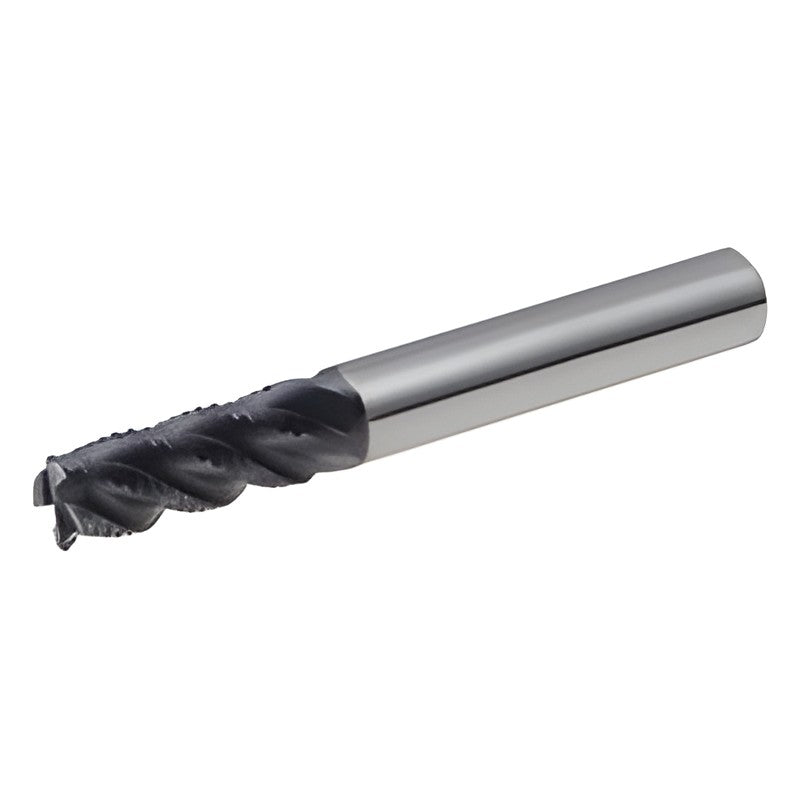

Korloy RPE-FP-H Roughing End Mill for Fine Pitches, High Helix

Korloy RPE-FP-H Roughing End Mill for Fine Pitches, High Helix

Cost-effective roughing end mill with irregular flute spacing and lead for highly efficient rough machining.

Key features

  • Cost-effective cutting-edge design for roughing
  • Irregular flute spacing and lead angle

Specifications

Material Carbide
Grade PC30T
Helix angle 40/42 deg
Shank tolerance h6
RPE4050-057-FP-H Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 57 | Corner chamfer C (mm): 0.3 | Flutes: 4
RPE4060-057-FP-H Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 57 | Corner chamfer C (mm): 0.5 | Flutes: 4
RPE4080-063-FP-H Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 19 | Overall length L (mm): 63 | Corner chamfer C (mm): 0.5 | Flutes: 4
RPE4100-072-FP-H Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 22 | Overall length L (mm): 72 | Corner chamfer C (mm): 0.5 | Flutes: 4
RPE4120-082-FP-H Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 26 | Overall length L (mm): 82 | Corner chamfer C (mm): 0.5 | Flutes: 4
RPE4140-082-FP-H Dia. D (mm): 14.0 | Shank dia. d (mm): 16 | Flute length l (mm): 26 | Overall length L (mm): 82 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPE4160-092-FP-H Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 32 | Overall length L (mm): 92 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPE4180-092-FP-H Dia. D (mm): 18.0 | Shank dia. d (mm): 20 | Flute length l (mm): 32 | Overall length L (mm): 92 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPE4200-0104-FP-H Dia. D (mm): 20.0 | Shank dia. d (mm): 20 | Flute length l (mm): 38 | Overall length L (mm): 104 | Corner chamfer C (mm): 0.6 | Flutes: 4
End MillsKorloy
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy RPE-FP-H Roughing End Mill for Fine Pitches, High Helix

Brand Korloy·End Mills

Available part numbers (9)

RPE4050-057-FP-H, RPE4060-057-FP-H, RPE4080-063-FP-H, RPE4100-072-FP-H, RPE4120-082-FP-H, RPE4140-082-FP-H, RPE4160-092-FP-H, RPE4180-092-FP-H, RPE4200-0104-FP-H

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RPE4050-057-FP-HDia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 57 | Corner chamfer C (mm): 0.3 | Flutes: 4
RPE4060-057-FP-HDia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 57 | Corner chamfer C (mm): 0.5 | Flutes: 4
RPE4080-063-FP-HDia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 19 | Overall length L (mm): 63 | Corner chamfer C (mm): 0.5 | Flutes: 4
RPE4100-072-FP-HDia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 22 | Overall length L (mm): 72 | Corner chamfer C (mm): 0.5 | Flutes: 4
RPE4120-082-FP-HDia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 26 | Overall length L (mm): 82 | Corner chamfer C (mm): 0.5 | Flutes: 4
RPE4140-082-FP-HDia. D (mm): 14.0 | Shank dia. d (mm): 16 | Flute length l (mm): 26 | Overall length L (mm): 82 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPE4160-092-FP-HDia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 32 | Overall length L (mm): 92 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPE4180-092-FP-HDia. D (mm): 18.0 | Shank dia. d (mm): 20 | Flute length l (mm): 32 | Overall length L (mm): 92 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPE4200-0104-FP-HDia. D (mm): 20.0 | Shank dia. d (mm): 20 | Flute length l (mm): 38 | Overall length L (mm): 104 | Corner chamfer C (mm): 0.6 | Flutes: 4
