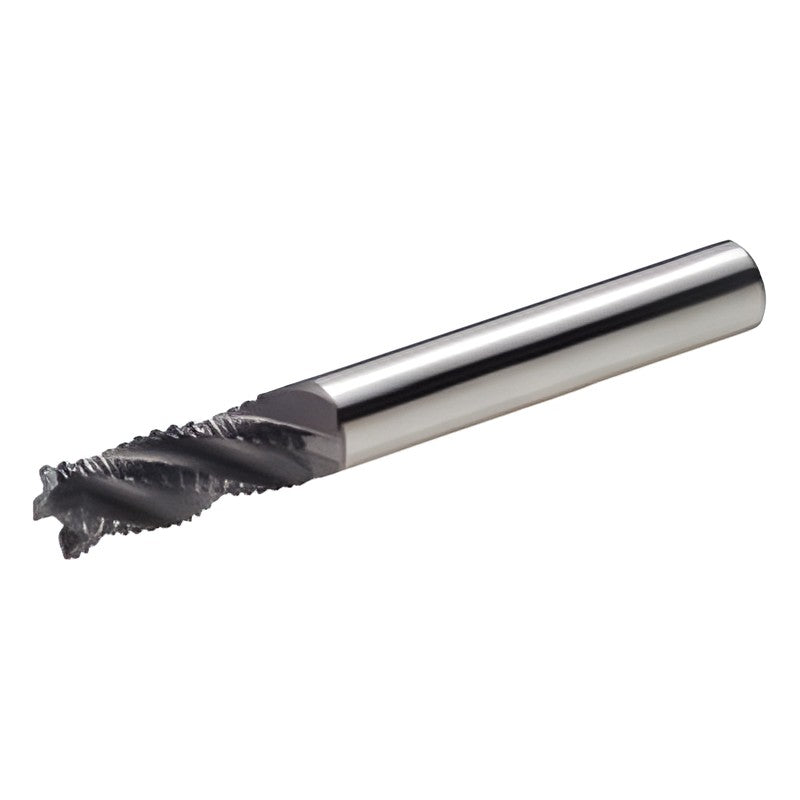

Korloy RPE-RG Carbide Roughing End Mill

Korloy RPE-RG Carbide Roughing End Mill

Cost-effective roughing end mill with irregular flute spacing and lead for highly efficient rough machining.

Key features

  • Cost-effective cutting-edge design for roughing
  • Irregular flute spacing and lead angle

Specifications

Material Carbide
Grade PC40T
Helix angle 30 deg
Shank tolerance h6
RPE4050-050-RG Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 50 | Corner chamfer C (mm): 0.3 | Flutes: 4
RPE4060-050-RG Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 50 | Corner chamfer C (mm): 0.3 | Flutes: 4
RPE4080-060-RG Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Corner chamfer C (mm): 0.3 | Flutes: 4
RPE4100-075-RG Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Corner chamfer C (mm): 0.3 | Flutes: 4
RPE4120-080-RG Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 80 | Corner chamfer C (mm): 0.4 | Flutes: 4
RPE4140-100-RG Dia. D (mm): 14.0 | Shank dia. d (mm): 16 | Flute length l (mm): 35 | Overall length L (mm): 100 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPE4160-100-RG Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 40 | Overall length L (mm): 100 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPE4180-110-RG Dia. D (mm): 18.0 | Shank dia. d (mm): 20 | Flute length l (mm): 40 | Overall length L (mm): 110 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPE4200-110-RG Dia. D (mm): 20.0 | Shank dia. d (mm): 20 | Flute length l (mm): 45 | Overall length L (mm): 110 | Corner chamfer C (mm): 0.6 | Flutes: 4
End MillsKorloy
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy RPE-RG Carbide Roughing End Mill

Brand Korloy·End Mills

Available part numbers (9)

RPE4050-050-RG, RPE4060-050-RG, RPE4080-060-RG, RPE4100-075-RG, RPE4120-080-RG, RPE4140-100-RG, RPE4160-100-RG, RPE4180-110-RG, RPE4200-110-RG

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RPE4050-050-RGDia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 50 | Corner chamfer C (mm): 0.3 | Flutes: 4
RPE4060-050-RGDia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 50 | Corner chamfer C (mm): 0.3 | Flutes: 4
RPE4080-060-RGDia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Corner chamfer C (mm): 0.3 | Flutes: 4
RPE4100-075-RGDia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Corner chamfer C (mm): 0.3 | Flutes: 4
RPE4120-080-RGDia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 80 | Corner chamfer C (mm): 0.4 | Flutes: 4
RPE4140-100-RGDia. D (mm): 14.0 | Shank dia. d (mm): 16 | Flute length l (mm): 35 | Overall length L (mm): 100 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPE4160-100-RGDia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 40 | Overall length L (mm): 100 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPE4180-110-RGDia. D (mm): 18.0 | Shank dia. d (mm): 20 | Flute length l (mm): 40 | Overall length L (mm): 110 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPE4200-110-RGDia. D (mm): 20.0 | Shank dia. d (mm): 20 | Flute length l (mm): 45 | Overall length L (mm): 110 | Corner chamfer C (mm): 0.6 | Flutes: 4
