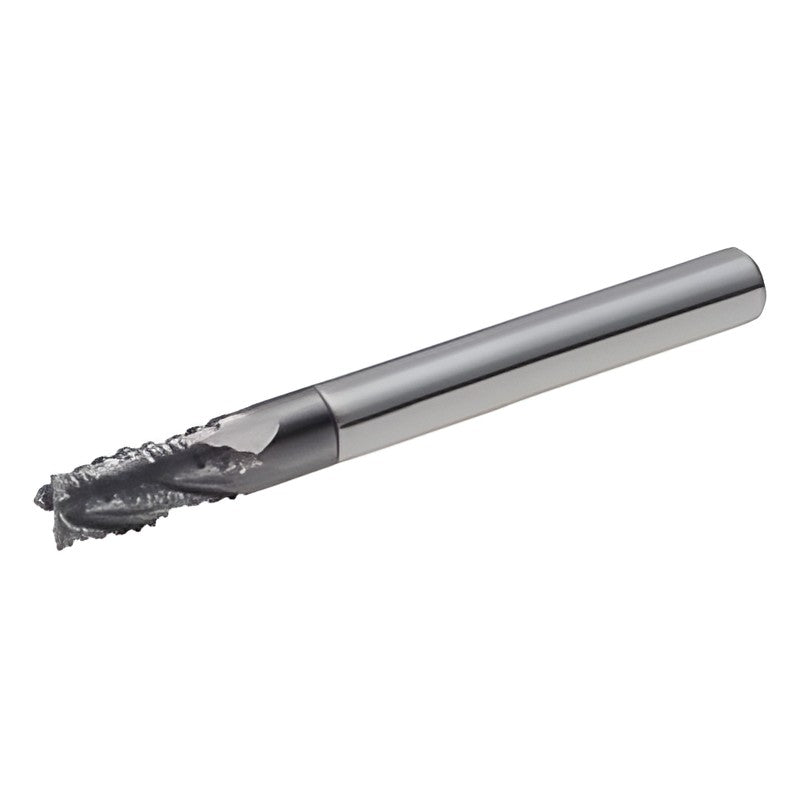

Korloy RPE-RG HSS-Co Roughing End Mill

Korloy RPE-RG HSS-Co Roughing End Mill

Cost-effective roughing end mill with irregular flute spacing and lead for highly efficient rough machining.

Key features

  • Cost-effective cutting-edge design for roughing
  • Irregular flute spacing and lead angle

Specifications

Material HSS Co 8%
Grade HN20T / HC20T / HC10T
Helix angle 30 deg
Shank tolerance h6
RPE4070-065-RG Dia. D (mm): 7.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 65 | Flutes: 4
RPE4080-065-RG Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 65 | Flutes: 4
RPE4110-080-RG Dia. D (mm): 11.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 80 | Flutes: 4
RPE4130-090-RG Dia. D (mm): 13.0 | Shank dia. d (mm): 12 | Flute length l (mm): 35 | Overall length L (mm): 90 | Flutes: 4
RPE4140-090-RG Dia. D (mm): 14.0 | Shank dia. d (mm): 12 | Flute length l (mm): 35 | Overall length L (mm): 90 | Flutes: 4
RPE4150-095-RG Dia. D (mm): 15.0 | Shank dia. d (mm): 12 | Flute length l (mm): 40 | Overall length L (mm): 95 | Flutes: 4
RPE4160-095-RG Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 40 | Overall length L (mm): 95 | Flutes: 4
RPE4170-095-RG Dia. D (mm): 17.0 | Shank dia. d (mm): 16 | Flute length l (mm): 40 | Overall length L (mm): 95 | Flutes: 4
RPE4180-105-RG Dia. D (mm): 18.0 | Shank dia. d (mm): 16 | Flute length l (mm): 40 | Overall length L (mm): 105 | Flutes: 4
RPE4190-110-RG Dia. D (mm): 19.0 | Shank dia. d (mm): 16 | Flute length l (mm): 45 | Overall length L (mm): 110 | Flutes: 4
RPE4210-110-RG Dia. D (mm): 21.0 | Shank dia. d (mm): 20 | Flute length l (mm): 45 | Overall length L (mm): 110 | Flutes: 4
RPE4220-110-RG Dia. D (mm): 22.0 | Shank dia. d (mm): 20 | Flute length l (mm): 45 | Overall length L (mm): 110 | Flutes: 4
RPE4230-110-RG Dia. D (mm): 23.0 | Shank dia. d (mm): 20 | Flute length l (mm): 45 | Overall length L (mm): 110 | Flutes: 4
RPE4240-120-RG Dia. D (mm): 24.0 | Shank dia. d (mm): 25 | Flute length l (mm): 50 | Overall length L (mm): 120 | Flutes: 4
RPE4250-120-RG Dia. D (mm): 25.0 | Shank dia. d (mm): 25 | Flute length l (mm): 50 | Overall length L (mm): 120 | Flutes: 4
RPE4260-120-RG Dia. D (mm): 26.0 | Shank dia. d (mm): 25 | Flute length l (mm): 50 | Overall length L (mm): 120 | Flutes: 4
RPE4270-125-RG Dia. D (mm): 27.0 | Shank dia. d (mm): 25 | Flute length l (mm): 55 | Overall length L (mm): 125 | Flutes: 4
RPE4280-125-RG Dia. D (mm): 28.0 | Shank dia. d (mm): 25 | Flute length l (mm): 55 | Overall length L (mm): 125 | Flutes: 4
RPE4300-125-RG Dia. D (mm): 30.0 | Shank dia. d (mm): 25 | Flute length l (mm): 55 | Overall length L (mm): 125 | Flutes: 4
RPE4320-145-RG Dia. D (mm): 32.0 | Shank dia. d (mm): 32 | Flute length l (mm): 60 | Overall length L (mm): 145 | Flutes: 4
RPE4340-145-RG Dia. D (mm): 34.0 | Shank dia. d (mm): 32 | Flute length l (mm): 60 | Overall length L (mm): 145 | Flutes: 4
RPE4350-145-RG Dia. D (mm): 35.0 | Shank dia. d (mm): 32 | Flute length l (mm): 60 | Overall length L (mm): 145 | Flutes: 4
RPE4360-145-RG Dia. D (mm): 36.0 | Shank dia. d (mm): 32 | Flute length l (mm): 60 | Overall length L (mm): 145 | Flutes: 4
RPE4380-150-RG Dia. D (mm): 38.0 | Shank dia. d (mm): 32 | Flute length l (mm): 65 | Overall length L (mm): 150 | Flutes: 4
RPE4400-150-RG Dia. D (mm): 40.0 | Shank dia. d (mm): 32 | Flute length l (mm): 65 | Overall length L (mm): 150 | Flutes: 4
RPE4420-155-RG Dia. D (mm): 42.0 | Shank dia. d (mm): 42 | Flute length l (mm): 65 | Overall length L (mm): 155 | Flutes: 4
RPE4440-155-RG Dia. D (mm): 44.0 | Shank dia. d (mm): 42 | Flute length l (mm): 65 | Overall length L (mm): 155 | Flutes: 4
RPE4450-160-RG Dia. D (mm): 45.0 | Shank dia. d (mm): 42 | Flute length l (mm): 70 | Overall length L (mm): 160 | Flutes: 4
RPE4460-160-RG Dia. D (mm): 46.0 | Shank dia. d (mm): 42 | Flute length l (mm): 70 | Overall length L (mm): 160 | Flutes: 4
RPE4500-160-RG Dia. D (mm): 50.0 | Shank dia. d (mm): 42 | Flute length l (mm): 70 | Overall length L (mm): 160 | Flutes: 4
End MillsKorloy
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy RPE-RG HSS-Co Roughing End Mill

Brand Korloy·End Mills

Available part numbers (30)

RPE4070-065-RG, RPE4080-065-RG, RPE4110-080-RG, RPE4130-090-RG, RPE4140-090-RG, RPE4150-095-RG, RPE4160-095-RG, RPE4170-095-RG, RPE4180-105-RG, RPE4190-110-RG + 20 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RPE4070-065-RGDia. D (mm): 7.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 65 | Flutes: 4
RPE4080-065-RGDia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 65 | Flutes: 4
RPE4110-080-RGDia. D (mm): 11.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 80 | Flutes: 4
RPE4130-090-RGDia. D (mm): 13.0 | Shank dia. d (mm): 12 | Flute length l (mm): 35 | Overall length L (mm): 90 | Flutes: 4
RPE4140-090-RGDia. D (mm): 14.0 | Shank dia. d (mm): 12 | Flute length l (mm): 35 | Overall length L (mm): 90 | Flutes: 4
RPE4150-095-RGDia. D (mm): 15.0 | Shank dia. d (mm): 12 | Flute length l (mm): 40 | Overall length L (mm): 95 | Flutes: 4
RPE4160-095-RGDia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 40 | Overall length L (mm): 95 | Flutes: 4
RPE4170-095-RGDia. D (mm): 17.0 | Shank dia. d (mm): 16 | Flute length l (mm): 40 | Overall length L (mm): 95 | Flutes: 4
RPE4180-105-RGDia. D (mm): 18.0 | Shank dia. d (mm): 16 | Flute length l (mm): 40 | Overall length L (mm): 105 | Flutes: 4
RPE4190-110-RGDia. D (mm): 19.0 | Shank dia. d (mm): 16 | Flute length l (mm): 45 | Overall length L (mm): 110 | Flutes: 4
RPE4210-110-RGDia. D (mm): 21.0 | Shank dia. d (mm): 20 | Flute length l (mm): 45 | Overall length L (mm): 110 | Flutes: 4
RPE4220-110-RGDia. D (mm): 22.0 | Shank dia. d (mm): 20 | Flute length l (mm): 45 | Overall length L (mm): 110 | Flutes: 4
RPE4230-110-RGDia. D (mm): 23.0 | Shank dia. d (mm): 20 | Flute length l (mm): 45 | Overall length L (mm): 110 | Flutes: 4
RPE4240-120-RGDia. D (mm): 24.0 | Shank dia. d (mm): 25 | Flute length l (mm): 50 | Overall length L (mm): 120 | Flutes: 4
RPE4250-120-RGDia. D (mm): 25.0 | Shank dia. d (mm): 25 | Flute length l (mm): 50 | Overall length L (mm): 120 | Flutes: 4
RPE4260-120-RGDia. D (mm): 26.0 | Shank dia. d (mm): 25 | Flute length l (mm): 50 | Overall length L (mm): 120 | Flutes: 4
RPE4270-125-RGDia. D (mm): 27.0 | Shank dia. d (mm): 25 | Flute length l (mm): 55 | Overall length L (mm): 125 | Flutes: 4
RPE4280-125-RGDia. D (mm): 28.0 | Shank dia. d (mm): 25 | Flute length l (mm): 55 | Overall length L (mm): 125 | Flutes: 4
RPE4300-125-RGDia. D (mm): 30.0 | Shank dia. d (mm): 25 | Flute length l (mm): 55 | Overall length L (mm): 125 | Flutes: 4
RPE4320-145-RGDia. D (mm): 32.0 | Shank dia. d (mm): 32 | Flute length l (mm): 60 | Overall length L (mm): 145 | Flutes: 4
RPE4340-145-RGDia. D (mm): 34.0 | Shank dia. d (mm): 32 | Flute length l (mm): 60 | Overall length L (mm): 145 | Flutes: 4
RPE4350-145-RGDia. D (mm): 35.0 | Shank dia. d (mm): 32 | Flute length l (mm): 60 | Overall length L (mm): 145 | Flutes: 4
RPE4360-145-RGDia. D (mm): 36.0 | Shank dia. d (mm): 32 | Flute length l (mm): 60 | Overall length L (mm): 145 | Flutes: 4
RPE4380-150-RGDia. D (mm): 38.0 | Shank dia. d (mm): 32 | Flute length l (mm): 65 | Overall length L (mm): 150 | Flutes: 4
RPE4400-150-RGDia. D (mm): 40.0 | Shank dia. d (mm): 32 | Flute length l (mm): 65 | Overall length L (mm): 150 | Flutes: 4
RPE4420-155-RGDia. D (mm): 42.0 | Shank dia. d (mm): 42 | Flute length l (mm): 65 | Overall length L (mm): 155 | Flutes: 4
RPE4440-155-RGDia. D (mm): 44.0 | Shank dia. d (mm): 42 | Flute length l (mm): 65 | Overall length L (mm): 155 | Flutes: 4
RPE4450-160-RGDia. D (mm): 45.0 | Shank dia. d (mm): 42 | Flute length l (mm): 70 | Overall length L (mm): 160 | Flutes: 4
RPE4460-160-RGDia. D (mm): 46.0 | Shank dia. d (mm): 42 | Flute length l (mm): 70 | Overall length L (mm): 160 | Flutes: 4
RPE4500-160-RGDia. D (mm): 50.0 | Shank dia. d (mm): 42 | Flute length l (mm): 70 | Overall length L (mm): 160 | Flutes: 4
