• Korloy RPE-RG HSS-PM 4-Flute Roughing End Mill
1 1

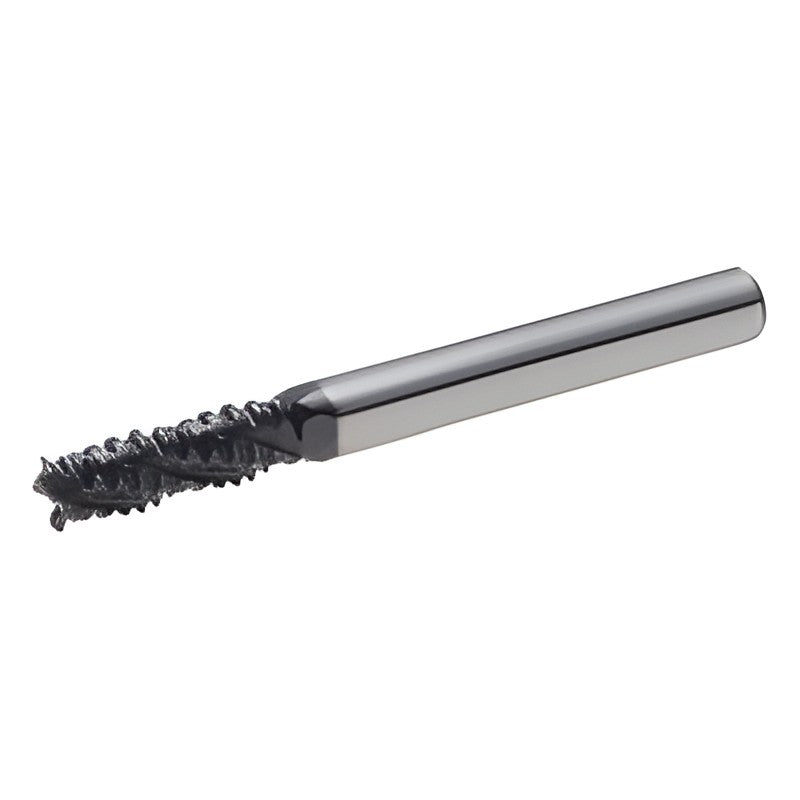

Korloy RPE-RG HSS-PM 4-Flute Roughing End Mill

Korloy RPE-RG HSS-PM 4-Flute Roughing End Mill

Cost-effective roughing end mill with irregular flute spacing and lead for highly efficient rough machining.

Key features

  • Cost-effective cutting-edge design for roughing
  • Irregular flute spacing and lead angle

Specifications

Material HSS PM
Grade HN30T / HC30T
Helix angle 30 deg
Shank tolerance h6
RPE4060-060-RG Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 20 | Overall length L (mm): 60 | Flutes: 4
RPE4070-070-RG Dia. D (mm): 7.0 | Shank dia. d (mm): 10 | Flute length l (mm): 20 | Overall length L (mm): 70 | Flutes: 4
RPE4080-075-RG Dia. D (mm): 8.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Flutes: 4
RPE4090-075-RG Dia. D (mm): 9.0 | Shank dia. d (mm): 10 | Flute length l (mm): 30 | Overall length L (mm): 75 | Flutes: 4
RPE4100-085-RG Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 35 | Overall length L (mm): 85 | Flutes: 4
RPE4120-100-RG Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 4
RPE4160-110-RG Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 50 | Overall length L (mm): 110 | Flutes: 4
RPE4200-125-RG Dia. D (mm): 20.0 | Shank dia. d (mm): 20 | Flute length l (mm): 60 | Overall length L (mm): 125 | Flutes: 4
End MillsKorloy
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy RPE-RG HSS-PM 4-Flute Roughing End Mill

Brand Korloy·End Mills

Available part numbers (8)

RPE4060-060-RG, RPE4070-070-RG, RPE4080-075-RG, RPE4090-075-RG, RPE4100-085-RG, RPE4120-100-RG, RPE4160-110-RG, RPE4200-125-RG

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RPE4060-060-RGDia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 20 | Overall length L (mm): 60 | Flutes: 4
RPE4070-070-RGDia. D (mm): 7.0 | Shank dia. d (mm): 10 | Flute length l (mm): 20 | Overall length L (mm): 70 | Flutes: 4
RPE4080-075-RGDia. D (mm): 8.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Flutes: 4
RPE4090-075-RGDia. D (mm): 9.0 | Shank dia. d (mm): 10 | Flute length l (mm): 30 | Overall length L (mm): 75 | Flutes: 4
RPE4100-085-RGDia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 35 | Overall length L (mm): 85 | Flutes: 4
RPE4120-100-RGDia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 4
RPE4160-110-RGDia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 50 | Overall length L (mm): 110 | Flutes: 4
RPE4200-125-RGDia. D (mm): 20.0 | Shank dia. d (mm): 20 | Flute length l (mm): 60 | Overall length L (mm): 125 | Flutes: 4
