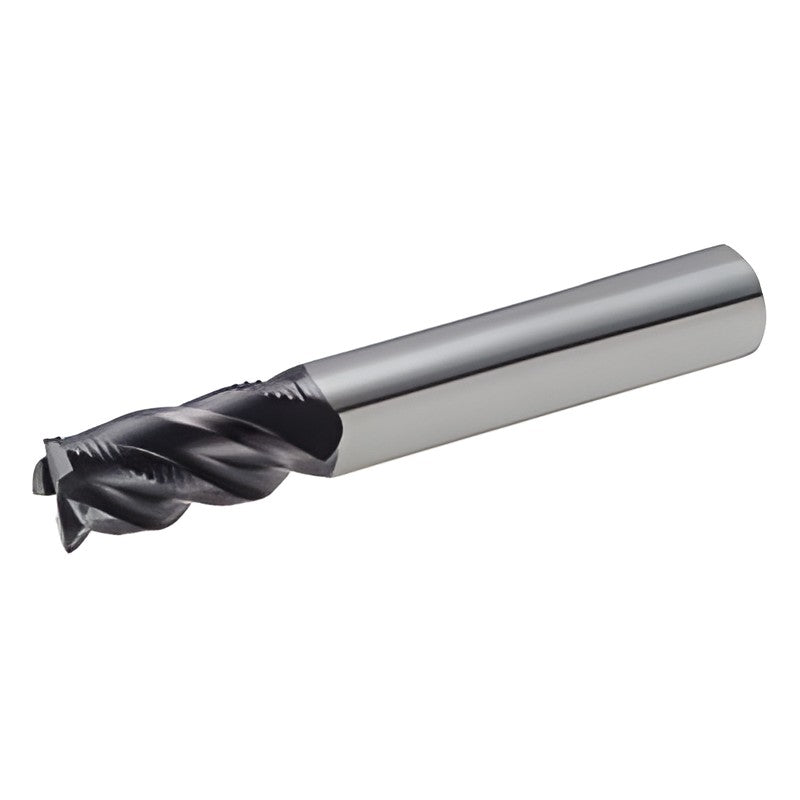

Korloy RPE-XG Roughing End Mill with Finishing Capability

Korloy RPE-XG Roughing End Mill with Finishing Capability

Cost-effective roughing end mill with irregular flute spacing and lead for highly efficient rough machining.

Key features

  • Cost-effective cutting-edge design for roughing
  • Irregular flute spacing and lead angle

Specifications

Material Carbide
Grade PC30T
Helix angle 30 deg
Shank tolerance h6
RPE4060-052-XG Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 14 | Overall length L (mm): 52 | Corner chamfer C (mm): 0.25 | Flutes: 4
RPE4070-063-XG Dia. D (mm): 7.0 | Shank dia. d (mm): 8 | Flute length l (mm): 18 | Overall length L (mm): 63 | Corner chamfer C (mm): 0.3 | Flutes: 4
RPE4080-063-XG Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 18 | Overall length L (mm): 63 | Corner chamfer C (mm): 0.3 | Flutes: 4
RPE4090-080-XG Dia. D (mm): 9.0 | Shank dia. d (mm): 10 | Flute length l (mm): 22 | Overall length L (mm): 80 | Corner chamfer C (mm): 0.3 | Flutes: 4
RPE4100-080-XG Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 22 | Overall length L (mm): 80 | Corner chamfer C (mm): 0.3 | Flutes: 4
RPE4110-080-XG Dia. D (mm): 11.0 | Shank dia. d (mm): 12 | Flute length l (mm): 26 | Overall length L (mm): 80 | Corner chamfer C (mm): 0.4 | Flutes: 4
RPE4120-080-XG Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 26 | Overall length L (mm): 80 | Corner chamfer C (mm): 0.4 | Flutes: 4
RPE4140-080-XG Dia. D (mm): 14.0 | Shank dia. d (mm): 14 | Flute length l (mm): 30 | Overall length L (mm): 80 | Corner chamfer C (mm): 0.4 | Flutes: 4
RPE4160-105-XG Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 34 | Overall length L (mm): 105 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPE4180-105-XG Dia. D (mm): 18.0 | Shank dia. d (mm): 18 | Flute length l (mm): 38 | Overall length L (mm): 105 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPE4200-105-XG Dia. D (mm): 20.0 | Shank dia. d (mm): 20 | Flute length l (mm): 42 | Overall length L (mm): 105 | Corner chamfer C (mm): 0.6 | Flutes: 4
End MillsKorloy
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy RPE-XG Roughing End Mill with Finishing Capability

Brand Korloy·End Mills

Available part numbers (11)

RPE4060-052-XG, RPE4070-063-XG, RPE4080-063-XG, RPE4090-080-XG, RPE4100-080-XG, RPE4110-080-XG, RPE4120-080-XG, RPE4140-080-XG, RPE4160-105-XG, RPE4180-105-XG + 1 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RPE4060-052-XGDia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 14 | Overall length L (mm): 52 | Corner chamfer C (mm): 0.25 | Flutes: 4
RPE4070-063-XGDia. D (mm): 7.0 | Shank dia. d (mm): 8 | Flute length l (mm): 18 | Overall length L (mm): 63 | Corner chamfer C (mm): 0.3 | Flutes: 4
RPE4080-063-XGDia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 18 | Overall length L (mm): 63 | Corner chamfer C (mm): 0.3 | Flutes: 4
RPE4090-080-XGDia. D (mm): 9.0 | Shank dia. d (mm): 10 | Flute length l (mm): 22 | Overall length L (mm): 80 | Corner chamfer C (mm): 0.3 | Flutes: 4
RPE4100-080-XGDia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 22 | Overall length L (mm): 80 | Corner chamfer C (mm): 0.3 | Flutes: 4
RPE4110-080-XGDia. D (mm): 11.0 | Shank dia. d (mm): 12 | Flute length l (mm): 26 | Overall length L (mm): 80 | Corner chamfer C (mm): 0.4 | Flutes: 4
RPE4120-080-XGDia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 26 | Overall length L (mm): 80 | Corner chamfer C (mm): 0.4 | Flutes: 4
RPE4140-080-XGDia. D (mm): 14.0 | Shank dia. d (mm): 14 | Flute length l (mm): 30 | Overall length L (mm): 80 | Corner chamfer C (mm): 0.4 | Flutes: 4
RPE4160-105-XGDia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 34 | Overall length L (mm): 105 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPE4180-105-XGDia. D (mm): 18.0 | Shank dia. d (mm): 18 | Flute length l (mm): 38 | Overall length L (mm): 105 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPE4200-105-XGDia. D (mm): 20.0 | Shank dia. d (mm): 20 | Flute length l (mm): 42 | Overall length L (mm): 105 | Corner chamfer C (mm): 0.6 | Flutes: 4
