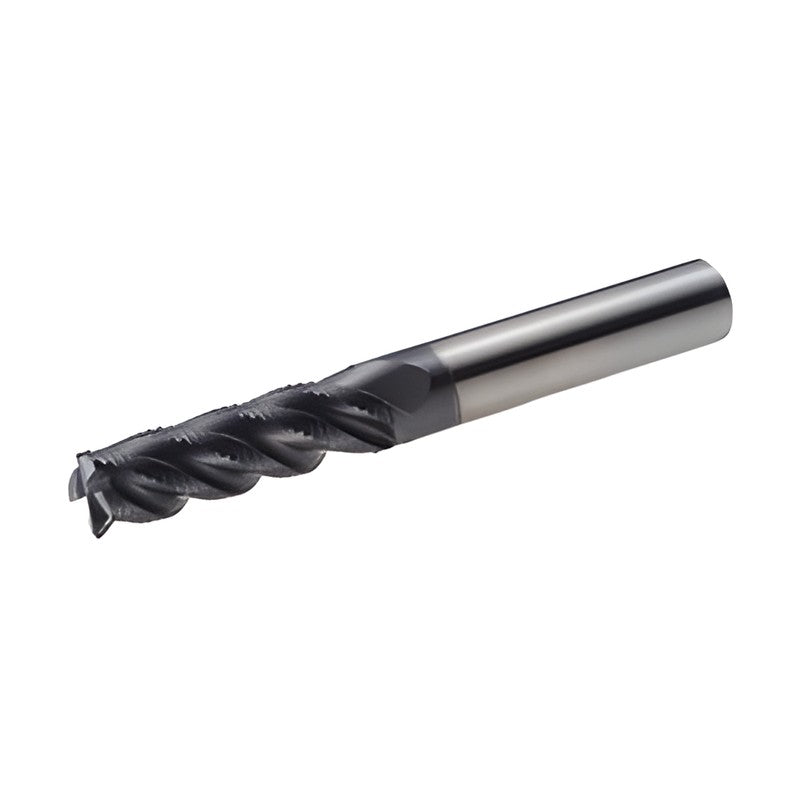

Korloy RPLE-FP-H Long Roughing End Mill for Fine Pitches

Korloy RPLE-FP-H Long Roughing End Mill for Fine Pitches

Cost-effective roughing end mill with irregular flute spacing and lead for highly efficient rough machining.

Key features

  • Cost-effective cutting-edge design for roughing
  • Irregular flute spacing and lead angle

Specifications

Material Carbide
Grade PC30T
Helix angle 40/42 deg
Shank tolerance h6
RPLE4050-063-FP-H Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 19 | Overall length L (mm): 63 | Corner chamfer C (mm): 0.3 | Flutes: 4
RPLE4060-063-FP-H Dia. D (mm): 6.0 | Shank dia. d (mm): 8 | Flute length l (mm): 19 | Overall length L (mm): 63 | Corner chamfer C (mm): 0.5 | Flutes: 4
RPLE4080-072-FP-H Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 28 | Overall length L (mm): 72 | Corner chamfer C (mm): 0.5 | Flutes: 4
RPLE4100-082-FP-H Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 34 | Overall length L (mm): 82 | Corner chamfer C (mm): 0.5 | Flutes: 4
RPLE4120-097-FP-H Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 40 | Overall length L (mm): 97 | Corner chamfer C (mm): 0.5 | Flutes: 4
RPLE4140-097-FP-H Dia. D (mm): 14.0 | Shank dia. d (mm): 16 | Flute length l (mm): 40 | Overall length L (mm): 97 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPLE4160-108-FP-H Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 48 | Overall length L (mm): 108 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPLE4180-108-FP-H Dia. D (mm): 18.0 | Shank dia. d (mm): 20 | Flute length l (mm): 48 | Overall length L (mm): 108 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPLE4200-122-FP-H Dia. D (mm): 20.0 | Shank dia. d (mm): 20 | Flute length l (mm): 56 | Overall length L (mm): 122 | Corner chamfer C (mm): 0.6 | Flutes: 4
End MillsKorloy
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy RPLE-FP-H Long Roughing End Mill for Fine Pitches

Brand Korloy·End Mills

Available part numbers (9)

RPLE4050-063-FP-H, RPLE4060-063-FP-H, RPLE4080-072-FP-H, RPLE4100-082-FP-H, RPLE4120-097-FP-H, RPLE4140-097-FP-H, RPLE4160-108-FP-H, RPLE4180-108-FP-H, RPLE4200-122-FP-H

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RPLE4050-063-FP-HDia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 19 | Overall length L (mm): 63 | Corner chamfer C (mm): 0.3 | Flutes: 4
RPLE4060-063-FP-HDia. D (mm): 6.0 | Shank dia. d (mm): 8 | Flute length l (mm): 19 | Overall length L (mm): 63 | Corner chamfer C (mm): 0.5 | Flutes: 4
RPLE4080-072-FP-HDia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 28 | Overall length L (mm): 72 | Corner chamfer C (mm): 0.5 | Flutes: 4
RPLE4100-082-FP-HDia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 34 | Overall length L (mm): 82 | Corner chamfer C (mm): 0.5 | Flutes: 4
RPLE4120-097-FP-HDia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 40 | Overall length L (mm): 97 | Corner chamfer C (mm): 0.5 | Flutes: 4
RPLE4140-097-FP-HDia. D (mm): 14.0 | Shank dia. d (mm): 16 | Flute length l (mm): 40 | Overall length L (mm): 97 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPLE4160-108-FP-HDia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 48 | Overall length L (mm): 108 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPLE4180-108-FP-HDia. D (mm): 18.0 | Shank dia. d (mm): 20 | Flute length l (mm): 48 | Overall length L (mm): 108 | Corner chamfer C (mm): 0.6 | Flutes: 4
RPLE4200-122-FP-HDia. D (mm): 20.0 | Shank dia. d (mm): 20 | Flute length l (mm): 56 | Overall length L (mm): 122 | Corner chamfer C (mm): 0.6 | Flutes: 4
