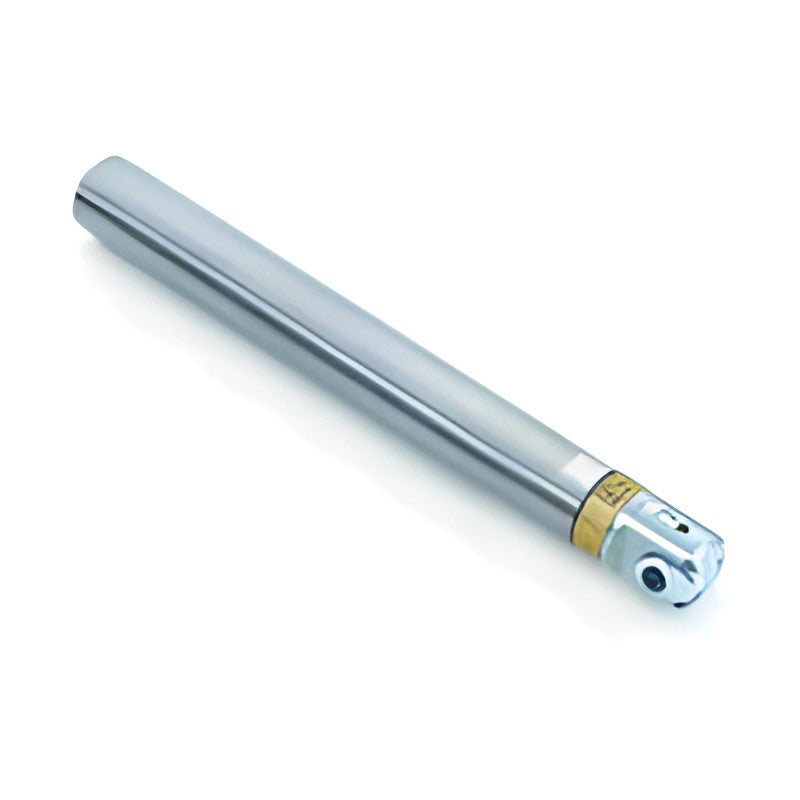

Korloy S-FBH Small Micro Boring Shank

Korloy S-FBH Small Micro Boring Shank

Cylindrical basic shank for FBH small micro boring heads, with oil hole, for boring from Ø15 to Ø43 mm.

Key features

  • Oil hole
  • Shank diameters 14 to 32 mm
  • Assembled with FBH boring head and FBB bite
S19W-MD19F-157 Assembly: S19W-FBH20B-120 | Shank d (mm): 19 | Boring range D (mm): 20~26 | L (mm): 190 | M (mm): 120 | Boring head: FBH1920B | Bite: FBB20N | Weight (kg): 0.6 | Type: Carbide shank (W)
S19W-MD19F-177 Assembly: S19W-FBH20B-140 | Shank d (mm): 19 | Boring range D (mm): 20~26 | L (mm): 210 | M (mm): 140 | Boring head: FBH1920B | Bite: FBB20N | Weight (kg): 0.7 | Type: Carbide shank (W)
S19W-MD19F-197 Assembly: S19W-FBH20B-160 | Shank d (mm): 19 | Boring range D (mm): 20~26 | L (mm): 230 | M (mm): 160 | Boring head: FBH1920B | Bite: FBB20N | Weight (kg): 0.8 | Type: Carbide shank (W)
S25W-MD25F-197.5 Assembly: S25W-FBH26B-150 | Shank d (mm): 25 | Boring range D (mm): 26~34 | L (mm): 235 | M (mm): 150 | Boring head: FBH2526B | Bite: FBB26N | Weight (kg): 1.4 | Type: Carbide shank (W)
S25W-MD25F-222.5 Assembly: S25W-FBH26B-175 | Shank d (mm): 25 | Boring range D (mm): 26~34 | L (mm): 260 | M (mm): 175 | Boring head: FBH2526B | Bite: FBB26N | Weight (kg): 1.6 | Type: Carbide shank (W)
S25W-MD25F-247.5 Assembly: S25W-FBH26B-200 | Shank d (mm): 25 | Boring range D (mm): 26~34 | L (mm): 285 | M (mm): 200 | Boring head: FBH2526B | Bite: FBB26N | Weight (kg): 2 | Type: Carbide shank (W)
S32W-MD32F-239 Assembly: S32W-FBH33B-180 | Shank d (mm): 32 | Boring range D (mm): 33~43 | L (mm): 280 | M (mm): 180 | Boring head: FBH3233B | Bite: FBB33N | Weight (kg): 2.8 | Type: Carbide shank (W)
S32W-MD32F-299 Assembly: S32W-FBH33B-240 | Shank d (mm): 32 | Boring range D (mm): 33~43 | L (mm): 340 | M (mm): 240 | Boring head: FBH3233B | Bite: FBB33N | Weight (kg): 3.5 | Type: Carbide shank (W)
S19-MD19F-77 Assembly: S19-FBH20B-40 | Shank d (mm): 19 | Boring range D (mm): 20~26 | L (mm): 110 | M (mm): 40 | Boring head: FBH1920B | Bite: FBB20N | Weight (kg): 0.1 | Type: Steel shank
S19-MD19F-117 Assembly: S19-FBH20B-80 | Shank d (mm): 19 | Boring range D (mm): 20~26 | L (mm): 150 | M (mm): 80 | Boring head: FBH1920B | Bite: FBB20N | Weight (kg): 0.2 | Type: Steel shank
S25-MD25F-97.5 Assembly: S25-FBH26B-50 | Shank d (mm): 25 | Boring range D (mm): 26~34 | L (mm): 135 | M (mm): 50 | Boring head: FBH2526B | Bite: FBB26N | Weight (kg): 0.4 | Type: Steel shank
S25-MD25F-147.5 Assembly: S25-FBH26B-100 | Shank d (mm): 25 | Boring range D (mm): 26~34 | L (mm): 185 | M (mm): 100 | Boring head: FBH2526B | Bite: FBB26N | Weight (kg): 0.6 | Type: Steel shank
S32-MD32F-149 Assembly: S32-FBH33B-90 | Shank d (mm): 32 | Boring range D (mm): 33~43 | L (mm): 190 | M (mm): 90 | Boring head: FBH3233B | Bite: FBB33N | Weight (kg): 1.1 | Type: Steel shank
S32-MD32F-179 Assembly: S32-FBH33B-120 | Shank d (mm): 32 | Boring range D (mm): 33~43 | L (mm): 220 | M (mm): 120 | Boring head: FBH3233B | Bite: FBB33N | Weight (kg): 1.2 | Type: Steel shank
S14W-M6-123 Assembly: S14W-FBH15-85 | Shank d (mm): 14 | Boring range D (mm): 15~18 | L (mm): 155 | M (mm): 85 | Boring head: FBH15 | Bite: FBB15-C | Weight (kg): 0.2 | Type: Carbide shank (W)
S14W-M6-148 Assembly: S14W-FBH15-110 | Shank d (mm): 14 | Boring range D (mm): 15~18 | L (mm): 180 | M (mm): 110 | Boring head: FBH15 | Bite: FBB15-C | Weight (kg): 0.3 | Type: Carbide shank (W)
S16W-M8-128 Assembly: S16W-FBH18-95 | Shank d (mm): 16 | Boring range D (mm): 18~22 | L (mm): 165 | M (mm): 95 | Boring head: FBH18 | Bite: FBB15-C | Weight (kg): 0.3 | Type: Carbide shank (W)
S16W-M8-158 Assembly: S16W-FBH18-125 | Shank d (mm): 16 | Boring range D (mm): 18~22 | L (mm): 195 | M (mm): 120 | Boring head: FBH18 | Bite: FBB15-C | Weight (kg): 0.4 | Type: Carbide shank (W)
S14-M6-78 Assembly: S14-FBH15-40 | Shank d (mm): 14 | Boring range D (mm): 15~18 | L (mm): 110 | M (mm): 40 | Boring head: FBH15 | Bite: FBB15-C | Weight (kg): 0.1 | Type: Steel shank
S16-M8-78 Assembly: S16-FBH18-45 | Shank d (mm): 16 | Boring range D (mm): 18~22 | L (mm): 115 | M (mm): 45 | Boring head: FBH18 | Bite: FBB15-C | Weight (kg): 0.1 | Type: Steel shank
