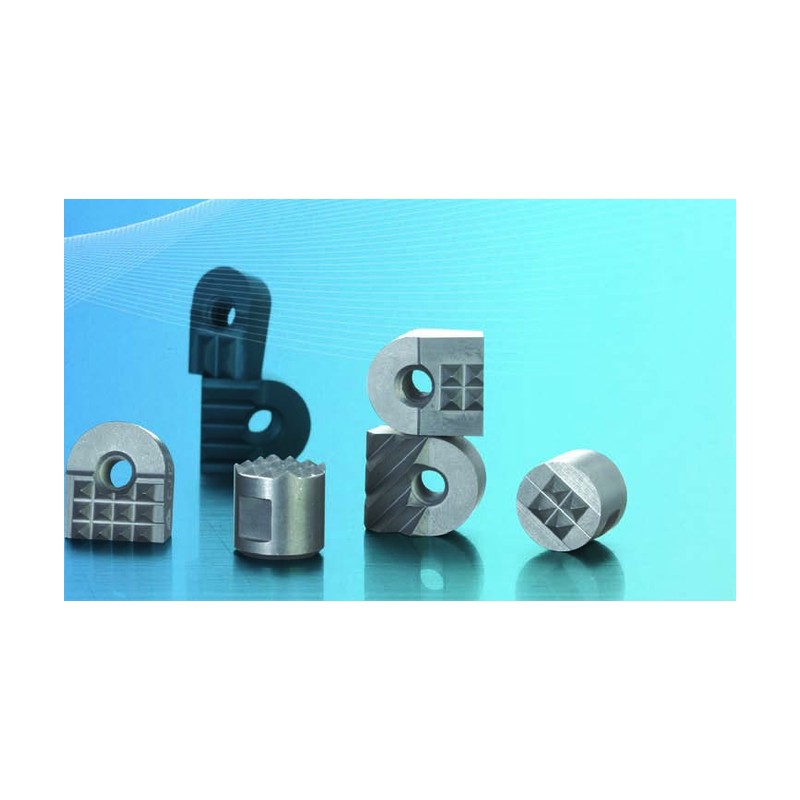

Korloy Serrated Chuck Jaw CJ

Korloy Serrated Chuck Jaw CJ

Serrated chuck jaw for gripping workpieces with uneven surfaces in turning and milling.

Key features

  • For chucking workpieces with uneven surfaces
  • Turning and milling (including machining centers)
  • Various serration patterns
CJ04 Size group: 1 | Width (mm): 14.2 | Height (mm): 16.5 | Thickness (mm): 8 | Hole R (mm): 7.1 | Thread: M5
CJ12 Size group: 1 | Width (mm): 14.2 | Height (mm): 16.5 | Thickness (mm): 8 | Hole R (mm): 7.1 | Thread: M5
CJ21 Size group: 1 | Width (mm): 14.2 | Height (mm): 16.5 | Thickness (mm): 8 | Hole R (mm): 7.1 | Thread: M5
CJ22 Size group: 1 | Width (mm): 14.2 | Height (mm): 16.5 | Thickness (mm): 8 | Hole R (mm): 7.1 | Thread: M5
CJ23 Size group: 1 | Width (mm): 14.2 | Height (mm): 16.5 | Thickness (mm): 8 | Hole R (mm): 7.1 | Thread: M5
CJ31 Size group: 2 (round) | Dia. (mm): 12.7 | Length (mm): 11.2 | Thread: M5
CJ32 Size group: 2 (round) | Dia. (mm): 12.7 | Length (mm): 11.2 | Thread: M5
CJ41 Size group: 3 | Width (mm): 10 | Height (mm): 16.5 | Thickness (mm): 8 | Hole R (mm): 5 | Thread: M5
CJ42 Size group: 3 | Width (mm): 10 | Height (mm): 16.5 | Thickness (mm): 8 | Hole R (mm): 5 | Thread: M5
Chuck JawsKorloy
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Serrated Chuck Jaw CJ

Brand Korloy·Chuck Jaws

Available part numbers (9)

CJ04, CJ12, CJ21, CJ22, CJ23, CJ31, CJ32, CJ41, CJ42

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CJ04Size group: 1 | Width (mm): 14.2 | Height (mm): 16.5 | Thickness (mm): 8 | Hole R (mm): 7.1 | Thread: M5
CJ12Size group: 1 | Width (mm): 14.2 | Height (mm): 16.5 | Thickness (mm): 8 | Hole R (mm): 7.1 | Thread: M5
CJ21Size group: 1 | Width (mm): 14.2 | Height (mm): 16.5 | Thickness (mm): 8 | Hole R (mm): 7.1 | Thread: M5
CJ22Size group: 1 | Width (mm): 14.2 | Height (mm): 16.5 | Thickness (mm): 8 | Hole R (mm): 7.1 | Thread: M5
CJ23Size group: 1 | Width (mm): 14.2 | Height (mm): 16.5 | Thickness (mm): 8 | Hole R (mm): 7.1 | Thread: M5
CJ31Size group: 2 (round) | Dia. (mm): 12.7 | Length (mm): 11.2 | Thread: M5
CJ32Size group: 2 (round) | Dia. (mm): 12.7 | Length (mm): 11.2 | Thread: M5
CJ41Size group: 3 | Width (mm): 10 | Height (mm): 16.5 | Thickness (mm): 8 | Hole R (mm): 5 | Thread: M5
CJ42Size group: 3 | Width (mm): 10 | Height (mm): 16.5 | Thickness (mm): 8 | Hole R (mm): 5 | Thread: M5
