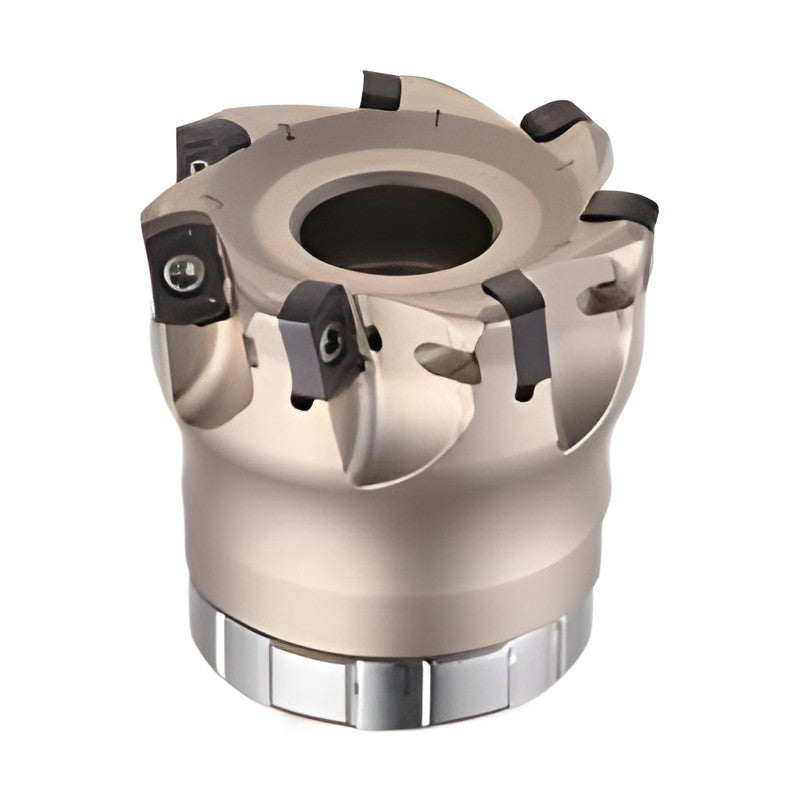

Korloy Shell Mill HFMDCM-LN06

Korloy Shell Mill HFMDCM-LN06

High feed milling tool with double-sided 4-corner inserts for small diameters.

Key features

  • Economical 4-corner double-sided insert
  • Fine pitch from thin elongated insert
  • High rake and helix angle reduce cutting load
  • Concave clamping system against chipping
HFMDCM032R-16-5-LN06 Teeth: 5 | D (mm): 32 | D2 (mm): 30 | d (mm): 16 | d1 (mm): 9 | ap max (mm): 1.0 | Weight (kg): 0.12 | d2 (mm): 13.5 | E (mm): 19 | F (mm): 40 | a (mm): 8.4 | b (mm): 5.6
HFMDCM040R-16-6-LN06 Teeth: 6 | D (mm): 40 | D2 (mm): 34 | d (mm): 16 | d1 (mm): 9 | ap max (mm): 1.0 | Weight (kg): 0.21 | d2 (mm): 14 | E (mm): 19 | F (mm): 40 | a (mm): 8.4 | b (mm): 5.6 | Stock: Yes
HFMDCM050R-22-6-LN06 Teeth: 6 | D (mm): 50 | D2 (mm): 45 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 1.0 | Weight (kg): 0.32 | d2 (mm): 18 | E (mm): 21 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3
HFMDCM050R-22-7-LN06 Teeth: 7 | D (mm): 50 | D2 (mm): 42 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 1.0 | Weight (kg): 0.32 | d2 (mm): 18 | E (mm): 21 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3
HFMDCM050R-22-8-LN06 Teeth: 8 | D (mm): 50 | D2 (mm): 42 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 1.0 | Weight (kg): 0.32 | d2 (mm): 18 | E (mm): 21 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3 | Stock: Yes
HFMDCM052R-22-7-LN06 Teeth: 7 | D (mm): 52 | D2 (mm): 48 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 1.0 | Weight (kg): 0.34 | d2 (mm): 18 | E (mm): 21 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3
HFMDCM052R-22-8-LN06 Teeth: 8 | D (mm): 52 | D2 (mm): 42 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 1.0 | Weight (kg): 0.34 | d2 (mm): 18 | E (mm): 21 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3
HFMDCM063R-22-8-LN06 Teeth: 8 | D (mm): 63 | D2 (mm): 50 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 1.0 | Weight (kg): 0.53 | d2 (mm): 18 | E (mm): 21 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3
HFMDCM063R-22-9-LN06 Teeth: 9 | D (mm): 63 | D2 (mm): 49 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 1.0 | Weight (kg): 0.53 | d2 (mm): 18 | E (mm): 21 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3 | Stock: Yes
HFMDCM066R-22-8-LN06 Teeth: 8 | D (mm): 63 | D2 (mm): 49 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 1.0 | Weight (kg): 0.57 | d2 (mm): 18 | E (mm): 21 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3
HFMDCM066R-22-9-LN06 Teeth: 9 | D (mm): 66 | D2 (mm): 50 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 1.0 | Weight (kg): 0.57 | d2 (mm): 18 | E (mm): 21 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3
Milling CuttersKorloy
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Shell Mill HFMDCM-LN06

Brand Korloy·Milling Cutters

Available part numbers (11)

HFMDCM032R-16-5-LN06, HFMDCM040R-16-6-LN06, HFMDCM050R-22-6-LN06, HFMDCM050R-22-7-LN06, HFMDCM050R-22-8-LN06, HFMDCM052R-22-7-LN06, HFMDCM052R-22-8-LN06, HFMDCM063R-22-8-LN06, HFMDCM063R-22-9-LN06, HFMDCM066R-22-8-LN06 + 1 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HFMDCM032R-16-5-LN06Teeth: 5 | D (mm): 32 | D2 (mm): 30 | d (mm): 16 | d1 (mm): 9 | ap max (mm): 1.0 | Weight (kg): 0.12 | d2 (mm): 13.5 | E (mm): 19 | F (mm): 40 | a (mm): 8.4 | b (mm): 5.6
HFMDCM040R-16-6-LN06Teeth: 6 | D (mm): 40 | D2 (mm): 34 | d (mm): 16 | d1 (mm): 9 | ap max (mm): 1.0 | Weight (kg): 0.21 | d2 (mm): 14 | E (mm): 19 | F (mm): 40 | a (mm): 8.4 | b (mm): 5.6 | Stock: Yes
HFMDCM050R-22-6-LN06Teeth: 6 | D (mm): 50 | D2 (mm): 45 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 1.0 | Weight (kg): 0.32 | d2 (mm): 18 | E (mm): 21 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3
HFMDCM050R-22-7-LN06Teeth: 7 | D (mm): 50 | D2 (mm): 42 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 1.0 | Weight (kg): 0.32 | d2 (mm): 18 | E (mm): 21 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3
HFMDCM050R-22-8-LN06Teeth: 8 | D (mm): 50 | D2 (mm): 42 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 1.0 | Weight (kg): 0.32 | d2 (mm): 18 | E (mm): 21 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3 | Stock: Yes
HFMDCM052R-22-7-LN06Teeth: 7 | D (mm): 52 | D2 (mm): 48 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 1.0 | Weight (kg): 0.34 | d2 (mm): 18 | E (mm): 21 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3
HFMDCM052R-22-8-LN06Teeth: 8 | D (mm): 52 | D2 (mm): 42 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 1.0 | Weight (kg): 0.34 | d2 (mm): 18 | E (mm): 21 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3
HFMDCM063R-22-8-LN06Teeth: 8 | D (mm): 63 | D2 (mm): 50 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 1.0 | Weight (kg): 0.53 | d2 (mm): 18 | E (mm): 21 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3
HFMDCM063R-22-9-LN06Teeth: 9 | D (mm): 63 | D2 (mm): 49 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 1.0 | Weight (kg): 0.53 | d2 (mm): 18 | E (mm): 21 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3 | Stock: Yes
HFMDCM066R-22-8-LN06Teeth: 8 | D (mm): 63 | D2 (mm): 49 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 1.0 | Weight (kg): 0.57 | d2 (mm): 18 | E (mm): 21 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3
HFMDCM066R-22-9-LN06Teeth: 9 | D (mm): 66 | D2 (mm): 50 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 1.0 | Weight (kg): 0.57 | d2 (mm): 18 | E (mm): 21 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3
