• Korloy Shell Mill RM3PC(M)5000
1 1

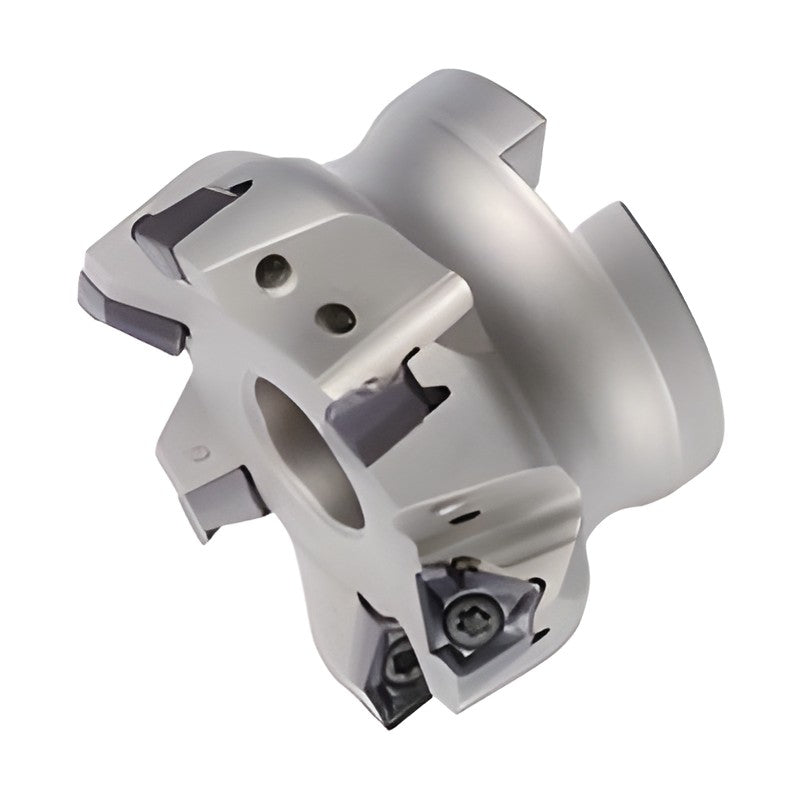

Korloy Shell Mill RM3PC(M)5000

Korloy Shell Mill RM3PC(M)5000

Shouldering tool with 3-corner inserts.

Key features

  • True 90 degree shouldering
  • Thick insert with 3-face clamping
  • Long tool life
RM3PC5080HR Teeth: 5 | D (mm): 80 | D2 (mm): 57 | d (mm): 25.4 | d1 (mm): 14 | ap max (mm): 12.0 | Weight (kg): 0.84 | d2 (mm): 20 | d3 (mm): 35 | E (mm): 24 | F (mm): 50 | a (mm): 9.5 | Stock: Yes
RM3PC5080HR-M Teeth: 7 | D (mm): 80 | D2 (mm): 57 | d (mm): 25.4 | d1 (mm): 14 | ap max (mm): 12.0 | Weight (kg): 0.84 | d2 (mm): 20 | d3 (mm): 35 | E (mm): 24 | F (mm): 50 | a (mm): 9.5 | Stock: Yes
RM3PCM5080HR-M Teeth: 7 | D (mm): 80 | D2 (mm): 57 | d (mm): 27 | d1 (mm): 14 | ap max (mm): 12.0 | Weight (kg): 0.84 | d2 (mm): 20 | d3 (mm): 35 | E (mm): 23 | F (mm): 50 | a (mm): 12.4 | Stock: Yes
RM3PC5100HR Teeth: 7 | D (mm): 100 | D2 (mm): 67 | d (mm): 31.75 | d1 (mm): 18 | ap max (mm): 12.0 | Weight (kg): 1.76 | d2 (mm): 28 | d3 (mm): 45 | E (mm): 32 | F (mm): 63 | a (mm): 12.7 | Stock: Yes
RM3PCM5100HR Teeth: 7 | D (mm): 100 | D2 (mm): 67 | d (mm): 32 | d1 (mm): 18 | ap max (mm): 12.0 | Weight (kg): 1.76 | d2 (mm): 28 | d3 (mm): 45 | E (mm): 25 | F (mm): 63 | a (mm): 14.4 | Stock: Yes
RM3PC5100HR-M Teeth: 8 | D (mm): 100 | D2 (mm): 67 | d (mm): 31.75 | d1 (mm): 18 | ap max (mm): 12.0 | Weight (kg): 1.76 | d2 (mm): 28 | d3 (mm): 45 | E (mm): 32 | F (mm): 63 | a (mm): 12.7 | Stock: Yes
RM3PCM5100HR-M Teeth: 8 | D (mm): 100 | D2 (mm): 67 | d (mm): 32 | d1 (mm): 18 | ap max (mm): 12.0 | Weight (kg): 1.76 | d2 (mm): 28 | d3 (mm): 45 | E (mm): 25 | F (mm): 63 | a (mm): 14.4 | Stock: Yes
RM3PC5125HR Teeth: 8 | D (mm): 125 | D2 (mm): 90 | d (mm): 38.1 | d1 (mm): 22 | ap max (mm): 12.0 | Weight (kg): 2.70 | d2 (mm): 32 | d3 (mm): 52 | E (mm): 38 | F (mm): 63 | a (mm): 15.9 | Stock: Yes
RM3PCM5125HR Teeth: 8 | D (mm): 125 | D2 (mm): 90 | d (mm): 40 | d1 (mm): 22 | ap max (mm): 12.0 | Weight (kg): 2.70 | d2 (mm): 32 | d3 (mm): 52 | E (mm): 30 | F (mm): 63 | a (mm): 16.4 | Stock: Yes
RM3PC5125HR-M Teeth: 10 | D (mm): 125 | D2 (mm): 90 | d (mm): 38.1 | d1 (mm): 22 | ap max (mm): 12.0 | Weight (kg): 2.70 | d2 (mm): 32 | d3 (mm): 52 | E (mm): 38 | F (mm): 63 | a (mm): 15.9 | Stock: Yes
RM3PCM5125HR-M Teeth: 10 | D (mm): 125 | D2 (mm): 90 | d (mm): 40 | d1 (mm): 22 | ap max (mm): 12.0 | Weight (kg): 2.70 | d2 (mm): 32 | d3 (mm): 52 | E (mm): 30 | F (mm): 63 | a (mm): 16.4 | Stock: Yes
Milling CuttersKorloy
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Shell Mill RM3PC(M)5000

Brand Korloy·Milling Cutters

Available part numbers (11)

RM3PC5080HR, RM3PC5080HR-M, RM3PCM5080HR-M, RM3PC5100HR, RM3PCM5100HR, RM3PC5100HR-M, RM3PCM5100HR-M, RM3PC5125HR, RM3PCM5125HR, RM3PC5125HR-M + 1 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RM3PC5080HRTeeth: 5 | D (mm): 80 | D2 (mm): 57 | d (mm): 25.4 | d1 (mm): 14 | ap max (mm): 12.0 | Weight (kg): 0.84 | d2 (mm): 20 | d3 (mm): 35 | E (mm): 24 | F (mm): 50 | a (mm): 9.5 | Stock: Yes
RM3PC5080HR-MTeeth: 7 | D (mm): 80 | D2 (mm): 57 | d (mm): 25.4 | d1 (mm): 14 | ap max (mm): 12.0 | Weight (kg): 0.84 | d2 (mm): 20 | d3 (mm): 35 | E (mm): 24 | F (mm): 50 | a (mm): 9.5 | Stock: Yes
RM3PCM5080HR-MTeeth: 7 | D (mm): 80 | D2 (mm): 57 | d (mm): 27 | d1 (mm): 14 | ap max (mm): 12.0 | Weight (kg): 0.84 | d2 (mm): 20 | d3 (mm): 35 | E (mm): 23 | F (mm): 50 | a (mm): 12.4 | Stock: Yes
RM3PC5100HRTeeth: 7 | D (mm): 100 | D2 (mm): 67 | d (mm): 31.75 | d1 (mm): 18 | ap max (mm): 12.0 | Weight (kg): 1.76 | d2 (mm): 28 | d3 (mm): 45 | E (mm): 32 | F (mm): 63 | a (mm): 12.7 | Stock: Yes
RM3PCM5100HRTeeth: 7 | D (mm): 100 | D2 (mm): 67 | d (mm): 32 | d1 (mm): 18 | ap max (mm): 12.0 | Weight (kg): 1.76 | d2 (mm): 28 | d3 (mm): 45 | E (mm): 25 | F (mm): 63 | a (mm): 14.4 | Stock: Yes
RM3PC5100HR-MTeeth: 8 | D (mm): 100 | D2 (mm): 67 | d (mm): 31.75 | d1 (mm): 18 | ap max (mm): 12.0 | Weight (kg): 1.76 | d2 (mm): 28 | d3 (mm): 45 | E (mm): 32 | F (mm): 63 | a (mm): 12.7 | Stock: Yes
RM3PCM5100HR-MTeeth: 8 | D (mm): 100 | D2 (mm): 67 | d (mm): 32 | d1 (mm): 18 | ap max (mm): 12.0 | Weight (kg): 1.76 | d2 (mm): 28 | d3 (mm): 45 | E (mm): 25 | F (mm): 63 | a (mm): 14.4 | Stock: Yes
RM3PC5125HRTeeth: 8 | D (mm): 125 | D2 (mm): 90 | d (mm): 38.1 | d1 (mm): 22 | ap max (mm): 12.0 | Weight (kg): 2.70 | d2 (mm): 32 | d3 (mm): 52 | E (mm): 38 | F (mm): 63 | a (mm): 15.9 | Stock: Yes
RM3PCM5125HRTeeth: 8 | D (mm): 125 | D2 (mm): 90 | d (mm): 40 | d1 (mm): 22 | ap max (mm): 12.0 | Weight (kg): 2.70 | d2 (mm): 32 | d3 (mm): 52 | E (mm): 30 | F (mm): 63 | a (mm): 16.4 | Stock: Yes
RM3PC5125HR-MTeeth: 10 | D (mm): 125 | D2 (mm): 90 | d (mm): 38.1 | d1 (mm): 22 | ap max (mm): 12.0 | Weight (kg): 2.70 | d2 (mm): 32 | d3 (mm): 52 | E (mm): 38 | F (mm): 63 | a (mm): 15.9 | Stock: Yes
RM3PCM5125HR-MTeeth: 10 | D (mm): 125 | D2 (mm): 90 | d (mm): 40 | d1 (mm): 22 | ap max (mm): 12.0 | Weight (kg): 2.70 | d2 (mm): 32 | d3 (mm): 52 | E (mm): 30 | F (mm): 63 | a (mm): 16.4 | Stock: Yes
