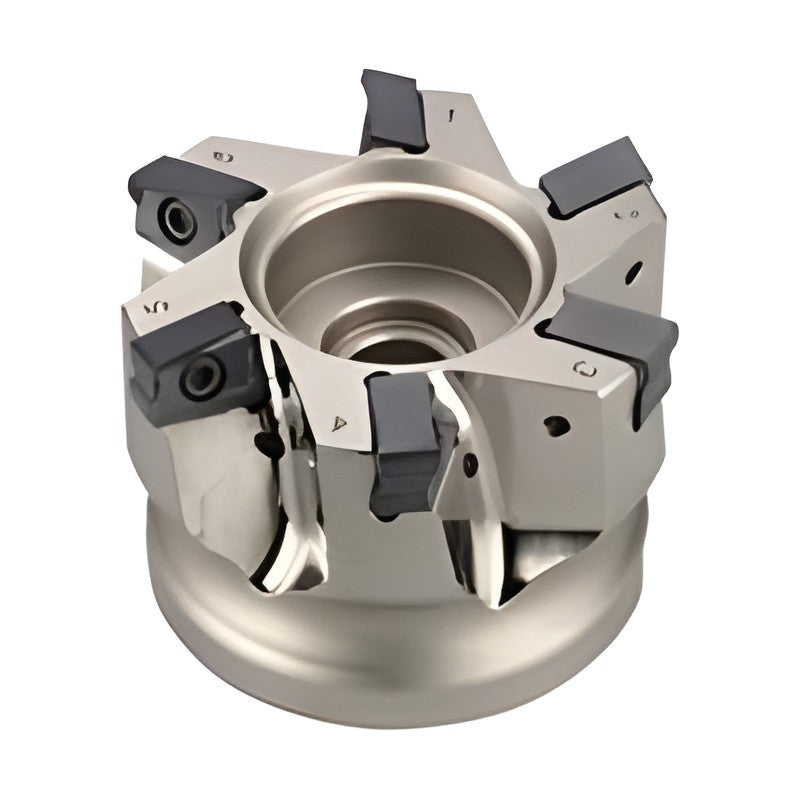

Korloy Shell Mill RM4ZC(M)3000/4000

Korloy Shell Mill RM4ZC(M)3000/4000

Economical multi-purpose plunge milling tool with double-sided 4-corner inserts for plunging, shouldering and facing.

Key features

  • Double-sided 4-corner insert
  • Plunge machining for slotting and pocketing
  • Max plunging depth 9.0 mm (3000 type) / 14.0 mm (4000 type)
RM4ZCM3040HR Teeth: 4 | D (mm): 40 | D2 (mm): 37 | d (mm): 16 | d1 (mm): 9 | ap max (mm): 1.5 | ae max (mm): 9.0 | Weight (kg): 0.21 | d2 (mm): 14 | E (mm): 19 | F (mm): 40 | a (mm): 8.4 | Stock: Yes
RM4ZCM3050HR Teeth: 5 | D (mm): 50 | D2 (mm): 47 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 1.5 | ae max (mm): 9.0 | Weight (kg): 0.33 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | Stock: Yes
RM4ZCM3052HR Teeth: 5 | D (mm): 52 | D2 (mm): 48 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 1.5 | ae max (mm): 9.0 | Weight (kg): 0.37 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3
RM4ZCM4063HR Teeth: 5 | D (mm): 63 | D2 (mm): 58 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 2.5 | ae max (mm): 14.0 | Weight (kg): 0.56 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | Stock: Yes
RM4ZC4066HR Teeth: 5 | D (mm): 66 | D2 (mm): 61 | d (mm): 25.4 | d1 (mm): 14 | ap max (mm): 2.5 | ae max (mm): 14.0 | Weight (kg): 0.74 | d2 (mm): 20 | E (mm): 25 | F (mm): 50 | a (mm): 9.5 | b (mm): 6
RM4ZC4080HR Teeth: 6 | D (mm): 80 | D2 (mm): 70 | d (mm): 25.4 | d1 (mm): 14 | ap max (mm): 2.5 | ae max (mm): 14.0 | Weight (kg): 1.09 | d2 (mm): 20 | d3 (mm): 35 | E (mm): 25 | F (mm): 50 | a (mm): 9.5
RM4ZCM4080HR Teeth: 6 | D (mm): 80 | D2 (mm): 70 | d (mm): 27 | d1 (mm): 14 | ap max (mm): 2.5 | ae max (mm): 14.0 | Weight (kg): 1.09 | d2 (mm): 20 | d3 (mm): 35 | E (mm): 23 | F (mm): 50 | Stock: Yes
RM4ZC4100HR Teeth: 7 | D (mm): 100 | D2 (mm): 80 | d (mm): 31.75 | d1 (mm): 18 | ap max (mm): 2.5 | ae max (mm): 14.0 | Weight (kg): 1.71 | d2 (mm): 26 | d3 (mm): 42 | E (mm): 25 | F (mm): 63 | a (mm): 12.7
RM4ZCM4100HR Teeth: 7 | D (mm): 100 | D2 (mm): 80 | d (mm): 32 | d1 (mm): 18 | ap max (mm): 2.5 | ae max (mm): 14.0 | Weight (kg): 1.71 | d2 (mm): 26 | d3 (mm): 42 | E (mm): 33 | F (mm): 50 | a (mm): 14.4
Milling CuttersKorloy
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Shell Mill RM4ZC(M)3000/4000

Brand Korloy·Milling Cutters

Available part numbers (9)

RM4ZCM3040HR, RM4ZCM3050HR, RM4ZCM3052HR, RM4ZCM4063HR, RM4ZC4066HR, RM4ZC4080HR, RM4ZCM4080HR, RM4ZC4100HR, RM4ZCM4100HR

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RM4ZCM3040HRTeeth: 4 | D (mm): 40 | D2 (mm): 37 | d (mm): 16 | d1 (mm): 9 | ap max (mm): 1.5 | ae max (mm): 9.0 | Weight (kg): 0.21 | d2 (mm): 14 | E (mm): 19 | F (mm): 40 | a (mm): 8.4 | Stock: Yes
RM4ZCM3050HRTeeth: 5 | D (mm): 50 | D2 (mm): 47 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 1.5 | ae max (mm): 9.0 | Weight (kg): 0.33 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | Stock: Yes
RM4ZCM3052HRTeeth: 5 | D (mm): 52 | D2 (mm): 48 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 1.5 | ae max (mm): 9.0 | Weight (kg): 0.37 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3
RM4ZCM4063HRTeeth: 5 | D (mm): 63 | D2 (mm): 58 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 2.5 | ae max (mm): 14.0 | Weight (kg): 0.56 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | Stock: Yes
RM4ZC4066HRTeeth: 5 | D (mm): 66 | D2 (mm): 61 | d (mm): 25.4 | d1 (mm): 14 | ap max (mm): 2.5 | ae max (mm): 14.0 | Weight (kg): 0.74 | d2 (mm): 20 | E (mm): 25 | F (mm): 50 | a (mm): 9.5 | b (mm): 6
RM4ZC4080HRTeeth: 6 | D (mm): 80 | D2 (mm): 70 | d (mm): 25.4 | d1 (mm): 14 | ap max (mm): 2.5 | ae max (mm): 14.0 | Weight (kg): 1.09 | d2 (mm): 20 | d3 (mm): 35 | E (mm): 25 | F (mm): 50 | a (mm): 9.5
RM4ZCM4080HRTeeth: 6 | D (mm): 80 | D2 (mm): 70 | d (mm): 27 | d1 (mm): 14 | ap max (mm): 2.5 | ae max (mm): 14.0 | Weight (kg): 1.09 | d2 (mm): 20 | d3 (mm): 35 | E (mm): 23 | F (mm): 50 | Stock: Yes
RM4ZC4100HRTeeth: 7 | D (mm): 100 | D2 (mm): 80 | d (mm): 31.75 | d1 (mm): 18 | ap max (mm): 2.5 | ae max (mm): 14.0 | Weight (kg): 1.71 | d2 (mm): 26 | d3 (mm): 42 | E (mm): 25 | F (mm): 63 | a (mm): 12.7
RM4ZCM4100HRTeeth: 7 | D (mm): 100 | D2 (mm): 80 | d (mm): 32 | d1 (mm): 18 | ap max (mm): 2.5 | ae max (mm): 14.0 | Weight (kg): 1.71 | d2 (mm): 26 | d3 (mm): 42 | E (mm): 33 | F (mm): 50 | a (mm): 14.4
