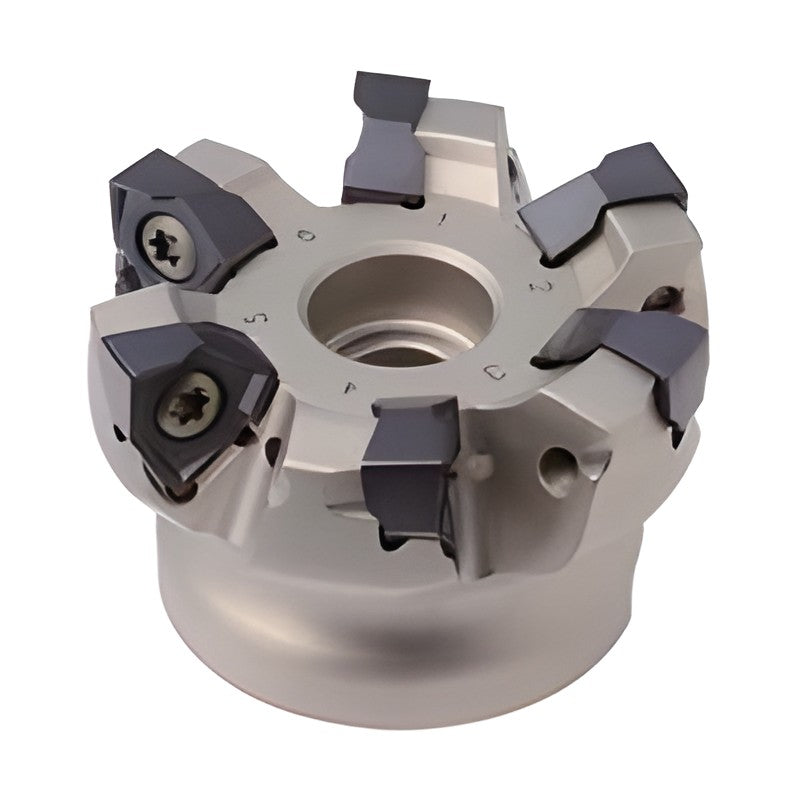

Korloy Shell Mill RM6PC(M)-WN08

Korloy Shell Mill RM6PC(M)-WN08

Milling tool for perpendicular shouldering with double-sided 6-corner inserts.

Key features

  • Double-sided insert with 6 cutting corners
  • 3 clamping surfaces and strong clamping screws for stable clamping
  • High precision and excellent perpendicularity
  • High rake angle and sharp edges for low cutting resistance
  • Suited to high speed and high feed machining
RM6PCM050R-22-4-WN08 Teeth: 4 | D (mm): 50 | D2 (mm): 42 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 8.2 | Weight (kg): 0.28 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3 | Stock: Yes
RM6PCM050R-22-5-WN08 Teeth: 5 | D (mm): 50 | D2 (mm): 42 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 8.2 | Weight (kg): 0.27 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3 | Stock: Yes
RM6PCM063R-22-5-WN08 Teeth: 5 | D (mm): 63 | D2 (mm): 49 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 8.2 | Weight (kg): 0.45 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3 | Stock: Yes
RM6PCM063R-22-6-WN08 Teeth: 6 | D (mm): 63 | D2 (mm): 49 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 8.2 | Weight (kg): 0.45 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3 | Stock: Yes
RM6PCM080R-27-7-WN08 Teeth: 7 | D (mm): 80 | D2 (mm): 57 | d (mm): 27 | d1 (mm): 14 | ap max (mm): 8.2 | Weight (kg): 0.90 | d2 (mm): 20 | d3 (mm): 35 | E (mm): 23 | F (mm): 50 | a (mm): 12.4 | Stock: Yes
RM6PCM080R-27-9-WN08 Teeth: 9 | D (mm): 80 | D2 (mm): 57 | d (mm): 27 | d1 (mm): 14 | ap max (mm): 8.2 | Weight (kg): 0.89 | d2 (mm): 20 | d3 (mm): 35 | E (mm): 23 | F (mm): 50 | a (mm): 12.4 | Stock: Yes
RM6PCM100R-32-8-WN08 Teeth: 8 | D (mm): 100 | D2 (mm): 67 | d (mm): 32 | d1 (mm): 18 | ap max (mm): 8.2 | Weight (kg): 1.47 | d2 (mm): 26 | d3 (mm): 42 | E (mm): 25 | F (mm): 50 | a (mm): 14.4 | Stock: Yes
RM6PCM100R-32-11-WN08 Teeth: 11 | D (mm): 100 | D2 (mm): 67 | d (mm): 32 | d1 (mm): 18 | ap max (mm): 8.2 | Weight (kg): 1.45 | d2 (mm): 26 | d3 (mm): 42 | E (mm): 25 | F (mm): 50 | a (mm): 14.4 | Stock: Yes
RM6PCM125R-40-11-WN08 Teeth: 11 | D (mm): 125 | D2 (mm): 90 | d (mm): 40 | d1 (mm): 22 | ap max (mm): 8.2 | Weight (kg): 2.94 | d2 (mm): 32 | d3 (mm): 52 | E (mm): 29 | F (mm): 63 | a (mm): 16.4 | Stock: Yes
RM6PCM125R-40-14-WN08 Teeth: 14 | D (mm): 125 | D2 (mm): 90 | d (mm): 40 | d1 (mm): 22 | ap max (mm): 8.2 | Weight (kg): 2.91 | d2 (mm): 32 | d3 (mm): 52 | E (mm): 29 | F (mm): 63 | a (mm): 16.4 | Stock: Yes
RM6PC080R-25.4-7-WN08 Teeth: 7 | D (mm): 80 | D2 (mm): 57 | d (mm): 25.4 | d1 (mm): 14 | ap max (mm): 8.2 | Weight (kg): 0.91 | d2 (mm): 20 | d3 (mm): 35 | E (mm): 25 | F (mm): 50 | a (mm): 9.5 | Stock: Yes
RM6PC080R-25.4-9-WN08 Teeth: 9 | D (mm): 80 | D2 (mm): 57 | d (mm): 25.4 | d1 (mm): 14 | ap max (mm): 8.2 | Weight (kg): 0.91 | d2 (mm): 20 | d3 (mm): 35 | E (mm): 25 | F (mm): 50 | a (mm): 9.5 | b (mm): 6
RM6PC100R-31.75-8-WN08 Teeth: 8 | D (mm): 100 | D2 (mm): 67 | d (mm): 31.75 | d1 (mm): 18 | ap max (mm): 8.2 | Weight (kg): 1.69 | d2 (mm): 26 | d3 (mm): 42 | E (mm): 32 | F (mm): 63 | a (mm): 12.7 | Stock: Yes
RM6PC100R-31.75-11-WN08 Teeth: 11 | D (mm): 100 | D2 (mm): 67 | d (mm): 31.75 | d1 (mm): 18 | ap max (mm): 8.2 | Weight (kg): 1.73 | d2 (mm): 26 | d3 (mm): 42 | E (mm): 32 | F (mm): 63 | a (mm): 12.7 | b (mm): 8
RM6PC125R-38.1-11-WN08 Teeth: 11 | D (mm): 125 | D2 (mm): 90 | d (mm): 38.1 | d1 (mm): 22 | ap max (mm): 8.2 | Weight (kg): 1.98 | d2 (mm): 32 | d3 (mm): 52 | E (mm): 35 | F (mm): 63 | a (mm): 15.9 | Stock: Yes
RM6PC125R-38.1-14-WN08 Teeth: 14 | D (mm): 125 | D2 (mm): 90 | d (mm): 38.1 | d1 (mm): 22 | ap max (mm): 8.2 | Weight (kg): 2.90 | d2 (mm): 32 | d3 (mm): 52 | E (mm): 35 | F (mm): 63 | a (mm): 15.9 | b (mm): 10
Milling CuttersKorloy
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Shell Mill RM6PC(M)-WN08

Brand Korloy·Milling Cutters

Available part numbers (16)

RM6PCM050R-22-4-WN08, RM6PCM050R-22-5-WN08, RM6PCM063R-22-5-WN08, RM6PCM063R-22-6-WN08, RM6PCM080R-27-7-WN08, RM6PCM080R-27-9-WN08, RM6PCM100R-32-8-WN08, RM6PCM100R-32-11-WN08, RM6PCM125R-40-11-WN08, RM6PCM125R-40-14-WN08 + 6 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RM6PCM050R-22-4-WN08Teeth: 4 | D (mm): 50 | D2 (mm): 42 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 8.2 | Weight (kg): 0.28 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3 | Stock: Yes
RM6PCM050R-22-5-WN08Teeth: 5 | D (mm): 50 | D2 (mm): 42 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 8.2 | Weight (kg): 0.27 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3 | Stock: Yes
RM6PCM063R-22-5-WN08Teeth: 5 | D (mm): 63 | D2 (mm): 49 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 8.2 | Weight (kg): 0.45 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3 | Stock: Yes
RM6PCM063R-22-6-WN08Teeth: 6 | D (mm): 63 | D2 (mm): 49 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 8.2 | Weight (kg): 0.45 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3 | Stock: Yes
RM6PCM080R-27-7-WN08Teeth: 7 | D (mm): 80 | D2 (mm): 57 | d (mm): 27 | d1 (mm): 14 | ap max (mm): 8.2 | Weight (kg): 0.90 | d2 (mm): 20 | d3 (mm): 35 | E (mm): 23 | F (mm): 50 | a (mm): 12.4 | Stock: Yes
RM6PCM080R-27-9-WN08Teeth: 9 | D (mm): 80 | D2 (mm): 57 | d (mm): 27 | d1 (mm): 14 | ap max (mm): 8.2 | Weight (kg): 0.89 | d2 (mm): 20 | d3 (mm): 35 | E (mm): 23 | F (mm): 50 | a (mm): 12.4 | Stock: Yes
RM6PCM100R-32-8-WN08Teeth: 8 | D (mm): 100 | D2 (mm): 67 | d (mm): 32 | d1 (mm): 18 | ap max (mm): 8.2 | Weight (kg): 1.47 | d2 (mm): 26 | d3 (mm): 42 | E (mm): 25 | F (mm): 50 | a (mm): 14.4 | Stock: Yes
RM6PCM100R-32-11-WN08Teeth: 11 | D (mm): 100 | D2 (mm): 67 | d (mm): 32 | d1 (mm): 18 | ap max (mm): 8.2 | Weight (kg): 1.45 | d2 (mm): 26 | d3 (mm): 42 | E (mm): 25 | F (mm): 50 | a (mm): 14.4 | Stock: Yes
RM6PCM125R-40-11-WN08Teeth: 11 | D (mm): 125 | D2 (mm): 90 | d (mm): 40 | d1 (mm): 22 | ap max (mm): 8.2 | Weight (kg): 2.94 | d2 (mm): 32 | d3 (mm): 52 | E (mm): 29 | F (mm): 63 | a (mm): 16.4 | Stock: Yes
RM6PCM125R-40-14-WN08Teeth: 14 | D (mm): 125 | D2 (mm): 90 | d (mm): 40 | d1 (mm): 22 | ap max (mm): 8.2 | Weight (kg): 2.91 | d2 (mm): 32 | d3 (mm): 52 | E (mm): 29 | F (mm): 63 | a (mm): 16.4 | Stock: Yes
RM6PC080R-25.4-7-WN08Teeth: 7 | D (mm): 80 | D2 (mm): 57 | d (mm): 25.4 | d1 (mm): 14 | ap max (mm): 8.2 | Weight (kg): 0.91 | d2 (mm): 20 | d3 (mm): 35 | E (mm): 25 | F (mm): 50 | a (mm): 9.5 | Stock: Yes
RM6PC080R-25.4-9-WN08Teeth: 9 | D (mm): 80 | D2 (mm): 57 | d (mm): 25.4 | d1 (mm): 14 | ap max (mm): 8.2 | Weight (kg): 0.91 | d2 (mm): 20 | d3 (mm): 35 | E (mm): 25 | F (mm): 50 | a (mm): 9.5 | b (mm): 6
RM6PC100R-31.75-8-WN08Teeth: 8 | D (mm): 100 | D2 (mm): 67 | d (mm): 31.75 | d1 (mm): 18 | ap max (mm): 8.2 | Weight (kg): 1.69 | d2 (mm): 26 | d3 (mm): 42 | E (mm): 32 | F (mm): 63 | a (mm): 12.7 | Stock: Yes
RM6PC100R-31.75-11-WN08Teeth: 11 | D (mm): 100 | D2 (mm): 67 | d (mm): 31.75 | d1 (mm): 18 | ap max (mm): 8.2 | Weight (kg): 1.73 | d2 (mm): 26 | d3 (mm): 42 | E (mm): 32 | F (mm): 63 | a (mm): 12.7 | b (mm): 8
RM6PC125R-38.1-11-WN08Teeth: 11 | D (mm): 125 | D2 (mm): 90 | d (mm): 38.1 | d1 (mm): 22 | ap max (mm): 8.2 | Weight (kg): 1.98 | d2 (mm): 32 | d3 (mm): 52 | E (mm): 35 | F (mm): 63 | a (mm): 15.9 | Stock: Yes
RM6PC125R-38.1-14-WN08Teeth: 14 | D (mm): 125 | D2 (mm): 90 | d (mm): 38.1 | d1 (mm): 22 | ap max (mm): 8.2 | Weight (kg): 2.90 | d2 (mm): 32 | d3 (mm): 52 | E (mm): 35 | F (mm): 63 | a (mm): 15.9 | b (mm): 10
