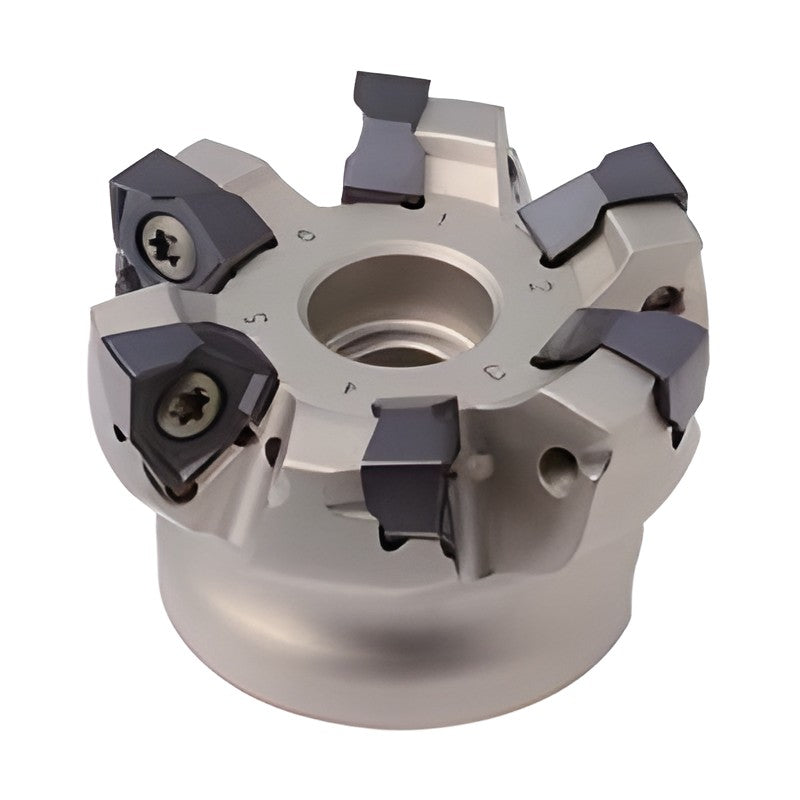

Korloy Shell Mill RM6PCM-WN04

Korloy Shell Mill RM6PCM-WN04

Milling tool for perpendicular shouldering with double-sided 6-corner inserts.

Key features

  • Double-sided insert with 6 cutting corners
  • 3 clamping surfaces and strong clamping screws for stable clamping
  • High precision and excellent perpendicularity
  • High rake angle and sharp edges for low cutting resistance
  • Suited to high speed and high feed machining
RM6PCM040R-16-6-WN04 Teeth: 6 | D (mm): 40 | D2 (mm): 35 | d (mm): 16 | d1 (mm): 9 | ap max (mm): 4.3 | Weight (kg): 0.19 | d2 (mm): 14 | E (mm): 19 | F (mm): 40 | a (mm): 8.4 | b (mm): 5.6
RM6PCM040R-16-7-WN04 Teeth: 7 | D (mm): 40 | D2 (mm): 35 | d (mm): 16 | d1 (mm): 9 | ap max (mm): 4.3 | Weight (kg): 0.19 | d2 (mm): 14 | E (mm): 19 | F (mm): 40 | a (mm): 8.4 | b (mm): 5.6
RM6PCM050R-22-8-WN04 Teeth: 8 | D (mm): 50 | D2 (mm): 42 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 4.3 | Weight (kg): 0.28 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3
RM6PCM050R-22-9-WN04 Teeth: 9 | D (mm): 50 | D2 (mm): 42 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 4.3 | Weight (kg): 0.28 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3
RM6PCM063R-22-10-WN04 Teeth: 10 | D (mm): 63 | D2 (mm): 49 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 4.3 | Weight (kg): 0.47 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3
RM6PCM063R-22-11-WN04 Teeth: 11 | D (mm): 63 | D2 (mm): 49 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 4.3 | Weight (kg): 0.47 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3
Milling CuttersKorloy
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Shell Mill RM6PCM-WN04

Brand Korloy·Milling Cutters

Available part numbers (6)

RM6PCM040R-16-6-WN04, RM6PCM040R-16-7-WN04, RM6PCM050R-22-8-WN04, RM6PCM050R-22-9-WN04, RM6PCM063R-22-10-WN04, RM6PCM063R-22-11-WN04

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RM6PCM040R-16-6-WN04Teeth: 6 | D (mm): 40 | D2 (mm): 35 | d (mm): 16 | d1 (mm): 9 | ap max (mm): 4.3 | Weight (kg): 0.19 | d2 (mm): 14 | E (mm): 19 | F (mm): 40 | a (mm): 8.4 | b (mm): 5.6
RM6PCM040R-16-7-WN04Teeth: 7 | D (mm): 40 | D2 (mm): 35 | d (mm): 16 | d1 (mm): 9 | ap max (mm): 4.3 | Weight (kg): 0.19 | d2 (mm): 14 | E (mm): 19 | F (mm): 40 | a (mm): 8.4 | b (mm): 5.6
RM6PCM050R-22-8-WN04Teeth: 8 | D (mm): 50 | D2 (mm): 42 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 4.3 | Weight (kg): 0.28 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3
RM6PCM050R-22-9-WN04Teeth: 9 | D (mm): 50 | D2 (mm): 42 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 4.3 | Weight (kg): 0.28 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3
RM6PCM063R-22-10-WN04Teeth: 10 | D (mm): 63 | D2 (mm): 49 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 4.3 | Weight (kg): 0.47 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3
RM6PCM063R-22-11-WN04Teeth: 11 | D (mm): 63 | D2 (mm): 49 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 4.3 | Weight (kg): 0.47 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3
