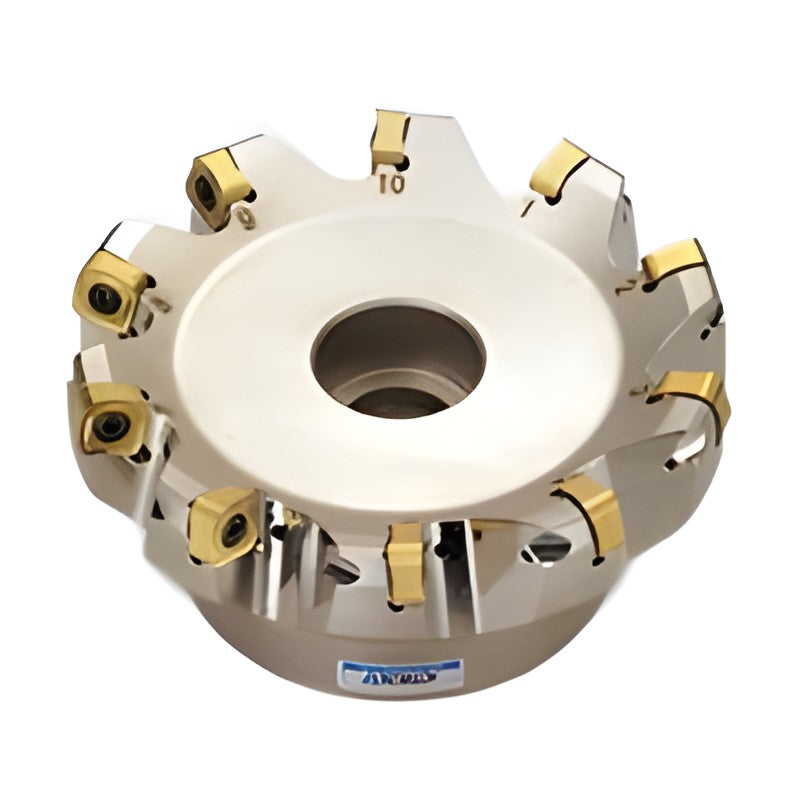

Korloy Shell Mill RM8EC(M)5000

Korloy Shell Mill RM8EC(M)5000

Economical Rich Mill series milling tool using double-sided inserts with 8 cutting corners.

Key features

  • Double-sided insert with 8 cutting edges
  • Low cutting load and long tool life
  • For steel, stainless steel, cast iron and aluminum
  • Screw-on and latch clamping systems available
RM8EC5080HR-M Teeth: 6 | D (mm): 80 | D2 (mm): 57 | d (mm): 25.4 | d1 (mm): 14 | ap max (mm): 11.0 | Weight (kg): 1.1 | d2 (mm): 20 | E (mm): 25 | F (mm): 50 | a (mm): 9.5 | b (mm): 6 | Stock: Yes
RM8EC5100HR-M Teeth: 7 | D (mm): 100 | D2 (mm): 67 | d (mm): 31.75 | d1 (mm): 18 | ap max (mm): 11.0 | Weight (kg): 2.1 | d2 (mm): 26 | E (mm): 33 | F (mm): 63 | a (mm): 12.7 | b (mm): 8.0 | Stock: Yes
RM8ECM5100HR-M Teeth: 7 | D (mm): 100 | D2 (mm): 67 | d (mm): 32 | d1 (mm): 18 | ap max (mm): 11.0 | Weight (kg): 1.7 | d2 (mm): 26 | E (mm): 25 | F (mm): 50 | a (mm): 14.4 | b (mm): 8.0 | Stock: Yes
RM8EC5125HR-M Teeth: 8 | D (mm): 125 | D2 (mm): 87 | d (mm): 38.1 | d1 (mm): 22 | ap max (mm): 11.0 | Weight (kg): 3.4 | d2 (mm): 32 | E (mm): 35 | F (mm): 63 | a (mm): 15.9 | b (mm): 10
RM8ECM5125HR-M Teeth: 8 | D (mm): 125 | D2 (mm): 87 | d (mm): 40 | d1 (mm): 22 | ap max (mm): 11.0 | Weight (kg): 3.3 | d2 (mm): 32 | E (mm): 30 | F (mm): 63 | a (mm): 16.4 | b (mm): 9
RM8EC5160R-M Teeth: 10 | D (mm): 160 | D2 (mm): 107 | d (mm): 50.8 | ap max (mm): 11.0 | Weight (kg): 4.4 | d2 (mm): 107 | E (mm): 38 | F (mm): 63 | a (mm): 19 | b (mm): 11 | Stock: Yes
RM8ECM5160R-M Teeth: 10 | D (mm): 160 | D2 (mm): 107 | d (mm): 40 | ap max (mm): 11.0 | Weight (kg): 4.1 | d2 (mm): 107 | E (mm): 32 | F (mm): 63 | a (mm): 16.4 | b (mm): 9 | Stock: Yes
RM8EC5200R-M Teeth: 12 | D (mm): 200 | D2 (mm): 130 | d (mm): 47.625 | ap max (mm): 11.0 | Weight (kg): 6.4 | d2 (mm): 135 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14.0
RM8ECM5200R-M Teeth: 12 | D (mm): 200 | D2 (mm): 130 | d (mm): 60 | ap max (mm): 11.0 | Weight (kg): 6.1 | d2 (mm): 135 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14.0 | Stock: Yes
RM8EC5250R-M Teeth: 15 | D (mm): 250 | D2 (mm): 180 | d (mm): 47.625 | ap max (mm): 11.0 | Weight (kg): 11.0 | d2 (mm): 180 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14.0
RM8ECM5250R-M Teeth: 15 | D (mm): 250 | D2 (mm): 180 | d (mm): 60 | ap max (mm): 11.0 | Weight (kg): 10.7 | d2 (mm): 180 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14.0 | Stock: Yes
RM8EC5315R-M Teeth: 20 | D (mm): 315 | D2 (mm): 240 | d (mm): 47.625 | ap max (mm): 11.0 | Weight (kg): 18.0 | d2 (mm): 238 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14.0
RM8ECM5315R-M Teeth: 20 | D (mm): 315 | D2 (mm): 240 | d (mm): 60 | ap max (mm): 11.0 | Weight (kg): 17.7 | d2 (mm): 238 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14.0
RM8EC5400R-M Teeth: 28 | D (mm): 400 | D2 (mm): 260 | d (mm): 47.625 | ap max (mm): 11.0 | Weight (kg): 35.7 | d2 (mm): 238 | E (mm): 38 | F (mm): 80 | a (mm): 25.4 | b (mm): 14.0
RM8ECM5400R-M Teeth: 28 | D (mm): 400 | D2 (mm): 260 | d (mm): 60 | ap max (mm): 11.0 | Weight (kg): 35.4 | d2 (mm): 238 | E (mm): 38 | F (mm): 80 | a (mm): 25.7 | b (mm): 14.0
Milling CuttersKorloy
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Shell Mill RM8EC(M)5000

Brand Korloy·Milling Cutters

Available part numbers (15)

RM8EC5080HR-M, RM8EC5100HR-M, RM8ECM5100HR-M, RM8EC5125HR-M, RM8ECM5125HR-M, RM8EC5160R-M, RM8ECM5160R-M, RM8EC5200R-M, RM8ECM5200R-M, RM8EC5250R-M + 5 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RM8EC5080HR-MTeeth: 6 | D (mm): 80 | D2 (mm): 57 | d (mm): 25.4 | d1 (mm): 14 | ap max (mm): 11.0 | Weight (kg): 1.1 | d2 (mm): 20 | E (mm): 25 | F (mm): 50 | a (mm): 9.5 | b (mm): 6 | Stock: Yes
RM8EC5100HR-MTeeth: 7 | D (mm): 100 | D2 (mm): 67 | d (mm): 31.75 | d1 (mm): 18 | ap max (mm): 11.0 | Weight (kg): 2.1 | d2 (mm): 26 | E (mm): 33 | F (mm): 63 | a (mm): 12.7 | b (mm): 8.0 | Stock: Yes
RM8ECM5100HR-MTeeth: 7 | D (mm): 100 | D2 (mm): 67 | d (mm): 32 | d1 (mm): 18 | ap max (mm): 11.0 | Weight (kg): 1.7 | d2 (mm): 26 | E (mm): 25 | F (mm): 50 | a (mm): 14.4 | b (mm): 8.0 | Stock: Yes
RM8EC5125HR-MTeeth: 8 | D (mm): 125 | D2 (mm): 87 | d (mm): 38.1 | d1 (mm): 22 | ap max (mm): 11.0 | Weight (kg): 3.4 | d2 (mm): 32 | E (mm): 35 | F (mm): 63 | a (mm): 15.9 | b (mm): 10
RM8ECM5125HR-MTeeth: 8 | D (mm): 125 | D2 (mm): 87 | d (mm): 40 | d1 (mm): 22 | ap max (mm): 11.0 | Weight (kg): 3.3 | d2 (mm): 32 | E (mm): 30 | F (mm): 63 | a (mm): 16.4 | b (mm): 9
RM8EC5160R-MTeeth: 10 | D (mm): 160 | D2 (mm): 107 | d (mm): 50.8 | ap max (mm): 11.0 | Weight (kg): 4.4 | d2 (mm): 107 | E (mm): 38 | F (mm): 63 | a (mm): 19 | b (mm): 11 | Stock: Yes
RM8ECM5160R-MTeeth: 10 | D (mm): 160 | D2 (mm): 107 | d (mm): 40 | ap max (mm): 11.0 | Weight (kg): 4.1 | d2 (mm): 107 | E (mm): 32 | F (mm): 63 | a (mm): 16.4 | b (mm): 9 | Stock: Yes
RM8EC5200R-MTeeth: 12 | D (mm): 200 | D2 (mm): 130 | d (mm): 47.625 | ap max (mm): 11.0 | Weight (kg): 6.4 | d2 (mm): 135 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14.0
RM8ECM5200R-MTeeth: 12 | D (mm): 200 | D2 (mm): 130 | d (mm): 60 | ap max (mm): 11.0 | Weight (kg): 6.1 | d2 (mm): 135 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14.0 | Stock: Yes
RM8EC5250R-MTeeth: 15 | D (mm): 250 | D2 (mm): 180 | d (mm): 47.625 | ap max (mm): 11.0 | Weight (kg): 11.0 | d2 (mm): 180 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14.0
RM8ECM5250R-MTeeth: 15 | D (mm): 250 | D2 (mm): 180 | d (mm): 60 | ap max (mm): 11.0 | Weight (kg): 10.7 | d2 (mm): 180 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14.0 | Stock: Yes
RM8EC5315R-MTeeth: 20 | D (mm): 315 | D2 (mm): 240 | d (mm): 47.625 | ap max (mm): 11.0 | Weight (kg): 18.0 | d2 (mm): 238 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14.0
RM8ECM5315R-MTeeth: 20 | D (mm): 315 | D2 (mm): 240 | d (mm): 60 | ap max (mm): 11.0 | Weight (kg): 17.7 | d2 (mm): 238 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14.0
RM8EC5400R-MTeeth: 28 | D (mm): 400 | D2 (mm): 260 | d (mm): 47.625 | ap max (mm): 11.0 | Weight (kg): 35.7 | d2 (mm): 238 | E (mm): 38 | F (mm): 80 | a (mm): 25.4 | b (mm): 14.0
RM8ECM5400R-MTeeth: 28 | D (mm): 400 | D2 (mm): 260 | d (mm): 60 | ap max (mm): 11.0 | Weight (kg): 35.4 | d2 (mm): 238 | E (mm): 38 | F (mm): 80 | a (mm): 25.7 | b (mm): 14.0
