• Korloy Shell Mill RMH8AC(M)4000
1 1

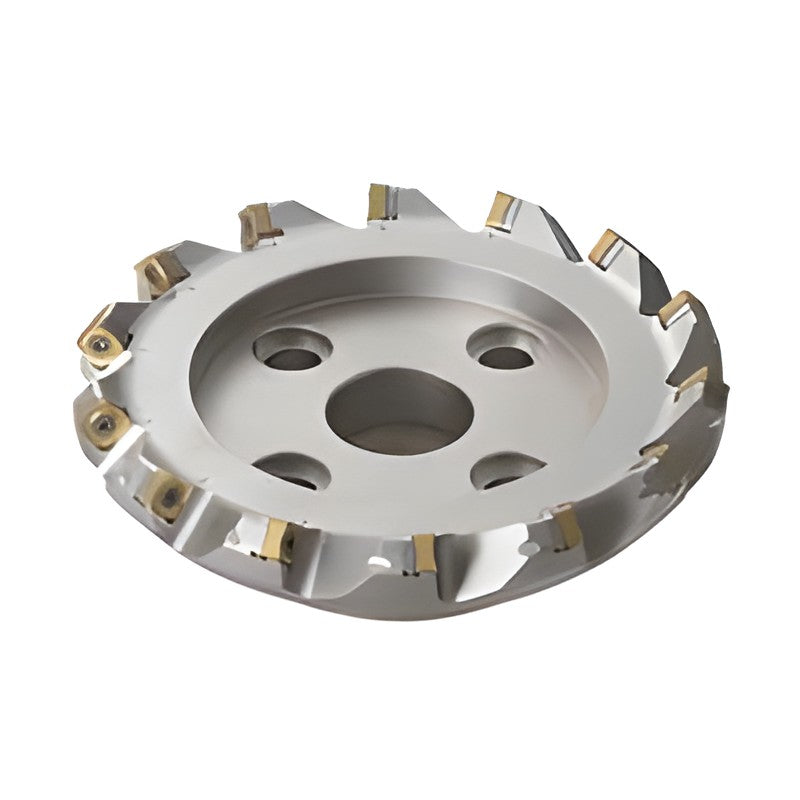

Korloy Shell Mill RMH8AC(M)4000

Korloy Shell Mill RMH8AC(M)4000

Economical Rich Mill series milling tool using double-sided inserts with 8 cutting corners.

Key features

  • Double-sided insert with 8 cutting edges
  • Low cutting load and long tool life
  • For steel, stainless steel, cast iron and aluminum
  • Screw-on and latch clamping systems available
RMH8AC4080HR-M Teeth: 7 | D (mm): 80 | D2 (mm): 57 | d (mm): 25.4 | d1 (mm): 14 | ap max (mm): 6.0 | Weight (kg): 1.2 | d2 (mm): 20 | E (mm): 50 | F (mm): 6.0 | a (mm): 9.5 | b (mm): 25 | Stock: Yes
RMH8AC4100HR-M Teeth: 8 | D (mm): 100 | D2 (mm): 67 | d (mm): 31.75 | d1 (mm): 18 | ap max (mm): 6.0 | Weight (kg): 1.7 | d2 (mm): 26 | E (mm): 63 | F (mm): 6.0 | a (mm): 12.7 | b (mm): 33
RMH8ACM4100HR-M Teeth: 8 | D (mm): 100 | D2 (mm): 67 | d (mm): 32 | d1 (mm): 18 | ap max (mm): 6.0 | Weight (kg): 1.7 | d2 (mm): 26 | E (mm): 50 | F (mm): 6.0 | a (mm): 14.4 | b (mm): 25.5 | Stock: Yes
RMH8AC4125HR-M Teeth: 10 | D (mm): 125 | D2 (mm): 87 | d (mm): 38.1 | d1 (mm): 22 | ap max (mm): 6.0 | Weight (kg): 3.6 | d2 (mm): 32 | E (mm): 63 | F (mm): 6.0 | a (mm): 15.9 | b (mm): 36
RMH8ACM4125HR-M Teeth: 10 | D (mm): 125 | D2 (mm): 87 | d (mm): 40 | d1 (mm): 22 | ap max (mm): 6.0 | Weight (kg): 3.6 | d2 (mm): 32 | E (mm): 63 | F (mm): 6.0 | a (mm): 16.4 | b (mm): 30 | Stock: Yes
RMH8AC4160R-M Teeth: 12 | D (mm): 160 | D2 (mm): 107 | d (mm): 50.8 | ap max (mm): 6.0 | Weight (kg): 5.3 | d2 (mm): 107 | E (mm): 63 | F (mm): 6.0 | a (mm): 19 | b (mm): 38
RMH8ACM4160R-M Teeth: 12 | D (mm): 160 | D2 (mm): 107 | d (mm): 40 | ap max (mm): 6.0 | Weight (kg): 5.3 | d2 (mm): 107 | E (mm): 63 | F (mm): 6.0 | a (mm): 16.4 | b (mm): 32 | Stock: Yes
RMH8AC4200R-M Teeth: 14 | D (mm): 200 | D2 (mm): 130 | d (mm): 47.625 | ap max (mm): 6.0 | Weight (kg): 7.1 | d2 (mm): 135 | E (mm): 63 | F (mm): 6.0 | a (mm): 25.4 | b (mm): 38
RMH8ACM4200R-M Teeth: 14 | D (mm): 200 | D2 (mm): 130 | d (mm): 60 | ap max (mm): 6.0 | Weight (kg): 7.1 | d2 (mm): 135 | E (mm): 63 | F (mm): 6.0 | a (mm): 25.7 | b (mm): 32
RMH8AC4250R-M Teeth: 16 | D (mm): 250 | D2 (mm): 180 | d (mm): 47.625 | ap max (mm): 6.0 | Weight (kg): 11.9 | d2 (mm): 180 | E (mm): 63 | F (mm): 6.0 | a (mm): 25.4 | b (mm): 38
RMH8ACM4250R-M Teeth: 16 | D (mm): 250 | D2 (mm): 180 | d (mm): 60 | ap max (mm): 6.0 | Weight (kg): 11.9 | d2 (mm): 180 | E (mm): 63 | F (mm): 6.0 | a (mm): 25.7 | b (mm): 32
RMH8AC4315R-M Teeth: 20 | D (mm): 315 | D2 (mm): 240 | d (mm): 47.625 | ap max (mm): 6.0 | Weight (kg): 18.8 | d2 (mm): 238 | E (mm): 63 | F (mm): 6.0 | a (mm): 25.4 | b (mm): 38
RMH8ACM4315R-M Teeth: 20 | D (mm): 315 | D2 (mm): 240 | d (mm): 60 | ap max (mm): 6.0 | Weight (kg): 18.6 | d2 (mm): 238 | E (mm): 63 | F (mm): 6.0 | a (mm): 25.7 | b (mm): 38
RMH8AC4400R-M Teeth: 26 | D (mm): 400 | D2 (mm): 260 | d (mm): 47.625 | ap max (mm): 6.0 | Weight (kg): 37.7 | d2 (mm): 238 | E (mm): 80 | F (mm): 6.0 | a (mm): 25.4 | b (mm): 38
RMH8ACM4400R-M Teeth: 26 | D (mm): 400 | D2 (mm): 260 | d (mm): 60 | ap max (mm): 6.0 | Weight (kg): 37.4 | d2 (mm): 238 | E (mm): 80 | F (mm): 6.0 | a (mm): 25.7 | b (mm): 38
Milling CuttersKorloy
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Shell Mill RMH8AC(M)4000

Brand Korloy·Milling Cutters

Available part numbers (15)

RMH8AC4080HR-M, RMH8AC4100HR-M, RMH8ACM4100HR-M, RMH8AC4125HR-M, RMH8ACM4125HR-M, RMH8AC4160R-M, RMH8ACM4160R-M, RMH8AC4200R-M, RMH8ACM4200R-M, RMH8AC4250R-M + 5 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RMH8AC4080HR-MTeeth: 7 | D (mm): 80 | D2 (mm): 57 | d (mm): 25.4 | d1 (mm): 14 | ap max (mm): 6.0 | Weight (kg): 1.2 | d2 (mm): 20 | E (mm): 50 | F (mm): 6.0 | a (mm): 9.5 | b (mm): 25 | Stock: Yes
RMH8AC4100HR-MTeeth: 8 | D (mm): 100 | D2 (mm): 67 | d (mm): 31.75 | d1 (mm): 18 | ap max (mm): 6.0 | Weight (kg): 1.7 | d2 (mm): 26 | E (mm): 63 | F (mm): 6.0 | a (mm): 12.7 | b (mm): 33
RMH8ACM4100HR-MTeeth: 8 | D (mm): 100 | D2 (mm): 67 | d (mm): 32 | d1 (mm): 18 | ap max (mm): 6.0 | Weight (kg): 1.7 | d2 (mm): 26 | E (mm): 50 | F (mm): 6.0 | a (mm): 14.4 | b (mm): 25.5 | Stock: Yes
RMH8AC4125HR-MTeeth: 10 | D (mm): 125 | D2 (mm): 87 | d (mm): 38.1 | d1 (mm): 22 | ap max (mm): 6.0 | Weight (kg): 3.6 | d2 (mm): 32 | E (mm): 63 | F (mm): 6.0 | a (mm): 15.9 | b (mm): 36
RMH8ACM4125HR-MTeeth: 10 | D (mm): 125 | D2 (mm): 87 | d (mm): 40 | d1 (mm): 22 | ap max (mm): 6.0 | Weight (kg): 3.6 | d2 (mm): 32 | E (mm): 63 | F (mm): 6.0 | a (mm): 16.4 | b (mm): 30 | Stock: Yes
RMH8AC4160R-MTeeth: 12 | D (mm): 160 | D2 (mm): 107 | d (mm): 50.8 | ap max (mm): 6.0 | Weight (kg): 5.3 | d2 (mm): 107 | E (mm): 63 | F (mm): 6.0 | a (mm): 19 | b (mm): 38
RMH8ACM4160R-MTeeth: 12 | D (mm): 160 | D2 (mm): 107 | d (mm): 40 | ap max (mm): 6.0 | Weight (kg): 5.3 | d2 (mm): 107 | E (mm): 63 | F (mm): 6.0 | a (mm): 16.4 | b (mm): 32 | Stock: Yes
RMH8AC4200R-MTeeth: 14 | D (mm): 200 | D2 (mm): 130 | d (mm): 47.625 | ap max (mm): 6.0 | Weight (kg): 7.1 | d2 (mm): 135 | E (mm): 63 | F (mm): 6.0 | a (mm): 25.4 | b (mm): 38
RMH8ACM4200R-MTeeth: 14 | D (mm): 200 | D2 (mm): 130 | d (mm): 60 | ap max (mm): 6.0 | Weight (kg): 7.1 | d2 (mm): 135 | E (mm): 63 | F (mm): 6.0 | a (mm): 25.7 | b (mm): 32
RMH8AC4250R-MTeeth: 16 | D (mm): 250 | D2 (mm): 180 | d (mm): 47.625 | ap max (mm): 6.0 | Weight (kg): 11.9 | d2 (mm): 180 | E (mm): 63 | F (mm): 6.0 | a (mm): 25.4 | b (mm): 38
RMH8ACM4250R-MTeeth: 16 | D (mm): 250 | D2 (mm): 180 | d (mm): 60 | ap max (mm): 6.0 | Weight (kg): 11.9 | d2 (mm): 180 | E (mm): 63 | F (mm): 6.0 | a (mm): 25.7 | b (mm): 32
RMH8AC4315R-MTeeth: 20 | D (mm): 315 | D2 (mm): 240 | d (mm): 47.625 | ap max (mm): 6.0 | Weight (kg): 18.8 | d2 (mm): 238 | E (mm): 63 | F (mm): 6.0 | a (mm): 25.4 | b (mm): 38
RMH8ACM4315R-MTeeth: 20 | D (mm): 315 | D2 (mm): 240 | d (mm): 60 | ap max (mm): 6.0 | Weight (kg): 18.6 | d2 (mm): 238 | E (mm): 63 | F (mm): 6.0 | a (mm): 25.7 | b (mm): 38
RMH8AC4400R-MTeeth: 26 | D (mm): 400 | D2 (mm): 260 | d (mm): 47.625 | ap max (mm): 6.0 | Weight (kg): 37.7 | d2 (mm): 238 | E (mm): 80 | F (mm): 6.0 | a (mm): 25.4 | b (mm): 38
RMH8ACM4400R-MTeeth: 26 | D (mm): 400 | D2 (mm): 260 | d (mm): 60 | ap max (mm): 6.0 | Weight (kg): 37.4 | d2 (mm): 238 | E (mm): 80 | F (mm): 6.0 | a (mm): 25.7 | b (mm): 38
