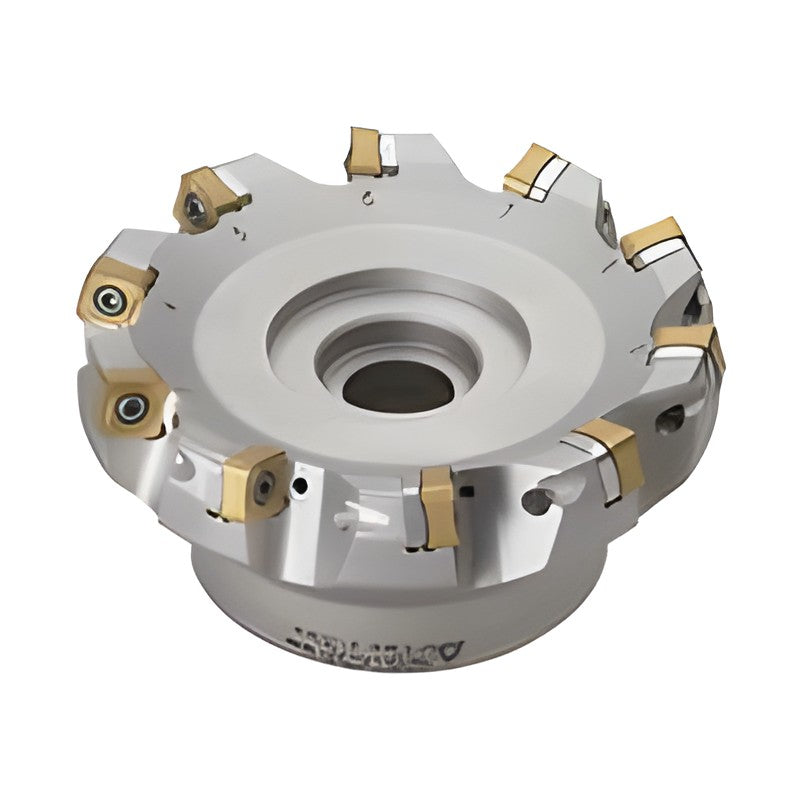

Korloy Shell Mill RMH8EC(M)5000

Korloy Shell Mill RMH8EC(M)5000

Economical Rich Mill series milling tool using double-sided inserts with 8 cutting corners.

Key features

  • Double-sided insert with 8 cutting edges
  • Low cutting load and long tool life
  • For steel, stainless steel, cast iron and aluminum
  • Screw-on and latch clamping systems available
RMH8EC5160HR-M Teeth: 10 | D (mm): 160 | D2 (mm): 107 | d (mm): 50.8 | ap max (mm): 11.0 | Weight (kg): 4.4 | d2 (mm): 107 | E (mm): 38 | F (mm): 63 | a (mm): 19 | b (mm): 11
RMH8ECM5160HR-M Teeth: 10 | D (mm): 160 | D2 (mm): 107 | d (mm): 60 | ap max (mm): 11.0 | Weight (kg): 4.1 | d2 (mm): 107 | E (mm): 32 | F (mm): 63 | a (mm): 16.4 | b (mm): 9
RMH8EC5400R-H Teeth: 22 | D (mm): 400 | D2 (mm): 260 | d (mm): 47.625 | ap max (mm): 11.0 | Weight (kg): 35.7 | d2 (mm): 238 | E (mm): 38 | F (mm): 80 | a (mm): 25.4 | b (mm): 14.0
RMH8ECM5400R-H Teeth: 22 | D (mm): 400 | D2 (mm): 260 | d (mm): 60 | ap max (mm): 11.0 | Weight (kg): 35.4 | d2 (mm): 238 | E (mm): 38 | F (mm): 80 | a (mm): 25.7 | b (mm): 14.0
Milling CuttersKorloy
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Shell Mill RMH8EC(M)5000

Brand Korloy·Milling Cutters

Available part numbers (4)

RMH8EC5160HR-M, RMH8ECM5160HR-M, RMH8EC5400R-H, RMH8ECM5400R-H

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RMH8EC5160HR-MTeeth: 10 | D (mm): 160 | D2 (mm): 107 | d (mm): 50.8 | ap max (mm): 11.0 | Weight (kg): 4.4 | d2 (mm): 107 | E (mm): 38 | F (mm): 63 | a (mm): 19 | b (mm): 11
RMH8ECM5160HR-MTeeth: 10 | D (mm): 160 | D2 (mm): 107 | d (mm): 60 | ap max (mm): 11.0 | Weight (kg): 4.1 | d2 (mm): 107 | E (mm): 32 | F (mm): 63 | a (mm): 16.4 | b (mm): 9
RMH8EC5400R-HTeeth: 22 | D (mm): 400 | D2 (mm): 260 | d (mm): 47.625 | ap max (mm): 11.0 | Weight (kg): 35.7 | d2 (mm): 238 | E (mm): 38 | F (mm): 80 | a (mm): 25.4 | b (mm): 14.0
RMH8ECM5400R-HTeeth: 22 | D (mm): 400 | D2 (mm): 260 | d (mm): 60 | ap max (mm): 11.0 | Weight (kg): 35.4 | d2 (mm): 238 | E (mm): 38 | F (mm): 80 | a (mm): 25.7 | b (mm): 14.0
