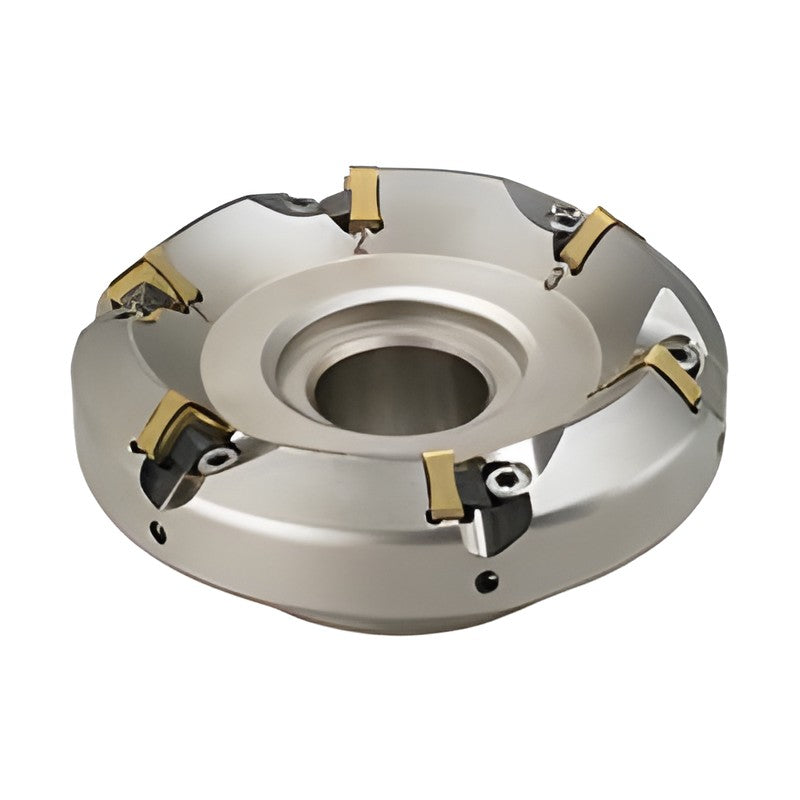

Korloy Shell Mill RMT8A(M)5000

Korloy Shell Mill RMT8A(M)5000

Economical Rich Mill series milling tool using double-sided inserts with 8 cutting corners.

Key features

  • Double-sided insert with 8 cutting edges
  • Low cutting load and long tool life
  • For steel, stainless steel, cast iron and aluminum
  • Screw-on and latch clamping systems available
RMT8A5080R Teeth: 5 | D (mm): 80 | D1 (mm): 104 | D2 (mm): 57 | d (mm): 25.4 | ap max (mm): 6 | Weight (kg): 1.8 | E (mm): 25 | F (mm): 50 | a (mm): 9.5 | b (mm): 6
RMT8A5080R-M Teeth: 6 | D (mm): 80 | D1 (mm): 104 | D2 (mm): 57 | d (mm): 25.4 | ap max (mm): 6 | Weight (kg): 1.8 | E (mm): 25 | F (mm): 50 | a (mm): 9.5 | b (mm): 6
RMT8AM5080R-M Teeth: 6 | D (mm): 80 | D1 (mm): 104 | D2 (mm): 57 | d (mm): 27 | ap max (mm): 6 | Weight (kg): 1.8 | E (mm): 22 | F (mm): 50 | a (mm): 12.4 | b (mm): 7
RMT8A5100R Teeth: 6 | D (mm): 100 | D1 (mm): 124 | D2 (mm): 70 | d (mm): 31.75 | ap max (mm): 6 | Weight (kg): 2.6 | E (mm): 32 | F (mm): 50 | a (mm): 12.7 | b (mm): 8
RMT8AM5100R Teeth: 6 | D (mm): 100 | D1 (mm): 124 | D2 (mm): 70 | d (mm): 32 | ap max (mm): 6 | Weight (kg): 2.6 | E (mm): 28 | F (mm): 50 | a (mm): 14.4 | b (mm): 8
RMT8A5100R-M Teeth: 8 | D (mm): 100 | D1 (mm): 124 | D2 (mm): 70 | d (mm): 31.75 | ap max (mm): 6 | Weight (kg): 2.6 | E (mm): 32 | F (mm): 50 | a (mm): 12.7 | b (mm): 8
RMT8AM5100R-M Teeth: 8 | D (mm): 100 | D1 (mm): 124 | D2 (mm): 70 | d (mm): 32 | ap max (mm): 6 | Weight (kg): 2.6 | E (mm): 28 | F (mm): 50 | a (mm): 14.4 | b (mm): 8
RMT8A5125R Teeth: 8 | D (mm): 125 | D1 (mm): 149 | D2 (mm): 87 | d (mm): 38.1 | ap max (mm): 6 | Weight (kg): 4.3 | E (mm): 38 | F (mm): 63 | a (mm): 15.9 | b (mm): 10 | Stock: Yes
RMT8AM5125R Teeth: 8 | D (mm): 125 | D1 (mm): 149 | D2 (mm): 87 | d (mm): 40 | ap max (mm): 6 | Weight (kg): 4.3 | E (mm): 30 | F (mm): 63 | a (mm): 16.4 | b (mm): 9
RMT8A5125R-M Teeth: 10 | D (mm): 125 | D1 (mm): 149 | D2 (mm): 87 | d (mm): 38.1 | ap max (mm): 6 | Weight (kg): 4.3 | E (mm): 38 | F (mm): 63 | a (mm): 15.9 | b (mm): 10
RMT8AM5125R-M Teeth: 10 | D (mm): 125 | D1 (mm): 149 | D2 (mm): 87 | d (mm): 40 | ap max (mm): 6 | Weight (kg): 4.3 | E (mm): 30 | F (mm): 63 | a (mm): 16.4 | b (mm): 9
RMT8A5160R Teeth: 10 | D (mm): 160 | D1 (mm): 184 | D2 (mm): 110 | d (mm): 50.8 | ap max (mm): 6 | Weight (kg): 6.5 | E (mm): 38 | F (mm): 63 | a (mm): 19.0 | b (mm): 11 | Stock: Yes
RMT8AM5160R Teeth: 10 | D (mm): 160 | D1 (mm): 184 | D2 (mm): 110 | d (mm): 40 | ap max (mm): 6 | Weight (kg): 6.5 | E (mm): 30 | F (mm): 63 | a (mm): 16.4 | b (mm): 9
RMT8A5160R-M Teeth: 14 | D (mm): 160 | D1 (mm): 184 | D2 (mm): 110 | d (mm): 50.8 | ap max (mm): 6 | Weight (kg): 6.5 | E (mm): 38 | F (mm): 63 | a (mm): 19.0 | b (mm): 11
RMT8AM5160R-M Teeth: 14 | D (mm): 160 | D1 (mm): 184 | D2 (mm): 110 | d (mm): 40 | ap max (mm): 6 | Weight (kg): 6.5 | E (mm): 30 | F (mm): 63 | a (mm): 16.4 | b (mm): 9
RMT8A5200R Teeth: 12 | D (mm): 200 | D1 (mm): 224 | D2 (mm): 130 | d (mm): 47.625 | ap max (mm): 6 | Weight (kg): 9.0 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8AM5200R Teeth: 12 | D (mm): 200 | D1 (mm): 224 | D2 (mm): 130 | d (mm): 60 | ap max (mm): 6 | Weight (kg): 9.0 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
RMT8A5200R-M Teeth: 18 | D (mm): 200 | D1 (mm): 224 | D2 (mm): 130 | d (mm): 47.625 | ap max (mm): 6 | Weight (kg): 9.0 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8AM5200R-M Teeth: 18 | D (mm): 200 | D1 (mm): 224 | D2 (mm): 130 | d (mm): 60 | ap max (mm): 6 | Weight (kg): 9.0 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
RMT8A5250R Teeth: 16 | D (mm): 250 | D1 (mm): 274 | D2 (mm): 180 | d (mm): 47.625 | ap max (mm): 6 | Weight (kg): 14.4 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8AM5250R Teeth: 16 | D (mm): 250 | D1 (mm): 274 | D2 (mm): 180 | d (mm): 60 | ap max (mm): 6 | Weight (kg): 14.4 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
RMT8A5250R-M Teeth: 22 | D (mm): 250 | D1 (mm): 274 | D2 (mm): 180 | d (mm): 47.625 | ap max (mm): 6 | Weight (kg): 14.4 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8AM5250R-M Teeth: 22 | D (mm): 250 | D1 (mm): 274 | D2 (mm): 180 | d (mm): 60 | ap max (mm): 6 | Weight (kg): 14.4 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
RMT8A5315R Teeth: 20 | D (mm): 315 | D1 (mm): 339 | D2 (mm): 240 | d (mm): 47.625 | ap max (mm): 6 | Weight (kg): 22.2 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8AM5315R Teeth: 20 | D (mm): 315 | D1 (mm): 339 | D2 (mm): 240 | d (mm): 60 | ap max (mm): 6 | Weight (kg): 22.2 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
RMT8A5315R-M Teeth: 28 | D (mm): 315 | D1 (mm): 339 | D2 (mm): 240 | d (mm): 47.625 | ap max (mm): 6 | Weight (kg): 22.2 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8AM5315R-M Teeth: 28 | D (mm): 315 | D1 (mm): 339 | D2 (mm): 240 | d (mm): 60 | ap max (mm): 6 | Weight (kg): 22.2 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
