• Korloy Shell Mill RMT8E(M)4000
1 1

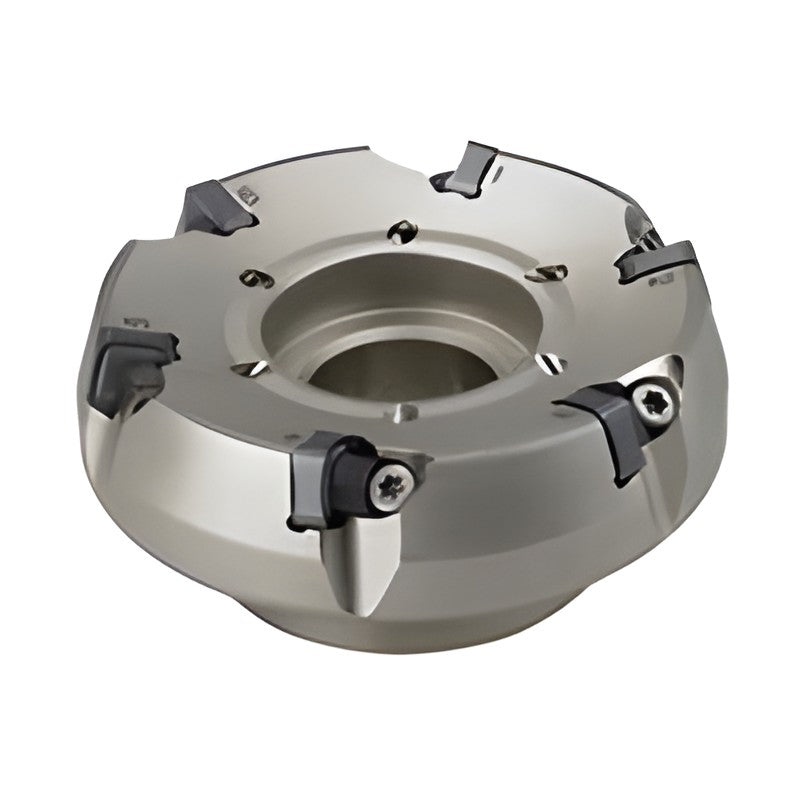

Korloy Shell Mill RMT8E(M)4000

Korloy Shell Mill RMT8E(M)4000

Economical Rich Mill series milling tool using double-sided inserts with 8 cutting corners.

Key features

  • Double-sided insert with 8 cutting edges
  • Low cutting load and long tool life
  • For steel, stainless steel, cast iron and aluminum
  • Screw-on and latch clamping systems available
RMT8E4080R Teeth: 5 | D (mm): 80 | D1 (mm): 100 | D2 (mm): 57 | d (mm): 25.4 | ap max (mm): 5 | Weight (kg): 1.5 | E (mm): 25 | F (mm): 50 | a (mm): 9.5 | b (mm): 6 | Stock: Yes
RMT8E4080R-M Teeth: 6 | D (mm): 80 | D1 (mm): 100 | D2 (mm): 57 | d (mm): 25.4 | ap max (mm): 5 | Weight (kg): 1.5 | E (mm): 25 | F (mm): 50 | a (mm): 9.5 | b (mm): 6
RMT8EM4080R-M Teeth: 6 | D (mm): 80 | D1 (mm): 100 | D2 (mm): 57 | d (mm): 27 | ap max (mm): 5 | Weight (kg): 1.5 | E (mm): 22 | F (mm): 50 | a (mm): 12.4 | b (mm): 7
RMT8E4100R Teeth: 6 | D (mm): 100 | D1 (mm): 120 | D2 (mm): 67 | d (mm): 31.75 | ap max (mm): 5 | Weight (kg): 2 | E (mm): 32 | F (mm): 50 | a (mm): 12.7 | b (mm): 8 | Stock: Yes
RMT8EM4100R Teeth: 6 | D (mm): 100 | D1 (mm): 120 | D2 (mm): 67 | d (mm): 32 | ap max (mm): 5 | Weight (kg): 2 | E (mm): 28 | F (mm): 50 | a (mm): 14.4 | b (mm): 8
RMT8E4100R-M Teeth: 8 | D (mm): 100 | D1 (mm): 120 | D2 (mm): 67 | d (mm): 31.75 | ap max (mm): 5 | Weight (kg): 2 | E (mm): 32 | F (mm): 50 | a (mm): 12.7 | b (mm): 8
RMT8EM4100R-M Teeth: 8 | D (mm): 100 | D1 (mm): 120 | D2 (mm): 67 | d (mm): 32 | ap max (mm): 5 | Weight (kg): 2 | E (mm): 28 | F (mm): 50 | a (mm): 14.4 | b (mm): 8
RMT8E4125R Teeth: 8 | D (mm): 125 | D1 (mm): 144 | D2 (mm): 87 | d (mm): 38.1 | ap max (mm): 5 | Weight (kg): 3.8 | E (mm): 38 | F (mm): 63 | a (mm): 15.9 | b (mm): 10
RMT8EM4125R Teeth: 8 | D (mm): 125 | D1 (mm): 144 | D2 (mm): 87 | d (mm): 40 | ap max (mm): 5 | Weight (kg): 3.8 | E (mm): 30 | F (mm): 63 | a (mm): 16.4 | b (mm): 9
RMT8E4125R-M Teeth: 10 | D (mm): 125 | D1 (mm): 144 | D2 (mm): 87 | d (mm): 38.1 | ap max (mm): 5 | Weight (kg): 3.8 | E (mm): 38 | F (mm): 63 | a (mm): 15.9 | b (mm): 10
RMT8EM4125R-M Teeth: 10 | D (mm): 125 | D1 (mm): 144 | D2 (mm): 87 | d (mm): 40 | ap max (mm): 5 | Weight (kg): 3.8 | E (mm): 30 | F (mm): 63 | a (mm): 16.4 | b (mm): 9
RMT8E4160R Teeth: 10 | D (mm): 160 | D1 (mm): 179 | D2 (mm): 107 | d (mm): 50.8 | ap max (mm): 5 | Weight (kg): 5.8 | E (mm): 38 | F (mm): 63 | a (mm): 19.0 | b (mm): 11 | Stock: Yes
RMT8EM4160R Teeth: 10 | D (mm): 160 | D1 (mm): 179 | D2 (mm): 107 | d (mm): 40 | ap max (mm): 5 | Weight (kg): 5.8 | E (mm): 30 | F (mm): 63 | a (mm): 16.4 | b (mm): 9
RMT8E4160R-M Teeth: 14 | D (mm): 160 | D1 (mm): 179 | D2 (mm): 107 | d (mm): 50.8 | ap max (mm): 5 | Weight (kg): 5.8 | E (mm): 38 | F (mm): 63 | a (mm): 19.0 | b (mm): 11
RMT8EM4160R-M Teeth: 14 | D (mm): 160 | D1 (mm): 179 | D2 (mm): 107 | d (mm): 40 | ap max (mm): 5 | Weight (kg): 5.8 | E (mm): 30 | F (mm): 63 | a (mm): 16.4 | b (mm): 9
RMT8E4200R Teeth: 12 | D (mm): 200 | D1 (mm): 219 | D2 (mm): 130 | d (mm): 47.625 | ap max (mm): 5 | Weight (kg): 7.9 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8EM4200R Teeth: 12 | D (mm): 200 | D1 (mm): 219 | D2 (mm): 130 | d (mm): 60 | ap max (mm): 5 | Weight (kg): 7.9 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
RMT8E4200R-M Teeth: 18 | D (mm): 200 | D1 (mm): 219 | D2 (mm): 130 | d (mm): 47.625 | ap max (mm): 5 | Weight (kg): 7.9 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8EM4200R-M Teeth: 18 | D (mm): 200 | D1 (mm): 219 | D2 (mm): 130 | d (mm): 60 | ap max (mm): 5 | Weight (kg): 7.9 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
RMT8E4250R Teeth: 16 | D (mm): 250 | D1 (mm): 269 | D2 (mm): 180 | d (mm): 47.625 | ap max (mm): 5 | Weight (kg): 13.0 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8EM4250R Teeth: 16 | D (mm): 250 | D1 (mm): 269 | D2 (mm): 180 | d (mm): 60 | ap max (mm): 5 | Weight (kg): 13.0 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
RMT8E4250R-M Teeth: 22 | D (mm): 250 | D1 (mm): 269 | D2 (mm): 180 | d (mm): 47.625 | ap max (mm): 5 | Weight (kg): 13.0 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8EM4250R-M Teeth: 22 | D (mm): 250 | D1 (mm): 269 | D2 (mm): 180 | d (mm): 60 | ap max (mm): 5 | Weight (kg): 13.0 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
RMT8E4315R Teeth: 20 | D (mm): 315 | D1 (mm): 334 | D2 (mm): 240 | d (mm): 47.625 | ap max (mm): 5 | Weight (kg): 20.5 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8EM4315R Teeth: 20 | D (mm): 315 | D1 (mm): 334 | D2 (mm): 240 | d (mm): 60 | ap max (mm): 5 | Weight (kg): 20.5 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
RMT8E4315R-M Teeth: 28 | D (mm): 315 | D1 (mm): 334 | D2 (mm): 240 | d (mm): 47.625 | ap max (mm): 5 | Weight (kg): 20.5 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8EM4315R-M Teeth: 28 | D (mm): 315 | D1 (mm): 334 | D2 (mm): 240 | d (mm): 60 | ap max (mm): 5 | Weight (kg): 20.5 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
Milling CuttersKorloy
27 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Shell Mill RMT8E(M)4000

Brand Korloy·Milling Cutters

Available part numbers (27)

RMT8E4080R, RMT8E4080R-M, RMT8EM4080R-M, RMT8E4100R, RMT8EM4100R, RMT8E4100R-M, RMT8EM4100R-M, RMT8E4125R, RMT8EM4125R, RMT8E4125R-M + 17 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RMT8E4080RTeeth: 5 | D (mm): 80 | D1 (mm): 100 | D2 (mm): 57 | d (mm): 25.4 | ap max (mm): 5 | Weight (kg): 1.5 | E (mm): 25 | F (mm): 50 | a (mm): 9.5 | b (mm): 6 | Stock: Yes
RMT8E4080R-MTeeth: 6 | D (mm): 80 | D1 (mm): 100 | D2 (mm): 57 | d (mm): 25.4 | ap max (mm): 5 | Weight (kg): 1.5 | E (mm): 25 | F (mm): 50 | a (mm): 9.5 | b (mm): 6
RMT8EM4080R-MTeeth: 6 | D (mm): 80 | D1 (mm): 100 | D2 (mm): 57 | d (mm): 27 | ap max (mm): 5 | Weight (kg): 1.5 | E (mm): 22 | F (mm): 50 | a (mm): 12.4 | b (mm): 7
RMT8E4100RTeeth: 6 | D (mm): 100 | D1 (mm): 120 | D2 (mm): 67 | d (mm): 31.75 | ap max (mm): 5 | Weight (kg): 2 | E (mm): 32 | F (mm): 50 | a (mm): 12.7 | b (mm): 8 | Stock: Yes
RMT8EM4100RTeeth: 6 | D (mm): 100 | D1 (mm): 120 | D2 (mm): 67 | d (mm): 32 | ap max (mm): 5 | Weight (kg): 2 | E (mm): 28 | F (mm): 50 | a (mm): 14.4 | b (mm): 8
RMT8E4100R-MTeeth: 8 | D (mm): 100 | D1 (mm): 120 | D2 (mm): 67 | d (mm): 31.75 | ap max (mm): 5 | Weight (kg): 2 | E (mm): 32 | F (mm): 50 | a (mm): 12.7 | b (mm): 8
RMT8EM4100R-MTeeth: 8 | D (mm): 100 | D1 (mm): 120 | D2 (mm): 67 | d (mm): 32 | ap max (mm): 5 | Weight (kg): 2 | E (mm): 28 | F (mm): 50 | a (mm): 14.4 | b (mm): 8
RMT8E4125RTeeth: 8 | D (mm): 125 | D1 (mm): 144 | D2 (mm): 87 | d (mm): 38.1 | ap max (mm): 5 | Weight (kg): 3.8 | E (mm): 38 | F (mm): 63 | a (mm): 15.9 | b (mm): 10
RMT8EM4125RTeeth: 8 | D (mm): 125 | D1 (mm): 144 | D2 (mm): 87 | d (mm): 40 | ap max (mm): 5 | Weight (kg): 3.8 | E (mm): 30 | F (mm): 63 | a (mm): 16.4 | b (mm): 9
RMT8E4125R-MTeeth: 10 | D (mm): 125 | D1 (mm): 144 | D2 (mm): 87 | d (mm): 38.1 | ap max (mm): 5 | Weight (kg): 3.8 | E (mm): 38 | F (mm): 63 | a (mm): 15.9 | b (mm): 10
RMT8EM4125R-MTeeth: 10 | D (mm): 125 | D1 (mm): 144 | D2 (mm): 87 | d (mm): 40 | ap max (mm): 5 | Weight (kg): 3.8 | E (mm): 30 | F (mm): 63 | a (mm): 16.4 | b (mm): 9
RMT8E4160RTeeth: 10 | D (mm): 160 | D1 (mm): 179 | D2 (mm): 107 | d (mm): 50.8 | ap max (mm): 5 | Weight (kg): 5.8 | E (mm): 38 | F (mm): 63 | a (mm): 19.0 | b (mm): 11 | Stock: Yes
RMT8EM4160RTeeth: 10 | D (mm): 160 | D1 (mm): 179 | D2 (mm): 107 | d (mm): 40 | ap max (mm): 5 | Weight (kg): 5.8 | E (mm): 30 | F (mm): 63 | a (mm): 16.4 | b (mm): 9
RMT8E4160R-MTeeth: 14 | D (mm): 160 | D1 (mm): 179 | D2 (mm): 107 | d (mm): 50.8 | ap max (mm): 5 | Weight (kg): 5.8 | E (mm): 38 | F (mm): 63 | a (mm): 19.0 | b (mm): 11
RMT8EM4160R-MTeeth: 14 | D (mm): 160 | D1 (mm): 179 | D2 (mm): 107 | d (mm): 40 | ap max (mm): 5 | Weight (kg): 5.8 | E (mm): 30 | F (mm): 63 | a (mm): 16.4 | b (mm): 9
RMT8E4200RTeeth: 12 | D (mm): 200 | D1 (mm): 219 | D2 (mm): 130 | d (mm): 47.625 | ap max (mm): 5 | Weight (kg): 7.9 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8EM4200RTeeth: 12 | D (mm): 200 | D1 (mm): 219 | D2 (mm): 130 | d (mm): 60 | ap max (mm): 5 | Weight (kg): 7.9 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
RMT8E4200R-MTeeth: 18 | D (mm): 200 | D1 (mm): 219 | D2 (mm): 130 | d (mm): 47.625 | ap max (mm): 5 | Weight (kg): 7.9 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8EM4200R-MTeeth: 18 | D (mm): 200 | D1 (mm): 219 | D2 (mm): 130 | d (mm): 60 | ap max (mm): 5 | Weight (kg): 7.9 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
RMT8E4250RTeeth: 16 | D (mm): 250 | D1 (mm): 269 | D2 (mm): 180 | d (mm): 47.625 | ap max (mm): 5 | Weight (kg): 13.0 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8EM4250RTeeth: 16 | D (mm): 250 | D1 (mm): 269 | D2 (mm): 180 | d (mm): 60 | ap max (mm): 5 | Weight (kg): 13.0 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
RMT8E4250R-MTeeth: 22 | D (mm): 250 | D1 (mm): 269 | D2 (mm): 180 | d (mm): 47.625 | ap max (mm): 5 | Weight (kg): 13.0 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8EM4250R-MTeeth: 22 | D (mm): 250 | D1 (mm): 269 | D2 (mm): 180 | d (mm): 60 | ap max (mm): 5 | Weight (kg): 13.0 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
RMT8E4315RTeeth: 20 | D (mm): 315 | D1 (mm): 334 | D2 (mm): 240 | d (mm): 47.625 | ap max (mm): 5 | Weight (kg): 20.5 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8EM4315RTeeth: 20 | D (mm): 315 | D1 (mm): 334 | D2 (mm): 240 | d (mm): 60 | ap max (mm): 5 | Weight (kg): 20.5 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
RMT8E4315R-MTeeth: 28 | D (mm): 315 | D1 (mm): 334 | D2 (mm): 240 | d (mm): 47.625 | ap max (mm): 5 | Weight (kg): 20.5 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8EM4315R-MTeeth: 28 | D (mm): 315 | D1 (mm): 334 | D2 (mm): 240 | d (mm): 60 | ap max (mm): 5 | Weight (kg): 20.5 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
