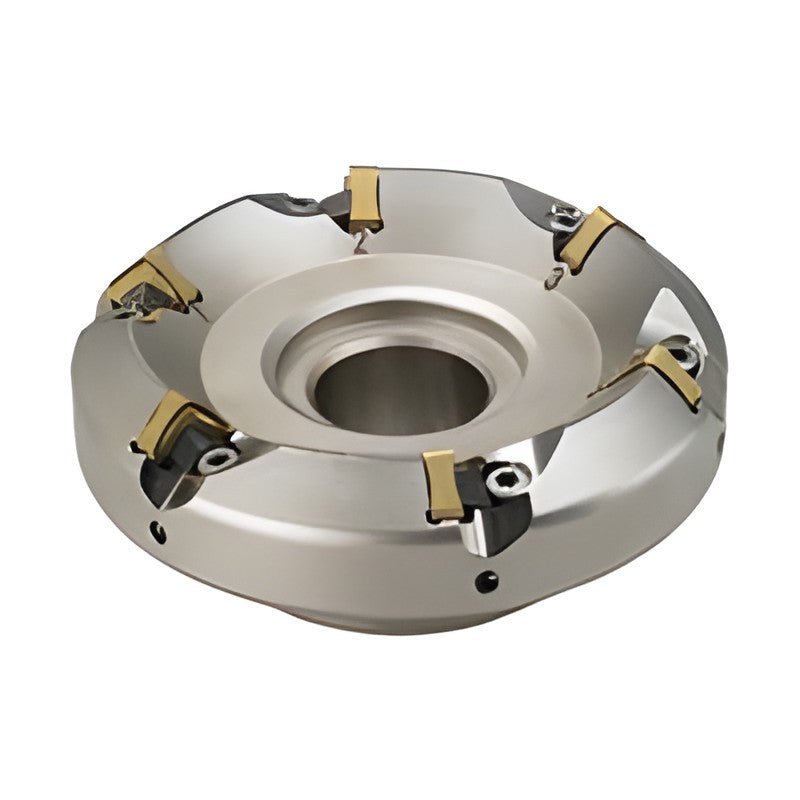

Korloy Shell Mill RMT8E(M)5000

Korloy Shell Mill RMT8E(M)5000

Economical Rich Mill series milling tool using double-sided inserts with 8 cutting corners.

Key features

  • Double-sided insert with 8 cutting edges
  • Low cutting load and long tool life
  • For steel, stainless steel, cast iron and aluminum
  • Screw-on and latch clamping systems available
RMT8E5080R Teeth: 5 | D (mm): 80 | D1 (mm): 88 | D2 (mm): 57 | d (mm): 25.4 | ap max (mm): 8 | Weight (kg): 1.4 | E (mm): 25 | F (mm): 50 | a (mm): 9.5 | b (mm): 6
RMT8E5080R-M Teeth: 6 | D (mm): 80 | D1 (mm): 88 | D2 (mm): 57 | d (mm): 25.4 | ap max (mm): 8 | Weight (kg): 1.4 | E (mm): 25 | F (mm): 50 | a (mm): 9.5 | b (mm): 6
RMT8EM5080R-M Teeth: 6 | D (mm): 80 | D1 (mm): 88 | D2 (mm): 57 | d (mm): 27 | ap max (mm): 8 | Weight (kg): 1.4 | E (mm): 22 | F (mm): 50 | a (mm): 12.4 | b (mm): 7
RMT8E5100R Teeth: 6 | D (mm): 100 | D1 (mm): 108 | D2 (mm): 67 | d (mm): 31.75 | ap max (mm): 8 | Weight (kg): 1.9 | E (mm): 32 | F (mm): 50 | a (mm): 12.7 | b (mm): 8 | Stock: Yes
RMT8EM5100R Teeth: 6 | D (mm): 100 | D1 (mm): 108 | D2 (mm): 67 | d (mm): 32 | ap max (mm): 8 | Weight (kg): 1.9 | E (mm): 28 | F (mm): 50 | a (mm): 14.4 | b (mm): 8
RMT8E5100R-M Teeth: 8 | D (mm): 100 | D1 (mm): 108 | D2 (mm): 67 | d (mm): 31.75 | ap max (mm): 8 | Weight (kg): 1.9 | E (mm): 32 | F (mm): 50 | a (mm): 12.7 | b (mm): 8
RMT8EM5100R-M Teeth: 8 | D (mm): 100 | D1 (mm): 108 | D2 (mm): 67 | d (mm): 32 | ap max (mm): 8 | Weight (kg): 1.9 | E (mm): 28 | F (mm): 50 | a (mm): 14.4 | b (mm): 8
RMT8E5125R Teeth: 8 | D (mm): 125 | D1 (mm): 133 | D2 (mm): 87 | d (mm): 38.1 | ap max (mm): 8 | Weight (kg): 3.7 | E (mm): 38 | F (mm): 63 | a (mm): 15.9 | b (mm): 10 | Stock: Yes
RMT8EM5125R Teeth: 8 | D (mm): 125 | D1 (mm): 133 | D2 (mm): 87 | d (mm): 40 | ap max (mm): 8 | Weight (kg): 3.7 | E (mm): 30 | F (mm): 63 | a (mm): 16.4 | b (mm): 9
RMT8E5125R-M Teeth: 10 | D (mm): 125 | D1 (mm): 133 | D2 (mm): 87 | d (mm): 38.1 | ap max (mm): 8 | Weight (kg): 3.7 | E (mm): 38 | F (mm): 63 | a (mm): 15.9 | b (mm): 10
RMT8EM5125R-M Teeth: 10 | D (mm): 125 | D1 (mm): 133 | D2 (mm): 87 | d (mm): 40 | ap max (mm): 8 | Weight (kg): 3.7 | E (mm): 30 | F (mm): 63 | a (mm): 16.4 | b (mm): 9
RMT8E5160R Teeth: 10 | D (mm): 160 | D1 (mm): 168 | D2 (mm): 107 | d (mm): 50.8 | ap max (mm): 8 | Weight (kg): 5.7 | E (mm): 38 | F (mm): 63 | a (mm): 19.0 | b (mm): 11
RMT8EM5160R Teeth: 10 | D (mm): 160 | D1 (mm): 168 | D2 (mm): 107 | d (mm): 40 | ap max (mm): 8 | Weight (kg): 5.7 | E (mm): 30 | F (mm): 63 | a (mm): 16.4 | b (mm): 9
RMT8E5160R-M Teeth: 14 | D (mm): 160 | D1 (mm): 168 | D2 (mm): 107 | d (mm): 50.8 | ap max (mm): 8 | Weight (kg): 5.7 | E (mm): 38 | F (mm): 63 | a (mm): 19.0 | b (mm): 11
RMT8EM5160R-M Teeth: 14 | D (mm): 160 | D1 (mm): 168 | D2 (mm): 107 | d (mm): 40 | ap max (mm): 8 | Weight (kg): 5.7 | E (mm): 30 | F (mm): 63 | a (mm): 16.4 | b (mm): 9
RMT8E5200R Teeth: 12 | D (mm): 200 | D1 (mm): 208 | D2 (mm): 130 | d (mm): 47.625 | ap max (mm): 8 | Weight (kg): 7.5 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8EM5200R Teeth: 12 | D (mm): 200 | D1 (mm): 208 | D2 (mm): 130 | d (mm): 60 | ap max (mm): 8 | Weight (kg): 7.5 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
RMT8E5200R-M Teeth: 18 | D (mm): 200 | D1 (mm): 208 | D2 (mm): 130 | d (mm): 47.625 | ap max (mm): 8 | Weight (kg): 7.5 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8EM5200R-M Teeth: 18 | D (mm): 200 | D1 (mm): 208 | D2 (mm): 130 | d (mm): 60 | ap max (mm): 8 | Weight (kg): 7.5 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
RMT8E5250R Teeth: 16 | D (mm): 250 | D1 (mm): 258 | D2 (mm): 180 | d (mm): 47.625 | ap max (mm): 8 | Weight (kg): 12.4 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8EM5250R Teeth: 16 | D (mm): 250 | D1 (mm): 258 | D2 (mm): 180 | d (mm): 60 | ap max (mm): 8 | Weight (kg): 12.4 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
RMT8E5250R-M Teeth: 22 | D (mm): 250 | D1 (mm): 258 | D2 (mm): 180 | d (mm): 47.625 | ap max (mm): 8 | Weight (kg): 12.4 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8EM5250R-M Teeth: 22 | D (mm): 250 | D1 (mm): 258 | D2 (mm): 180 | d (mm): 60 | ap max (mm): 8 | Weight (kg): 12.4 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
RMT8E5315R Teeth: 20 | D (mm): 315 | D1 (mm): 323 | D2 (mm): 240 | d (mm): 47.625 | ap max (mm): 8 | Weight (kg): 19.9 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8EM5315R Teeth: 20 | D (mm): 315 | D1 (mm): 323 | D2 (mm): 240 | d (mm): 60 | ap max (mm): 8 | Weight (kg): 19.9 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
RMT8E5315R-M Teeth: 28 | D (mm): 315 | D1 (mm): 323 | D2 (mm): 240 | d (mm): 47.625 | ap max (mm): 8 | Weight (kg): 19.9 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8EM5315R-M Teeth: 28 | D (mm): 315 | D1 (mm): 323 | D2 (mm): 240 | d (mm): 60 | ap max (mm): 8 | Weight (kg): 19.9 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
Milling CuttersKorloy
27 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Shell Mill RMT8E(M)5000

Brand Korloy·Milling Cutters

Available part numbers (27)

RMT8E5080R, RMT8E5080R-M, RMT8EM5080R-M, RMT8E5100R, RMT8EM5100R, RMT8E5100R-M, RMT8EM5100R-M, RMT8E5125R, RMT8EM5125R, RMT8E5125R-M + 17 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RMT8E5080RTeeth: 5 | D (mm): 80 | D1 (mm): 88 | D2 (mm): 57 | d (mm): 25.4 | ap max (mm): 8 | Weight (kg): 1.4 | E (mm): 25 | F (mm): 50 | a (mm): 9.5 | b (mm): 6
RMT8E5080R-MTeeth: 6 | D (mm): 80 | D1 (mm): 88 | D2 (mm): 57 | d (mm): 25.4 | ap max (mm): 8 | Weight (kg): 1.4 | E (mm): 25 | F (mm): 50 | a (mm): 9.5 | b (mm): 6
RMT8EM5080R-MTeeth: 6 | D (mm): 80 | D1 (mm): 88 | D2 (mm): 57 | d (mm): 27 | ap max (mm): 8 | Weight (kg): 1.4 | E (mm): 22 | F (mm): 50 | a (mm): 12.4 | b (mm): 7
RMT8E5100RTeeth: 6 | D (mm): 100 | D1 (mm): 108 | D2 (mm): 67 | d (mm): 31.75 | ap max (mm): 8 | Weight (kg): 1.9 | E (mm): 32 | F (mm): 50 | a (mm): 12.7 | b (mm): 8 | Stock: Yes
RMT8EM5100RTeeth: 6 | D (mm): 100 | D1 (mm): 108 | D2 (mm): 67 | d (mm): 32 | ap max (mm): 8 | Weight (kg): 1.9 | E (mm): 28 | F (mm): 50 | a (mm): 14.4 | b (mm): 8
RMT8E5100R-MTeeth: 8 | D (mm): 100 | D1 (mm): 108 | D2 (mm): 67 | d (mm): 31.75 | ap max (mm): 8 | Weight (kg): 1.9 | E (mm): 32 | F (mm): 50 | a (mm): 12.7 | b (mm): 8
RMT8EM5100R-MTeeth: 8 | D (mm): 100 | D1 (mm): 108 | D2 (mm): 67 | d (mm): 32 | ap max (mm): 8 | Weight (kg): 1.9 | E (mm): 28 | F (mm): 50 | a (mm): 14.4 | b (mm): 8
RMT8E5125RTeeth: 8 | D (mm): 125 | D1 (mm): 133 | D2 (mm): 87 | d (mm): 38.1 | ap max (mm): 8 | Weight (kg): 3.7 | E (mm): 38 | F (mm): 63 | a (mm): 15.9 | b (mm): 10 | Stock: Yes
RMT8EM5125RTeeth: 8 | D (mm): 125 | D1 (mm): 133 | D2 (mm): 87 | d (mm): 40 | ap max (mm): 8 | Weight (kg): 3.7 | E (mm): 30 | F (mm): 63 | a (mm): 16.4 | b (mm): 9
RMT8E5125R-MTeeth: 10 | D (mm): 125 | D1 (mm): 133 | D2 (mm): 87 | d (mm): 38.1 | ap max (mm): 8 | Weight (kg): 3.7 | E (mm): 38 | F (mm): 63 | a (mm): 15.9 | b (mm): 10
RMT8EM5125R-MTeeth: 10 | D (mm): 125 | D1 (mm): 133 | D2 (mm): 87 | d (mm): 40 | ap max (mm): 8 | Weight (kg): 3.7 | E (mm): 30 | F (mm): 63 | a (mm): 16.4 | b (mm): 9
RMT8E5160RTeeth: 10 | D (mm): 160 | D1 (mm): 168 | D2 (mm): 107 | d (mm): 50.8 | ap max (mm): 8 | Weight (kg): 5.7 | E (mm): 38 | F (mm): 63 | a (mm): 19.0 | b (mm): 11
RMT8EM5160RTeeth: 10 | D (mm): 160 | D1 (mm): 168 | D2 (mm): 107 | d (mm): 40 | ap max (mm): 8 | Weight (kg): 5.7 | E (mm): 30 | F (mm): 63 | a (mm): 16.4 | b (mm): 9
RMT8E5160R-MTeeth: 14 | D (mm): 160 | D1 (mm): 168 | D2 (mm): 107 | d (mm): 50.8 | ap max (mm): 8 | Weight (kg): 5.7 | E (mm): 38 | F (mm): 63 | a (mm): 19.0 | b (mm): 11
RMT8EM5160R-MTeeth: 14 | D (mm): 160 | D1 (mm): 168 | D2 (mm): 107 | d (mm): 40 | ap max (mm): 8 | Weight (kg): 5.7 | E (mm): 30 | F (mm): 63 | a (mm): 16.4 | b (mm): 9
RMT8E5200RTeeth: 12 | D (mm): 200 | D1 (mm): 208 | D2 (mm): 130 | d (mm): 47.625 | ap max (mm): 8 | Weight (kg): 7.5 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8EM5200RTeeth: 12 | D (mm): 200 | D1 (mm): 208 | D2 (mm): 130 | d (mm): 60 | ap max (mm): 8 | Weight (kg): 7.5 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
RMT8E5200R-MTeeth: 18 | D (mm): 200 | D1 (mm): 208 | D2 (mm): 130 | d (mm): 47.625 | ap max (mm): 8 | Weight (kg): 7.5 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8EM5200R-MTeeth: 18 | D (mm): 200 | D1 (mm): 208 | D2 (mm): 130 | d (mm): 60 | ap max (mm): 8 | Weight (kg): 7.5 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
RMT8E5250RTeeth: 16 | D (mm): 250 | D1 (mm): 258 | D2 (mm): 180 | d (mm): 47.625 | ap max (mm): 8 | Weight (kg): 12.4 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8EM5250RTeeth: 16 | D (mm): 250 | D1 (mm): 258 | D2 (mm): 180 | d (mm): 60 | ap max (mm): 8 | Weight (kg): 12.4 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
RMT8E5250R-MTeeth: 22 | D (mm): 250 | D1 (mm): 258 | D2 (mm): 180 | d (mm): 47.625 | ap max (mm): 8 | Weight (kg): 12.4 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8EM5250R-MTeeth: 22 | D (mm): 250 | D1 (mm): 258 | D2 (mm): 180 | d (mm): 60 | ap max (mm): 8 | Weight (kg): 12.4 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
RMT8E5315RTeeth: 20 | D (mm): 315 | D1 (mm): 323 | D2 (mm): 240 | d (mm): 47.625 | ap max (mm): 8 | Weight (kg): 19.9 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8EM5315RTeeth: 20 | D (mm): 315 | D1 (mm): 323 | D2 (mm): 240 | d (mm): 60 | ap max (mm): 8 | Weight (kg): 19.9 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
RMT8E5315R-MTeeth: 28 | D (mm): 315 | D1 (mm): 323 | D2 (mm): 240 | d (mm): 47.625 | ap max (mm): 8 | Weight (kg): 19.9 | E (mm): 38 | F (mm): 63 | a (mm): 25.4 | b (mm): 14
RMT8EM5315R-MTeeth: 28 | D (mm): 315 | D1 (mm): 323 | D2 (mm): 240 | d (mm): 60 | ap max (mm): 8 | Weight (kg): 19.9 | E (mm): 38 | F (mm): 63 | a (mm): 25.7 | b (mm): 14
