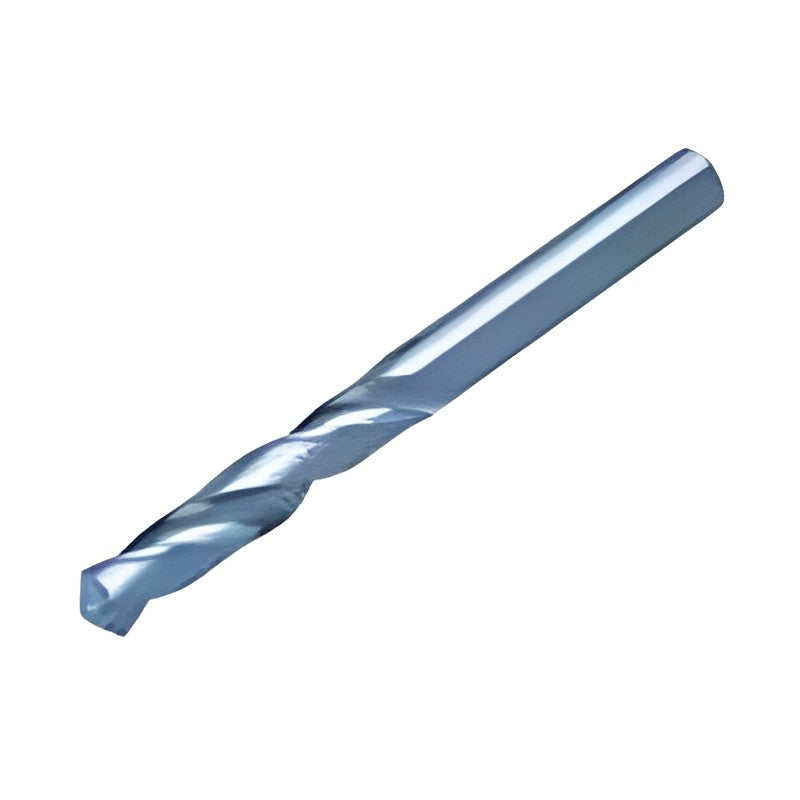

Korloy SSD Plus Uncoated Solid Carbide Drill SSDP

Korloy SSD Plus Uncoated Solid Carbide Drill SSDP

Uncoated straight-shank solid carbide drill for high performance general drilling, Ø1.0 to Ø15 mm, 118 degree point angle.

Key features

  • 118 degree point angle, 30 degree twist
  • X-type thinning
  • Drill diameter equals shank diameter
  • External coolant

Specifications

Coating Uncoated
Point angle 118 deg
Drill tolerance h7
Shank tolerance h7
Coolant External
SSDP010 D = shank d (mm): 1.0 | Flute length l (mm): 10 | L (mm): 32
SSDP011 D = shank d (mm): 1.1 | Flute length l (mm): 10 | L (mm): 32
SSDP012 D = shank d (mm): 1.2 | Flute length l (mm): 10 | L (mm): 32
SSDP013 D = shank d (mm): 1.3 | Flute length l (mm): 10 | L (mm): 32
SSDP014 D = shank d (mm): 1.4 | Flute length l (mm): 10 | L (mm): 32
SSDP015 D = shank d (mm): 1.5 | Flute length l (mm): 13 | L (mm): 35
SSDP016 D = shank d (mm): 1.6 | Flute length l (mm): 13 | L (mm): 35
SSDP017 D = shank d (mm): 1.7 | Flute length l (mm): 13 | L (mm): 35
SSDP018 D = shank d (mm): 1.8 | Flute length l (mm): 13 | L (mm): 35
SSDP019 D = shank d (mm): 1.9 | Flute length l (mm): 13 | L (mm): 35
SSDP020 D = shank d (mm): 2.0 | Flute length l (mm): 18 | L (mm): 40
SSDP021 D = shank d (mm): 2.1 | Flute length l (mm): 18 | L (mm): 40
SSDP022 D = shank d (mm): 2.2 | Flute length l (mm): 18 | L (mm): 40
SSDP023 D = shank d (mm): 2.3 | Flute length l (mm): 18 | L (mm): 40
SSDP024 D = shank d (mm): 2.4 | Flute length l (mm): 18 | L (mm): 40
SSDP025 D = shank d (mm): 2.5 | Flute length l (mm): 22 | L (mm): 45
SSDP026 D = shank d (mm): 2.6 | Flute length l (mm): 22 | L (mm): 45
SSDP027 D = shank d (mm): 2.7 | Flute length l (mm): 22 | L (mm): 45
SSDP028 D = shank d (mm): 2.8 | Flute length l (mm): 22 | L (mm): 45
SSDP029 D = shank d (mm): 2.9 | Flute length l (mm): 22 | L (mm): 45
SSDP030 D = shank d (mm): 3.0 | Flute length l (mm): 25 | L (mm): 50
SSDP031 D = shank d (mm): 3.1 | Flute length l (mm): 25 | L (mm): 50
SSDP032 D = shank d (mm): 3.2 | Flute length l (mm): 25 | L (mm): 50
SSDP033 D = shank d (mm): 3.3 | Flute length l (mm): 28 | L (mm): 50
SSDP034 D = shank d (mm): 3.4 | Flute length l (mm): 28 | L (mm): 50
SSDP035 D = shank d (mm): 3.5 | Flute length l (mm): 28 | L (mm): 50
SSDP036 D = shank d (mm): 3.6 | Flute length l (mm): 30 | L (mm): 55
SSDP037 D = shank d (mm): 3.7 | Flute length l (mm): 30 | L (mm): 55
SSDP038 D = shank d (mm): 3.8 | Flute length l (mm): 30 | L (mm): 55
SSDP039 D = shank d (mm): 3.9 | Flute length l (mm): 30 | L (mm): 55
SSDP040 D = shank d (mm): 4.0 | Flute length l (mm): 30 | L (mm): 55
SSDP041 D = shank d (mm): 4.1 | Flute length l (mm): 34 | L (mm): 60
SSDP042 D = shank d (mm): 4.2 | Flute length l (mm): 34 | L (mm): 60
SSDP043 D = shank d (mm): 4.3 | Flute length l (mm): 34 | L (mm): 60
SSDP044 D = shank d (mm): 4.4 | Flute length l (mm): 34 | L (mm): 60
SSDP045 D = shank d (mm): 4.5 | Flute length l (mm): 34 | L (mm): 60
SSDP046 D = shank d (mm): 4.6 | Flute length l (mm): 38 | L (mm): 65
SSDP047 D = shank d (mm): 4.7 | Flute length l (mm): 38 | L (mm): 65
SSDP048 D = shank d (mm): 4.8 | Flute length l (mm): 38 | L (mm): 65
SSDP049 D = shank d (mm): 4.9 | Flute length l (mm): 38 | L (mm): 65
SSDP050 D = shank d (mm): 5.0 | Flute length l (mm): 38 | L (mm): 65
SSDP051 D = shank d (mm): 5.1 | Flute length l (mm): 38 | L (mm): 65
SSDP052 D = shank d (mm): 5.2 | Flute length l (mm): 38 | L (mm): 65
SSDP053 D = shank d (mm): 5.3 | Flute length l (mm): 38 | L (mm): 65
SSDP054 D = shank d (mm): 5.4 | Flute length l (mm): 38 | L (mm): 65
SSDP055 D = shank d (mm): 5.5 | Flute length l (mm): 38 | L (mm): 65
SSDP056 D = shank d (mm): 5.6 | Flute length l (mm): 40 | L (mm): 75
SSDP057 D = shank d (mm): 5.7 | Flute length l (mm): 40 | L (mm): 75
SSDP058 D = shank d (mm): 5.8 | Flute length l (mm): 40 | L (mm): 75
SSDP059 D = shank d (mm): 5.9 | Flute length l (mm): 40 | L (mm): 75
SSDP060 D = shank d (mm): 6.0 | Flute length l (mm): 40 | L (mm): 75
SSDP061 D = shank d (mm): 6.1 | Flute length l (mm): 40 | L (mm): 75
SSDP062 D = shank d (mm): 6.2 | Flute length l (mm): 40 | L (mm): 75
SSDP063 D = shank d (mm): 6.3 | Flute length l (mm): 40 | L (mm): 75
SSDP064 D = shank d (mm): 6.4 | Flute length l (mm): 40 | L (mm): 75
SSDP065 D = shank d (mm): 6.5 | Flute length l (mm): 40 | L (mm): 75
SSDP066 D = shank d (mm): 6.6 | Flute length l (mm): 46 | L (mm): 80
SSDP067 D = shank d (mm): 6.7 | Flute length l (mm): 46 | L (mm): 80
SSDP068 D = shank d (mm): 6.8 | Flute length l (mm): 46 | L (mm): 80
SSDP069 D = shank d (mm): 6.9 | Flute length l (mm): 46 | L (mm): 80
SSDP070 D = shank d (mm): 7.0 | Flute length l (mm): 46 | L (mm): 80
SSDP071 D = shank d (mm): 7.1 | Flute length l (mm): 46 | L (mm): 80
SSDP072 D = shank d (mm): 7.2 | Flute length l (mm): 46 | L (mm): 80
SSDP073 D = shank d (mm): 7.3 | Flute length l (mm): 46 | L (mm): 80
SSDP074 D = shank d (mm): 7.4 | Flute length l (mm): 46 | L (mm): 80
SSDP075 D = shank d (mm): 7.5 | Flute length l (mm): 46 | L (mm): 80
SSDP076 D = shank d (mm): 7.6 | Flute length l (mm): 50 | L (mm): 85
SSDP077 D = shank d (mm): 7.7 | Flute length l (mm): 50 | L (mm): 85
SSDP078 D = shank d (mm): 7.8 | Flute length l (mm): 50 | L (mm): 85
SSDP079 D = shank d (mm): 7.9 | Flute length l (mm): 50 | L (mm): 85
SSDP080 D = shank d (mm): 8.0 | Flute length l (mm): 50 | L (mm): 85
SSDP081 D = shank d (mm): 8.1 | Flute length l (mm): 50 | L (mm): 85
SSDP082 D = shank d (mm): 8.2 | Flute length l (mm): 50 | L (mm): 85
SSDP083 D = shank d (mm): 8.3 | Flute length l (mm): 50 | L (mm): 85
SSDP084 D = shank d (mm): 8.4 | Flute length l (mm): 50 | L (mm): 85
SSDP085 D = shank d (mm): 8.5 | Flute length l (mm): 50 | L (mm): 85
SSDP086 D = shank d (mm): 8.6 | Flute length l (mm): 50 | L (mm): 95
SSDP087 D = shank d (mm): 8.7 | Flute length l (mm): 50 | L (mm): 95
SSDP088 D = shank d (mm): 8.8 | Flute length l (mm): 50 | L (mm): 95
SSDP089 D = shank d (mm): 8.9 | Flute length l (mm): 50 | L (mm): 95
SSDP090 D = shank d (mm): 9.0 | Flute length l (mm): 50 | L (mm): 95
SSDP091 D = shank d (mm): 9.1 | Flute length l (mm): 50 | L (mm): 95
SSDP092 D = shank d (mm): 9.2 | Flute length l (mm): 50 | L (mm): 95
SSDP093 D = shank d (mm): 9.3 | Flute length l (mm): 50 | L (mm): 95
SSDP094 D = shank d (mm): 9.4 | Flute length l (mm): 50 | L (mm): 95
SSDP095 D = shank d (mm): 9.5 | Flute length l (mm): 50 | L (mm): 95
SSDP096 D = shank d (mm): 9.6 | Flute length l (mm): 50 | L (mm): 100
SSDP097 D = shank d (mm): 9.7 | Flute length l (mm): 50 | L (mm): 100
SSDP098 D = shank d (mm): 9.8 | Flute length l (mm): 50 | L (mm): 100
SSDP099 D = shank d (mm): 9.9 | Flute length l (mm): 50 | L (mm): 100
SSDP100 D = shank d (mm): 10.0 | Flute length l (mm): 50 | L (mm): 100
SSDP105 D = shank d (mm): 10.5 | Flute length l (mm): 60 | L (mm): 115
SSDP110 D = shank d (mm): 11.0 | Flute length l (mm): 60 | L (mm): 115
SSDP115 D = shank d (mm): 11.5 | Flute length l (mm): 65 | L (mm): 120
SSDP120 D = shank d (mm): 12.0 | Flute length l (mm): 65 | L (mm): 120
SSDP125 D = shank d (mm): 12.5 | Flute length l (mm): 65 | L (mm): 125
SSDP130 D = shank d (mm): 13.0 | Flute length l (mm): 65 | L (mm): 125
SSDP150 D = shank d (mm): 15.0 | Flute length l (mm): 70 | L (mm): 130
