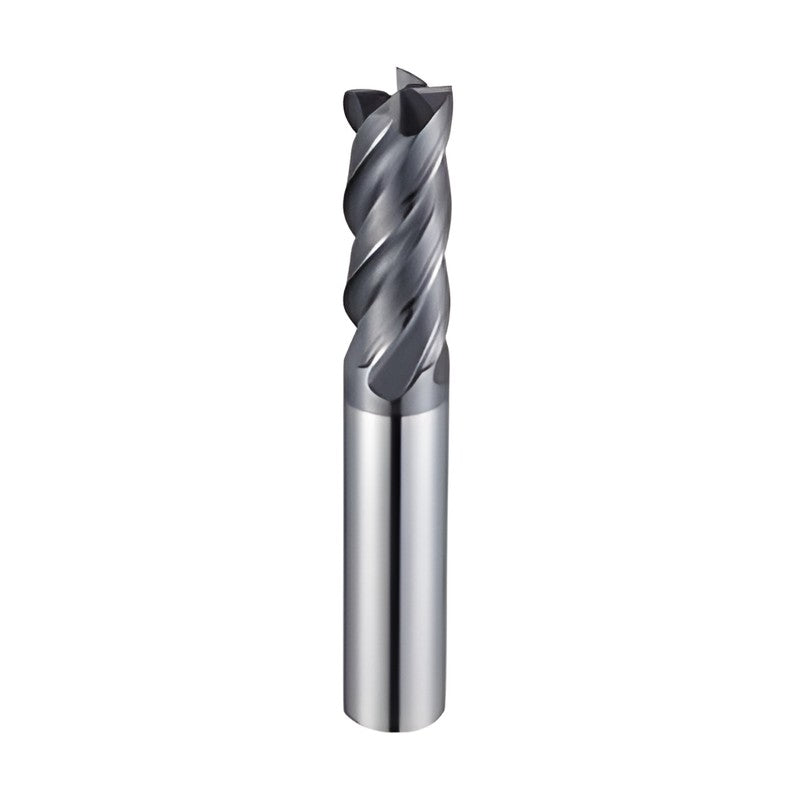

Korloy Super End Mill for HRSA SFES4000 (Flat)

Korloy Super End Mill for HRSA SFES4000 (Flat)

Solid carbide end mill for Ni-based heat-resistant super alloys (Inconel, Hastelloy, Waspaloy), with positive rake angle and irregular flute spacing for cutting stability.

Key features

  • Irregular flute spacing reduces chattering and vibration
  • High rigidity core web design for cutting stability and chip evacuation
  • Corner gash land shape prevents corner edge fracture
  • SL ultra lubricating coating for welding and chipping resistance
  • Helix angle 35°/38°
  • h6 shank tolerance

Specifications

Series line Super End Mill for HRSA
Coating SL coating
Helix angle 35°/38°
ØD tolerance Ø1~Ø6: 0~-0.015mm; Ø6.1~Ø20: 0~-0.02mm
Shank tolerance h6
Workpiece Ni-based heat-resistant super alloys (Inconel 718, Waspaloy, Hastelloy)
SFES4030-050 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 50
SFES4040-050 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 50
SFES4050-060 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
SFES4060-060 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
SFES4080-070 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70
SFES4100-075 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75
SFES4120-080 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
SFES4140-100 ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 35 | L (mm): 90
SFES4160-100 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100
SFES4200-100 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 100
End MillsKorloy
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Super End Mill for HRSA SFES4000 (Flat)

Brand Korloy·End Mills

Available part numbers (10)

SFES4030-050, SFES4040-050, SFES4050-060, SFES4060-060, SFES4080-070, SFES4100-075, SFES4120-080, SFES4140-100, SFES4160-100, SFES4200-100

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SFES4030-050ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 50
SFES4040-050ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 50
SFES4050-060ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
SFES4060-060ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
SFES4080-070ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70
SFES4100-075ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75
SFES4120-080ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
SFES4140-100ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 35 | L (mm): 90
SFES4160-100ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100
SFES4200-100ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 100
