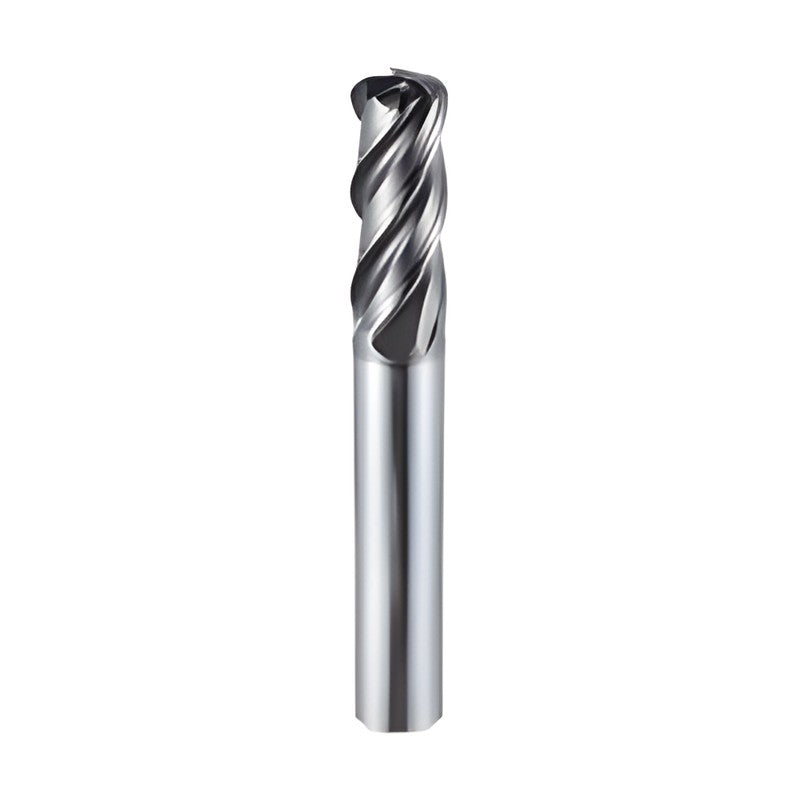

Korloy Super End Mill for HRSA SRES4000 (Radius)

Korloy Super End Mill for HRSA SRES4000 (Radius)

Solid carbide end mill for Ni-based heat-resistant super alloys (Inconel, Hastelloy, Waspaloy), with positive rake angle and irregular flute spacing for cutting stability.

Key features

  • Irregular flute spacing reduces chattering and vibration
  • High rigidity core web design for cutting stability and chip evacuation
  • Corner gash land shape prevents corner edge fracture
  • SL ultra lubricating coating for welding and chipping resistance
  • Helix angle 35°/38°
  • Radius tolerance ±0.01 (Corner R)

Specifications

Series line Super End Mill for HRSA
Coating SL coating
Helix angle 35°/38°
ØD tolerance Ø1~Ø6: 0~-0.015mm; Ø6.1~Ø20: 0~-0.02mm
Shank tolerance h5
Radius tolerance ±0.01 (Corner R)
Workpiece Ni-based heat-resistant super alloys (Inconel 718, Waspaloy, Hastelloy)
SRES4030-055-R02 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 55 | r (mm): 0.2
SRES4030-055-R03 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 55 | r (mm): 0.3
SRES4030-055-R05 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 55 | r (mm): 0.5
SRES4040-055-R02 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 55 | r (mm): 0.2
SRES4040-055-R03 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 55 | r (mm): 0.3
SRES4040-055-R05 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 55 | r (mm): 0.5
SRES4040-070-R02 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70 | r (mm): 0.2
SRES4040-070-R03 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70 | r (mm): 0.3
SRES4040-070-R05 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70 | r (mm): 0.5
SRES4050-055-R02 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 55 | r (mm): 0.2
SRES4050-055-R03 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 55 | r (mm): 0.3
SRES4050-055-R05 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 55 | r (mm): 0.5
SRES4050-090-R02 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90 | r (mm): 0.2
SRES4050-090-R03 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90 | r (mm): 0.3
SRES4050-090-R05 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90 | r (mm): 0.5
SRES4060-060-R03 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60 | r (mm): 0.3
SRES4060-060-R05 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60 | r (mm): 0.5
SRES4060-060-R08 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60 | r (mm): 0.8
SRES4060-060-R10 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60 | r (mm): 1.0
SRES4060-060-R15 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60 | r (mm): 1.5
SRES4060-060-R20 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60 | r (mm): 2.0
SRES4060-090-R03 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90 | r (mm): 0.3
SRES4060-090-R05 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90 | r (mm): 0.5
SRES4060-090-R08 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90 | r (mm): 0.8
SRES4060-090-R10 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90 | r (mm): 1.0
SRES4060-090-R15 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90 | r (mm): 1.5
SRES4060-090-R20 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90 | r (mm): 2.0
SRES4080-070-R03 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70 | r (mm): 0.3
SRES4080-070-R05 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70 | r (mm): 0.5
SRES4080-070-R08 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70 | r (mm): 0.8
SRES4080-070-R10 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70 | r (mm): 1.0
SRES4080-070-R15 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70 | r (mm): 1.5
SRES4080-070-R20 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70 | r (mm): 2.0
SRES4080-070-R25 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70 | r (mm): 2.5
SRES4080-070-R30 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70 | r (mm): 3.0
SRES4080-100-R03 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100 | r (mm): 0.3
SRES4080-100-R05 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100 | r (mm): 0.5
SRES4080-100-R08 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100 | r (mm): 0.8
SRES4080-100-R10 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100 | r (mm): 1.0
SRES4080-100-R15 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100 | r (mm): 1.5
SRES4080-100-R20 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100 | r (mm): 2.0
SRES4080-100-R25 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100 | r (mm): 2.5
SRES4080-100-R30 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100 | r (mm): 3.0
SRES4100-075-R03 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75 | r (mm): 0.3
SRES4100-075-R05 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75 | r (mm): 0.5
SRES4100-075-R08 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75 | r (mm): 0.8
SRES4100-075-R10 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75 | r (mm): 1.0
SRES4100-075-R15 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75 | r (mm): 1.5
SRES4100-075-R20 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75 | r (mm): 2.0
SRES4100-075-R25 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75 | r (mm): 2.5
SRES4100-075-R30 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75 | r (mm): 3.0
SRES4100-100-R03 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100 | r (mm): 0.3
SRES4100-100-R05 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100 | r (mm): 0.5
SRES4100-100-R08 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100 | r (mm): 0.8
SRES4100-100-R10 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100 | r (mm): 1.0
SRES4100-100-R15 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100 | r (mm): 1.5
SRES4100-100-R20 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100 | r (mm): 2.0
SRES4100-100-R25 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100 | r (mm): 2.5
SRES4100-100-R30 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100 | r (mm): 3.0
SRES4120-080-R05 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 0.5
SRES4120-080-R08 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 0.8
SRES4120-080-R10 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 1.0
SRES4120-080-R15 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 1.5
SRES4120-080-R20 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 2.0
SRES4120-080-R25 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 2.5
SRES4120-080-R30 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 3.0
SRES4120-080-R35 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 3.5
SRES4120-080-R40 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 4.0
SRES4120-110-R05 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110 | r (mm): 0.5
SRES4120-110-R08 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110 | r (mm): 0.8
SRES4120-110-R10 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110 | r (mm): 1.0
SRES4120-110-R15 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110 | r (mm): 1.5
SRES4120-110-R20 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110 | r (mm): 2.0
SRES4120-110-R25 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110 | r (mm): 2.5
SRES4120-110-R30 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110 | r (mm): 3.0
SRES4120-110-R35 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110 | r (mm): 3.5
SRES4120-110-R40 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110 | r (mm): 4.0
SRES4140-090-R05 ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 35 | L (mm): 90 | r (mm): 0.5
SRES4140-090-R08 ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 35 | L (mm): 90 | r (mm): 0.8
SRES4140-090-R10 ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 35 | L (mm): 90 | r (mm): 1.0
SRES4140-090-R15 ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 35 | L (mm): 90 | r (mm): 1.5
SRES4140-090-R20 ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 35 | L (mm): 90 | r (mm): 2.0
SRES4140-090-R30 ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 35 | L (mm): 90 | r (mm): 3.0
SRES4140-150-R05 ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 35 | L (mm): 150 | r (mm): 0.5
SRES4140-150-R08 ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 35 | L (mm): 150 | r (mm): 0.8
SRES4140-150-R10 ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 35 | L (mm): 150 | r (mm): 1.0
SRES4140-150-R15 ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 35 | L (mm): 150 | r (mm): 1.5
SRES4140-150-R20 ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 35 | L (mm): 150 | r (mm): 2.0
SRES4140-150-R30 ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 35 | L (mm): 150 | r (mm): 3.0
SRES4160-100-R05 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100 | r (mm): 0.5
SRES4160-100-R08 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100 | r (mm): 0.8
SRES4160-100-R10 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100 | r (mm): 1.0
SRES4160-100-R15 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100 | r (mm): 1.5
SRES4160-100-R20 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100 | r (mm): 2.0
SRES4160-100-R25 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100 | r (mm): 2.5
SRES4160-100-R30 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100 | r (mm): 3.0
SRES4160-100-R35 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100 | r (mm): 3.5
SRES4160-100-R40 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100 | r (mm): 4.0
SRES4160-100-R50 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100 | r (mm): 5.0
SRES4160-100-R60 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100 | r (mm): 6.0
SRES4160-150-R05 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 150 | r (mm): 0.5
SRES4160-150-R08 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 150 | r (mm): 0.8
SRES4160-150-R10 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 150 | r (mm): 1.0
SRES4160-150-R15 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 150 | r (mm): 1.5
SRES4160-150-R20 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 150 | r (mm): 2.0
SRES4160-150-R25 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 150 | r (mm): 2.5
SRES4160-150-R30 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 150 | r (mm): 3.0
SRES4160-150-R35 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 150 | r (mm): 3.5
SRES4160-150-R40 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 150 | r (mm): 4.0
SRES4160-150-R50 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 150 | r (mm): 5.0
SRES4160-150-R60 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 150 | r (mm): 6.0
SRES4180-100-R05 ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 100 | r (mm): 0.5
SRES4180-100-R08 ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 100 | r (mm): 0.8
SRES4180-100-R10 ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 100 | r (mm): 1.0
SRES4180-100-R15 ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 100 | r (mm): 1.5
SRES4180-100-R20 ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 100 | r (mm): 2.0
SRES4180-100-R30 ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 100 | r (mm): 3.0
SRES4180-150-R05 ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 150 | r (mm): 0.5
SRES4180-150-R08 ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 150 | r (mm): 0.8
SRES4180-150-R10 ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 150 | r (mm): 1.0
SRES4180-150-R15 ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 150 | r (mm): 1.5
SRES4180-150-R20 ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 150 | r (mm): 2.0
SRES4180-150-R30 ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 150 | r (mm): 3.0
SRES4200-100-R05 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 100 | r (mm): 0.5
SRES4200-100-R10 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 100 | r (mm): 1.0
SRES4200-100-R15 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 100 | r (mm): 1.5
SRES4200-100-R20 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 100 | r (mm): 2.0
SRES4200-100-R25 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 100 | r (mm): 2.5
SRES4200-100-R30 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 100 | r (mm): 3.0
SRES4200-100-R35 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 100 | r (mm): 3.5
SRES4200-100-R40 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 100 | r (mm): 4.0
SRES4200-100-R50 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 100 | r (mm): 5.0
SRES4200-100-R60 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 100 | r (mm): 6.0
SRES4200-150-R05 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 150 | r (mm): 0.5
SRES4200-150-R10 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 150 | r (mm): 1.0
SRES4200-150-R15 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 150 | r (mm): 1.5
SRES4200-150-R20 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 150 | r (mm): 2.0
SRES4200-150-R25 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 150 | r (mm): 2.5
SRES4200-150-R30 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 150 | r (mm): 3.0
SRES4200-150-R35 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 150 | r (mm): 3.5
SRES4200-150-R40 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 150 | r (mm): 4.0
SRES4200-150-R50 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 150 | r (mm): 5.0
SRES4200-150-R60 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 150 | r (mm): 6.0
End MillsKorloy
143 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Super End Mill for HRSA SRES4000 (Radius)

Brand Korloy·End Mills

Available part numbers (143)

SRES4030-055-R02, SRES4030-055-R03, SRES4030-055-R05, SRES4040-055-R02, SRES4040-055-R03, SRES4040-055-R05, SRES4040-070-R02, SRES4040-070-R03, SRES4040-070-R05, SRES4050-055-R02 + 133 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SRES4030-055-R02ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 55 | r (mm): 0.2
SRES4030-055-R03ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 55 | r (mm): 0.3
SRES4030-055-R05ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 55 | r (mm): 0.5
SRES4040-055-R02ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 55 | r (mm): 0.2
SRES4040-055-R03ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 55 | r (mm): 0.3
SRES4040-055-R05ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 55 | r (mm): 0.5
SRES4040-070-R02ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70 | r (mm): 0.2
SRES4040-070-R03ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70 | r (mm): 0.3
SRES4040-070-R05ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70 | r (mm): 0.5
SRES4050-055-R02ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 55 | r (mm): 0.2
SRES4050-055-R03ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 55 | r (mm): 0.3
SRES4050-055-R05ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 55 | r (mm): 0.5
SRES4050-090-R02ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90 | r (mm): 0.2
SRES4050-090-R03ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90 | r (mm): 0.3
SRES4050-090-R05ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90 | r (mm): 0.5
SRES4060-060-R03ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60 | r (mm): 0.3
SRES4060-060-R05ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60 | r (mm): 0.5
SRES4060-060-R08ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60 | r (mm): 0.8
SRES4060-060-R10ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60 | r (mm): 1.0
SRES4060-060-R15ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60 | r (mm): 1.5
SRES4060-060-R20ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60 | r (mm): 2.0
SRES4060-090-R03ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90 | r (mm): 0.3
SRES4060-090-R05ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90 | r (mm): 0.5
SRES4060-090-R08ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90 | r (mm): 0.8
SRES4060-090-R10ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90 | r (mm): 1.0
SRES4060-090-R15ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90 | r (mm): 1.5
SRES4060-090-R20ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90 | r (mm): 2.0
SRES4080-070-R03ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70 | r (mm): 0.3
SRES4080-070-R05ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70 | r (mm): 0.5
SRES4080-070-R08ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70 | r (mm): 0.8
SRES4080-070-R10ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70 | r (mm): 1.0
SRES4080-070-R15ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70 | r (mm): 1.5
SRES4080-070-R20ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70 | r (mm): 2.0
SRES4080-070-R25ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70 | r (mm): 2.5
SRES4080-070-R30ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70 | r (mm): 3.0
SRES4080-100-R03ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100 | r (mm): 0.3
SRES4080-100-R05ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100 | r (mm): 0.5
SRES4080-100-R08ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100 | r (mm): 0.8
SRES4080-100-R10ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100 | r (mm): 1.0
SRES4080-100-R15ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100 | r (mm): 1.5
SRES4080-100-R20ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100 | r (mm): 2.0
SRES4080-100-R25ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100 | r (mm): 2.5
SRES4080-100-R30ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100 | r (mm): 3.0
SRES4100-075-R03ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75 | r (mm): 0.3
SRES4100-075-R05ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75 | r (mm): 0.5
SRES4100-075-R08ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75 | r (mm): 0.8
SRES4100-075-R10ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75 | r (mm): 1.0
SRES4100-075-R15ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75 | r (mm): 1.5
SRES4100-075-R20ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75 | r (mm): 2.0
SRES4100-075-R25ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75 | r (mm): 2.5
SRES4100-075-R30ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75 | r (mm): 3.0
SRES4100-100-R03ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100 | r (mm): 0.3
SRES4100-100-R05ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100 | r (mm): 0.5
SRES4100-100-R08ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100 | r (mm): 0.8
SRES4100-100-R10ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100 | r (mm): 1.0
SRES4100-100-R15ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100 | r (mm): 1.5
SRES4100-100-R20ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100 | r (mm): 2.0
SRES4100-100-R25ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100 | r (mm): 2.5
SRES4100-100-R30ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100 | r (mm): 3.0
SRES4120-080-R05ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 0.5
SRES4120-080-R08ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 0.8
SRES4120-080-R10ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 1.0
SRES4120-080-R15ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 1.5
SRES4120-080-R20ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 2.0
SRES4120-080-R25ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 2.5
SRES4120-080-R30ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 3.0
SRES4120-080-R35ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 3.5
SRES4120-080-R40ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 4.0
SRES4120-110-R05ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110 | r (mm): 0.5
SRES4120-110-R08ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110 | r (mm): 0.8
SRES4120-110-R10ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110 | r (mm): 1.0
SRES4120-110-R15ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110 | r (mm): 1.5
SRES4120-110-R20ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110 | r (mm): 2.0
SRES4120-110-R25ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110 | r (mm): 2.5
SRES4120-110-R30ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110 | r (mm): 3.0
SRES4120-110-R35ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110 | r (mm): 3.5
SRES4120-110-R40ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110 | r (mm): 4.0
SRES4140-090-R05ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 35 | L (mm): 90 | r (mm): 0.5
SRES4140-090-R08ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 35 | L (mm): 90 | r (mm): 0.8
SRES4140-090-R10ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 35 | L (mm): 90 | r (mm): 1.0
SRES4140-090-R15ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 35 | L (mm): 90 | r (mm): 1.5
SRES4140-090-R20ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 35 | L (mm): 90 | r (mm): 2.0
SRES4140-090-R30ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 35 | L (mm): 90 | r (mm): 3.0
SRES4140-150-R05ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 35 | L (mm): 150 | r (mm): 0.5
SRES4140-150-R08ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 35 | L (mm): 150 | r (mm): 0.8
SRES4140-150-R10ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 35 | L (mm): 150 | r (mm): 1.0
SRES4140-150-R15ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 35 | L (mm): 150 | r (mm): 1.5
SRES4140-150-R20ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 35 | L (mm): 150 | r (mm): 2.0
SRES4140-150-R30ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 35 | L (mm): 150 | r (mm): 3.0
SRES4160-100-R05ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100 | r (mm): 0.5
SRES4160-100-R08ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100 | r (mm): 0.8
SRES4160-100-R10ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100 | r (mm): 1.0
SRES4160-100-R15ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100 | r (mm): 1.5
SRES4160-100-R20ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100 | r (mm): 2.0
SRES4160-100-R25ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100 | r (mm): 2.5
SRES4160-100-R30ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100 | r (mm): 3.0
SRES4160-100-R35ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100 | r (mm): 3.5
SRES4160-100-R40ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100 | r (mm): 4.0
SRES4160-100-R50ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100 | r (mm): 5.0
SRES4160-100-R60ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100 | r (mm): 6.0
SRES4160-150-R05ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 150 | r (mm): 0.5
SRES4160-150-R08ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 150 | r (mm): 0.8
SRES4160-150-R10ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 150 | r (mm): 1.0
SRES4160-150-R15ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 150 | r (mm): 1.5
SRES4160-150-R20ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 150 | r (mm): 2.0
SRES4160-150-R25ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 150 | r (mm): 2.5
SRES4160-150-R30ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 150 | r (mm): 3.0
SRES4160-150-R35ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 150 | r (mm): 3.5
SRES4160-150-R40ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 150 | r (mm): 4.0
SRES4160-150-R50ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 150 | r (mm): 5.0
SRES4160-150-R60ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 150 | r (mm): 6.0
SRES4180-100-R05ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 100 | r (mm): 0.5
SRES4180-100-R08ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 100 | r (mm): 0.8
SRES4180-100-R10ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 100 | r (mm): 1.0
SRES4180-100-R15ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 100 | r (mm): 1.5
SRES4180-100-R20ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 100 | r (mm): 2.0
SRES4180-100-R30ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 100 | r (mm): 3.0
SRES4180-150-R05ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 150 | r (mm): 0.5
SRES4180-150-R08ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 150 | r (mm): 0.8
SRES4180-150-R10ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 150 | r (mm): 1.0
SRES4180-150-R15ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 150 | r (mm): 1.5
SRES4180-150-R20ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 150 | r (mm): 2.0
SRES4180-150-R30ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 150 | r (mm): 3.0
SRES4200-100-R05ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 100 | r (mm): 0.5
SRES4200-100-R10ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 100 | r (mm): 1.0
SRES4200-100-R15ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 100 | r (mm): 1.5
SRES4200-100-R20ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 100 | r (mm): 2.0
SRES4200-100-R25ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 100 | r (mm): 2.5
SRES4200-100-R30ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 100 | r (mm): 3.0
SRES4200-100-R35ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 100 | r (mm): 3.5
SRES4200-100-R40ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 100 | r (mm): 4.0
SRES4200-100-R50ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 100 | r (mm): 5.0
SRES4200-100-R60ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 100 | r (mm): 6.0
SRES4200-150-R05ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 150 | r (mm): 0.5
SRES4200-150-R10ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 150 | r (mm): 1.0
SRES4200-150-R15ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 150 | r (mm): 1.5
SRES4200-150-R20ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 150 | r (mm): 2.0
SRES4200-150-R25ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 150 | r (mm): 2.5
SRES4200-150-R30ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 150 | r (mm): 3.0
SRES4200-150-R35ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 150 | r (mm): 3.5
SRES4200-150-R40ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 150 | r (mm): 4.0
SRES4200-150-R50ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 150 | r (mm): 5.0
SRES4200-150-R60ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 150 | r (mm): 6.0

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
