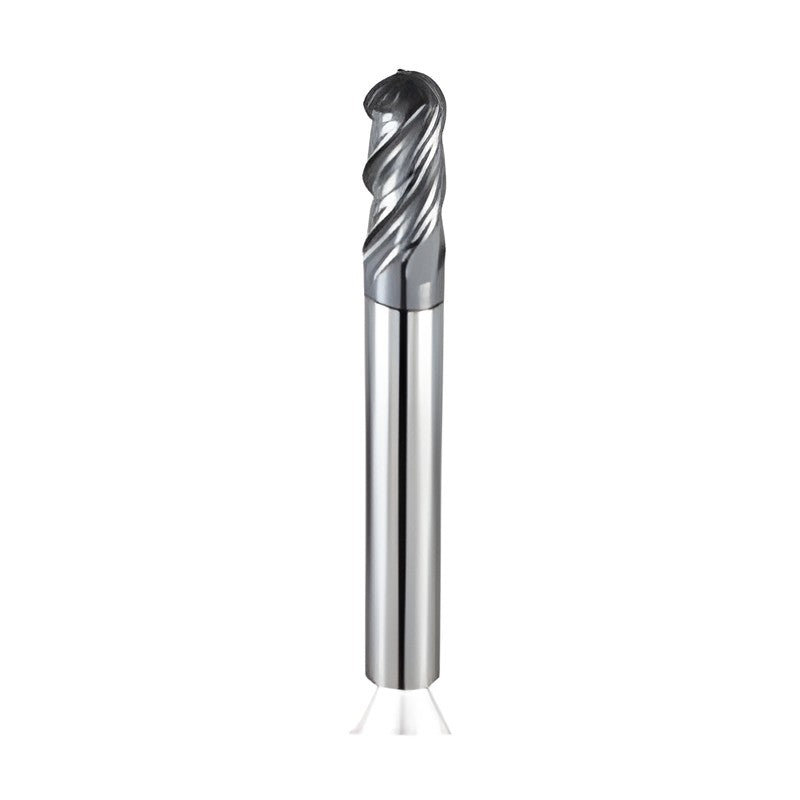

Korloy Super End Mill for Ti SBET4000 (Ball)

Korloy Super End Mill for Ti SBET4000 (Ball)

Solid carbide end mill for titanium and stainless steel, with an edge structure optimized for titanium and enlarged chip pockets to reduce cutting load and heat.

Key features

  • Irregular flute spacing reduces chattering and vibration
  • Large chip pocket and streamlined flute design for chip evacuation
  • S-curve cutting edge reduces cutting load
  • UL ultra lubricating coating with high chipping resistance substrate
  • Helix angle 38°/40°
  • Radius tolerance ±0.01

Specifications

Series line Super End Mill for Ti
Coating UL coating
Helix angle 38°/40°
ØD tolerance Ø1~Ø6: 0~-0.015mm; Ø6.1~Ø20: 0~-0.020mm
Shank tolerance h6
Radius tolerance ±0.01
Workpiece Titanium alloy, stainless steel
SBET4040-050 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 50 | r (mm): 2.0
SBET4040-070 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 70 | r (mm): 2.0
SBET4050-060 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 60 | r (mm): 2.5
SBET4050-080 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 80 | r (mm): 2.5
SBET4060-060 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 60 | r (mm): 3.0
SBET4060-090 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 90 | r (mm): 3.0
SBET4080-070 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 70 | r (mm): 4.0
SBET4080-100 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 100 | r (mm): 4.0
SBET4100-075 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 20 | L (mm): 75 | r (mm): 5.0
SBET4100-100 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 20 | L (mm): 100 | r (mm): 5.0
SBET4120-080 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 25 | L (mm): 80 | r (mm): 6.0
SBET4120-100 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 25 | L (mm): 100 | r (mm): 6.0
Ball End MillsKorloy
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Super End Mill for Ti SBET4000 (Ball)

Brand Korloy·Ball End Mills

Available part numbers (12)

SBET4040-050, SBET4040-070, SBET4050-060, SBET4050-080, SBET4060-060, SBET4060-090, SBET4080-070, SBET4080-100, SBET4100-075, SBET4100-100 + 2 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SBET4040-050ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 50 | r (mm): 2.0
SBET4040-070ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 70 | r (mm): 2.0
SBET4050-060ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 60 | r (mm): 2.5
SBET4050-080ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 80 | r (mm): 2.5
SBET4060-060ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 60 | r (mm): 3.0
SBET4060-090ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 90 | r (mm): 3.0
SBET4080-070ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 70 | r (mm): 4.0
SBET4080-100ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 100 | r (mm): 4.0
SBET4100-075ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 20 | L (mm): 75 | r (mm): 5.0
SBET4100-100ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 20 | L (mm): 100 | r (mm): 5.0
SBET4120-080ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 25 | L (mm): 80 | r (mm): 6.0
SBET4120-100ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 25 | L (mm): 100 | r (mm): 6.0
