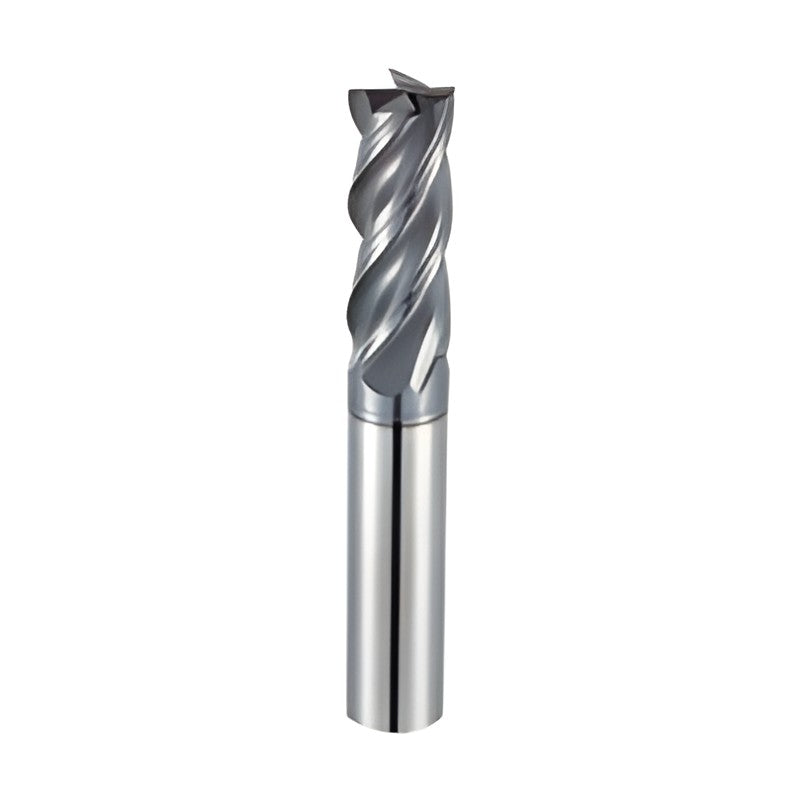

Korloy Super End Mill for Ti SFET4000 (Flat)

Korloy Super End Mill for Ti SFET4000 (Flat)

Solid carbide end mill for titanium and stainless steel, with an edge structure optimized for titanium and enlarged chip pockets to reduce cutting load and heat.

Key features

  • Irregular flute spacing reduces chattering and vibration
  • Large chip pocket and streamlined flute design for chip evacuation
  • S-curve cutting edge reduces cutting load
  • UL ultra lubricating coating with high chipping resistance substrate
  • Helix angle 35°/38°
  • h6 shank tolerance

Specifications

Series line Super End Mill for Ti
Coating UL coating
Helix angle 35°/38°
ØD tolerance Ø1~Ø6: 0~-0.015mm; Ø6.1~Ø20: 0~-0.020mm
Shank tolerance h6
Workpiece Titanium alloy, stainless steel
SFET4030-050 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 50
SFET4040-050 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 50
SFET4050-060 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
SFET4060-060 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
SFET4080-070 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70
SFET4100-075 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75
SFET4120-080 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
SFET4160-100 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100
SFET4200-100 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 100
End MillsKorloy
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Super End Mill for Ti SFET4000 (Flat)

Brand Korloy·End Mills

Available part numbers (9)

SFET4030-050, SFET4040-050, SFET4050-060, SFET4060-060, SFET4080-070, SFET4100-075, SFET4120-080, SFET4160-100, SFET4200-100
