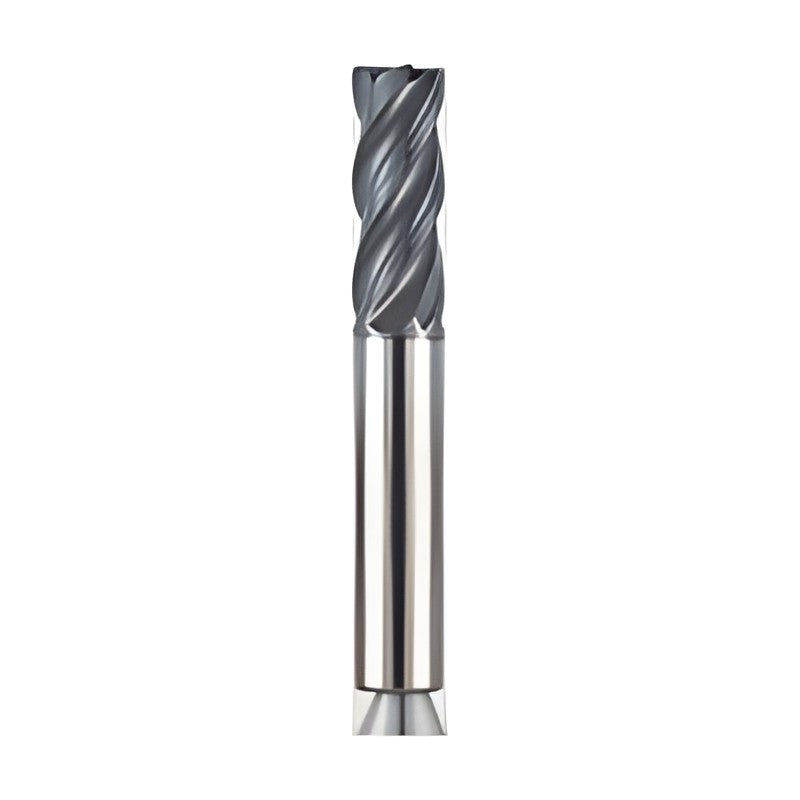

Korloy Super End Mill for Ti SRET4000 (Radius)

Korloy Super End Mill for Ti SRET4000 (Radius)

Solid carbide end mill for titanium and stainless steel, with an edge structure optimized for titanium and enlarged chip pockets to reduce cutting load and heat.

Key features

  • Irregular flute spacing reduces chattering and vibration
  • Large chip pocket and streamlined flute design for chip evacuation
  • S-curve cutting edge reduces cutting load
  • UL ultra lubricating coating with high chipping resistance substrate
  • Helix angle 35°/38°
  • h6 shank tolerance

Specifications

Series line Super End Mill for Ti
Coating UL coating
Helix angle 35°/38°
ØD tolerance Ø1~Ø6: 0~-0.015mm; Ø6.1~Ø20: 0~-0.020mm
Shank tolerance h6
Workpiece Titanium alloy, stainless steel
SRET4030-050-R02 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 50 | r (mm): 0.2
SRET4030-050-R05 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 50 | r (mm): 0.5
SRET4040-050-R02 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 50 | r (mm): 0.2
SRET4040-050-R05 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 50 | r (mm): 0.5
SRET4050-060-R02 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60 | r (mm): 0.2
SRET4050-060-R05 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60 | r (mm): 0.5
SRET4050-060-R10 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60 | r (mm): 1
SRET4060-060-R03 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60 | r (mm): 0.3
SRET4060-060-R05 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60 | r (mm): 0.5
SRET4060-060-R10 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60 | r (mm): 1
SRET4080-070-R03 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70 | r (mm): 0.3
SRET4080-070-R05 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70 | r (mm): 0.5
SRET4080-070-R10 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70 | r (mm): 1
SRET4100-075-R03 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75 | r (mm): 0.3
SRET4100-075-R05 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75 | r (mm): 0.5
SRET4100-075-R10 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75 | r (mm): 1
SRET4100-075-R15 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75 | r (mm): 1.5
SRET4100-075-R20 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75 | r (mm): 2
SRET4120-080-R05 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 0.5
SRET4120-080-R10 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 1
SRET4120-080-R15 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 1.5
SRET4120-080-R20 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 2
SRET4120-080-R25 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 2.5
SRET4120-080-R30 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 3
SRET4160-100-R05 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100 | r (mm): 0.5
SRET4160-100-R10 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100 | r (mm): 1
SRET4200-100-R05 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 100 | r (mm): 0.5
SRET4200-100-R10 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 100 | r (mm): 1
End MillsKorloy
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Super End Mill for Ti SRET4000 (Radius)

Brand Korloy·End Mills

Available part numbers (28)

SRET4030-050-R02, SRET4030-050-R05, SRET4040-050-R02, SRET4040-050-R05, SRET4050-060-R02, SRET4050-060-R05, SRET4050-060-R10, SRET4060-060-R03, SRET4060-060-R05, SRET4060-060-R10 + 18 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SRET4030-050-R02ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 50 | r (mm): 0.2
SRET4030-050-R05ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 50 | r (mm): 0.5
SRET4040-050-R02ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 50 | r (mm): 0.2
SRET4040-050-R05ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 50 | r (mm): 0.5
SRET4050-060-R02ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60 | r (mm): 0.2
SRET4050-060-R05ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60 | r (mm): 0.5
SRET4050-060-R10ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60 | r (mm): 1
SRET4060-060-R03ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60 | r (mm): 0.3
SRET4060-060-R05ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60 | r (mm): 0.5
SRET4060-060-R10ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60 | r (mm): 1
SRET4080-070-R03ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70 | r (mm): 0.3
SRET4080-070-R05ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70 | r (mm): 0.5
SRET4080-070-R10ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70 | r (mm): 1
SRET4100-075-R03ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75 | r (mm): 0.3
SRET4100-075-R05ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75 | r (mm): 0.5
SRET4100-075-R10ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75 | r (mm): 1
SRET4100-075-R15ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75 | r (mm): 1.5
SRET4100-075-R20ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75 | r (mm): 2
SRET4120-080-R05ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 0.5
SRET4120-080-R10ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 1
SRET4120-080-R15ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 1.5
SRET4120-080-R20ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 2
SRET4120-080-R25ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 2.5
SRET4120-080-R30ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80 | r (mm): 3
SRET4160-100-R05ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100 | r (mm): 0.5
SRET4160-100-R10ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100 | r (mm): 1
SRET4200-100-R05ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 100 | r (mm): 0.5
SRET4200-100-R10ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 48 | L (mm): 100 | r (mm): 1
