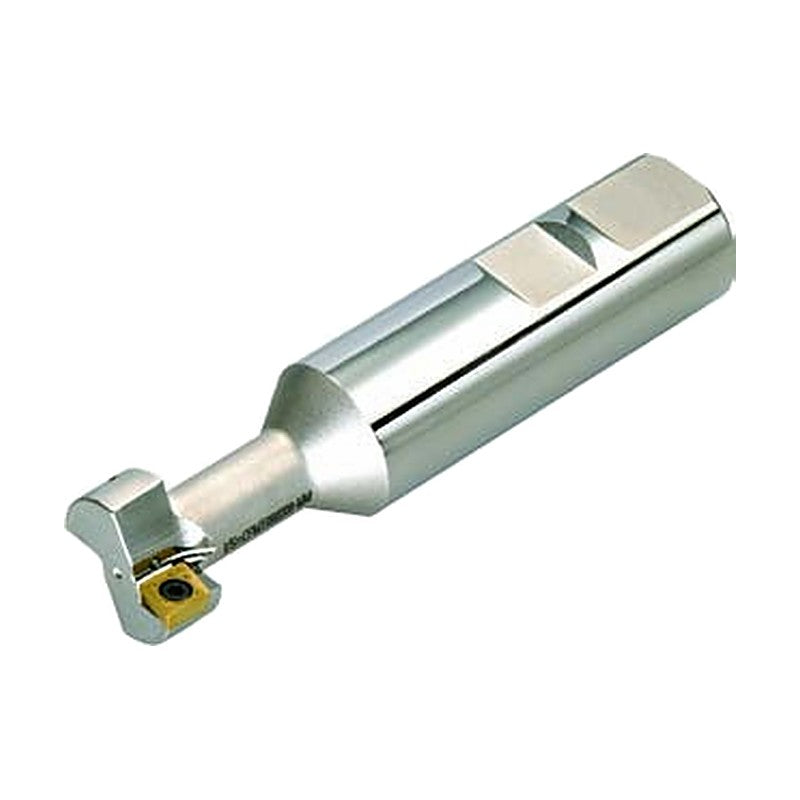

Korloy T-Slot Cutter TFE

Korloy T-Slot Cutter TFE

Indexable T-cutter face end mill for precision T-grooving.

Key features

  • For precision T-grooving
  • High hardness insert for various workpieces
  • AR 5 degrees, PR -5 degrees
TFE2125R Inserts: 2 | Cutter dia. D (mm): 21 | Shank dia. d (mm): 25 | Neck dia. D1 (mm): 10.5 | l (mm): 20 | L (mm): 109 | ap (mm): 9 | Insert: CPMT06 | Hand: Right
TFE2125L Inserts: 2 | Cutter dia. D (mm): 21 | Shank dia. d (mm): 25 | Neck dia. D1 (mm): 10.5 | l (mm): 20 | L (mm): 109 | ap (mm): 9 | Insert: CPMT06 | Hand: Left
TFE2525R Inserts: 2 | Cutter dia. D (mm): 25 | Shank dia. d (mm): 25 | Neck dia. D1 (mm): 12.5 | l (mm): 21 | L (mm): 112 | ap (mm): 11 | Insert: CPMT08 | Hand: Right
TFE2525L Inserts: 2 | Cutter dia. D (mm): 25 | Shank dia. d (mm): 25 | Neck dia. D1 (mm): 12.5 | l (mm): 21 | L (mm): 112 | ap (mm): 11 | Insert: CPMT08 | Hand: Left
TFE3232R Inserts: 2 | Cutter dia. D (mm): 32 | Shank dia. d (mm): 32 | Neck dia. D1 (mm): 16.5 | l (mm): 26 | L (mm): 120 | ap (mm): 14 | Insert: CPMT09 | Hand: Right
TFE3232L Inserts: 2 | Cutter dia. D (mm): 32 | Shank dia. d (mm): 32 | Neck dia. D1 (mm): 16.5 | l (mm): 26 | L (mm): 120 | ap (mm): 14 | Insert: CPMT09 | Hand: Left
TFE4032R Inserts: 2 | Cutter dia. D (mm): 40 | Shank dia. d (mm): 32 | Neck dia. D1 (mm): 20.5 | l (mm): 32 | L (mm): 130 | ap (mm): 18 | Insert: CPMH12 | Hand: Right
TFE4032L Inserts: 2 | Cutter dia. D (mm): 40 | Shank dia. d (mm): 32 | Neck dia. D1 (mm): 20.5 | l (mm): 32 | L (mm): 130 | ap (mm): 18 | Insert: CPMH12 | Hand: Left
TFE5032R Inserts: 4 | Cutter dia. D (mm): 50 | Shank dia. d (mm): 32 | Neck dia. D1 (mm): 26.5 | l (mm): 38 | L (mm): 140 | ap (mm): 22 | Insert: CPMH12 | Hand: Right
TFE5032L Inserts: 4 | Cutter dia. D (mm): 50 | Shank dia. d (mm): 32 | Neck dia. D1 (mm): 26.5 | l (mm): 38 | L (mm): 140 | ap (mm): 22 | Insert: CPMH12 | Hand: Left
Milling CuttersKorloy
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy T-Slot Cutter TFE

Brand Korloy·Milling Cutters

Available part numbers (10)

TFE2125R, TFE2125L, TFE2525R, TFE2525L, TFE3232R, TFE3232L, TFE4032R, TFE4032L, TFE5032R, TFE5032L

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TFE2125RInserts: 2 | Cutter dia. D (mm): 21 | Shank dia. d (mm): 25 | Neck dia. D1 (mm): 10.5 | l (mm): 20 | L (mm): 109 | ap (mm): 9 | Insert: CPMT06 | Hand: Right
TFE2125LInserts: 2 | Cutter dia. D (mm): 21 | Shank dia. d (mm): 25 | Neck dia. D1 (mm): 10.5 | l (mm): 20 | L (mm): 109 | ap (mm): 9 | Insert: CPMT06 | Hand: Left
TFE2525RInserts: 2 | Cutter dia. D (mm): 25 | Shank dia. d (mm): 25 | Neck dia. D1 (mm): 12.5 | l (mm): 21 | L (mm): 112 | ap (mm): 11 | Insert: CPMT08 | Hand: Right
TFE2525LInserts: 2 | Cutter dia. D (mm): 25 | Shank dia. d (mm): 25 | Neck dia. D1 (mm): 12.5 | l (mm): 21 | L (mm): 112 | ap (mm): 11 | Insert: CPMT08 | Hand: Left
TFE3232RInserts: 2 | Cutter dia. D (mm): 32 | Shank dia. d (mm): 32 | Neck dia. D1 (mm): 16.5 | l (mm): 26 | L (mm): 120 | ap (mm): 14 | Insert: CPMT09 | Hand: Right
TFE3232LInserts: 2 | Cutter dia. D (mm): 32 | Shank dia. d (mm): 32 | Neck dia. D1 (mm): 16.5 | l (mm): 26 | L (mm): 120 | ap (mm): 14 | Insert: CPMT09 | Hand: Left
TFE4032RInserts: 2 | Cutter dia. D (mm): 40 | Shank dia. d (mm): 32 | Neck dia. D1 (mm): 20.5 | l (mm): 32 | L (mm): 130 | ap (mm): 18 | Insert: CPMH12 | Hand: Right
TFE4032LInserts: 2 | Cutter dia. D (mm): 40 | Shank dia. d (mm): 32 | Neck dia. D1 (mm): 20.5 | l (mm): 32 | L (mm): 130 | ap (mm): 18 | Insert: CPMH12 | Hand: Left
TFE5032RInserts: 4 | Cutter dia. D (mm): 50 | Shank dia. d (mm): 32 | Neck dia. D1 (mm): 26.5 | l (mm): 38 | L (mm): 140 | ap (mm): 22 | Insert: CPMH12 | Hand: Right
TFE5032LInserts: 4 | Cutter dia. D (mm): 50 | Shank dia. d (mm): 32 | Neck dia. D1 (mm): 26.5 | l (mm): 38 | L (mm): 140 | ap (mm): 22 | Insert: CPMH12 | Hand: Left
