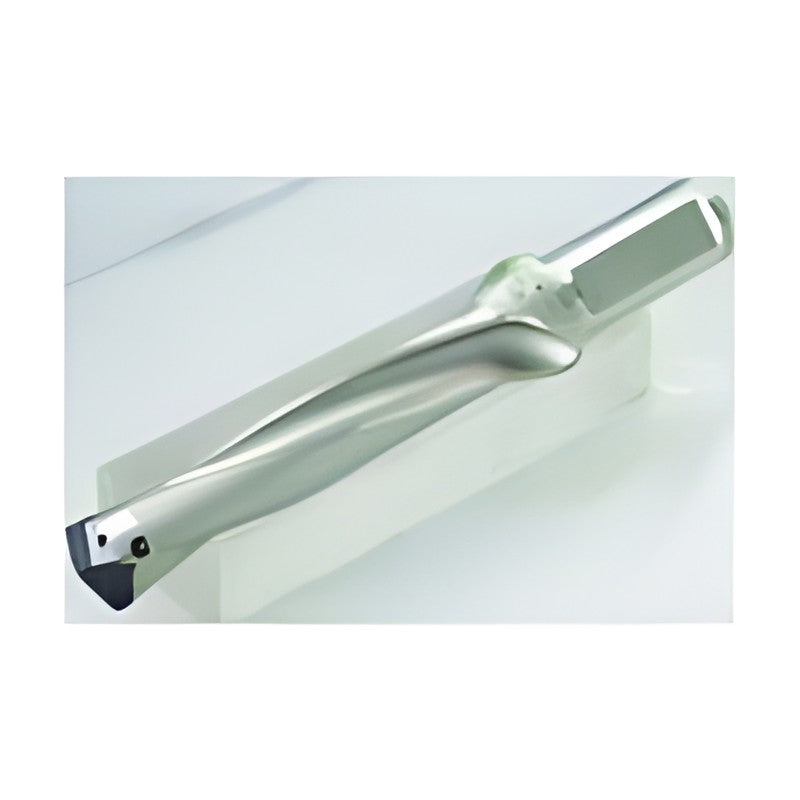

Korloy TPDB Indexable Drill 5D

Korloy TPDB Indexable Drill 5D

Indexable drill body for TPDB drill inserts with auto-centering clamping, covering Ø10.0 to Ø32.9 mm.

Key features

  • High precision grinding and auto-centering clamping
  • Uses TPD..B replaceable inserts
  • Through coolant
TPDB100-16-5 Drilling range D (mm): 10.0~10.4 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 50.0 | l2 (mm): 48 | L (mm): 115 | Aspect ratio: 5D | Insert: TPD100B~104B | Screw: FTNB0209 | Wrench: TW06P
TPDB105-16-5 Drilling range D (mm): 10.5~10.9 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 52.5 | l2 (mm): 48 | L (mm): 117 | Aspect ratio: 5D | Insert: TPD105B~109B | Screw: FTNB0209 | Wrench: TW06P
TPDB110-16-5 Drilling range D (mm): 11.0~11.4 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 55.0 | l2 (mm): 48 | L (mm): 120 | Aspect ratio: 5D | Insert: TPD110B~114B | Screw: FTNB0209 | Wrench: TW06P
TPDB115-16-5 Drilling range D (mm): 11.5~11.9 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 57.5 | l2 (mm): 48 | L (mm): 123 | Aspect ratio: 5D | Insert: TPD115B~119B | Screw: FTNB0209 | Wrench: TW06P
TPDB120-16-5 Drilling range D (mm): 12.0~12.4 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 60.0 | l2 (mm): 48 | L (mm): 126 | Aspect ratio: 5D | Insert: TPD120B~124B | Screw: FTNB0209 | Wrench: TW06P
TPDB125-16-5 Drilling range D (mm): 12.5~12.9 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 62.5 | l2 (mm): 48 | L (mm): 129 | Aspect ratio: 5D | Insert: TPD125B~129B | Screw: FTNB0209 | Wrench: TW06P
TPDB130-16-5 Drilling range D (mm): 13.0~13.4 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 65.0 | l2 (mm): 48 | L (mm): 133 | Aspect ratio: 5D | Insert: TPD130B~134B | Screw: FTNB02512 | Wrench: TW07S
TPDB135-16-5 Drilling range D (mm): 13.5~13.9 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 67.5 | l2 (mm): 48 | L (mm): 136 | Aspect ratio: 5D | Insert: TPD135B~139B | Screw: FTNB02512 | Wrench: TW07S
TPDB140-16-5 Drilling range D (mm): 14.0~14.4 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 70.0 | l2 (mm): 48 | L (mm): 139 | Aspect ratio: 5D | Insert: TPD140B~144B | Screw: FTNB02512 | Wrench: TW07S
TPDB145-16-5 Drilling range D (mm): 14.5~14.9 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 72.5 | l2 (mm): 48 | L (mm): 143 | Aspect ratio: 5D | Insert: TPD145B~149B | Screw: FTNB02512 | Wrench: TW07S
TPDB150-20-5 Drilling range D (mm): 15.0~15.4 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 75.0 | l2 (mm): 50 | L (mm): 148 | Aspect ratio: 5D | Insert: TPD150B~154B | Screw: FTNB02514 | Wrench: TW07S
TPDB155-20-5 Drilling range D (mm): 15.5~15.9 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 77.5 | l2 (mm): 50 | L (mm): 151 | Aspect ratio: 5D | Insert: TPD155B~159B | Screw: FTNB02514 | Wrench: TW07S
TPDB160-20-5 Drilling range D (mm): 16.0~16.4 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 80.0 | l2 (mm): 50 | L (mm): 154 | Aspect ratio: 5D | Insert: TPD160B~164B | Screw: FTNB02514 | Wrench: TW07S
TPDB165-20-5 Drilling range D (mm): 16.5~16.9 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 82.5 | l2 (mm): 50 | L (mm): 157 | Aspect ratio: 5D | Insert: TPD165B~169B | Screw: FTNB02514 | Wrench: TW07S
TPDB170-20-5 Drilling range D (mm): 17.0~17.4 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 85.0 | l2 (mm): 50 | L (mm): 161 | Aspect ratio: 5D | Insert: TPD170B~174B | Screw: FTNB02514 | Wrench: TW07S
TPDB175-20-5 Drilling range D (mm): 17.5~17.9 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 87.5 | l2 (mm): 50 | L (mm): 164 | Aspect ratio: 5D | Insert: TPD175B~179B | Screw: FTNB02514 | Wrench: TW07S
TPDB180-25-5 Drilling range D (mm): 18.0~18.4 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 90.0 | l2 (mm): 56 | L (mm): 173 | Aspect ratio: 5D | Insert: TPD180B~184B | Screw: FTNB0316 | Wrench: TW09S
TPDB185-25-5 Drilling range D (mm): 18.5~18.9 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 92.5 | l2 (mm): 56 | L (mm): 176 | Aspect ratio: 5D | Insert: TPD185B~189B | Screw: FTNB0316 | Wrench: TW09S
TPDB190-25-5 Drilling range D (mm): 19.0~19.4 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 95.0 | l2 (mm): 56 | L (mm): 180 | Aspect ratio: 5D | Insert: TPD190B~194B | Screw: FTNB0316 | Wrench: TW09S
TPDB195-25-5 Drilling range D (mm): 19.5~19.9 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 97.5 | l2 (mm): 56 | L (mm): 183 | Aspect ratio: 5D | Insert: TPD195B~199B | Screw: FTNB0316 | Wrench: TW09S
TPDB200-25-5 Drilling range D (mm): 20.0~20.4 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 100.0 | l2 (mm): 56 | L (mm): 186 | Aspect ratio: 5D | Insert: TPD200B~204B | Screw: FTNB0319 | Wrench: TW09S
TPDB205-25-5 Drilling range D (mm): 20.5~20.9 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 102.5 | l2 (mm): 56 | L (mm): 189 | Aspect ratio: 5D | Insert: TPD205B~209B | Screw: FTNB0319 | Wrench: TW09S
TPDB210-25-5 Drilling range D (mm): 21.0~21.4 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 105.0 | l2 (mm): 60 | L (mm): 193 | Aspect ratio: 5D | Insert: TPD210B~214B | Screw: FTNB0319 | Wrench: TW09S
TPDB215-25-5 Drilling range D (mm): 21.5~21.9 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 107.5 | l2 (mm): 60 | L (mm): 196 | Aspect ratio: 5D | Insert: TPD215B~219B | Screw: FTNB0319 | Wrench: TW09S
TPDB220-25-5 Drilling range D (mm): 22.0~22.4 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 110.0 | l2 (mm): 60 | L (mm): 199 | Aspect ratio: 5D | Insert: TPD220B~224B | Screw: FTNB0319 | Wrench: TW09S
TPDB225-25-5 Drilling range D (mm): 22.5~22.9 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 112.5 | l2 (mm): 60 | L (mm): 202 | Aspect ratio: 5D | Insert: TPD225B~229B | Screw: FTNB0319 | Wrench: TW09S
TPDB230-25-5 Drilling range D (mm): 23.0~23.4 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 115.0 | l2 (mm): 60 | L (mm): 206 | Aspect ratio: 5D | Insert: TPD230B~234B | Screw: FTNB0319 | Wrench: TW09S
TPDB235-25-5 Drilling range D (mm): 23.5~23.9 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 117.5 | l2 (mm): 60 | L (mm): 209 | Aspect ratio: 5D | Insert: TPD235B~239B | Screw: FTNB0319 | Wrench: TW09S
TPDB240-32-5 Drilling range D (mm): 24.0~24.4 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 120.0 | l2 (mm): 60 | L (mm): 216 | Aspect ratio: 5D | Insert: TPD240B~244B | Screw: FTNB03522 | Wrench: TW15S
TPDB245-32-5 Drilling range D (mm): 24.5~24.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 122.5 | l2 (mm): 60 | L (mm): 219 | Aspect ratio: 5D | Insert: TPD245B~249B | Screw: FTNB03522 | Wrench: TW15S
TPDB250-32-5 Drilling range D (mm): 25.0~25.4 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 125.0 | l2 (mm): 60 | L (mm): 223 | Aspect ratio: 5D | Insert: TPD250B~254B | Screw: FTNB03522 | Wrench: TW15S
TPDB255-32-5 Drilling range D (mm): 25.5~25.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 127.5 | l2 (mm): 60 | L (mm): 226 | Aspect ratio: 5D | Insert: TPD255B~259B | Screw: FTNB03522 | Wrench: TW15S
TPDB260-32-5 Drilling range D (mm): 26.0~26.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 130.0 | l2 (mm): 60 | L (mm): 229 | Aspect ratio: 5D | Insert: TPD260B~269B | Screw: FTNB03524 | Wrench: TW15S
TPDB270-32-5 Drilling range D (mm): 27.0~27.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 135.0 | l2 (mm): 60 | L (mm): 236 | Aspect ratio: 5D | Insert: TPD270B~279B | Screw: FTNB03524 | Wrench: TW15S
TPDB280-32-5 Drilling range D (mm): 28.0~28.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 140.0 | l2 (mm): 60 | L (mm): 242 | Aspect ratio: 5D | Insert: TPD280B~289B | Screw: FTNB0426 | Wrench: TW15S
TPDB290-32-5 Drilling range D (mm): 29.0~29.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 145.0 | l2 (mm): 60 | L (mm): 249 | Aspect ratio: 5D | Insert: TPD290B~299B | Screw: FTNB0426 | Wrench: TW15S
TPDB300-32-5 Drilling range D (mm): 30.0~30.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 150.0 | l2 (mm): 60 | L (mm): 254 | Aspect ratio: 5D | Insert: TPD300B~309B | Screw: FTNB0528 | Wrench: TW20-100
TPDB310-32-5 Drilling range D (mm): 31.0~31.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 155.0 | l2 (mm): 60 | L (mm): 261 | Aspect ratio: 5D | Insert: TPD310B~319B | Screw: FTNB0528 | Wrench: TW20-100
TPDB320-32-5 Drilling range D (mm): 32.0~32.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 160.0 | l2 (mm): 60 | L (mm): 265 | Aspect ratio: 5D | Insert: TPD320B~329B | Screw: FTNB0528 | Wrench: TW20-100
DrillsKorloy
39 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy TPDB Indexable Drill 5D

Brand Korloy·Drills

Available part numbers (39)

TPDB100-16-5, TPDB105-16-5, TPDB110-16-5, TPDB115-16-5, TPDB120-16-5, TPDB125-16-5, TPDB130-16-5, TPDB135-16-5, TPDB140-16-5, TPDB145-16-5 + 29 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TPDB100-16-5Drilling range D (mm): 10.0~10.4 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 50.0 | l2 (mm): 48 | L (mm): 115 | Aspect ratio: 5D | Insert: TPD100B~104B | Screw: FTNB0209 | Wrench: TW06P
TPDB105-16-5Drilling range D (mm): 10.5~10.9 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 52.5 | l2 (mm): 48 | L (mm): 117 | Aspect ratio: 5D | Insert: TPD105B~109B | Screw: FTNB0209 | Wrench: TW06P
TPDB110-16-5Drilling range D (mm): 11.0~11.4 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 55.0 | l2 (mm): 48 | L (mm): 120 | Aspect ratio: 5D | Insert: TPD110B~114B | Screw: FTNB0209 | Wrench: TW06P
TPDB115-16-5Drilling range D (mm): 11.5~11.9 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 57.5 | l2 (mm): 48 | L (mm): 123 | Aspect ratio: 5D | Insert: TPD115B~119B | Screw: FTNB0209 | Wrench: TW06P
TPDB120-16-5Drilling range D (mm): 12.0~12.4 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 60.0 | l2 (mm): 48 | L (mm): 126 | Aspect ratio: 5D | Insert: TPD120B~124B | Screw: FTNB0209 | Wrench: TW06P
TPDB125-16-5Drilling range D (mm): 12.5~12.9 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 62.5 | l2 (mm): 48 | L (mm): 129 | Aspect ratio: 5D | Insert: TPD125B~129B | Screw: FTNB0209 | Wrench: TW06P
TPDB130-16-5Drilling range D (mm): 13.0~13.4 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 65.0 | l2 (mm): 48 | L (mm): 133 | Aspect ratio: 5D | Insert: TPD130B~134B | Screw: FTNB02512 | Wrench: TW07S
TPDB135-16-5Drilling range D (mm): 13.5~13.9 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 67.5 | l2 (mm): 48 | L (mm): 136 | Aspect ratio: 5D | Insert: TPD135B~139B | Screw: FTNB02512 | Wrench: TW07S
TPDB140-16-5Drilling range D (mm): 14.0~14.4 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 70.0 | l2 (mm): 48 | L (mm): 139 | Aspect ratio: 5D | Insert: TPD140B~144B | Screw: FTNB02512 | Wrench: TW07S
TPDB145-16-5Drilling range D (mm): 14.5~14.9 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 72.5 | l2 (mm): 48 | L (mm): 143 | Aspect ratio: 5D | Insert: TPD145B~149B | Screw: FTNB02512 | Wrench: TW07S
TPDB150-20-5Drilling range D (mm): 15.0~15.4 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 75.0 | l2 (mm): 50 | L (mm): 148 | Aspect ratio: 5D | Insert: TPD150B~154B | Screw: FTNB02514 | Wrench: TW07S
TPDB155-20-5Drilling range D (mm): 15.5~15.9 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 77.5 | l2 (mm): 50 | L (mm): 151 | Aspect ratio: 5D | Insert: TPD155B~159B | Screw: FTNB02514 | Wrench: TW07S
TPDB160-20-5Drilling range D (mm): 16.0~16.4 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 80.0 | l2 (mm): 50 | L (mm): 154 | Aspect ratio: 5D | Insert: TPD160B~164B | Screw: FTNB02514 | Wrench: TW07S
TPDB165-20-5Drilling range D (mm): 16.5~16.9 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 82.5 | l2 (mm): 50 | L (mm): 157 | Aspect ratio: 5D | Insert: TPD165B~169B | Screw: FTNB02514 | Wrench: TW07S
TPDB170-20-5Drilling range D (mm): 17.0~17.4 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 85.0 | l2 (mm): 50 | L (mm): 161 | Aspect ratio: 5D | Insert: TPD170B~174B | Screw: FTNB02514 | Wrench: TW07S
TPDB175-20-5Drilling range D (mm): 17.5~17.9 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 87.5 | l2 (mm): 50 | L (mm): 164 | Aspect ratio: 5D | Insert: TPD175B~179B | Screw: FTNB02514 | Wrench: TW07S
TPDB180-25-5Drilling range D (mm): 18.0~18.4 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 90.0 | l2 (mm): 56 | L (mm): 173 | Aspect ratio: 5D | Insert: TPD180B~184B | Screw: FTNB0316 | Wrench: TW09S
TPDB185-25-5Drilling range D (mm): 18.5~18.9 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 92.5 | l2 (mm): 56 | L (mm): 176 | Aspect ratio: 5D | Insert: TPD185B~189B | Screw: FTNB0316 | Wrench: TW09S
TPDB190-25-5Drilling range D (mm): 19.0~19.4 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 95.0 | l2 (mm): 56 | L (mm): 180 | Aspect ratio: 5D | Insert: TPD190B~194B | Screw: FTNB0316 | Wrench: TW09S
TPDB195-25-5Drilling range D (mm): 19.5~19.9 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 97.5 | l2 (mm): 56 | L (mm): 183 | Aspect ratio: 5D | Insert: TPD195B~199B | Screw: FTNB0316 | Wrench: TW09S
TPDB200-25-5Drilling range D (mm): 20.0~20.4 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 100.0 | l2 (mm): 56 | L (mm): 186 | Aspect ratio: 5D | Insert: TPD200B~204B | Screw: FTNB0319 | Wrench: TW09S
TPDB205-25-5Drilling range D (mm): 20.5~20.9 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 102.5 | l2 (mm): 56 | L (mm): 189 | Aspect ratio: 5D | Insert: TPD205B~209B | Screw: FTNB0319 | Wrench: TW09S
TPDB210-25-5Drilling range D (mm): 21.0~21.4 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 105.0 | l2 (mm): 60 | L (mm): 193 | Aspect ratio: 5D | Insert: TPD210B~214B | Screw: FTNB0319 | Wrench: TW09S
TPDB215-25-5Drilling range D (mm): 21.5~21.9 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 107.5 | l2 (mm): 60 | L (mm): 196 | Aspect ratio: 5D | Insert: TPD215B~219B | Screw: FTNB0319 | Wrench: TW09S
TPDB220-25-5Drilling range D (mm): 22.0~22.4 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 110.0 | l2 (mm): 60 | L (mm): 199 | Aspect ratio: 5D | Insert: TPD220B~224B | Screw: FTNB0319 | Wrench: TW09S
TPDB225-25-5Drilling range D (mm): 22.5~22.9 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 112.5 | l2 (mm): 60 | L (mm): 202 | Aspect ratio: 5D | Insert: TPD225B~229B | Screw: FTNB0319 | Wrench: TW09S
TPDB230-25-5Drilling range D (mm): 23.0~23.4 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 115.0 | l2 (mm): 60 | L (mm): 206 | Aspect ratio: 5D | Insert: TPD230B~234B | Screw: FTNB0319 | Wrench: TW09S
TPDB235-25-5Drilling range D (mm): 23.5~23.9 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 117.5 | l2 (mm): 60 | L (mm): 209 | Aspect ratio: 5D | Insert: TPD235B~239B | Screw: FTNB0319 | Wrench: TW09S
TPDB240-32-5Drilling range D (mm): 24.0~24.4 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 120.0 | l2 (mm): 60 | L (mm): 216 | Aspect ratio: 5D | Insert: TPD240B~244B | Screw: FTNB03522 | Wrench: TW15S
TPDB245-32-5Drilling range D (mm): 24.5~24.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 122.5 | l2 (mm): 60 | L (mm): 219 | Aspect ratio: 5D | Insert: TPD245B~249B | Screw: FTNB03522 | Wrench: TW15S
TPDB250-32-5Drilling range D (mm): 25.0~25.4 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 125.0 | l2 (mm): 60 | L (mm): 223 | Aspect ratio: 5D | Insert: TPD250B~254B | Screw: FTNB03522 | Wrench: TW15S
TPDB255-32-5Drilling range D (mm): 25.5~25.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 127.5 | l2 (mm): 60 | L (mm): 226 | Aspect ratio: 5D | Insert: TPD255B~259B | Screw: FTNB03522 | Wrench: TW15S
TPDB260-32-5Drilling range D (mm): 26.0~26.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 130.0 | l2 (mm): 60 | L (mm): 229 | Aspect ratio: 5D | Insert: TPD260B~269B | Screw: FTNB03524 | Wrench: TW15S
TPDB270-32-5Drilling range D (mm): 27.0~27.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 135.0 | l2 (mm): 60 | L (mm): 236 | Aspect ratio: 5D | Insert: TPD270B~279B | Screw: FTNB03524 | Wrench: TW15S
TPDB280-32-5Drilling range D (mm): 28.0~28.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 140.0 | l2 (mm): 60 | L (mm): 242 | Aspect ratio: 5D | Insert: TPD280B~289B | Screw: FTNB0426 | Wrench: TW15S
TPDB290-32-5Drilling range D (mm): 29.0~29.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 145.0 | l2 (mm): 60 | L (mm): 249 | Aspect ratio: 5D | Insert: TPD290B~299B | Screw: FTNB0426 | Wrench: TW15S
TPDB300-32-5Drilling range D (mm): 30.0~30.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 150.0 | l2 (mm): 60 | L (mm): 254 | Aspect ratio: 5D | Insert: TPD300B~309B | Screw: FTNB0528 | Wrench: TW20-100
TPDB310-32-5Drilling range D (mm): 31.0~31.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 155.0 | l2 (mm): 60 | L (mm): 261 | Aspect ratio: 5D | Insert: TPD310B~319B | Screw: FTNB0528 | Wrench: TW20-100
TPDB320-32-5Drilling range D (mm): 32.0~32.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 160.0 | l2 (mm): 60 | L (mm): 265 | Aspect ratio: 5D | Insert: TPD320B~329B | Screw: FTNB0528 | Wrench: TW20-100
