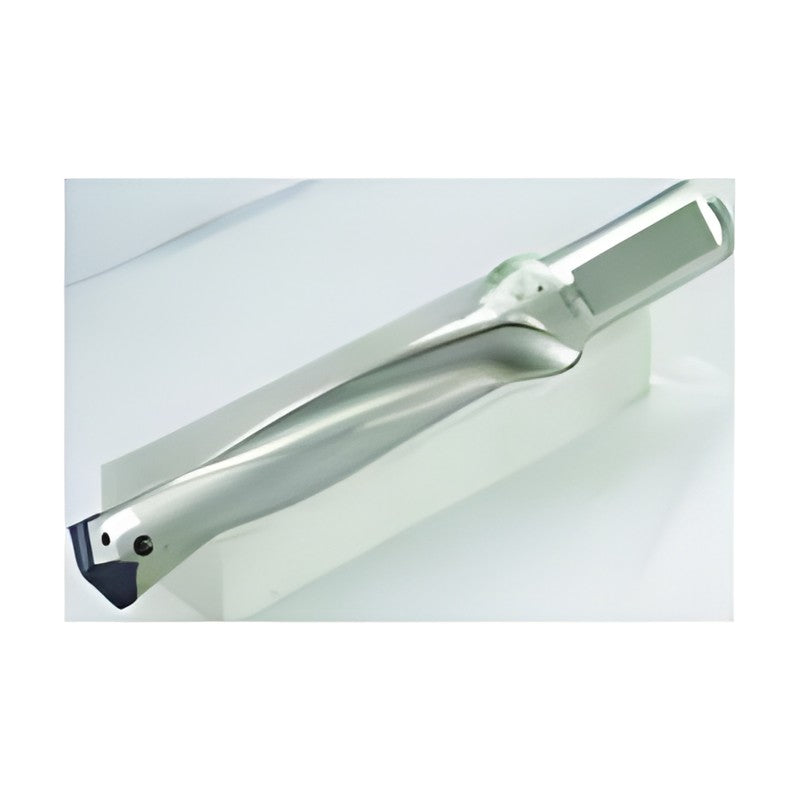

Korloy TPDB Indexable Drill 8D

Korloy TPDB Indexable Drill 8D

Indexable drill body for TPDB drill inserts with auto-centering clamping, covering Ø10.0 to Ø32.9 mm.

Key features

  • High precision grinding and auto-centering clamping
  • Uses TPD..B replaceable inserts
  • Through coolant
TPDB100-16-8 Drilling range D (mm): 10.0~10.4 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 80 | l2 (mm): 48 | L (mm): 145.0 | Aspect ratio: 8D | Insert: TPD100B~104B | Screw: FTNB0209 | Wrench: TW06P
TPDB105-16-8 Drilling range D (mm): 10.5~10.9 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 84 | l2 (mm): 48 | L (mm): 149.0 | Aspect ratio: 8D | Insert: TPD105B~109B | Screw: FTNB0209 | Wrench: TW06P
TPDB110-16-8 Drilling range D (mm): 11.0~11.4 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 88 | l2 (mm): 48 | L (mm): 153.0 | Aspect ratio: 8D | Insert: TPD110B~114B | Screw: FTNB0209 | Wrench: TW06P
TPDB115-16-8 Drilling range D (mm): 11.5~11.9 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 92 | l2 (mm): 48 | L (mm): 157.0 | Aspect ratio: 8D | Insert: TPD115B~119B | Screw: FTNB0209 | Wrench: TW06P
TPDB120-16-8 Drilling range D (mm): 12.0~12.4 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 96 | l2 (mm): 48 | L (mm): 162.0 | Aspect ratio: 8D | Insert: TPD120B~124B | Screw: FTNB0209 | Wrench: TW06P
TPDB125-16-8 Drilling range D (mm): 12.5~12.9 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 100 | l2 (mm): 48 | L (mm): 166.5 | Aspect ratio: 8D | Insert: TPD125B~129B | Screw: FTNB0209 | Wrench: TW06P
TPDB130-16-8 Drilling range D (mm): 13.0~13.4 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 104 | l2 (mm): 48 | L (mm): 172.0 | Aspect ratio: 8D | Insert: TPD130B~134B | Screw: FTNB02512 | Wrench: TW07S
TPDB135-16-8 Drilling range D (mm): 13.5~13.9 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 108 | l2 (mm): 48 | L (mm): 176.5 | Aspect ratio: 8D | Insert: TPD135B~139B | Screw: FTNB02512 | Wrench: TW07S
TPDB140-16-8 Drilling range D (mm): 14.0~14.4 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 112 | l2 (mm): 48 | L (mm): 181.0 | Aspect ratio: 8D | Insert: TPD140B~144B | Screw: FTNB02512 | Wrench: TW07S
TPDB145-16-8 Drilling range D (mm): 14.5~14.9 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 116 | l2 (mm): 48 | L (mm): 186.5 | Aspect ratio: 8D | Insert: TPD145B~149B | Screw: FTNB02512 | Wrench: TW07S
TPDB150-20-8 Drilling range D (mm): 15.0~15.4 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 120 | l2 (mm): 50 | L (mm): 193.0 | Aspect ratio: 8D | Insert: TPD150B~154B | Screw: FTNB02514 | Wrench: TW07S
TPDB155-20-8 Drilling range D (mm): 15.5~15.9 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 124 | l2 (mm): 50 | L (mm): 197.5 | Aspect ratio: 8D | Insert: TPD155B~159B | Screw: FTNB02514 | Wrench: TW07S
TPDB160-20-8 Drilling range D (mm): 16.0~16.4 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 128 | l2 (mm): 50 | L (mm): 202.0 | Aspect ratio: 8D | Insert: TPD160B~164B | Screw: FTNB02514 | Wrench: TW07S
TPDB165-20-8 Drilling range D (mm): 16.5~16.9 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 132 | l2 (mm): 50 | L (mm): 206.5 | Aspect ratio: 8D | Insert: TPD165B~169B | Screw: FTNB02514 | Wrench: TW07S
TPDB170-20-8 Drilling range D (mm): 17.0~17.4 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 136 | l2 (mm): 50 | L (mm): 212.0 | Aspect ratio: 8D | Insert: TPD170B~174B | Screw: FTNB02514 | Wrench: TW07S
TPDB175-20-8 Drilling range D (mm): 17.5~17.9 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 140 | l2 (mm): 50 | L (mm): 216.5 | Aspect ratio: 8D | Insert: TPD175B~179B | Screw: FTNB02514 | Wrench: TW07S
TPDB180-25-8 Drilling range D (mm): 18.0~18.4 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 144 | l2 (mm): 56 | L (mm): 227.0 | Aspect ratio: 8D | Insert: TPD180B~184B | Screw: FTNB0316 | Wrench: TW09S
TPDB185-25-8 Drilling range D (mm): 18.5~18.9 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 148 | l2 (mm): 56 | L (mm): 231.5 | Aspect ratio: 8D | Insert: TPD185B~189B | Screw: FTNB0316 | Wrench: TW09S
TPDB190-25-8 Drilling range D (mm): 19.0~19.4 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 152 | l2 (mm): 56 | L (mm): 237.0 | Aspect ratio: 8D | Insert: TPD190B~194B | Screw: FTNB0316 | Wrench: TW09S
TPDB195-25-8 Drilling range D (mm): 19.5~19.9 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 156 | l2 (mm): 56 | L (mm): 241.5 | Aspect ratio: 8D | Insert: TPD195B~199B | Screw: FTNB0316 | Wrench: TW09S
TPDB200-25-8 Drilling range D (mm): 20.0~20.4 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 160 | l2 (mm): 56 | L (mm): 246.0 | Aspect ratio: 8D | Insert: TPD200B~204B | Screw: FTNB0319 | Wrench: TW09S
TPDB205-25-8 Drilling range D (mm): 20.5~20.9 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 164 | l2 (mm): 56 | L (mm): 250.5 | Aspect ratio: 8D | Insert: TPD205B~209B | Screw: FTNB0319 | Wrench: TW09S
TPDB210-25-8 Drilling range D (mm): 21.0~21.4 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 168 | l2 (mm): 60 | L (mm): 256.0 | Aspect ratio: 8D | Insert: TPD210B~214B | Screw: FTNB0319 | Wrench: TW09S
TPDB215-25-8 Drilling range D (mm): 21.5~21.9 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 172 | l2 (mm): 60 | L (mm): 260.5 | Aspect ratio: 8D | Insert: TPD215B~219B | Screw: FTNB0319 | Wrench: TW09S
TPDB220-25-8 Drilling range D (mm): 22.0~22.4 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 176 | l2 (mm): 60 | L (mm): 265.0 | Aspect ratio: 8D | Insert: TPD220B~224B | Screw: FTNB0319 | Wrench: TW09S
TPDB225-25-8 Drilling range D (mm): 22.5~22.9 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 180 | l2 (mm): 60 | L (mm): 269.5 | Aspect ratio: 8D | Insert: TPD225B~229B | Screw: FTNB0319 | Wrench: TW09S
TPDB230-25-8 Drilling range D (mm): 23.0~23.4 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 184 | l2 (mm): 60 | L (mm): 275.0 | Aspect ratio: 8D | Insert: TPD230B~234B | Screw: FTNB0319 | Wrench: TW09S
TPDB235-25-8 Drilling range D (mm): 23.5~23.9 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 188 | l2 (mm): 60 | L (mm): 279.5 | Aspect ratio: 8D | Insert: TPD235B~239B | Screw: FTNB0319 | Wrench: TW09S
TPDB240-32-8 Drilling range D (mm): 24.0~24.4 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 192 | l2 (mm): 60 | L (mm): 288.0 | Aspect ratio: 8D | Insert: TPD240B~244B | Screw: FTNB03522 | Wrench: TW15S
TPDB245-32-8 Drilling range D (mm): 24.5~24.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 196 | l2 (mm): 60 | L (mm): 292.5 | Aspect ratio: 8D | Insert: TPD245B~249B | Screw: FTNB03522 | Wrench: TW15S
TPDB250-32-8 Drilling range D (mm): 25.0~25.4 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 200 | l2 (mm): 60 | L (mm): 298.0 | Aspect ratio: 8D | Insert: TPD250B~254B | Screw: FTNB03522 | Wrench: TW15S
TPDB255-32-8 Drilling range D (mm): 25.5~25.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 204 | l2 (mm): 60 | L (mm): 302.5 | Aspect ratio: 8D | Insert: TPD255B~259B | Screw: FTNB03522 | Wrench: TW15S
TPDB260-32-8 Drilling range D (mm): 26.0~26.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 208 | l2 (mm): 60 | L (mm): 307.0 | Aspect ratio: 8D | Insert: TPD260B~269B | Screw: FTNB03524 | Wrench: TW15S
TPDB270-32-8 Drilling range D (mm): 27.0~27.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 216 | l2 (mm): 60 | L (mm): 317.0 | Aspect ratio: 8D | Insert: TPD270B~279B | Screw: FTNB03524 | Wrench: TW15S
TPDB280-32-8 Drilling range D (mm): 28.0~28.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 224 | l2 (mm): 60 | L (mm): 326.0 | Aspect ratio: 8D | Insert: TPD280B~289B | Screw: FTNB0426 | Wrench: TW15S
TPDB290-32-8 Drilling range D (mm): 29.0~29.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 232 | l2 (mm): 60 | L (mm): 336.0 | Aspect ratio: 8D | Insert: TPD290B~299B | Screw: FTNB0426 | Wrench: TW15S
TPDB300-32-8 Drilling range D (mm): 30.0~30.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 240 | l2 (mm): 60 | L (mm): 344.0 | Aspect ratio: 8D | Insert: TPD300B~309B | Screw: FTNB0528 | Wrench: TW20-100
TPDB310-32-8 Drilling range D (mm): 31.0~31.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 248 | l2 (mm): 60 | L (mm): 354.0 | Aspect ratio: 8D | Insert: TPD310B~319B | Screw: FTNB0528 | Wrench: TW20-100
TPDB320-32-8 Drilling range D (mm): 32.0~32.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 256 | l2 (mm): 60 | L (mm): 361.0 | Aspect ratio: 8D | Insert: TPD320B~329B | Screw: FTNB0528 | Wrench: TW20-100
DrillsKorloy
39 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy TPDB Indexable Drill 8D

Brand Korloy·Drills

Available part numbers (39)

TPDB100-16-8, TPDB105-16-8, TPDB110-16-8, TPDB115-16-8, TPDB120-16-8, TPDB125-16-8, TPDB130-16-8, TPDB135-16-8, TPDB140-16-8, TPDB145-16-8 + 29 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TPDB100-16-8Drilling range D (mm): 10.0~10.4 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 80 | l2 (mm): 48 | L (mm): 145.0 | Aspect ratio: 8D | Insert: TPD100B~104B | Screw: FTNB0209 | Wrench: TW06P
TPDB105-16-8Drilling range D (mm): 10.5~10.9 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 84 | l2 (mm): 48 | L (mm): 149.0 | Aspect ratio: 8D | Insert: TPD105B~109B | Screw: FTNB0209 | Wrench: TW06P
TPDB110-16-8Drilling range D (mm): 11.0~11.4 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 88 | l2 (mm): 48 | L (mm): 153.0 | Aspect ratio: 8D | Insert: TPD110B~114B | Screw: FTNB0209 | Wrench: TW06P
TPDB115-16-8Drilling range D (mm): 11.5~11.9 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 92 | l2 (mm): 48 | L (mm): 157.0 | Aspect ratio: 8D | Insert: TPD115B~119B | Screw: FTNB0209 | Wrench: TW06P
TPDB120-16-8Drilling range D (mm): 12.0~12.4 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 96 | l2 (mm): 48 | L (mm): 162.0 | Aspect ratio: 8D | Insert: TPD120B~124B | Screw: FTNB0209 | Wrench: TW06P
TPDB125-16-8Drilling range D (mm): 12.5~12.9 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 100 | l2 (mm): 48 | L (mm): 166.5 | Aspect ratio: 8D | Insert: TPD125B~129B | Screw: FTNB0209 | Wrench: TW06P
TPDB130-16-8Drilling range D (mm): 13.0~13.4 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 104 | l2 (mm): 48 | L (mm): 172.0 | Aspect ratio: 8D | Insert: TPD130B~134B | Screw: FTNB02512 | Wrench: TW07S
TPDB135-16-8Drilling range D (mm): 13.5~13.9 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 108 | l2 (mm): 48 | L (mm): 176.5 | Aspect ratio: 8D | Insert: TPD135B~139B | Screw: FTNB02512 | Wrench: TW07S
TPDB140-16-8Drilling range D (mm): 14.0~14.4 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 112 | l2 (mm): 48 | L (mm): 181.0 | Aspect ratio: 8D | Insert: TPD140B~144B | Screw: FTNB02512 | Wrench: TW07S
TPDB145-16-8Drilling range D (mm): 14.5~14.9 | Shank d1 (mm): 16 | d2 (mm): 20 | l1 (mm): 116 | l2 (mm): 48 | L (mm): 186.5 | Aspect ratio: 8D | Insert: TPD145B~149B | Screw: FTNB02512 | Wrench: TW07S
TPDB150-20-8Drilling range D (mm): 15.0~15.4 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 120 | l2 (mm): 50 | L (mm): 193.0 | Aspect ratio: 8D | Insert: TPD150B~154B | Screw: FTNB02514 | Wrench: TW07S
TPDB155-20-8Drilling range D (mm): 15.5~15.9 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 124 | l2 (mm): 50 | L (mm): 197.5 | Aspect ratio: 8D | Insert: TPD155B~159B | Screw: FTNB02514 | Wrench: TW07S
TPDB160-20-8Drilling range D (mm): 16.0~16.4 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 128 | l2 (mm): 50 | L (mm): 202.0 | Aspect ratio: 8D | Insert: TPD160B~164B | Screw: FTNB02514 | Wrench: TW07S
TPDB165-20-8Drilling range D (mm): 16.5~16.9 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 132 | l2 (mm): 50 | L (mm): 206.5 | Aspect ratio: 8D | Insert: TPD165B~169B | Screw: FTNB02514 | Wrench: TW07S
TPDB170-20-8Drilling range D (mm): 17.0~17.4 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 136 | l2 (mm): 50 | L (mm): 212.0 | Aspect ratio: 8D | Insert: TPD170B~174B | Screw: FTNB02514 | Wrench: TW07S
TPDB175-20-8Drilling range D (mm): 17.5~17.9 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 140 | l2 (mm): 50 | L (mm): 216.5 | Aspect ratio: 8D | Insert: TPD175B~179B | Screw: FTNB02514 | Wrench: TW07S
TPDB180-25-8Drilling range D (mm): 18.0~18.4 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 144 | l2 (mm): 56 | L (mm): 227.0 | Aspect ratio: 8D | Insert: TPD180B~184B | Screw: FTNB0316 | Wrench: TW09S
TPDB185-25-8Drilling range D (mm): 18.5~18.9 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 148 | l2 (mm): 56 | L (mm): 231.5 | Aspect ratio: 8D | Insert: TPD185B~189B | Screw: FTNB0316 | Wrench: TW09S
TPDB190-25-8Drilling range D (mm): 19.0~19.4 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 152 | l2 (mm): 56 | L (mm): 237.0 | Aspect ratio: 8D | Insert: TPD190B~194B | Screw: FTNB0316 | Wrench: TW09S
TPDB195-25-8Drilling range D (mm): 19.5~19.9 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 156 | l2 (mm): 56 | L (mm): 241.5 | Aspect ratio: 8D | Insert: TPD195B~199B | Screw: FTNB0316 | Wrench: TW09S
TPDB200-25-8Drilling range D (mm): 20.0~20.4 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 160 | l2 (mm): 56 | L (mm): 246.0 | Aspect ratio: 8D | Insert: TPD200B~204B | Screw: FTNB0319 | Wrench: TW09S
TPDB205-25-8Drilling range D (mm): 20.5~20.9 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 164 | l2 (mm): 56 | L (mm): 250.5 | Aspect ratio: 8D | Insert: TPD205B~209B | Screw: FTNB0319 | Wrench: TW09S
TPDB210-25-8Drilling range D (mm): 21.0~21.4 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 168 | l2 (mm): 60 | L (mm): 256.0 | Aspect ratio: 8D | Insert: TPD210B~214B | Screw: FTNB0319 | Wrench: TW09S
TPDB215-25-8Drilling range D (mm): 21.5~21.9 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 172 | l2 (mm): 60 | L (mm): 260.5 | Aspect ratio: 8D | Insert: TPD215B~219B | Screw: FTNB0319 | Wrench: TW09S
TPDB220-25-8Drilling range D (mm): 22.0~22.4 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 176 | l2 (mm): 60 | L (mm): 265.0 | Aspect ratio: 8D | Insert: TPD220B~224B | Screw: FTNB0319 | Wrench: TW09S
TPDB225-25-8Drilling range D (mm): 22.5~22.9 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 180 | l2 (mm): 60 | L (mm): 269.5 | Aspect ratio: 8D | Insert: TPD225B~229B | Screw: FTNB0319 | Wrench: TW09S
TPDB230-25-8Drilling range D (mm): 23.0~23.4 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 184 | l2 (mm): 60 | L (mm): 275.0 | Aspect ratio: 8D | Insert: TPD230B~234B | Screw: FTNB0319 | Wrench: TW09S
TPDB235-25-8Drilling range D (mm): 23.5~23.9 | Shank d1 (mm): 25 | d2 (mm): 33 | l1 (mm): 188 | l2 (mm): 60 | L (mm): 279.5 | Aspect ratio: 8D | Insert: TPD235B~239B | Screw: FTNB0319 | Wrench: TW09S
TPDB240-32-8Drilling range D (mm): 24.0~24.4 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 192 | l2 (mm): 60 | L (mm): 288.0 | Aspect ratio: 8D | Insert: TPD240B~244B | Screw: FTNB03522 | Wrench: TW15S
TPDB245-32-8Drilling range D (mm): 24.5~24.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 196 | l2 (mm): 60 | L (mm): 292.5 | Aspect ratio: 8D | Insert: TPD245B~249B | Screw: FTNB03522 | Wrench: TW15S
TPDB250-32-8Drilling range D (mm): 25.0~25.4 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 200 | l2 (mm): 60 | L (mm): 298.0 | Aspect ratio: 8D | Insert: TPD250B~254B | Screw: FTNB03522 | Wrench: TW15S
TPDB255-32-8Drilling range D (mm): 25.5~25.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 204 | l2 (mm): 60 | L (mm): 302.5 | Aspect ratio: 8D | Insert: TPD255B~259B | Screw: FTNB03522 | Wrench: TW15S
TPDB260-32-8Drilling range D (mm): 26.0~26.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 208 | l2 (mm): 60 | L (mm): 307.0 | Aspect ratio: 8D | Insert: TPD260B~269B | Screw: FTNB03524 | Wrench: TW15S
TPDB270-32-8Drilling range D (mm): 27.0~27.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 216 | l2 (mm): 60 | L (mm): 317.0 | Aspect ratio: 8D | Insert: TPD270B~279B | Screw: FTNB03524 | Wrench: TW15S
TPDB280-32-8Drilling range D (mm): 28.0~28.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 224 | l2 (mm): 60 | L (mm): 326.0 | Aspect ratio: 8D | Insert: TPD280B~289B | Screw: FTNB0426 | Wrench: TW15S
TPDB290-32-8Drilling range D (mm): 29.0~29.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 232 | l2 (mm): 60 | L (mm): 336.0 | Aspect ratio: 8D | Insert: TPD290B~299B | Screw: FTNB0426 | Wrench: TW15S
TPDB300-32-8Drilling range D (mm): 30.0~30.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 240 | l2 (mm): 60 | L (mm): 344.0 | Aspect ratio: 8D | Insert: TPD300B~309B | Screw: FTNB0528 | Wrench: TW20-100
TPDB310-32-8Drilling range D (mm): 31.0~31.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 248 | l2 (mm): 60 | L (mm): 354.0 | Aspect ratio: 8D | Insert: TPD310B~319B | Screw: FTNB0528 | Wrench: TW20-100
TPDB320-32-8Drilling range D (mm): 32.0~32.9 | Shank d1 (mm): 32 | d2 (mm): 43 | l1 (mm): 256 | l2 (mm): 60 | L (mm): 361.0 | Aspect ratio: 8D | Insert: TPD320B~329B | Screw: FTNB0528 | Wrench: TW20-100
