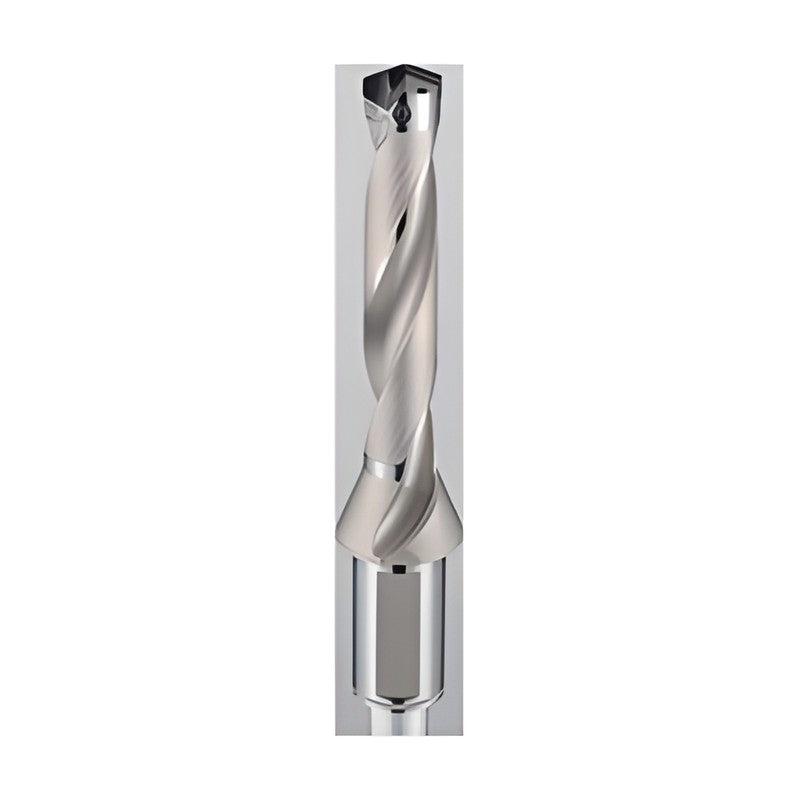

Korloy TPDB Plus Indexable Head Drill 12D

Korloy TPDB Plus Indexable Head Drill 12D

TPDB Plus 12D drill body for replaceable solid TPD carbide heads, giving stable, precise and efficient drilling.

Key features

  • Replaceable solid carbide TPD head
  • Chip breaker for advanced chip control
  • Low cutting resistance cutting edge
  • Through coolant

Specifications

Drilling depth 12D
TPDB100-16-12-P Drill dia. range D (mm): 10.0-10.4 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 120 | Shank length l2 (mm): 48 | Overall length L (mm): 185 | Insert: TPD100B-104B
TPDB105-16-12-P Drill dia. range D (mm): 10.5-10.9 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 126 | Shank length l2 (mm): 48 | Overall length L (mm): 191 | Insert: TPD105B-109B
TPDB110-16-12-P Drill dia. range D (mm): 11.0-11.4 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 132 | Shank length l2 (mm): 48 | Overall length L (mm): 197 | Insert: TPD110B-114B
TPDB115-16-12-P Drill dia. range D (mm): 11.5-11.9 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 138 | Shank length l2 (mm): 48 | Overall length L (mm): 203 | Insert: TPD115B-119B
TPDB120-16-12-P Drill dia. range D (mm): 12.0-12.4 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 144 | Shank length l2 (mm): 48 | Overall length L (mm): 210 | Insert: TPD120B-124B
TPDB125-16-12-P Drill dia. range D (mm): 12.5-12.9 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 150 | Shank length l2 (mm): 48 | Overall length L (mm): 216.5 | Insert: TPD125B-129B
TPDB130-16-12-P Drill dia. range D (mm): 13.0-13.4 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 156 | Shank length l2 (mm): 48 | Overall length L (mm): 224 | Insert: TPD130B-134B
TPDB135-16-12-P Drill dia. range D (mm): 13.5-13.9 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 162 | Shank length l2 (mm): 48 | Overall length L (mm): 230.5 | Insert: TPD135B-139B
TPDB140-16-12-P Drill dia. range D (mm): 14.0-14.4 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 168 | Shank length l2 (mm): 48 | Overall length L (mm): 237 | Insert: TPD140B-144B
TPDB145-16-12-P Drill dia. range D (mm): 14.5-14.9 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 174 | Shank length l2 (mm): 48 | Overall length L (mm): 244.5 | Insert: TPD145B-149B
TPDB150-20-12-P Drill dia. range D (mm): 15.0-15.4 | Shank dia. d1 (mm): 20 | d2 (mm): 25 | Drilling length l1 (mm): 180 | Shank length l2 (mm): 50 | Overall length L (mm): 253 | Insert: TPD150B-154B
TPDB155-20-12-P Drill dia. range D (mm): 15.5-15.9 | Shank dia. d1 (mm): 20 | d2 (mm): 25 | Drilling length l1 (mm): 186 | Shank length l2 (mm): 50 | Overall length L (mm): 259.5 | Insert: TPD155B-159B
TPDB160-20-12-P Drill dia. range D (mm): 16.0-16.4 | Shank dia. d1 (mm): 20 | d2 (mm): 25 | Drilling length l1 (mm): 192 | Shank length l2 (mm): 50 | Overall length L (mm): 266 | Insert: TPD160B-164B
TPDB165-20-12-P Drill dia. range D (mm): 16.5-16.9 | Shank dia. d1 (mm): 20 | d2 (mm): 25 | Drilling length l1 (mm): 198 | Shank length l2 (mm): 50 | Overall length L (mm): 272.5 | Insert: TPD165B-169B
TPDB170-20-12-P Drill dia. range D (mm): 17.0-17.4 | Shank dia. d1 (mm): 20 | d2 (mm): 25 | Drilling length l1 (mm): 204 | Shank length l2 (mm): 50 | Overall length L (mm): 280 | Insert: TPD170B-174B
TPDB175-20-12-P Drill dia. range D (mm): 17.5-17.9 | Shank dia. d1 (mm): 20 | d2 (mm): 25 | Drilling length l1 (mm): 210 | Shank length l2 (mm): 50 | Overall length L (mm): 286.5 | Insert: TPD175B-179B
TPDB180-25-12-P Drill dia. range D (mm): 18.0-18.4 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 216 | Shank length l2 (mm): 56 | Overall length L (mm): 299 | Insert: TPD180B-184B
TPDB185-25-12-P Drill dia. range D (mm): 18.5-18.9 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 222 | Shank length l2 (mm): 56 | Overall length L (mm): 305.5 | Insert: TPD185B-189B
TPDB190-25-12-P Drill dia. range D (mm): 19.0-19.4 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 228 | Shank length l2 (mm): 56 | Overall length L (mm): 313 | Insert: TPD190B-194B
TPDB195-25-12-P Drill dia. range D (mm): 19.5-19.9 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 234 | Shank length l2 (mm): 56 | Overall length L (mm): 319.5 | Insert: TPD195B-199B
TPDB200-25-12-P Drill dia. range D (mm): 20.0-20.4 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 240 | Shank length l2 (mm): 56 | Overall length L (mm): 326 | Insert: TPD200B-204B
TPDB205-25-12-P Drill dia. range D (mm): 20.5-20.9 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 246 | Shank length l2 (mm): 56 | Overall length L (mm): 332.5 | Insert: TPD205B-209B
TPDB210-25-12-P Drill dia. range D (mm): 21.0-21.4 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 252 | Shank length l2 (mm): 60 | Overall length L (mm): 340 | Insert: TPD210B-214B
TPDB215-25-12-P Drill dia. range D (mm): 21.5-21.9 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 258 | Shank length l2 (mm): 60 | Overall length L (mm): 346.5 | Insert: TPD215B-219B
TPDB220-25-12-P Drill dia. range D (mm): 22.0-22.4 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 264 | Shank length l2 (mm): 60 | Overall length L (mm): 353 | Insert: TPD220B-224B
TPDB225-25-12-P Drill dia. range D (mm): 22.5-22.9 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 270 | Shank length l2 (mm): 60 | Overall length L (mm): 359.5 | Insert: TPD225B-229B
TPDB230-25-12-P Drill dia. range D (mm): 23.0-23.4 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 276 | Shank length l2 (mm): 60 | Overall length L (mm): 367 | Insert: TPD230B-234B
TPDB235-25-12-P Drill dia. range D (mm): 23.5-23.9 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 282 | Shank length l2 (mm): 60 | Overall length L (mm): 373.5 | Insert: TPD235B-239B
TPDB240-32-12-P Drill dia. range D (mm): 24.0-24.4 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 288 | Shank length l2 (mm): 60 | Overall length L (mm): 384 | Insert: TPD240B-244B
TPDB245-32-12-P Drill dia. range D (mm): 24.5-24.9 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 294 | Shank length l2 (mm): 60 | Overall length L (mm): 390.5 | Insert: TPD245B-249B
TPDB250-32-12-P Drill dia. range D (mm): 25.0-25.4 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 300 | Shank length l2 (mm): 60 | Overall length L (mm): 398 | Insert: TPD250B-254B
TPDB255-32-12-P Drill dia. range D (mm): 25.5-25.9 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 306 | Shank length l2 (mm): 60 | Overall length L (mm): 404.5 | Insert: TPD255B-259B
TPDB260-32-12-P Drill dia. range D (mm): 26.0-26.9 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 312 | Shank length l2 (mm): 60 | Overall length L (mm): 411 | Insert: TPD260B-269B
TPDB270-32-12-P Drill dia. range D (mm): 27.0-27.9 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 324 | Shank length l2 (mm): 60 | Overall length L (mm): 425 | Insert: TPD270B-279B
TPDB280-32-12-P Drill dia. range D (mm): 28.0-28.9 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 336 | Shank length l2 (mm): 60 | Overall length L (mm): 438 | Insert: TPD280B-289B
TPDB290-32-12-P Drill dia. range D (mm): 29.0-29.9 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 348 | Shank length l2 (mm): 60 | Overall length L (mm): 452 | Insert: TPD290B-299B
TPDB300-32-12-P Drill dia. range D (mm): 30.0-30.9 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 360 | Shank length l2 (mm): 60 | Overall length L (mm): 464 | Insert: TPD300B-309B
TPDB310-32-12-P Drill dia. range D (mm): 31.0-31.9 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 372 | Shank length l2 (mm): 60 | Overall length L (mm): 478 | Insert: TPD310B-319B
TPDB320-32-12-P Drill dia. range D (mm): 32.0-32.9 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 384 | Shank length l2 (mm): 60 | Overall length L (mm): 489 | Insert: TPD320B-329B
DrillsKorloy
39 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy TPDB Plus Indexable Head Drill 12D

Brand Korloy·Drills

Available part numbers (39)

TPDB100-16-12-P, TPDB105-16-12-P, TPDB110-16-12-P, TPDB115-16-12-P, TPDB120-16-12-P, TPDB125-16-12-P, TPDB130-16-12-P, TPDB135-16-12-P, TPDB140-16-12-P, TPDB145-16-12-P + 29 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TPDB100-16-12-PDrill dia. range D (mm): 10.0-10.4 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 120 | Shank length l2 (mm): 48 | Overall length L (mm): 185 | Insert: TPD100B-104B
TPDB105-16-12-PDrill dia. range D (mm): 10.5-10.9 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 126 | Shank length l2 (mm): 48 | Overall length L (mm): 191 | Insert: TPD105B-109B
TPDB110-16-12-PDrill dia. range D (mm): 11.0-11.4 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 132 | Shank length l2 (mm): 48 | Overall length L (mm): 197 | Insert: TPD110B-114B
TPDB115-16-12-PDrill dia. range D (mm): 11.5-11.9 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 138 | Shank length l2 (mm): 48 | Overall length L (mm): 203 | Insert: TPD115B-119B
TPDB120-16-12-PDrill dia. range D (mm): 12.0-12.4 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 144 | Shank length l2 (mm): 48 | Overall length L (mm): 210 | Insert: TPD120B-124B
TPDB125-16-12-PDrill dia. range D (mm): 12.5-12.9 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 150 | Shank length l2 (mm): 48 | Overall length L (mm): 216.5 | Insert: TPD125B-129B
TPDB130-16-12-PDrill dia. range D (mm): 13.0-13.4 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 156 | Shank length l2 (mm): 48 | Overall length L (mm): 224 | Insert: TPD130B-134B
TPDB135-16-12-PDrill dia. range D (mm): 13.5-13.9 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 162 | Shank length l2 (mm): 48 | Overall length L (mm): 230.5 | Insert: TPD135B-139B
TPDB140-16-12-PDrill dia. range D (mm): 14.0-14.4 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 168 | Shank length l2 (mm): 48 | Overall length L (mm): 237 | Insert: TPD140B-144B
TPDB145-16-12-PDrill dia. range D (mm): 14.5-14.9 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 174 | Shank length l2 (mm): 48 | Overall length L (mm): 244.5 | Insert: TPD145B-149B
TPDB150-20-12-PDrill dia. range D (mm): 15.0-15.4 | Shank dia. d1 (mm): 20 | d2 (mm): 25 | Drilling length l1 (mm): 180 | Shank length l2 (mm): 50 | Overall length L (mm): 253 | Insert: TPD150B-154B
TPDB155-20-12-PDrill dia. range D (mm): 15.5-15.9 | Shank dia. d1 (mm): 20 | d2 (mm): 25 | Drilling length l1 (mm): 186 | Shank length l2 (mm): 50 | Overall length L (mm): 259.5 | Insert: TPD155B-159B
TPDB160-20-12-PDrill dia. range D (mm): 16.0-16.4 | Shank dia. d1 (mm): 20 | d2 (mm): 25 | Drilling length l1 (mm): 192 | Shank length l2 (mm): 50 | Overall length L (mm): 266 | Insert: TPD160B-164B
TPDB165-20-12-PDrill dia. range D (mm): 16.5-16.9 | Shank dia. d1 (mm): 20 | d2 (mm): 25 | Drilling length l1 (mm): 198 | Shank length l2 (mm): 50 | Overall length L (mm): 272.5 | Insert: TPD165B-169B
TPDB170-20-12-PDrill dia. range D (mm): 17.0-17.4 | Shank dia. d1 (mm): 20 | d2 (mm): 25 | Drilling length l1 (mm): 204 | Shank length l2 (mm): 50 | Overall length L (mm): 280 | Insert: TPD170B-174B
TPDB175-20-12-PDrill dia. range D (mm): 17.5-17.9 | Shank dia. d1 (mm): 20 | d2 (mm): 25 | Drilling length l1 (mm): 210 | Shank length l2 (mm): 50 | Overall length L (mm): 286.5 | Insert: TPD175B-179B
TPDB180-25-12-PDrill dia. range D (mm): 18.0-18.4 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 216 | Shank length l2 (mm): 56 | Overall length L (mm): 299 | Insert: TPD180B-184B
TPDB185-25-12-PDrill dia. range D (mm): 18.5-18.9 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 222 | Shank length l2 (mm): 56 | Overall length L (mm): 305.5 | Insert: TPD185B-189B
TPDB190-25-12-PDrill dia. range D (mm): 19.0-19.4 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 228 | Shank length l2 (mm): 56 | Overall length L (mm): 313 | Insert: TPD190B-194B
TPDB195-25-12-PDrill dia. range D (mm): 19.5-19.9 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 234 | Shank length l2 (mm): 56 | Overall length L (mm): 319.5 | Insert: TPD195B-199B
TPDB200-25-12-PDrill dia. range D (mm): 20.0-20.4 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 240 | Shank length l2 (mm): 56 | Overall length L (mm): 326 | Insert: TPD200B-204B
TPDB205-25-12-PDrill dia. range D (mm): 20.5-20.9 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 246 | Shank length l2 (mm): 56 | Overall length L (mm): 332.5 | Insert: TPD205B-209B
TPDB210-25-12-PDrill dia. range D (mm): 21.0-21.4 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 252 | Shank length l2 (mm): 60 | Overall length L (mm): 340 | Insert: TPD210B-214B
TPDB215-25-12-PDrill dia. range D (mm): 21.5-21.9 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 258 | Shank length l2 (mm): 60 | Overall length L (mm): 346.5 | Insert: TPD215B-219B
TPDB220-25-12-PDrill dia. range D (mm): 22.0-22.4 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 264 | Shank length l2 (mm): 60 | Overall length L (mm): 353 | Insert: TPD220B-224B
TPDB225-25-12-PDrill dia. range D (mm): 22.5-22.9 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 270 | Shank length l2 (mm): 60 | Overall length L (mm): 359.5 | Insert: TPD225B-229B
TPDB230-25-12-PDrill dia. range D (mm): 23.0-23.4 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 276 | Shank length l2 (mm): 60 | Overall length L (mm): 367 | Insert: TPD230B-234B
TPDB235-25-12-PDrill dia. range D (mm): 23.5-23.9 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 282 | Shank length l2 (mm): 60 | Overall length L (mm): 373.5 | Insert: TPD235B-239B
TPDB240-32-12-PDrill dia. range D (mm): 24.0-24.4 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 288 | Shank length l2 (mm): 60 | Overall length L (mm): 384 | Insert: TPD240B-244B
TPDB245-32-12-PDrill dia. range D (mm): 24.5-24.9 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 294 | Shank length l2 (mm): 60 | Overall length L (mm): 390.5 | Insert: TPD245B-249B
TPDB250-32-12-PDrill dia. range D (mm): 25.0-25.4 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 300 | Shank length l2 (mm): 60 | Overall length L (mm): 398 | Insert: TPD250B-254B
TPDB255-32-12-PDrill dia. range D (mm): 25.5-25.9 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 306 | Shank length l2 (mm): 60 | Overall length L (mm): 404.5 | Insert: TPD255B-259B
TPDB260-32-12-PDrill dia. range D (mm): 26.0-26.9 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 312 | Shank length l2 (mm): 60 | Overall length L (mm): 411 | Insert: TPD260B-269B
TPDB270-32-12-PDrill dia. range D (mm): 27.0-27.9 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 324 | Shank length l2 (mm): 60 | Overall length L (mm): 425 | Insert: TPD270B-279B
TPDB280-32-12-PDrill dia. range D (mm): 28.0-28.9 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 336 | Shank length l2 (mm): 60 | Overall length L (mm): 438 | Insert: TPD280B-289B
TPDB290-32-12-PDrill dia. range D (mm): 29.0-29.9 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 348 | Shank length l2 (mm): 60 | Overall length L (mm): 452 | Insert: TPD290B-299B
TPDB300-32-12-PDrill dia. range D (mm): 30.0-30.9 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 360 | Shank length l2 (mm): 60 | Overall length L (mm): 464 | Insert: TPD300B-309B
TPDB310-32-12-PDrill dia. range D (mm): 31.0-31.9 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 372 | Shank length l2 (mm): 60 | Overall length L (mm): 478 | Insert: TPD310B-319B
TPDB320-32-12-PDrill dia. range D (mm): 32.0-32.9 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 384 | Shank length l2 (mm): 60 | Overall length L (mm): 489 | Insert: TPD320B-329B
