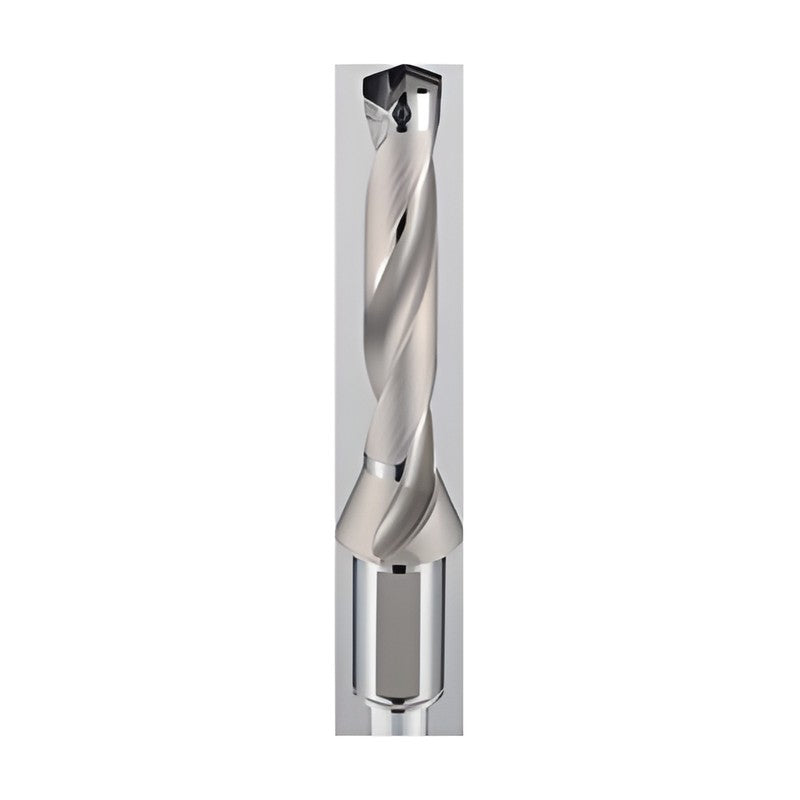

Korloy TPDB Plus Indexable Head Drill 3D

Korloy TPDB Plus Indexable Head Drill 3D

TPDB Plus 3D drill body for replaceable solid TPD carbide heads, giving stable, precise and efficient drilling.

Key features

  • Replaceable solid carbide TPD head
  • Chip breaker for advanced chip control
  • Low cutting resistance cutting edge
  • Through coolant

Specifications

Drilling depth 3D
TPDB100-16-3-P Drill dia. range D (mm): 10.0-10.4 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 30.0 | Shank length l2 (mm): 48 | Overall length L (mm): 95 | Insert: TPD100B-104B | Stock: Yes
TPDB105-16-3-P Drill dia. range D (mm): 10.5-10.9 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 31.5 | Shank length l2 (mm): 48 | Overall length L (mm): 96 | Insert: TPD105B-109B | Stock: Yes
TPDB110-16-3-P Drill dia. range D (mm): 11.0-11.4 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 33.0 | Shank length l2 (mm): 48 | Overall length L (mm): 98 | Insert: TPD110B-114B | Stock: Yes
TPDB115-16-3-P Drill dia. range D (mm): 11.5-11.9 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 34.5 | Shank length l2 (mm): 48 | Overall length L (mm): 99 | Insert: TPD115B-119B | Stock: Yes
TPDB120-16-3-P Drill dia. range D (mm): 12.0-12.4 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 36.0 | Shank length l2 (mm): 48 | Overall length L (mm): 102 | Insert: TPD120B-124B | Stock: Yes
TPDB125-16-3-P Drill dia. range D (mm): 12.5-12.9 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 37.5 | Shank length l2 (mm): 48 | Overall length L (mm): 104 | Insert: TPD125B-129B | Stock: Yes
TPDB130-16-3-P Drill dia. range D (mm): 13.0-13.4 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 39.0 | Shank length l2 (mm): 48 | Overall length L (mm): 107 | Insert: TPD130B-134B | Stock: Yes
TPDB135-16-3-P Drill dia. range D (mm): 13.5-13.9 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 40.5 | Shank length l2 (mm): 48 | Overall length L (mm): 109 | Insert: TPD135B-139B | Stock: Yes
TPDB140-16-3-P Drill dia. range D (mm): 14.0-14.4 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 42.0 | Shank length l2 (mm): 48 | Overall length L (mm): 111 | Insert: TPD140B-144B | Stock: Yes
TPDB145-16-3-P Drill dia. range D (mm): 14.5-14.9 | Shank dia. d1 (mm): 16 | d2 (mm): 20 | Drilling length l1 (mm): 43.5 | Shank length l2 (mm): 48 | Overall length L (mm): 114 | Insert: TPD145B-149B | Stock: Yes
TPDB150-20-3-P Drill dia. range D (mm): 15.0-15.4 | Shank dia. d1 (mm): 20 | d2 (mm): 25 | Drilling length l1 (mm): 45.0 | Shank length l2 (mm): 50 | Overall length L (mm): 118 | Insert: TPD150B-154B | Stock: Yes
TPDB155-20-3-P Drill dia. range D (mm): 15.5-15.9 | Shank dia. d1 (mm): 20 | d2 (mm): 25 | Drilling length l1 (mm): 46.5 | Shank length l2 (mm): 50 | Overall length L (mm): 120 | Insert: TPD155B-159B | Stock: Yes
TPDB160-20-3-P Drill dia. range D (mm): 16.0-16.4 | Shank dia. d1 (mm): 20 | d2 (mm): 25 | Drilling length l1 (mm): 48.0 | Shank length l2 (mm): 50 | Overall length L (mm): 122 | Insert: TPD160B-164B | Stock: Yes
TPDB165-20-3-P Drill dia. range D (mm): 16.5-16.9 | Shank dia. d1 (mm): 20 | d2 (mm): 25 | Drilling length l1 (mm): 49.5 | Shank length l2 (mm): 50 | Overall length L (mm): 124 | Insert: TPD165B-169B | Stock: Yes
TPDB170-20-3-P Drill dia. range D (mm): 17.0-17.4 | Shank dia. d1 (mm): 20 | d2 (mm): 25 | Drilling length l1 (mm): 51.0 | Shank length l2 (mm): 50 | Overall length L (mm): 127 | Insert: TPD170B-174B | Stock: Yes
TPDB175-20-3-P Drill dia. range D (mm): 17.5-17.9 | Shank dia. d1 (mm): 20 | d2 (mm): 25 | Drilling length l1 (mm): 52.5 | Shank length l2 (mm): 50 | Overall length L (mm): 129 | Insert: TPD175B-179B | Stock: Yes
TPDB180-25-3-P Drill dia. range D (mm): 18.0-18.4 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 54.0 | Shank length l2 (mm): 56 | Overall length L (mm): 137 | Insert: TPD180B-184B | Stock: Yes
TPDB185-25-3-P Drill dia. range D (mm): 18.5-18.9 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 55.5 | Shank length l2 (mm): 56 | Overall length L (mm): 139 | Insert: TPD185B-189B | Stock: Yes
TPDB190-25-3-P Drill dia. range D (mm): 19.0-19.4 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 57.0 | Shank length l2 (mm): 56 | Overall length L (mm): 142 | Insert: TPD190B-194B | Stock: Yes
TPDB195-25-3-P Drill dia. range D (mm): 19.5-19.9 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 58.5 | Shank length l2 (mm): 56 | Overall length L (mm): 144 | Insert: TPD195B-199B | Stock: Yes
TPDB200-25-3-P Drill dia. range D (mm): 20.0-20.4 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 60.0 | Shank length l2 (mm): 56 | Overall length L (mm): 146 | Insert: TPD200B-204B | Stock: Yes
TPDB205-25-3-P Drill dia. range D (mm): 20.5-20.9 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 61.5 | Shank length l2 (mm): 56 | Overall length L (mm): 148 | Insert: TPD205B-209B | Stock: Yes
TPDB210-25-3-P Drill dia. range D (mm): 21.0-21.4 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 63.0 | Shank length l2 (mm): 60 | Overall length L (mm): 151 | Insert: TPD210B-214B | Stock: Yes
TPDB215-25-3-P Drill dia. range D (mm): 21.5-21.9 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 64.5 | Shank length l2 (mm): 60 | Overall length L (mm): 153 | Insert: TPD215B-219B | Stock: Yes
TPDB220-25-3-P Drill dia. range D (mm): 22.0-22.4 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 66.0 | Shank length l2 (mm): 60 | Overall length L (mm): 155 | Insert: TPD220B-224B | Stock: Yes
TPDB225-25-3-P Drill dia. range D (mm): 22.5-22.9 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 67.5 | Shank length l2 (mm): 60 | Overall length L (mm): 157 | Insert: TPD225B-229B | Stock: Yes
TPDB230-25-3-P Drill dia. range D (mm): 23.0-23.4 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 69.0 | Shank length l2 (mm): 60 | Overall length L (mm): 160 | Insert: TPD230B-234B | Stock: Yes
TPDB235-25-3-P Drill dia. range D (mm): 23.5-23.9 | Shank dia. d1 (mm): 25 | d2 (mm): 33 | Drilling length l1 (mm): 70.5 | Shank length l2 (mm): 60 | Overall length L (mm): 162 | Insert: TPD235B-239B | Stock: Yes
TPDB240-32-3-P Drill dia. range D (mm): 24.0-24.4 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 72.0 | Shank length l2 (mm): 60 | Overall length L (mm): 168 | Insert: TPD240B-244B | Stock: Yes
TPDB245-32-3-P Drill dia. range D (mm): 24.5-24.9 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 73.5 | Shank length l2 (mm): 60 | Overall length L (mm): 170 | Insert: TPD245B-249B | Stock: Yes
TPDB250-32-3-P Drill dia. range D (mm): 25.0-25.4 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 75.0 | Shank length l2 (mm): 60 | Overall length L (mm): 173 | Insert: TPD250B-254B | Stock: Yes
TPDB255-32-3-P Drill dia. range D (mm): 25.5-25.9 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 76.5 | Shank length l2 (mm): 60 | Overall length L (mm): 175 | Insert: TPD255B-259B | Stock: Yes
TPDB260-32-3-P Drill dia. range D (mm): 26.0-26.9 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 78.0 | Shank length l2 (mm): 60 | Overall length L (mm): 177 | Insert: TPD260B-269B | Stock: Yes
TPDB270-32-3-P Drill dia. range D (mm): 27.0-27.9 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 81.0 | Shank length l2 (mm): 60 | Overall length L (mm): 182 | Insert: TPD270B-279B | Stock: Yes
TPDB280-32-3-P Drill dia. range D (mm): 28.0-28.9 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 84.0 | Shank length l2 (mm): 60 | Overall length L (mm): 186 | Insert: TPD280B-289B | Stock: Yes
TPDB290-32-3-P Drill dia. range D (mm): 29.0-29.9 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 87.0 | Shank length l2 (mm): 60 | Overall length L (mm): 191 | Insert: TPD290B-299B | Stock: Yes
TPDB300-32-3-P Drill dia. range D (mm): 30.0-30.9 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 90.0 | Shank length l2 (mm): 60 | Overall length L (mm): 195 | Insert: TPD300B-309B | Stock: Yes
TPDB310-32-3-P Drill dia. range D (mm): 31.0-31.9 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 93.0 | Shank length l2 (mm): 60 | Overall length L (mm): 200 | Insert: TPD310B-319B | Stock: Yes
TPDB320-32-3-P Drill dia. range D (mm): 32.0-32.9 | Shank dia. d1 (mm): 32 | d2 (mm): 43 | Drilling length l1 (mm): 96.0 | Shank length l2 (mm): 60 | Overall length L (mm): 204 | Insert: TPD320B-329B | Stock: Yes
DrillsKorloy
39 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy TPDB Plus Indexable Head Drill 3D

Brand Korloy·Drills

Available part numbers (39)

TPDB100-16-3-P, TPDB105-16-3-P, TPDB110-16-3-P, TPDB115-16-3-P, TPDB120-16-3-P, TPDB125-16-3-P, TPDB130-16-3-P, TPDB135-16-3-P, TPDB140-16-3-P, TPDB145-16-3-P + 29 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
