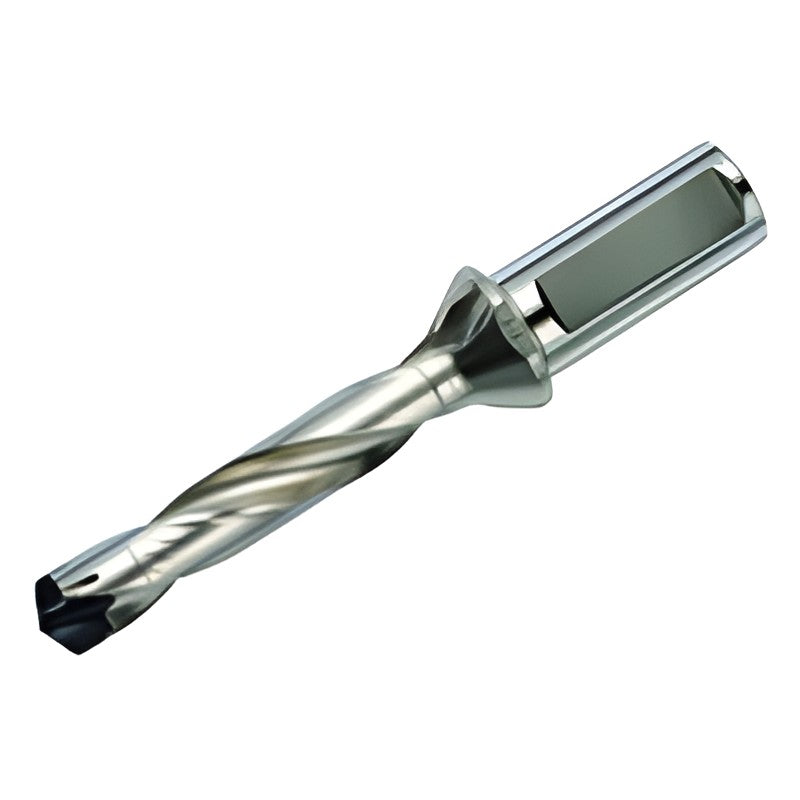

Korloy TPDC Cone Head Indexable Drill 3D/5D/8D

Korloy TPDC Cone Head Indexable Drill 3D/5D/8D

Indexable drill body with a cone-shaped replaceable carbide head (TPD insert) for drilling Ø12 to Ø30.9 mm at 3D, 5D and 8D depth.

Key features

  • Cone-shaped head clamping system for high clamping precision
  • Replaceable TPD head, no regrinding needed
  • Shank based on DIN6535 and ISO9677
  • Wide chip pocket for better lubrication and chip flow

Specifications

Insert type TPD..CP / TPD..CN
TPDC3D-12016-36 Drilling range D (mm): 12.00~12.49 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 36 | l2 (mm): 48 | L (mm): 99 | Aspect ratio: 3D | Insert: TPD1200C□-1249C□ | Shank figure: 1
TPDC3D-12516-38 Drilling range D (mm): 12.50~12.99 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 38 | l2 (mm): 48 | L (mm): 101 | Aspect ratio: 3D | Insert: TPD1250C□-1299C□ | Shank figure: 1
TPDC3D-13016-39 Drilling range D (mm): 13.00~13.49 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 39 | l2 (mm): 48 | L (mm): 103 | Aspect ratio: 3D | Insert: TPD1300C□-1349C□ | Shank figure: 1
TPDC3D-13516-41 Drilling range D (mm): 13.50~13.99 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 41 | l2 (mm): 48 | L (mm): 105 | Aspect ratio: 3D | Insert: TPD1350C□-1399C□ | Shank figure: 1
TPDC3D-14016-42 Drilling range D (mm): 14.00~14.49 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 42 | l2 (mm): 48 | L (mm): 106 | Aspect ratio: 3D | Insert: TPD1400C□-1449C□ | Shank figure: 1
TPDC3D-14516-44 Drilling range D (mm): 14.50~14.99 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 44 | l2 (mm): 48 | L (mm): 107 | Aspect ratio: 3D | Insert: TPD1450C□-1499C□ | Shank figure: 1
TPDC3D-15020-45 Drilling range D (mm): 15.00~15.99 | Shank d (mm): 20 | d1 (mm): 25 | l1 (mm): 45 | l2 (mm): 50 | L (mm): 113 | Aspect ratio: 3D | Insert: TPD1500C□-1599C□ | Shank figure: 2
TPDC3D-16020-48 Drilling range D (mm): 16.00~16.99 | Shank d (mm): 20 | d1 (mm): 25 | l1 (mm): 48 | l2 (mm): 50 | L (mm): 117 | Aspect ratio: 3D | Insert: TPD1600C□-1699C□ | Shank figure: 2
TPDC3D-17020-51 Drilling range D (mm): 17.00~17.99 | Shank d (mm): 20 | d1 (mm): 25 | l1 (mm): 51 | l2 (mm): 50 | L (mm): 120 | Aspect ratio: 3D | Insert: TPD1700C□-1799C□ | Shank figure: 2
TPDC3D-18025-54 Drilling range D (mm): 18.00~18.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 54 | l2 (mm): 56 | L (mm): 132 | Aspect ratio: 3D | Insert: TPD1800C□-1899C□ | Shank figure: 2
TPDC3D-19025-57 Drilling range D (mm): 19.00~19.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 57 | l2 (mm): 56 | L (mm): 135 | Aspect ratio: 3D | Insert: TPD1900C□-1999C□ | Shank figure: 2
TPDC3D-20025-60 Drilling range D (mm): 20.00~20.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 60 | l2 (mm): 56 | L (mm): 138 | Aspect ratio: 3D | Insert: TPD2000C□-2099C□ | Shank figure: 2
TPDC3D-21025-63 Drilling range D (mm): 21.00~21.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 63 | l2 (mm): 56 | L (mm): 141 | Aspect ratio: 3D | Insert: TPD2100C□-2199C□ | Shank figure: 2
TPDC3D-22025-66 Drilling range D (mm): 22.00~22.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 66 | l2 (mm): 56 | L (mm): 145 | Aspect ratio: 3D | Insert: TPD2200C□-2299C□ | Shank figure: 2
TPDC3D-23025-69 Drilling range D (mm): 23.00~23.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 69 | l2 (mm): 56 | L (mm): 149 | Aspect ratio: 3D | Insert: TPD2300C□-2399C□ | Shank figure: 2
TPDC3D-24032-72 Drilling range D (mm): 24.00~24.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 72 | l2 (mm): 60 | L (mm): 159 | Aspect ratio: 3D | Insert: TPD2400C□-2499C□ | Shank figure: 2
TPDC3D-25032-75 Drilling range D (mm): 25.00~25.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 75 | l2 (mm): 60 | L (mm): 162 | Aspect ratio: 3D | Insert: TPD2500C□-2599C□ | Shank figure: 2
TPDC3D-26032-78 Drilling range D (mm): 26.00~26.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 78 | l2 (mm): 60 | L (mm): 173 | Aspect ratio: 3D | Insert: TPD2600C□-2699C□ | Shank figure: 2
TPDC3D-27032-81 Drilling range D (mm): 27.50~27.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 81 | l2 (mm): 60 | L (mm): 176 | Aspect ratio: 3D | Insert: TPD2700C□-2799C□ | Shank figure: 2
TPDC3D-28032-84 Drilling range D (mm): 28.00~28.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 84 | l2 (mm): 60 | L (mm): 180 | Aspect ratio: 3D | Insert: TPD2800C□-2899C□ | Shank figure: 2
TPDC3D-29032-87 Drilling range D (mm): 29.50~29.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 87 | l2 (mm): 60 | L (mm): 185 | Aspect ratio: 3D | Insert: TPD2900C□-2999C□ | Shank figure: 2
TPDC3D-30032-90 Drilling range D (mm): 30.00~30.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 90 | l2 (mm): 60 | L (mm): 188 | Aspect ratio: 3D | Insert: TPD3000C□-3099C□ | Shank figure: 2
TPDC5D-12016-60 Drilling range D (mm): 12.00~12.49 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 60 | l2 (mm): 48 | L (mm): 123 | Aspect ratio: 5D | Insert: TPD1200C□-1249C□ | Shank figure: 1
TPDC5D-12516-63 Drilling range D (mm): 12.50~12.99 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 63 | l2 (mm): 48 | L (mm): 126 | Aspect ratio: 5D | Insert: TPD1250C□-1299C□ | Shank figure: 1
TPDC5D-13016-65 Drilling range D (mm): 13.00~13.49 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 65 | l2 (mm): 48 | L (mm): 129 | Aspect ratio: 5D | Insert: TPD1300C□-1349C□ | Shank figure: 1
TPDC5D-13516-68 Drilling range D (mm): 13.50~13.99 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 68 | l2 (mm): 48 | L (mm): 132 | Aspect ratio: 5D | Insert: TPD1350C□-1399C□ | Shank figure: 1
TPDC5D-14016-70 Drilling range D (mm): 14.00~14.49 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 70 | l2 (mm): 48 | L (mm): 134 | Aspect ratio: 5D | Insert: TPD1400C□-1449C□ | Shank figure: 1
TPDC5D-14516-73 Drilling range D (mm): 14.50~14.99 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 73 | l2 (mm): 48 | L (mm): 136 | Aspect ratio: 5D | Insert: TPD1450C□-1499C□ | Shank figure: 1
TPDC5D-15020-75 Drilling range D (mm): 15.00~15.99 | Shank d (mm): 20 | d1 (mm): 25 | l1 (mm): 75 | l2 (mm): 50 | L (mm): 143 | Aspect ratio: 5D | Insert: TPD1500C□-1599C□ | Shank figure: 2
TPDC5D-16020-80 Drilling range D (mm): 16.00~16.99 | Shank d (mm): 20 | d1 (mm): 25 | l1 (mm): 80 | l2 (mm): 50 | L (mm): 149 | Aspect ratio: 5D | Insert: TPD1600C□-1699C□ | Shank figure: 2
TPDC5D-17020-85 Drilling range D (mm): 17.00~17.99 | Shank d (mm): 20 | d1 (mm): 25 | l1 (mm): 85 | l2 (mm): 50 | L (mm): 154 | Aspect ratio: 5D | Insert: TPD1700C□-1799C□ | Shank figure: 2
TPDC5D-18025-90 Drilling range D (mm): 18.00~18.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 90 | l2 (mm): 56 | L (mm): 168 | Aspect ratio: 5D | Insert: TPD1800C□-1899C□ | Shank figure: 2
TPDC5D-19025-95 Drilling range D (mm): 19.00~19.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 95 | l2 (mm): 56 | L (mm): 173 | Aspect ratio: 5D | Insert: TPD1900C□-1999C□ | Shank figure: 2
TPDC5D-20025-100 Drilling range D (mm): 20.00~20.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 100 | l2 (mm): 56 | L (mm): 178 | Aspect ratio: 5D | Insert: TPD2000C□-2099C□ | Shank figure: 2
TPDC5D-21025-105 Drilling range D (mm): 21.00~21.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 105 | l2 (mm): 56 | L (mm): 183 | Aspect ratio: 5D | Insert: TPD2100C□-2199C□ | Shank figure: 2
TPDC5D-22025-110 Drilling range D (mm): 22.00~22.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 110 | l2 (mm): 56 | L (mm): 189 | Aspect ratio: 5D | Insert: TPD2200C□-2299C□ | Shank figure: 2
TPDC5D-23025-115 Drilling range D (mm): 23.00~23.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 115 | l2 (mm): 56 | L (mm): 195 | Aspect ratio: 5D | Insert: TPD2300C□-2399C□ | Shank figure: 2
TPDC5D-24032-120 Drilling range D (mm): 24.00~24.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 120 | l2 (mm): 60 | L (mm): 207 | Aspect ratio: 5D | Insert: TPD2400C□-2499C□ | Shank figure: 2
TPDC5D-25032-125 Drilling range D (mm): 25.00~25.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 125 | l2 (mm): 60 | L (mm): 212 | Aspect ratio: 5D | Insert: TPD2500C□-2599C□ | Shank figure: 2
TPDC5D-26032-130 Drilling range D (mm): 26.00~26.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 130 | l2 (mm): 60 | L (mm): 225 | Aspect ratio: 5D | Insert: TPD2600C□-2699C□ | Shank figure: 2
TPDC5D-27032-135 Drilling range D (mm): 27.00~27.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 135 | l2 (mm): 60 | L (mm): 230 | Aspect ratio: 5D | Insert: TPD2700C□-2799C□ | Shank figure: 2
TPDC5D-28032-140 Drilling range D (mm): 28.00~28.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 140 | l2 (mm): 60 | L (mm): 236 | Aspect ratio: 5D | Insert: TPD2800C□-2899C□ | Shank figure: 2
TPDC5D-29032-145 Drilling range D (mm): 29.00~29.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 145 | l2 (mm): 60 | L (mm): 243 | Aspect ratio: 5D | Insert: TPD2900C□-2999C□ | Shank figure: 2
TPDC5D-30032-150 Drilling range D (mm): 30.00~30.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 150 | l2 (mm): 60 | L (mm): 248 | Aspect ratio: 5D | Insert: TPD3000C□-3099C□ | Shank figure: 2
TPDC8D-12016-96 Drilling range D (mm): 12.00~12.49 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 96 | l2 (mm): 48 | L (mm): 159 | Aspect ratio: 8D | Insert: TPD1200C□-1249C□ | Shank figure: 1
TPDC8D-12516-100 Drilling range D (mm): 12.50~12.99 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 100 | l2 (mm): 48 | L (mm): 163 | Aspect ratio: 8D | Insert: TPD1250C□-1299C□ | Shank figure: 1
TPDC8D-13016-104 Drilling range D (mm): 13.00~13.49 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 104 | l2 (mm): 48 | L (mm): 168 | Aspect ratio: 8D | Insert: TPD1300C□-1349C□ | Shank figure: 1
TPDC8D-13516-108 Drilling range D (mm): 13.50~13.99 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 108 | l2 (mm): 48 | L (mm): 173 | Aspect ratio: 8D | Insert: TPD1350C□-1399C□ | Shank figure: 1
TPDC8D-14016-112 Drilling range D (mm): 14.00~14.49 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 112 | l2 (mm): 48 | L (mm): 176 | Aspect ratio: 8D | Insert: TPD1400C□-1449C□ | Shank figure: 1
TPDC8D-14516-116 Drilling range D (mm): 14.50~14.99 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 116 | l2 (mm): 48 | L (mm): 180 | Aspect ratio: 8D | Insert: TPD1450C□-1499C□ | Shank figure: 1
TPDC8D-15020-120 Drilling range D (mm): 15.00~15.99 | Shank d (mm): 20 | d1 (mm): 25 | l1 (mm): 120 | l2 (mm): 50 | L (mm): 188 | Aspect ratio: 8D | Insert: TPD1500C□-1599C□ | Shank figure: 2
TPDC8D-16020-128 Drilling range D (mm): 16.00~16.99 | Shank d (mm): 20 | d1 (mm): 25 | l1 (mm): 128 | l2 (mm): 50 | L (mm): 197 | Aspect ratio: 8D | Insert: TPD1600C□-1699C□ | Shank figure: 2
TPDC8D-17020-136 Drilling range D (mm): 17.00~17.99 | Shank d (mm): 20 | d1 (mm): 25 | l1 (mm): 136 | l2 (mm): 50 | L (mm): 205 | Aspect ratio: 8D | Insert: TPD1700C□-1799C□ | Shank figure: 2
TPDC8D-18025-144 Drilling range D (mm): 18.00~18.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 144 | l2 (mm): 56 | L (mm): 222 | Aspect ratio: 8D | Insert: TPD1800C□-1899C□ | Shank figure: 2
TPDC8D-19025-152 Drilling range D (mm): 19.00~19.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 152 | l2 (mm): 56 | L (mm): 230 | Aspect ratio: 8D | Insert: TPD1900C□-1999C□ | Shank figure: 2
TPDC8D-20025-160 Drilling range D (mm): 20.00~20.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 160 | l2 (mm): 56 | L (mm): 238 | Aspect ratio: 8D | Insert: TPD2000C□-2099C□ | Shank figure: 2
TPDC8D-21025-168 Drilling range D (mm): 21.00~21.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 168 | l2 (mm): 56 | L (mm): 246 | Aspect ratio: 8D | Insert: TPD2100C□-2199C□ | Shank figure: 2
TPDC8D-22025-176 Drilling range D (mm): 22.00~22.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 176 | l2 (mm): 56 | L (mm): 255 | Aspect ratio: 8D | Insert: TPD2200C□-2299C□ | Shank figure: 2
TPDC8D-23025-184 Drilling range D (mm): 23.00~23.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 184 | l2 (mm): 56 | L (mm): 264 | Aspect ratio: 8D | Insert: TPD2300C□-2399C□ | Shank figure: 2
TPDC8D-24032-192 Drilling range D (mm): 24.00~24.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 192 | l2 (mm): 60 | L (mm): 279 | Aspect ratio: 8D | Insert: TPD2400C□-2499C□ | Shank figure: 2
TPDC8D-25032-200 Drilling range D (mm): 25.00~25.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 200 | l2 (mm): 60 | L (mm): 287 | Aspect ratio: 8D | Insert: TPD2500C□-2599C□ | Shank figure: 2
TPDC8D-26032-208 Drilling range D (mm): 26.00~26.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 208 | l2 (mm): 60 | L (mm): 303 | Aspect ratio: 8D | Insert: TPD2600C□-2699C□ | Shank figure: 2
TPDC8D-27032-216 Drilling range D (mm): 27.00~27.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 216 | l2 (mm): 60 | L (mm): 311 | Aspect ratio: 8D | Insert: TPD2700C□-2799C□ | Shank figure: 2
TPDC8D-28032-224 Drilling range D (mm): 28.00~28.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 224 | l2 (mm): 60 | L (mm): 320 | Aspect ratio: 8D | Insert: TPD2800C□-2899C□ | Shank figure: 2
TPDC8D-29032-232 Drilling range D (mm): 29.00~29.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 232 | l2 (mm): 60 | L (mm): 330 | Aspect ratio: 8D | Insert: TPD2900C□-2999C□ | Shank figure: 2
TPDC8D-30032-240 Drilling range D (mm): 30.00~30.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 240 | l2 (mm): 60 | L (mm): 338 | Aspect ratio: 8D | Insert: TPD3000C□-3099C□ | Shank figure: 2
DrillsKorloy
66 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy TPDC Cone Head Indexable Drill 3D/5D/8D

Brand Korloy·Drills

Available part numbers (66)

TPDC3D-12016-36, TPDC3D-12516-38, TPDC3D-13016-39, TPDC3D-13516-41, TPDC3D-14016-42, TPDC3D-14516-44, TPDC3D-15020-45, TPDC3D-16020-48, TPDC3D-17020-51, TPDC3D-18025-54 + 56 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TPDC3D-12016-36Drilling range D (mm): 12.00~12.49 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 36 | l2 (mm): 48 | L (mm): 99 | Aspect ratio: 3D | Insert: TPD1200C□-1249C□ | Shank figure: 1
TPDC3D-12516-38Drilling range D (mm): 12.50~12.99 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 38 | l2 (mm): 48 | L (mm): 101 | Aspect ratio: 3D | Insert: TPD1250C□-1299C□ | Shank figure: 1
TPDC3D-13016-39Drilling range D (mm): 13.00~13.49 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 39 | l2 (mm): 48 | L (mm): 103 | Aspect ratio: 3D | Insert: TPD1300C□-1349C□ | Shank figure: 1
TPDC3D-13516-41Drilling range D (mm): 13.50~13.99 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 41 | l2 (mm): 48 | L (mm): 105 | Aspect ratio: 3D | Insert: TPD1350C□-1399C□ | Shank figure: 1
TPDC3D-14016-42Drilling range D (mm): 14.00~14.49 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 42 | l2 (mm): 48 | L (mm): 106 | Aspect ratio: 3D | Insert: TPD1400C□-1449C□ | Shank figure: 1
TPDC3D-14516-44Drilling range D (mm): 14.50~14.99 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 44 | l2 (mm): 48 | L (mm): 107 | Aspect ratio: 3D | Insert: TPD1450C□-1499C□ | Shank figure: 1
TPDC3D-15020-45Drilling range D (mm): 15.00~15.99 | Shank d (mm): 20 | d1 (mm): 25 | l1 (mm): 45 | l2 (mm): 50 | L (mm): 113 | Aspect ratio: 3D | Insert: TPD1500C□-1599C□ | Shank figure: 2
TPDC3D-16020-48Drilling range D (mm): 16.00~16.99 | Shank d (mm): 20 | d1 (mm): 25 | l1 (mm): 48 | l2 (mm): 50 | L (mm): 117 | Aspect ratio: 3D | Insert: TPD1600C□-1699C□ | Shank figure: 2
TPDC3D-17020-51Drilling range D (mm): 17.00~17.99 | Shank d (mm): 20 | d1 (mm): 25 | l1 (mm): 51 | l2 (mm): 50 | L (mm): 120 | Aspect ratio: 3D | Insert: TPD1700C□-1799C□ | Shank figure: 2
TPDC3D-18025-54Drilling range D (mm): 18.00~18.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 54 | l2 (mm): 56 | L (mm): 132 | Aspect ratio: 3D | Insert: TPD1800C□-1899C□ | Shank figure: 2
TPDC3D-19025-57Drilling range D (mm): 19.00~19.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 57 | l2 (mm): 56 | L (mm): 135 | Aspect ratio: 3D | Insert: TPD1900C□-1999C□ | Shank figure: 2
TPDC3D-20025-60Drilling range D (mm): 20.00~20.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 60 | l2 (mm): 56 | L (mm): 138 | Aspect ratio: 3D | Insert: TPD2000C□-2099C□ | Shank figure: 2
TPDC3D-21025-63Drilling range D (mm): 21.00~21.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 63 | l2 (mm): 56 | L (mm): 141 | Aspect ratio: 3D | Insert: TPD2100C□-2199C□ | Shank figure: 2
TPDC3D-22025-66Drilling range D (mm): 22.00~22.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 66 | l2 (mm): 56 | L (mm): 145 | Aspect ratio: 3D | Insert: TPD2200C□-2299C□ | Shank figure: 2
TPDC3D-23025-69Drilling range D (mm): 23.00~23.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 69 | l2 (mm): 56 | L (mm): 149 | Aspect ratio: 3D | Insert: TPD2300C□-2399C□ | Shank figure: 2
TPDC3D-24032-72Drilling range D (mm): 24.00~24.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 72 | l2 (mm): 60 | L (mm): 159 | Aspect ratio: 3D | Insert: TPD2400C□-2499C□ | Shank figure: 2
TPDC3D-25032-75Drilling range D (mm): 25.00~25.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 75 | l2 (mm): 60 | L (mm): 162 | Aspect ratio: 3D | Insert: TPD2500C□-2599C□ | Shank figure: 2
TPDC3D-26032-78Drilling range D (mm): 26.00~26.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 78 | l2 (mm): 60 | L (mm): 173 | Aspect ratio: 3D | Insert: TPD2600C□-2699C□ | Shank figure: 2
TPDC3D-27032-81Drilling range D (mm): 27.50~27.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 81 | l2 (mm): 60 | L (mm): 176 | Aspect ratio: 3D | Insert: TPD2700C□-2799C□ | Shank figure: 2
TPDC3D-28032-84Drilling range D (mm): 28.00~28.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 84 | l2 (mm): 60 | L (mm): 180 | Aspect ratio: 3D | Insert: TPD2800C□-2899C□ | Shank figure: 2
TPDC3D-29032-87Drilling range D (mm): 29.50~29.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 87 | l2 (mm): 60 | L (mm): 185 | Aspect ratio: 3D | Insert: TPD2900C□-2999C□ | Shank figure: 2
TPDC3D-30032-90Drilling range D (mm): 30.00~30.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 90 | l2 (mm): 60 | L (mm): 188 | Aspect ratio: 3D | Insert: TPD3000C□-3099C□ | Shank figure: 2
TPDC5D-12016-60Drilling range D (mm): 12.00~12.49 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 60 | l2 (mm): 48 | L (mm): 123 | Aspect ratio: 5D | Insert: TPD1200C□-1249C□ | Shank figure: 1
TPDC5D-12516-63Drilling range D (mm): 12.50~12.99 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 63 | l2 (mm): 48 | L (mm): 126 | Aspect ratio: 5D | Insert: TPD1250C□-1299C□ | Shank figure: 1
TPDC5D-13016-65Drilling range D (mm): 13.00~13.49 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 65 | l2 (mm): 48 | L (mm): 129 | Aspect ratio: 5D | Insert: TPD1300C□-1349C□ | Shank figure: 1
TPDC5D-13516-68Drilling range D (mm): 13.50~13.99 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 68 | l2 (mm): 48 | L (mm): 132 | Aspect ratio: 5D | Insert: TPD1350C□-1399C□ | Shank figure: 1
TPDC5D-14016-70Drilling range D (mm): 14.00~14.49 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 70 | l2 (mm): 48 | L (mm): 134 | Aspect ratio: 5D | Insert: TPD1400C□-1449C□ | Shank figure: 1
TPDC5D-14516-73Drilling range D (mm): 14.50~14.99 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 73 | l2 (mm): 48 | L (mm): 136 | Aspect ratio: 5D | Insert: TPD1450C□-1499C□ | Shank figure: 1
TPDC5D-15020-75Drilling range D (mm): 15.00~15.99 | Shank d (mm): 20 | d1 (mm): 25 | l1 (mm): 75 | l2 (mm): 50 | L (mm): 143 | Aspect ratio: 5D | Insert: TPD1500C□-1599C□ | Shank figure: 2
TPDC5D-16020-80Drilling range D (mm): 16.00~16.99 | Shank d (mm): 20 | d1 (mm): 25 | l1 (mm): 80 | l2 (mm): 50 | L (mm): 149 | Aspect ratio: 5D | Insert: TPD1600C□-1699C□ | Shank figure: 2
TPDC5D-17020-85Drilling range D (mm): 17.00~17.99 | Shank d (mm): 20 | d1 (mm): 25 | l1 (mm): 85 | l2 (mm): 50 | L (mm): 154 | Aspect ratio: 5D | Insert: TPD1700C□-1799C□ | Shank figure: 2
TPDC5D-18025-90Drilling range D (mm): 18.00~18.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 90 | l2 (mm): 56 | L (mm): 168 | Aspect ratio: 5D | Insert: TPD1800C□-1899C□ | Shank figure: 2
TPDC5D-19025-95Drilling range D (mm): 19.00~19.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 95 | l2 (mm): 56 | L (mm): 173 | Aspect ratio: 5D | Insert: TPD1900C□-1999C□ | Shank figure: 2
TPDC5D-20025-100Drilling range D (mm): 20.00~20.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 100 | l2 (mm): 56 | L (mm): 178 | Aspect ratio: 5D | Insert: TPD2000C□-2099C□ | Shank figure: 2
TPDC5D-21025-105Drilling range D (mm): 21.00~21.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 105 | l2 (mm): 56 | L (mm): 183 | Aspect ratio: 5D | Insert: TPD2100C□-2199C□ | Shank figure: 2
TPDC5D-22025-110Drilling range D (mm): 22.00~22.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 110 | l2 (mm): 56 | L (mm): 189 | Aspect ratio: 5D | Insert: TPD2200C□-2299C□ | Shank figure: 2
TPDC5D-23025-115Drilling range D (mm): 23.00~23.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 115 | l2 (mm): 56 | L (mm): 195 | Aspect ratio: 5D | Insert: TPD2300C□-2399C□ | Shank figure: 2
TPDC5D-24032-120Drilling range D (mm): 24.00~24.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 120 | l2 (mm): 60 | L (mm): 207 | Aspect ratio: 5D | Insert: TPD2400C□-2499C□ | Shank figure: 2
TPDC5D-25032-125Drilling range D (mm): 25.00~25.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 125 | l2 (mm): 60 | L (mm): 212 | Aspect ratio: 5D | Insert: TPD2500C□-2599C□ | Shank figure: 2
TPDC5D-26032-130Drilling range D (mm): 26.00~26.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 130 | l2 (mm): 60 | L (mm): 225 | Aspect ratio: 5D | Insert: TPD2600C□-2699C□ | Shank figure: 2
TPDC5D-27032-135Drilling range D (mm): 27.00~27.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 135 | l2 (mm): 60 | L (mm): 230 | Aspect ratio: 5D | Insert: TPD2700C□-2799C□ | Shank figure: 2
TPDC5D-28032-140Drilling range D (mm): 28.00~28.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 140 | l2 (mm): 60 | L (mm): 236 | Aspect ratio: 5D | Insert: TPD2800C□-2899C□ | Shank figure: 2
TPDC5D-29032-145Drilling range D (mm): 29.00~29.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 145 | l2 (mm): 60 | L (mm): 243 | Aspect ratio: 5D | Insert: TPD2900C□-2999C□ | Shank figure: 2
TPDC5D-30032-150Drilling range D (mm): 30.00~30.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 150 | l2 (mm): 60 | L (mm): 248 | Aspect ratio: 5D | Insert: TPD3000C□-3099C□ | Shank figure: 2
TPDC8D-12016-96Drilling range D (mm): 12.00~12.49 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 96 | l2 (mm): 48 | L (mm): 159 | Aspect ratio: 8D | Insert: TPD1200C□-1249C□ | Shank figure: 1
TPDC8D-12516-100Drilling range D (mm): 12.50~12.99 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 100 | l2 (mm): 48 | L (mm): 163 | Aspect ratio: 8D | Insert: TPD1250C□-1299C□ | Shank figure: 1
TPDC8D-13016-104Drilling range D (mm): 13.00~13.49 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 104 | l2 (mm): 48 | L (mm): 168 | Aspect ratio: 8D | Insert: TPD1300C□-1349C□ | Shank figure: 1
TPDC8D-13516-108Drilling range D (mm): 13.50~13.99 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 108 | l2 (mm): 48 | L (mm): 173 | Aspect ratio: 8D | Insert: TPD1350C□-1399C□ | Shank figure: 1
TPDC8D-14016-112Drilling range D (mm): 14.00~14.49 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 112 | l2 (mm): 48 | L (mm): 176 | Aspect ratio: 8D | Insert: TPD1400C□-1449C□ | Shank figure: 1
TPDC8D-14516-116Drilling range D (mm): 14.50~14.99 | Shank d (mm): 16 | d1 (mm): 20 | l1 (mm): 116 | l2 (mm): 48 | L (mm): 180 | Aspect ratio: 8D | Insert: TPD1450C□-1499C□ | Shank figure: 1
TPDC8D-15020-120Drilling range D (mm): 15.00~15.99 | Shank d (mm): 20 | d1 (mm): 25 | l1 (mm): 120 | l2 (mm): 50 | L (mm): 188 | Aspect ratio: 8D | Insert: TPD1500C□-1599C□ | Shank figure: 2
TPDC8D-16020-128Drilling range D (mm): 16.00~16.99 | Shank d (mm): 20 | d1 (mm): 25 | l1 (mm): 128 | l2 (mm): 50 | L (mm): 197 | Aspect ratio: 8D | Insert: TPD1600C□-1699C□ | Shank figure: 2
TPDC8D-17020-136Drilling range D (mm): 17.00~17.99 | Shank d (mm): 20 | d1 (mm): 25 | l1 (mm): 136 | l2 (mm): 50 | L (mm): 205 | Aspect ratio: 8D | Insert: TPD1700C□-1799C□ | Shank figure: 2
TPDC8D-18025-144Drilling range D (mm): 18.00~18.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 144 | l2 (mm): 56 | L (mm): 222 | Aspect ratio: 8D | Insert: TPD1800C□-1899C□ | Shank figure: 2
TPDC8D-19025-152Drilling range D (mm): 19.00~19.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 152 | l2 (mm): 56 | L (mm): 230 | Aspect ratio: 8D | Insert: TPD1900C□-1999C□ | Shank figure: 2
TPDC8D-20025-160Drilling range D (mm): 20.00~20.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 160 | l2 (mm): 56 | L (mm): 238 | Aspect ratio: 8D | Insert: TPD2000C□-2099C□ | Shank figure: 2
TPDC8D-21025-168Drilling range D (mm): 21.00~21.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 168 | l2 (mm): 56 | L (mm): 246 | Aspect ratio: 8D | Insert: TPD2100C□-2199C□ | Shank figure: 2
TPDC8D-22025-176Drilling range D (mm): 22.00~22.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 176 | l2 (mm): 56 | L (mm): 255 | Aspect ratio: 8D | Insert: TPD2200C□-2299C□ | Shank figure: 2
TPDC8D-23025-184Drilling range D (mm): 23.00~23.99 | Shank d (mm): 25 | d1 (mm): 33 | l1 (mm): 184 | l2 (mm): 56 | L (mm): 264 | Aspect ratio: 8D | Insert: TPD2300C□-2399C□ | Shank figure: 2
TPDC8D-24032-192Drilling range D (mm): 24.00~24.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 192 | l2 (mm): 60 | L (mm): 279 | Aspect ratio: 8D | Insert: TPD2400C□-2499C□ | Shank figure: 2
TPDC8D-25032-200Drilling range D (mm): 25.00~25.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 200 | l2 (mm): 60 | L (mm): 287 | Aspect ratio: 8D | Insert: TPD2500C□-2599C□ | Shank figure: 2
TPDC8D-26032-208Drilling range D (mm): 26.00~26.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 208 | l2 (mm): 60 | L (mm): 303 | Aspect ratio: 8D | Insert: TPD2600C□-2699C□ | Shank figure: 2
TPDC8D-27032-216Drilling range D (mm): 27.00~27.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 216 | l2 (mm): 60 | L (mm): 311 | Aspect ratio: 8D | Insert: TPD2700C□-2799C□ | Shank figure: 2
TPDC8D-28032-224Drilling range D (mm): 28.00~28.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 224 | l2 (mm): 60 | L (mm): 320 | Aspect ratio: 8D | Insert: TPD2800C□-2899C□ | Shank figure: 2
TPDC8D-29032-232Drilling range D (mm): 29.00~29.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 232 | l2 (mm): 60 | L (mm): 330 | Aspect ratio: 8D | Insert: TPD2900C□-2999C□ | Shank figure: 2
TPDC8D-30032-240Drilling range D (mm): 30.00~30.99 | Shank d (mm): 32 | d1 (mm): 43 | l1 (mm): 240 | l2 (mm): 60 | L (mm): 338 | Aspect ratio: 8D | Insert: TPD3000C□-3099C□ | Shank figure: 2
