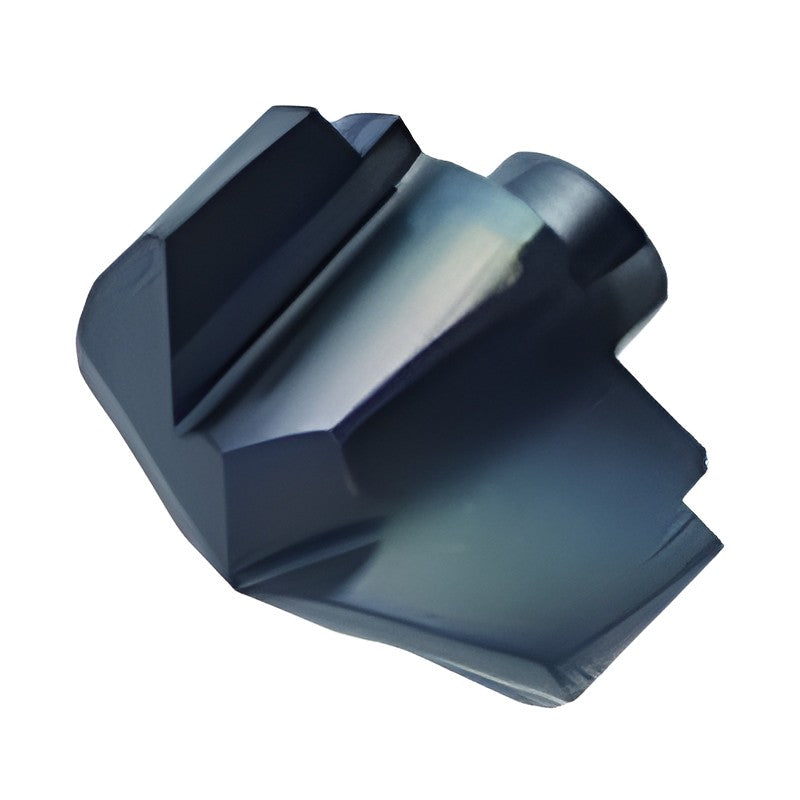

Korloy TPDC Drill Head Insert TPD CP

Korloy TPDC Drill Head Insert TPD CP

Replaceable cone-shaped carbide drill head for TPDC indexable drill bodies, 140 degree point angle, h7 diameter tolerance.

Key features

  • 140 degree point angle, h7 diameter tolerance
  • Ultra-fine substrate with multi-layer coating (PC5335)
  • Excellent chip control for various workpieces
  • Mounted and removed with TPDC-W wrench
TPD1200CP PC5335 Drill dia. D (mm): 12.0 | W (mm): 11.4 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-12016-36, TPDC5D-12016-60, TPDC8D-12016-96 | Wrench: TPDC-W12 | Stock: Yes
TPD1220CP PC5335 Drill dia. D (mm): 12.2 | W (mm): 11.4 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-12016-36, TPDC5D-12016-60, TPDC8D-12016-96 | Wrench: TPDC-W12 | Stock: Yes
TPD1250CP PC5335 Drill dia. D (mm): 12.5 | W (mm): 11.4 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-12516-38, TPDC5D-12516-63, TPDC8D-12516-100 | Wrench: TPDC-W12 | Stock: Yes
TPD1260CP PC5335 Drill dia. D (mm): 12.6 | W (mm): 11.4 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-12516-38, TPDC5D-12516-63, TPDC8D-12516-100 | Wrench: TPDC-W12 | Stock: Yes
TPD1300CP PC5335 Drill dia. D (mm): 13.0 | W (mm): 12.3 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-13016-39, TPDC5D-13016-65, TPDC8D-13016-104 | Wrench: TPDC-W13 | Stock: Yes
TPD1350CP PC5335 Drill dia. D (mm): 13.5 | W (mm): 12.3 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-13516-41, TPDC5D-13516-68, TPDC8D-13516-108 | Wrench: TPDC-W13 | Stock: Yes
TPD1400CP PC5335 Drill dia. D (mm): 14.0 | W (mm): 13.4 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-14016-42, TPDC5D-14016-70, TPDC8D-14016-112 | Wrench: TPDC-W14 | Stock: Yes
TPD1420CP PC5335 Drill dia. D (mm): 14.2 | W (mm): 13.4 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-14016-42, TPDC5D-14016-70, TPDC8D-14016-112 | Wrench: TPDC-W14 | Stock: Yes
TPD1430CP PC5335 Drill dia. D (mm): 14.3 | W (mm): 13.4 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-14016-42, TPDC5D-14016-70, TPDC8D-14016-112 | Wrench: TPDC-W14 | Stock: Yes
TPD1450CP PC5335 Drill dia. D (mm): 14.5 | W (mm): 13.4 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-14516-44, TPDC5D-14516-73, TPDC8D-14516-116 | Wrench: TPDC-W14 | Stock: Yes
TPD1500CP PC5335 Drill dia. D (mm): 15.0 | W (mm): 14.3 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-15020-45, TPDC5D-15020-75, TPDC8D-15020-120 | Wrench: TPDC-W15 | Stock: Yes
TPD1550CP PC5335 Drill dia. D (mm): 15.5 | W (mm): 14.3 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-15020-45, TPDC5D-15020-75, TPDC8D-15020-120 | Wrench: TPDC-W15 | Stock: Yes
TPD1600CP PC5335 Drill dia. D (mm): 16.0 | W (mm): 15.3 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-16020-48, TPDC5D-16020-80, TPDC8D-16020-128 | Wrench: TPDC-W16 | Stock: Yes
TPD1630CP PC5335 Drill dia. D (mm): 16.3 | W (mm): 15.3 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-16020-48, TPDC5D-16020-80, TPDC8D-16020-128 | Wrench: TPDC-W16 | Stock: Yes
TPD1650CP PC5335 Drill dia. D (mm): 16.5 | W (mm): 15.3 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-16020-48, TPDC5D-16020-80, TPDC8D-16020-128 | Wrench: TPDC-W16 | Stock: Yes
TPD1670CP PC5335 Drill dia. D (mm): 16.7 | W (mm): 15.3 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-16020-48, TPDC5D-16020-80, TPDC8D-16020-128 | Wrench: TPDC-W16 | Stock: Yes
TPD1700CP PC5335 Drill dia. D (mm): 17.0 | W (mm): 17.5 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-17020-51, TPDC5D-17020-85, TPDC8D-17020-136 | Wrench: TPDC-W17 | Stock: Yes
TPD1750CP PC5335 Drill dia. D (mm): 17.5 | W (mm): 17.5 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-17020-51, TPDC5D-17020-85, TPDC8D-17020-136 | Wrench: TPDC-W17 | Stock: Yes
TPD1770CP PC5335 Drill dia. D (mm): 17.7 | W (mm): 17.5 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-17020-51, TPDC5D-17020-85, TPDC8D-17020-136 | Wrench: TPDC-W17 | Stock: Yes
TPD1800CP PC5335 Drill dia. D (mm): 18.0 | W (mm): 18.5 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-18025-54, TPDC5D-18025-90, TPDC8D-18025-144 | Wrench: TPDC-W18 | Stock: Yes
TPD1810CP PC5335 Drill dia. D (mm): 18.1 | W (mm): 18.5 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-18025-54, TPDC5D-18025-90, TPDC8D-18025-144 | Wrench: TPDC-W18 | Stock: Yes
TPD1850CP PC5335 Drill dia. D (mm): 18.5 | W (mm): 18.5 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-18025-54, TPDC5D-18025-90, TPDC8D-18025-144 | Wrench: TPDC-W18 | Stock: Yes
TPD1860CP PC5335 Drill dia. D (mm): 18.6 | W (mm): 18.5 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-18025-54, TPDC5D-18025-90, TPDC8D-18025-144 | Wrench: TPDC-W18 | Stock: Yes
TPD1870CP PC5335 Drill dia. D (mm): 18.7 | W (mm): 18.5 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-18025-54, TPDC5D-18025-90, TPDC8D-18025-144 | Wrench: TPDC-W18 | Stock: Yes
TPD1900CP PC5335 Drill dia. D (mm): 19.0 | W (mm): 18.3 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-19025-57, TPDC5D-19025-95, TPDC8D-19025-152 | Wrench: TPDC-W19 | Stock: Yes
TPD1920CP PC5335 Drill dia. D (mm): 19.2 | W (mm): 18.3 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-19025-57, TPDC5D-19025-95, TPDC8D-19025-152 | Wrench: TPDC-W19 | Stock: Yes
TPD1950CP PC5335 Drill dia. D (mm): 19.5 | W (mm): 18.3 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-19025-57, TPDC5D-19025-95, TPDC8D-19025-152 | Wrench: TPDC-W19 | Stock: Yes
TPD1970CP PC5335 Drill dia. D (mm): 19.7 | W (mm): 18.3 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-19025-57, TPDC5D-19025-95, TPDC8D-19025-152 | Wrench: TPDC-W19 | Stock: Yes
TPD2000CP PC5335 Drill dia. D (mm): 20.0 | W (mm): 19.2 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-20025-60, TPDC5D-20025-100, TPDC8D-20025-160 | Wrench: TPDC-W20 | Stock: Yes
TPD2050CP PC5335 Drill dia. D (mm): 20.5 | W (mm): 19.2 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-20025-60, TPDC5D-20025-100, TPDC8D-20025-160 | Wrench: TPDC-W20 | Stock: Yes
TPD2100CP PC5335 Drill dia. D (mm): 21.0 | W (mm): 20.1 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-21025-63, TPDC5D-21025-105, TPDC8D-21025-168 | Wrench: TPDC-W21 | Stock: Yes
TPD2150CP PC5335 Drill dia. D (mm): 21.5 | W (mm): 20.1 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-21025-63, TPDC5D-21025-105, TPDC8D-21025-168 | Wrench: TPDC-W21 | Stock: Yes
TPD2200CP PC5335 Drill dia. D (mm): 22.0 | W (mm): 21 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-22025-66, TPDC5D-22025-110, TPDC8D-22025-176 | Wrench: TPDC-W22 | Stock: Yes
TPD2250CP PC5335 Drill dia. D (mm): 22.5 | W (mm): 21 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-22025-66, TPDC5D-22025-110, TPDC8D-22025-176 | Wrench: TPDC-W22 | Stock: Yes
TPD2260CP PC5335 Drill dia. D (mm): 22.6 | W (mm): 21 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-22025-66, TPDC5D-22025-110, TPDC8D-22025-176 | Wrench: TPDC-W22 | Stock: Yes
TPD2270CP PC5335 Drill dia. D (mm): 22.7 | W (mm): 21 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-22025-66, TPDC5D-22025-110, TPDC8D-22025-176 | Wrench: TPDC-W22 | Stock: Yes
TPD2300CP PC5335 Drill dia. D (mm): 23.0 | W (mm): 21.9 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-23025-69, TPDC5D-23025-115, TPDC8D-23025-184 | Wrench: TPDC-W23 | Stock: Yes
TPD2350CP PC5335 Drill dia. D (mm): 23.5 | W (mm): 21.9 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-23025-69, TPDC5D-23025-115, TPDC8D-23025-184 | Wrench: TPDC-W23 | Stock: Yes
TPD2400CP PC5335 Drill dia. D (mm): 24.0 | W (mm): 22.9 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-24032-72, TPDC5D-24032-120, TPDC8D-24032-192 | Wrench: TPDC-W24 | Stock: Yes
TPD2450CP PC5335 Drill dia. D (mm): 24.5 | W (mm): 22.9 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-24032-72, TPDC5D-24032-120, TPDC8D-24032-192 | Wrench: TPDC-W24 | Stock: Yes
TPD2500CP PC5335 Drill dia. D (mm): 25.0 | W (mm): 25.5 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-25032-75, TPDC5D-25032-125, TPDC8D-25032-200 | Wrench: TPDC-W25 | Stock: Yes
TPD2530CP PC5335 Drill dia. D (mm): 25.3 | W (mm): 25.5 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-25032-75, TPDC5D-25032-125, TPDC8D-25032-200 | Wrench: TPDC-W25 | Stock: Yes
TPD2550CP PC5335 Drill dia. D (mm): 25.5 | W (mm): 25.5 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-25032-75, TPDC5D-25032-125, TPDC8D-25032-200 | Wrench: TPDC-W25 | Stock: Yes
TPD2580CP PC5335 Drill dia. D (mm): 25.8 | W (mm): 25.5 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-25032-75, TPDC5D-25032-125, TPDC8D-25032-200 | Wrench: TPDC-W25 | Stock: Yes
TPD2590CP PC5335 Drill dia. D (mm): 25.9 | W (mm): 25.5 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-25032-75, TPDC5D-25032-125, TPDC8D-25032-200 | Wrench: TPDC-W25 | Stock: Yes
TPD2600CP PC5335 Drill dia. D (mm): 26.0 | W (mm): 24.9 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-26032-78, TPDC5D-26032-130, TPDC8D-26032-208 | Wrench: TPDC-W26 | Stock: Yes
TPD2650CP PC5335 Drill dia. D (mm): 26.5 | W (mm): 24.9 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-26032-78, TPDC5D-26032-130, TPDC8D-26032-208 | Wrench: TPDC-W26 | Stock: Yes
TPD2700CP PC5335 Drill dia. D (mm): 27.0 | W (mm): 25.9 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-27032-81, TPDC5D-27032-135, TPDC8D-27032-216 | Wrench: TPDC-W27 | Stock: Yes
TPD2750CP PC5335 Drill dia. D (mm): 27.5 | W (mm): 25.9 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-27032-81, TPDC5D-27032-135, TPDC8D-27032-216 | Wrench: TPDC-W27 | Stock: Yes
TPD2800CP PC5335 Drill dia. D (mm): 28.0 | W (mm): 26.9 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-28032-84, TPDC5D-28032-140, TPDC8D-28032-224 | Wrench: TPDC-W28 | Stock: Yes
TPD2850CP PC5335 Drill dia. D (mm): 28.5 | W (mm): 26.9 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-28032-84, TPDC5D-28032-140, TPDC8D-28032-224 | Wrench: TPDC-W28 | Stock: Yes
TPD2900CP PC5335 Drill dia. D (mm): 29.0 | W (mm): 27.9 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-29032-87, TPDC5D-29032-145, TPDC8D-29032-232 | Wrench: TPDC-W29 | Stock: Yes
TPD2950CP PC5335 Drill dia. D (mm): 29.5 | W (mm): 27.9 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-29032-87, TPDC5D-29032-145, TPDC8D-29032-232 | Wrench: TPDC-W29 | Stock: Yes
TPD3000CP PC5335 Drill dia. D (mm): 30.0 | W (mm): 28.9 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-30032-90, TPDC5D-30032-150, TPDC8D-30032-240 | Wrench: TPDC-W30 | Stock: Yes
TPD3050CP PC5335 Drill dia. D (mm): 30.5 | W (mm): 28.9 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-30032-90, TPDC5D-30032-150, TPDC8D-30032-240 | Wrench: TPDC-W30 | Stock: Yes
Drill InsertsKorloy
55 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy TPDC Drill Head Insert TPD CP

Brand Korloy·Drill Inserts

Available part numbers (55)

TPD1200CP PC5335, TPD1220CP PC5335, TPD1250CP PC5335, TPD1260CP PC5335, TPD1300CP PC5335, TPD1350CP PC5335, TPD1400CP PC5335, TPD1420CP PC5335, TPD1430CP PC5335, TPD1450CP PC5335 + 45 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TPD1200CP PC5335Drill dia. D (mm): 12.0 | W (mm): 11.4 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-12016-36, TPDC5D-12016-60, TPDC8D-12016-96 | Wrench: TPDC-W12 | Stock: Yes
TPD1220CP PC5335Drill dia. D (mm): 12.2 | W (mm): 11.4 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-12016-36, TPDC5D-12016-60, TPDC8D-12016-96 | Wrench: TPDC-W12 | Stock: Yes
TPD1250CP PC5335Drill dia. D (mm): 12.5 | W (mm): 11.4 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-12516-38, TPDC5D-12516-63, TPDC8D-12516-100 | Wrench: TPDC-W12 | Stock: Yes
TPD1260CP PC5335Drill dia. D (mm): 12.6 | W (mm): 11.4 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-12516-38, TPDC5D-12516-63, TPDC8D-12516-100 | Wrench: TPDC-W12 | Stock: Yes
TPD1300CP PC5335Drill dia. D (mm): 13.0 | W (mm): 12.3 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-13016-39, TPDC5D-13016-65, TPDC8D-13016-104 | Wrench: TPDC-W13 | Stock: Yes
TPD1350CP PC5335Drill dia. D (mm): 13.5 | W (mm): 12.3 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-13516-41, TPDC5D-13516-68, TPDC8D-13516-108 | Wrench: TPDC-W13 | Stock: Yes
TPD1400CP PC5335Drill dia. D (mm): 14.0 | W (mm): 13.4 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-14016-42, TPDC5D-14016-70, TPDC8D-14016-112 | Wrench: TPDC-W14 | Stock: Yes
TPD1420CP PC5335Drill dia. D (mm): 14.2 | W (mm): 13.4 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-14016-42, TPDC5D-14016-70, TPDC8D-14016-112 | Wrench: TPDC-W14 | Stock: Yes
TPD1430CP PC5335Drill dia. D (mm): 14.3 | W (mm): 13.4 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-14016-42, TPDC5D-14016-70, TPDC8D-14016-112 | Wrench: TPDC-W14 | Stock: Yes
TPD1450CP PC5335Drill dia. D (mm): 14.5 | W (mm): 13.4 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-14516-44, TPDC5D-14516-73, TPDC8D-14516-116 | Wrench: TPDC-W14 | Stock: Yes
TPD1500CP PC5335Drill dia. D (mm): 15.0 | W (mm): 14.3 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-15020-45, TPDC5D-15020-75, TPDC8D-15020-120 | Wrench: TPDC-W15 | Stock: Yes
TPD1550CP PC5335Drill dia. D (mm): 15.5 | W (mm): 14.3 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-15020-45, TPDC5D-15020-75, TPDC8D-15020-120 | Wrench: TPDC-W15 | Stock: Yes
TPD1600CP PC5335Drill dia. D (mm): 16.0 | W (mm): 15.3 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-16020-48, TPDC5D-16020-80, TPDC8D-16020-128 | Wrench: TPDC-W16 | Stock: Yes
TPD1630CP PC5335Drill dia. D (mm): 16.3 | W (mm): 15.3 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-16020-48, TPDC5D-16020-80, TPDC8D-16020-128 | Wrench: TPDC-W16 | Stock: Yes
TPD1650CP PC5335Drill dia. D (mm): 16.5 | W (mm): 15.3 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-16020-48, TPDC5D-16020-80, TPDC8D-16020-128 | Wrench: TPDC-W16 | Stock: Yes
TPD1670CP PC5335Drill dia. D (mm): 16.7 | W (mm): 15.3 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-16020-48, TPDC5D-16020-80, TPDC8D-16020-128 | Wrench: TPDC-W16 | Stock: Yes
TPD1700CP PC5335Drill dia. D (mm): 17.0 | W (mm): 17.5 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-17020-51, TPDC5D-17020-85, TPDC8D-17020-136 | Wrench: TPDC-W17 | Stock: Yes
TPD1750CP PC5335Drill dia. D (mm): 17.5 | W (mm): 17.5 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-17020-51, TPDC5D-17020-85, TPDC8D-17020-136 | Wrench: TPDC-W17 | Stock: Yes
TPD1770CP PC5335Drill dia. D (mm): 17.7 | W (mm): 17.5 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-17020-51, TPDC5D-17020-85, TPDC8D-17020-136 | Wrench: TPDC-W17 | Stock: Yes
TPD1800CP PC5335Drill dia. D (mm): 18.0 | W (mm): 18.5 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-18025-54, TPDC5D-18025-90, TPDC8D-18025-144 | Wrench: TPDC-W18 | Stock: Yes
TPD1810CP PC5335Drill dia. D (mm): 18.1 | W (mm): 18.5 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-18025-54, TPDC5D-18025-90, TPDC8D-18025-144 | Wrench: TPDC-W18 | Stock: Yes
TPD1850CP PC5335Drill dia. D (mm): 18.5 | W (mm): 18.5 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-18025-54, TPDC5D-18025-90, TPDC8D-18025-144 | Wrench: TPDC-W18 | Stock: Yes
TPD1860CP PC5335Drill dia. D (mm): 18.6 | W (mm): 18.5 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-18025-54, TPDC5D-18025-90, TPDC8D-18025-144 | Wrench: TPDC-W18 | Stock: Yes
TPD1870CP PC5335Drill dia. D (mm): 18.7 | W (mm): 18.5 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-18025-54, TPDC5D-18025-90, TPDC8D-18025-144 | Wrench: TPDC-W18 | Stock: Yes
TPD1900CP PC5335Drill dia. D (mm): 19.0 | W (mm): 18.3 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-19025-57, TPDC5D-19025-95, TPDC8D-19025-152 | Wrench: TPDC-W19 | Stock: Yes
TPD1920CP PC5335Drill dia. D (mm): 19.2 | W (mm): 18.3 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-19025-57, TPDC5D-19025-95, TPDC8D-19025-152 | Wrench: TPDC-W19 | Stock: Yes
TPD1950CP PC5335Drill dia. D (mm): 19.5 | W (mm): 18.3 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-19025-57, TPDC5D-19025-95, TPDC8D-19025-152 | Wrench: TPDC-W19 | Stock: Yes
TPD1970CP PC5335Drill dia. D (mm): 19.7 | W (mm): 18.3 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-19025-57, TPDC5D-19025-95, TPDC8D-19025-152 | Wrench: TPDC-W19 | Stock: Yes
TPD2000CP PC5335Drill dia. D (mm): 20.0 | W (mm): 19.2 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-20025-60, TPDC5D-20025-100, TPDC8D-20025-160 | Wrench: TPDC-W20 | Stock: Yes
TPD2050CP PC5335Drill dia. D (mm): 20.5 | W (mm): 19.2 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-20025-60, TPDC5D-20025-100, TPDC8D-20025-160 | Wrench: TPDC-W20 | Stock: Yes
TPD2100CP PC5335Drill dia. D (mm): 21.0 | W (mm): 20.1 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-21025-63, TPDC5D-21025-105, TPDC8D-21025-168 | Wrench: TPDC-W21 | Stock: Yes
TPD2150CP PC5335Drill dia. D (mm): 21.5 | W (mm): 20.1 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-21025-63, TPDC5D-21025-105, TPDC8D-21025-168 | Wrench: TPDC-W21 | Stock: Yes
TPD2200CP PC5335Drill dia. D (mm): 22.0 | W (mm): 21 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-22025-66, TPDC5D-22025-110, TPDC8D-22025-176 | Wrench: TPDC-W22 | Stock: Yes
TPD2250CP PC5335Drill dia. D (mm): 22.5 | W (mm): 21 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-22025-66, TPDC5D-22025-110, TPDC8D-22025-176 | Wrench: TPDC-W22 | Stock: Yes
TPD2260CP PC5335Drill dia. D (mm): 22.6 | W (mm): 21 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-22025-66, TPDC5D-22025-110, TPDC8D-22025-176 | Wrench: TPDC-W22 | Stock: Yes
TPD2270CP PC5335Drill dia. D (mm): 22.7 | W (mm): 21 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-22025-66, TPDC5D-22025-110, TPDC8D-22025-176 | Wrench: TPDC-W22 | Stock: Yes
TPD2300CP PC5335Drill dia. D (mm): 23.0 | W (mm): 21.9 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-23025-69, TPDC5D-23025-115, TPDC8D-23025-184 | Wrench: TPDC-W23 | Stock: Yes
TPD2350CP PC5335Drill dia. D (mm): 23.5 | W (mm): 21.9 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-23025-69, TPDC5D-23025-115, TPDC8D-23025-184 | Wrench: TPDC-W23 | Stock: Yes
TPD2400CP PC5335Drill dia. D (mm): 24.0 | W (mm): 22.9 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-24032-72, TPDC5D-24032-120, TPDC8D-24032-192 | Wrench: TPDC-W24 | Stock: Yes
TPD2450CP PC5335Drill dia. D (mm): 24.5 | W (mm): 22.9 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-24032-72, TPDC5D-24032-120, TPDC8D-24032-192 | Wrench: TPDC-W24 | Stock: Yes
TPD2500CP PC5335Drill dia. D (mm): 25.0 | W (mm): 25.5 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-25032-75, TPDC5D-25032-125, TPDC8D-25032-200 | Wrench: TPDC-W25 | Stock: Yes
TPD2530CP PC5335Drill dia. D (mm): 25.3 | W (mm): 25.5 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-25032-75, TPDC5D-25032-125, TPDC8D-25032-200 | Wrench: TPDC-W25 | Stock: Yes
TPD2550CP PC5335Drill dia. D (mm): 25.5 | W (mm): 25.5 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-25032-75, TPDC5D-25032-125, TPDC8D-25032-200 | Wrench: TPDC-W25 | Stock: Yes
TPD2580CP PC5335Drill dia. D (mm): 25.8 | W (mm): 25.5 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-25032-75, TPDC5D-25032-125, TPDC8D-25032-200 | Wrench: TPDC-W25 | Stock: Yes
TPD2590CP PC5335Drill dia. D (mm): 25.9 | W (mm): 25.5 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-25032-75, TPDC5D-25032-125, TPDC8D-25032-200 | Wrench: TPDC-W25 | Stock: Yes
TPD2600CP PC5335Drill dia. D (mm): 26.0 | W (mm): 24.9 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-26032-78, TPDC5D-26032-130, TPDC8D-26032-208 | Wrench: TPDC-W26 | Stock: Yes
TPD2650CP PC5335Drill dia. D (mm): 26.5 | W (mm): 24.9 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-26032-78, TPDC5D-26032-130, TPDC8D-26032-208 | Wrench: TPDC-W26 | Stock: Yes
TPD2700CP PC5335Drill dia. D (mm): 27.0 | W (mm): 25.9 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-27032-81, TPDC5D-27032-135, TPDC8D-27032-216 | Wrench: TPDC-W27 | Stock: Yes
TPD2750CP PC5335Drill dia. D (mm): 27.5 | W (mm): 25.9 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-27032-81, TPDC5D-27032-135, TPDC8D-27032-216 | Wrench: TPDC-W27 | Stock: Yes
TPD2800CP PC5335Drill dia. D (mm): 28.0 | W (mm): 26.9 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-28032-84, TPDC5D-28032-140, TPDC8D-28032-224 | Wrench: TPDC-W28 | Stock: Yes
TPD2850CP PC5335Drill dia. D (mm): 28.5 | W (mm): 26.9 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-28032-84, TPDC5D-28032-140, TPDC8D-28032-224 | Wrench: TPDC-W28 | Stock: Yes
TPD2900CP PC5335Drill dia. D (mm): 29.0 | W (mm): 27.9 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-29032-87, TPDC5D-29032-145, TPDC8D-29032-232 | Wrench: TPDC-W29 | Stock: Yes
TPD2950CP PC5335Drill dia. D (mm): 29.5 | W (mm): 27.9 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-29032-87, TPDC5D-29032-145, TPDC8D-29032-232 | Wrench: TPDC-W29 | Stock: Yes
TPD3000CP PC5335Drill dia. D (mm): 30.0 | W (mm): 28.9 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-30032-90, TPDC5D-30032-150, TPDC8D-30032-240 | Wrench: TPDC-W30 | Stock: Yes
TPD3050CP PC5335Drill dia. D (mm): 30.5 | W (mm): 28.9 | Grade: PC5335 | Chip breaker: CP (steel) | Holders: TPDC3D-30032-90, TPDC5D-30032-150, TPDC8D-30032-240 | Wrench: TPDC-W30 | Stock: Yes
