• Korloy U-Star 2 Flute Ball End Mill UB502
1 1

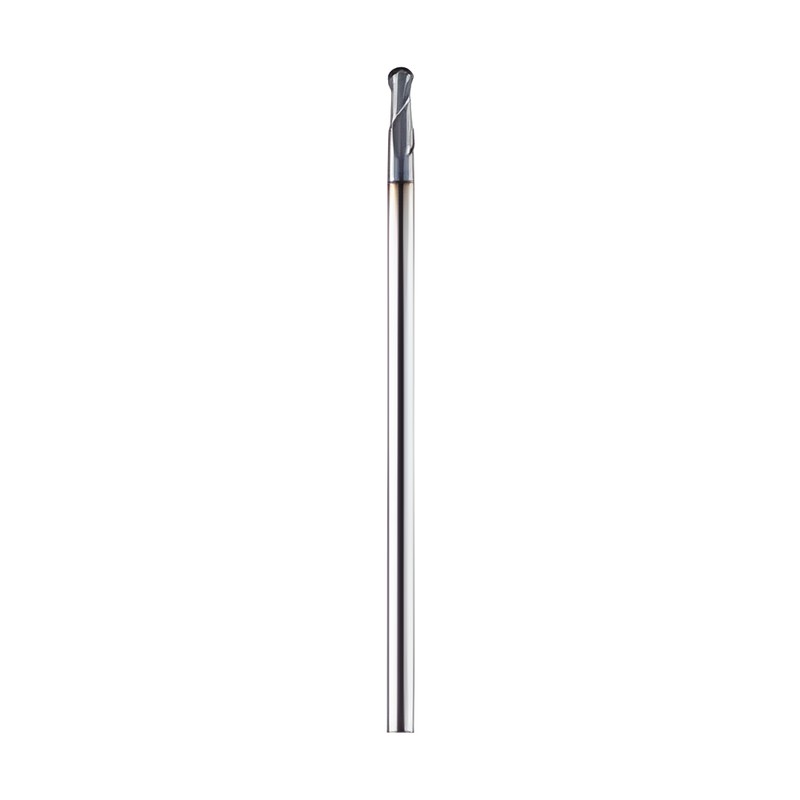

Korloy U-Star 2 Flute Ball End Mill UB502

Korloy U-Star 2 Flute Ball End Mill UB502

Solid carbide end mill of the U-Star series for mold and die machining of HRC30~50 medium hardness steel and die steel.

Key features

  • Carbide substrate for medium hardness steel cutting
  • AlCrN based multilayer coating for wear and oxidation resistance
  • S-curved gash shape disperses cutting force
  • Helix angle 30°
  • Radius tolerance ±0.01; ±0.005 (Corner R)
  • h5 shank tolerance

Specifications

Series line U-Star End Mill
Flutes 2
Coating AlCrN
Helix angle 30°
ØD tolerance Ø0.1~Ø6: 0~-0.012mm; Ø6.5~Ø25: 0~-0.015mm
Shank tolerance h5
Radius tolerance ±0.01; ±0.005 (Corner R)
Workpiece (excellent) Alloy steel HB225~325, Pre-hardened steel HRC30~50
Workpiece (good) Carbon steel ~ HB225, Hardened steel SKD61~HRC55, Cast iron ~FCD500
UB502001S R (mm): 0.05 | ØD (mm): 0.1 | Ød (mm): 4 | ℓ (mm): 0.1 | L (mm): 40
UB502001 R (mm): 0.05 | ØD (mm): 0.1 | Ød (mm): 4 | ℓ (mm): 0.2 | L (mm): 40
UB502001S3 R (mm): 0.05 | ØD (mm): 0.1 | Ød (mm): 3 | ℓ (mm): 0.2 | L (mm): 40
UB5020015S R (mm): 0.075 | ØD (mm): 0.15 | Ød (mm): 4 | ℓ (mm): 0.15 | L (mm): 40
UB5020015 R (mm): 0.075 | ØD (mm): 0.15 | Ød (mm): 4 | ℓ (mm): 0.3 | L (mm): 40
UB5020015S3 R (mm): 0.075 | ØD (mm): 0.15 | Ød (mm): 3 | ℓ (mm): 0.3 | L (mm): 40
UB502002S R (mm): 0.1 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ (mm): 0.2 | L (mm): 40
UB502002 R (mm): 0.1 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ (mm): 0.4 | L (mm): 40
UB502002S3 R (mm): 0.1 | ØD (mm): 0.2 | Ød (mm): 3 | ℓ (mm): 0.4 | L (mm): 40
UB502003S R (mm): 0.15 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ (mm): 0.3 | L (mm): 40
UB502003 R (mm): 0.15 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ (mm): 0.6 | L (mm): 40
UB502003S3 R (mm): 0.15 | ØD (mm): 0.3 | Ød (mm): 3 | ℓ (mm): 0.6 | L (mm): 40
UB502004S R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ (mm): 0.4 | L (mm): 40
UB502004 R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ (mm): 0.8 | L (mm): 40
UB502004S3 R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 3 | ℓ (mm): 0.8 | L (mm): 40
UB502005S R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ (mm): 0.5 | L (mm): 40
UB502005 R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ (mm): 1 | L (mm): 40
UB502005S3 R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 3 | ℓ (mm): 1 | L (mm): 40
UB502006S R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 0.6 | L (mm): 40
UB502006 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 1.2 | L (mm): 40
UB502006S3 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 3 | ℓ (mm): 1.2 | L (mm): 40
UB502007S R (mm): 0.35 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 0.7 | L (mm): 40
UB502007 R (mm): 0.35 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 1.4 | L (mm): 40
UB502007S3 R (mm): 0.35 | ØD (mm): 0.7 | Ød (mm): 3 | ℓ (mm): 1.4 | L (mm): 40
UB502008S R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 0.8 | L (mm): 40
UB502008 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 1.6 | L (mm): 40
UB502008S3 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 3 | ℓ (mm): 1.6 | L (mm): 40
UB502009S R (mm): 0.45 | ØD (mm): 0.9 | Ød (mm): 4 | ℓ (mm): 0.9 | L (mm): 40
UB502009 R (mm): 0.45 | ØD (mm): 0.9 | Ød (mm): 4 | ℓ (mm): 1.8 | L (mm): 40
UB502009S3 R (mm): 0.45 | ØD (mm): 0.9 | Ød (mm): 3 | ℓ (mm): 1.8 | L (mm): 40
UB502010S R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 1.5 | L (mm): 40
UB502010S3 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 3 | ℓ (mm): 2.5 | L (mm): 50
UB502010S4 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 2.5 | L (mm): 50
UB502010 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 50
UB502010070 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 70
UB502010100 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 100
UB502012S R (mm): 0.6 | ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 2 | L (mm): 40
UB502012S3 R (mm): 0.6 | ØD (mm): 1.2 | Ød (mm): 3 | ℓ (mm): 3 | L (mm): 50
UB502012S4 R (mm): 0.6 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 3 | L (mm): 50
UB502012 R (mm): 0.6 | ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 50
UB502012070 R (mm): 0.6 | ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 70
UB502012100 R (mm): 0.6 | ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 100
UB502015S R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 40
UB502015S3 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 3 | ℓ (mm): 4 | L (mm): 50
UB502015S4 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 4 | L (mm): 50
UB502015 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UB502015070 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 70
UB502015100 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 100
UB502020S R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 40
UB502020S3 R (mm): 1 | ØD (mm): 2 | Ød (mm): 3 | ℓ (mm): 5 | L (mm): 50
UB502020S4 R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 5 | L (mm): 50
UB502020 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 5 | L (mm): 50
UB502020080 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 5 | L (mm): 80
UB502020100 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 5 | L (mm): 100
UB502025S R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 40
UB502025S3 R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 3 | ℓ (mm): 6 | L (mm): 60
UB502025S4 R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 6 | L (mm): 60
UB502025 R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 60
UB502025080 R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 80
UB502025100 R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 100
UB502030S R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 4.5 | L (mm): 40
UB502030S3 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 3 | ℓ (mm): 6 | L (mm): 60
UB502030S4 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 4 | ℓ (mm): 6 | L (mm): 60
UB502030 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 60
UB502030080 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 80
UB502030100 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 100
UB502035 R (mm): 1.75 | ØD (mm): 3.5 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 70
UB502040S R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UB502040S4 R (mm): 2 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 8 | L (mm): 70
UB502040 R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 70
UB502040100S4 R (mm): 2 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 8 | L (mm): 100
UB502040120S4 R (mm): 2 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 8 | L (mm): 120
UB502040100 R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 100
UB502040120 R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 120
UB502045 R (mm): 2.25 | ØD (mm): 4.5 | Ød (mm): 6 | ℓ (mm): 9 | L (mm): 80
UB502050S R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 7.5 | L (mm): 60
UB502050 R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 80
UB502050S5 R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 5 | ℓ (mm): 10 | L (mm): 80
UB502055 R (mm): 2.75 | ØD (mm): 5.5 | Ød (mm): 6 | ℓ (mm): 11 | L (mm): 90
UB502060S R (mm): 3 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 9 | L (mm): 50
UB502060060 R (mm): 3 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 9 | L (mm): 60
UB502060080 R (mm): 3 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 9 | L (mm): 80
UB502060 R (mm): 3 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 90
UB502060110 R (mm): 3 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 110
UB502060130 R (mm): 3 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 130
UB502060150 R (mm): 3 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 150
UB502065 R (mm): 3.25 | ØD (mm): 6.5 | Ød (mm): 8 | ℓ (mm): 13 | L (mm): 90
UB502070 R (mm): 3.5 | ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 14 | L (mm): 90
UB502080S R (mm): 4 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 12 | L (mm): 50
UB502080060 R (mm): 4 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 12 | L (mm): 60
UB502080080 R (mm): 4 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 12 | L (mm): 80
UB502080090 R (mm): 4 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 12 | L (mm): 90
UB502080 R (mm): 4 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 14 | L (mm): 100
UB502080130 R (mm): 4 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 14 | L (mm): 130
UB502080150 R (mm): 4 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 14 | L (mm): 150
UB502085 R (mm): 4.25 | ØD (mm): 8.5 | Ød (mm): 10 | ℓ (mm): 16 | L (mm): 100
UB502090 R (mm): 4.5 | ØD (mm): 9 | Ød (mm): 10 | ℓ (mm): 18 | L (mm): 100
UB502100S R (mm): 5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 15 | L (mm): 50
UB502100060 R (mm): 5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 15 | L (mm): 60
UB502100080 R (mm): 5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 15 | L (mm): 80
UB502100090 R (mm): 5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 15 | L (mm): 90
UB502100 R (mm): 5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 18 | L (mm): 100
UB502100130 R (mm): 5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 18 | L (mm): 130
UB502100150 R (mm): 5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 18 | L (mm): 150
UB502100180 R (mm): 5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 18 | L (mm): 180
UB502100200 R (mm): 5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 18 | L (mm): 200
UB502110 R (mm): 5.5 | ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 20 | L (mm): 100
UB502120S R (mm): 6 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 18 | L (mm): 60
UB502120080 R (mm): 6 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 18 | L (mm): 80
UB502120090 R (mm): 6 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 18 | L (mm): 90
UB502120100 R (mm): 6 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 18 | L (mm): 100
UB502120 R (mm): 6 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 24 | L (mm): 110
UB502120130 R (mm): 6 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 24 | L (mm): 130
UB502120150 R (mm): 6 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 24 | L (mm): 150
UB502120180 R (mm): 6 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 24 | L (mm): 180
UB502120200 R (mm): 6 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 24 | L (mm): 200
UB502130 R (mm): 6.5 | ØD (mm): 13 | Ød (mm): 12 | ℓ (mm): 24 | L (mm): 100
UB502140S12 R (mm): 7 | ØD (mm): 14 | Ød (mm): 12 | ℓ (mm): 26 | L (mm): 100
UB502140 R (mm): 7 | ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 26 | L (mm): 100
UB502140S16 R (mm): 7 | ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 26 | L (mm): 100
UB502150 R (mm): 7.5 | ØD (mm): 15 | Ød (mm): 16 | ℓ (mm): 28 | L (mm): 140
UB502160100 R (mm): 8 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 24 | L (mm): 100
UB502160130 R (mm): 8 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 24 | L (mm): 130
UB502160 R (mm): 8 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 30 | L (mm): 150
UB502160180 R (mm): 8 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 30 | L (mm): 180
UB502160200 R (mm): 8 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 30 | L (mm): 200
UB502180S16 R (mm): 9 | ØD (mm): 18 | Ød (mm): 16 | ℓ (mm): 34 | L (mm): 150
UB502180 R (mm): 9 | ØD (mm): 18 | Ød (mm): 18 | ℓ (mm): 34 | L (mm): 150
UB502200100 R (mm): 10 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 30 | L (mm): 100
UB502200130 R (mm): 10 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 30 | L (mm): 130
UB502200 R (mm): 10 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 38 | L (mm): 150
UB502200200 R (mm): 10 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 38 | L (mm): 200
UB502250120 R (mm): 12.5 | ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 50 | L (mm): 120
UB502250180 R (mm): 12.5 | ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 50 | L (mm): 180
Ball End MillsKorloy
134 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy U-Star 2 Flute Ball End Mill UB502

Brand Korloy·Ball End Mills

Available part numbers (134)

UB502001S, UB502001, UB502001S3, UB5020015S, UB5020015, UB5020015S3, UB502002S, UB502002, UB502002S3, UB502003S + 124 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UB502001SR (mm): 0.05 | ØD (mm): 0.1 | Ød (mm): 4 | ℓ (mm): 0.1 | L (mm): 40
UB502001R (mm): 0.05 | ØD (mm): 0.1 | Ød (mm): 4 | ℓ (mm): 0.2 | L (mm): 40
UB502001S3R (mm): 0.05 | ØD (mm): 0.1 | Ød (mm): 3 | ℓ (mm): 0.2 | L (mm): 40
UB5020015SR (mm): 0.075 | ØD (mm): 0.15 | Ød (mm): 4 | ℓ (mm): 0.15 | L (mm): 40
UB5020015R (mm): 0.075 | ØD (mm): 0.15 | Ød (mm): 4 | ℓ (mm): 0.3 | L (mm): 40
UB5020015S3R (mm): 0.075 | ØD (mm): 0.15 | Ød (mm): 3 | ℓ (mm): 0.3 | L (mm): 40
UB502002SR (mm): 0.1 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ (mm): 0.2 | L (mm): 40
UB502002R (mm): 0.1 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ (mm): 0.4 | L (mm): 40
UB502002S3R (mm): 0.1 | ØD (mm): 0.2 | Ød (mm): 3 | ℓ (mm): 0.4 | L (mm): 40
UB502003SR (mm): 0.15 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ (mm): 0.3 | L (mm): 40
UB502003R (mm): 0.15 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ (mm): 0.6 | L (mm): 40
UB502003S3R (mm): 0.15 | ØD (mm): 0.3 | Ød (mm): 3 | ℓ (mm): 0.6 | L (mm): 40
UB502004SR (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ (mm): 0.4 | L (mm): 40
UB502004R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ (mm): 0.8 | L (mm): 40
UB502004S3R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 3 | ℓ (mm): 0.8 | L (mm): 40
UB502005SR (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ (mm): 0.5 | L (mm): 40
UB502005R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ (mm): 1 | L (mm): 40
UB502005S3R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 3 | ℓ (mm): 1 | L (mm): 40
UB502006SR (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 0.6 | L (mm): 40
UB502006R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 1.2 | L (mm): 40
UB502006S3R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 3 | ℓ (mm): 1.2 | L (mm): 40
UB502007SR (mm): 0.35 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 0.7 | L (mm): 40
UB502007R (mm): 0.35 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 1.4 | L (mm): 40
UB502007S3R (mm): 0.35 | ØD (mm): 0.7 | Ød (mm): 3 | ℓ (mm): 1.4 | L (mm): 40
UB502008SR (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 0.8 | L (mm): 40
UB502008R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 1.6 | L (mm): 40
UB502008S3R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 3 | ℓ (mm): 1.6 | L (mm): 40
UB502009SR (mm): 0.45 | ØD (mm): 0.9 | Ød (mm): 4 | ℓ (mm): 0.9 | L (mm): 40
UB502009R (mm): 0.45 | ØD (mm): 0.9 | Ød (mm): 4 | ℓ (mm): 1.8 | L (mm): 40
UB502009S3R (mm): 0.45 | ØD (mm): 0.9 | Ød (mm): 3 | ℓ (mm): 1.8 | L (mm): 40
UB502010SR (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 1.5 | L (mm): 40
UB502010S3R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 3 | ℓ (mm): 2.5 | L (mm): 50
UB502010S4R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 2.5 | L (mm): 50
UB502010R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 50
UB502010070R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 70
UB502010100R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 100
UB502012SR (mm): 0.6 | ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 2 | L (mm): 40
UB502012S3R (mm): 0.6 | ØD (mm): 1.2 | Ød (mm): 3 | ℓ (mm): 3 | L (mm): 50
UB502012S4R (mm): 0.6 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 3 | L (mm): 50
UB502012R (mm): 0.6 | ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 50
UB502012070R (mm): 0.6 | ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 70
UB502012100R (mm): 0.6 | ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 100
UB502015SR (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 40
UB502015S3R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 3 | ℓ (mm): 4 | L (mm): 50
UB502015S4R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 4 | L (mm): 50
UB502015R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UB502015070R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 70
UB502015100R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 100
UB502020SR (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 40
UB502020S3R (mm): 1 | ØD (mm): 2 | Ød (mm): 3 | ℓ (mm): 5 | L (mm): 50
UB502020S4R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 5 | L (mm): 50
UB502020R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 5 | L (mm): 50
UB502020080R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 5 | L (mm): 80
UB502020100R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 5 | L (mm): 100
UB502025SR (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 40
UB502025S3R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 3 | ℓ (mm): 6 | L (mm): 60
UB502025S4R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 6 | L (mm): 60
UB502025R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 60
UB502025080R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 80
UB502025100R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 100
UB502030SR (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 4.5 | L (mm): 40
UB502030S3R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 3 | ℓ (mm): 6 | L (mm): 60
UB502030S4R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 4 | ℓ (mm): 6 | L (mm): 60
UB502030R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 60
UB502030080R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 80
UB502030100R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 100
UB502035R (mm): 1.75 | ØD (mm): 3.5 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 70
UB502040SR (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UB502040S4R (mm): 2 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 8 | L (mm): 70
UB502040R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 70
UB502040100S4R (mm): 2 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 8 | L (mm): 100
UB502040120S4R (mm): 2 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 8 | L (mm): 120
UB502040100R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 100
UB502040120R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 120
UB502045R (mm): 2.25 | ØD (mm): 4.5 | Ød (mm): 6 | ℓ (mm): 9 | L (mm): 80
UB502050SR (mm): 2.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 7.5 | L (mm): 60
UB502050R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 80
UB502050S5R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 5 | ℓ (mm): 10 | L (mm): 80
UB502055R (mm): 2.75 | ØD (mm): 5.5 | Ød (mm): 6 | ℓ (mm): 11 | L (mm): 90
UB502060SR (mm): 3 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 9 | L (mm): 50
UB502060060R (mm): 3 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 9 | L (mm): 60
UB502060080R (mm): 3 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 9 | L (mm): 80
UB502060R (mm): 3 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 90
UB502060110R (mm): 3 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 110
UB502060130R (mm): 3 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 130
UB502060150R (mm): 3 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 150
UB502065R (mm): 3.25 | ØD (mm): 6.5 | Ød (mm): 8 | ℓ (mm): 13 | L (mm): 90
UB502070R (mm): 3.5 | ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 14 | L (mm): 90
UB502080SR (mm): 4 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 12 | L (mm): 50
UB502080060R (mm): 4 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 12 | L (mm): 60
UB502080080R (mm): 4 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 12 | L (mm): 80
UB502080090R (mm): 4 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 12 | L (mm): 90
UB502080R (mm): 4 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 14 | L (mm): 100
UB502080130R (mm): 4 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 14 | L (mm): 130
UB502080150R (mm): 4 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 14 | L (mm): 150
UB502085R (mm): 4.25 | ØD (mm): 8.5 | Ød (mm): 10 | ℓ (mm): 16 | L (mm): 100
UB502090R (mm): 4.5 | ØD (mm): 9 | Ød (mm): 10 | ℓ (mm): 18 | L (mm): 100
UB502100SR (mm): 5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 15 | L (mm): 50
UB502100060R (mm): 5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 15 | L (mm): 60
UB502100080R (mm): 5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 15 | L (mm): 80
UB502100090R (mm): 5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 15 | L (mm): 90
UB502100R (mm): 5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 18 | L (mm): 100
UB502100130R (mm): 5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 18 | L (mm): 130
UB502100150R (mm): 5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 18 | L (mm): 150
UB502100180R (mm): 5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 18 | L (mm): 180
UB502100200R (mm): 5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 18 | L (mm): 200
UB502110R (mm): 5.5 | ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 20 | L (mm): 100
UB502120SR (mm): 6 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 18 | L (mm): 60
UB502120080R (mm): 6 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 18 | L (mm): 80
UB502120090R (mm): 6 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 18 | L (mm): 90
UB502120100R (mm): 6 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 18 | L (mm): 100
UB502120R (mm): 6 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 24 | L (mm): 110
UB502120130R (mm): 6 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 24 | L (mm): 130
UB502120150R (mm): 6 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 24 | L (mm): 150
UB502120180R (mm): 6 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 24 | L (mm): 180
UB502120200R (mm): 6 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 24 | L (mm): 200
UB502130R (mm): 6.5 | ØD (mm): 13 | Ød (mm): 12 | ℓ (mm): 24 | L (mm): 100
UB502140S12R (mm): 7 | ØD (mm): 14 | Ød (mm): 12 | ℓ (mm): 26 | L (mm): 100
UB502140R (mm): 7 | ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 26 | L (mm): 100
UB502140S16R (mm): 7 | ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 26 | L (mm): 100
UB502150R (mm): 7.5 | ØD (mm): 15 | Ød (mm): 16 | ℓ (mm): 28 | L (mm): 140
UB502160100R (mm): 8 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 24 | L (mm): 100
UB502160130R (mm): 8 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 24 | L (mm): 130
UB502160R (mm): 8 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 30 | L (mm): 150
UB502160180R (mm): 8 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 30 | L (mm): 180
UB502160200R (mm): 8 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 30 | L (mm): 200
UB502180S16R (mm): 9 | ØD (mm): 18 | Ød (mm): 16 | ℓ (mm): 34 | L (mm): 150
UB502180R (mm): 9 | ØD (mm): 18 | Ød (mm): 18 | ℓ (mm): 34 | L (mm): 150
UB502200100R (mm): 10 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 30 | L (mm): 100
UB502200130R (mm): 10 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 30 | L (mm): 130
UB502200R (mm): 10 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 38 | L (mm): 150
UB502200200R (mm): 10 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 38 | L (mm): 200
UB502250120R (mm): 12.5 | ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 50 | L (mm): 120
UB502250180R (mm): 12.5 | ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 50 | L (mm): 180

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
