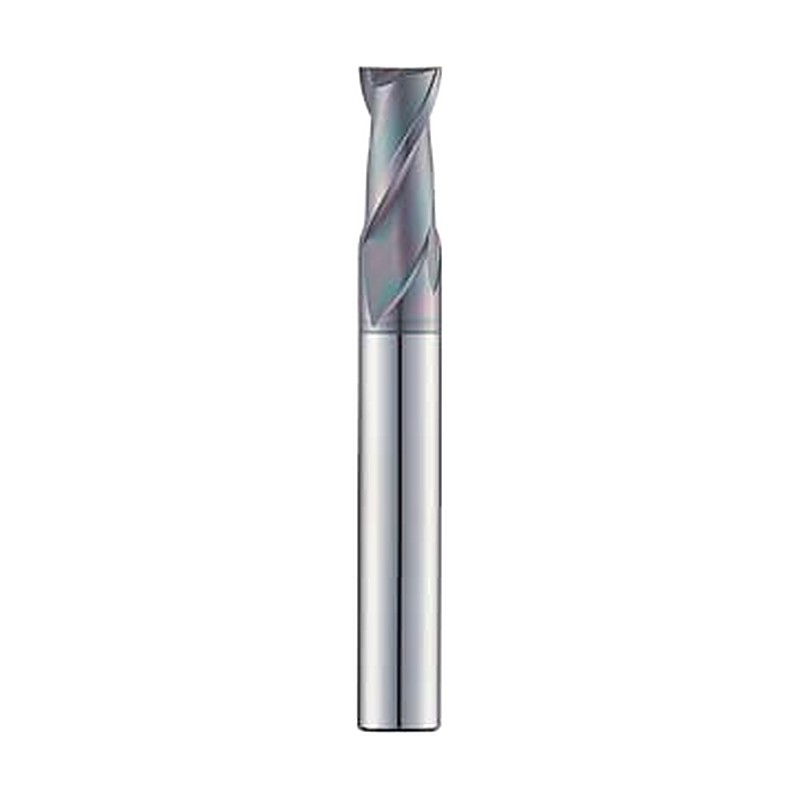

Korloy U-Star 2 Flute Flat End Mill for Heavy Cuts UXE502

Korloy U-Star 2 Flute Flat End Mill for Heavy Cuts UXE502

Solid carbide end mill of the U-Star series for mold and die machining of HRC30~50 medium hardness steel and die steel.

Key features

  • Carbide substrate for medium hardness steel cutting
  • AlCrN based multilayer coating for wear and oxidation resistance
  • S-curved gash shape disperses cutting force
  • Helix angle 30°
  • h5 shank tolerance

Specifications

Series line U-Star End Mill
Flutes 2
Coating AlCrN
Helix angle 30°
ØD tolerance Ø0.1~Ø7: 0~-0.012mm; Ø8~Ø20: 0~-0.015mm
Shank tolerance h5
Workpiece (excellent) Alloy steel HB225~325, Pre-hardened steel HRC30~50
Workpiece (good) Hardened steel SKD61~HRC55, Cast iron ~FCD500
UXE502001001 ØD (mm): 0.1 | Ød (mm): 4 | ℓ (mm): 0.1 | L (mm): 40
UXE502001 ØD (mm): 0.1 | Ød (mm): 4 | ℓ (mm): 0.2 | L (mm): 40
UXE502001003 ØD (mm): 0.1 | Ød (mm): 4 | ℓ (mm): 0.3 | L (mm): 40
UXE502002002 ØD (mm): 0.2 | Ød (mm): 4 | ℓ (mm): 0.2 | L (mm): 40
UXE502002 ØD (mm): 0.2 | Ød (mm): 4 | ℓ (mm): 0.4 | L (mm): 40
UXE502002006 ØD (mm): 0.2 | Ød (mm): 4 | ℓ (mm): 0.6 | L (mm): 40
UXE502003003 ØD (mm): 0.3 | Ød (mm): 4 | ℓ (mm): 0.3 | L (mm): 40
UXE502003 ØD (mm): 0.3 | Ød (mm): 4 | ℓ (mm): 0.6 | L (mm): 40
UXE502003009 ØD (mm): 0.3 | Ød (mm): 4 | ℓ (mm): 0.9 | L (mm): 40
UXE502004004 ØD (mm): 0.4 | Ød (mm): 4 | ℓ (mm): 0.4 | L (mm): 40
UXE502004 ØD (mm): 0.4 | Ød (mm): 4 | ℓ (mm): 0.8 | L (mm): 40
UXE502004012 ØD (mm): 0.4 | Ød (mm): 4 | ℓ (mm): 1.2 | L (mm): 40
UXE502005005 ØD (mm): 0.5 | Ød (mm): 4 | ℓ (mm): 0.5 | L (mm): 40
UXE502005 ØD (mm): 0.5 | Ød (mm): 4 | ℓ (mm): 1 | L (mm): 40
UXE502005015 ØD (mm): 0.5 | Ød (mm): 4 | ℓ (mm): 1.5 | L (mm): 40
UXE502006006 ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 0.6 | L (mm): 40
UXE502006 ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 1.2 | L (mm): 40
UXE502006018 ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 1.8 | L (mm): 40
UXE502007007 ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 0.7 | L (mm): 40
UXE502007 ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 1.4 | L (mm): 40
UXE502007021 ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 2.1 | L (mm): 40
UXE502008008 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 0.8 | L (mm): 40
UXE502008 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 1.6 | L (mm): 40
UXE502008024 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 2.4 | L (mm): 40
UXE502009009 ØD (mm): 0.9 | Ød (mm): 4 | ℓ (mm): 0.9 | L (mm): 40
UXE502009 ØD (mm): 0.9 | Ød (mm): 4 | ℓ (mm): 1.8 | L (mm): 40
UXE502009027 ØD (mm): 0.9 | Ød (mm): 4 | ℓ (mm): 2.7 | L (mm): 40
UXE50201001 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 1 | L (mm): 40
UXE50201002 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2 | L (mm): 40
UXE502010 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 50
UXE50201003 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 50
UXE50201004 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UXE50201006 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UXE50201202 ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 2 | L (mm): 40
UXE502012 ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 50
UXE50201204 ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UXE50201206 ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UXE502015015 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 1.5 | L (mm): 40
UXE50201503 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 40
UXE502015 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UXE50201506 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UXE50201508 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 50
UXE50201510 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 50
UXE50202002 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 2 | L (mm): 40
UXE50202004 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 40
UXE502020 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UXE50202008 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 50
UXE50202010 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 50
UXE50202012 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 50
UXE502025025 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 40
UXE50202505 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 5 | L (mm): 40
UXE502025 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 7 | L (mm): 50
UXE50202510 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 50
UXE50202512 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 50
UXE50203003 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 40
UXE50203006 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 40
UXE502030 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 50
UXE50203010 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 50
UXE50203012 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 50
UXE50203014 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 14 | L (mm): 50
UXE50203510 ØD (mm): 3.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 50
UXE50204004 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 40
UXE50204008 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 40
UXE502040 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 50
UXE50204012 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 50
UXE50204014 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 14 | L (mm): 50
UXE50204016 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 16 | L (mm): 50
UXE50204511 ØD (mm): 4.5 | Ød (mm): 6 | ℓ (mm): 11 | L (mm): 50
UXE50205005 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 5 | L (mm): 50
UXE50205010 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 50
UXE502050 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
UXE50205020 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 60
UXE50205025 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 25 | L (mm): 60
UXE50205513 ØD (mm): 5.5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 50
UXE50206006 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UXE50206012 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 50
UXE502060 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
UXE50206020 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 60
UXE50206025 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 25 | L (mm): 60
UXE50206513 ØD (mm): 6.5 | Ød (mm): 8 | ℓ (mm): 13 | L (mm): 60
UXE50207018 ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 18 | L (mm): 60
UXE50208016 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 60
UXE502080 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70
UXE50208025 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 25 | L (mm): 70
UXE50208030 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 30 | L (mm): 70
UXE50210022 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 22 | L (mm): 65
UXE502100 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75
UXE50210030 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 30 | L (mm): 75
UXE50210035 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 35 | L (mm): 75
UXE50212026 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 26 | L (mm): 70
UXE502120 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
UXE50212035 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 35 | L (mm): 80
UXE50212040 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 40 | L (mm): 80
UXE502140 ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 35 | L (mm): 100
UXE502160 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 32 | L (mm): 100
UXE50216040 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 100
UXE502180 ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 100
UXE502200 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 100
