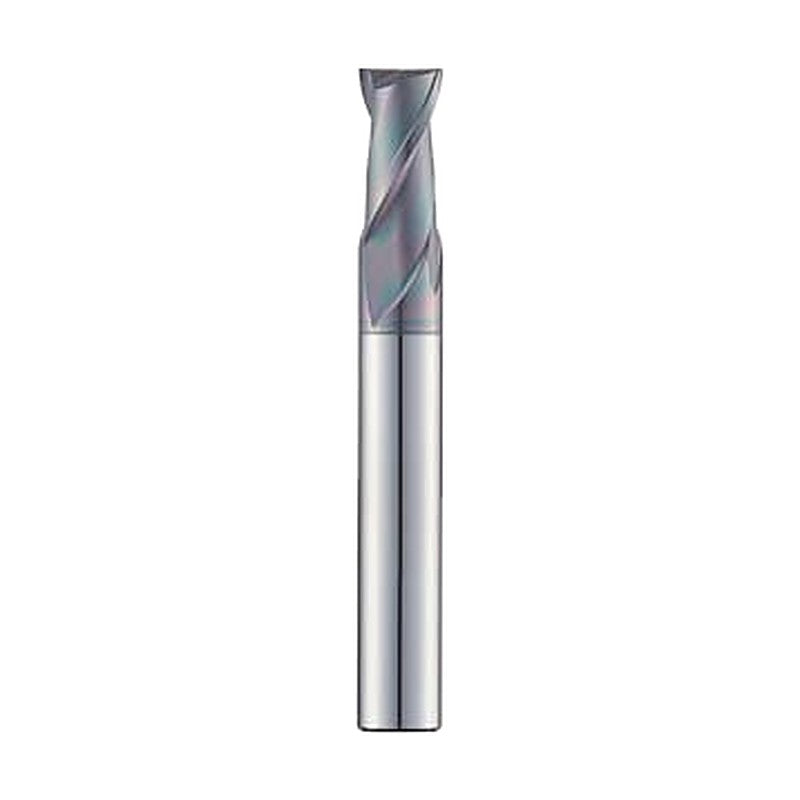

Korloy U-Star 2 Flute Flat End Mill UE502

Korloy U-Star 2 Flute Flat End Mill UE502

Solid carbide end mill of the U-Star series for mold and die machining of HRC30~50 medium hardness steel and die steel.

Key features

  • Carbide substrate for medium hardness steel cutting
  • AlCrN based multilayer coating for wear and oxidation resistance
  • S-curved gash shape disperses cutting force
  • Helix angle 30°
  • h5 shank tolerance

Specifications

Series line U-Star End Mill
Flutes 2
Coating AlCrN
Helix angle 30°
ØD tolerance Ø0.1~Ø6: 0~-0.012mm; Ø6.5~Ø25: 0~-0.015mm
Shank tolerance h5
Workpiece (excellent) Alloy steel HB225~325, Pre-hardened steel HRC30~50
Workpiece (good) Carbon steel ~ HB225, Hardened steel SKD61~HRC55, Cast iron ~FCD500
UE502001S3 ØD (mm): 0.1 | Ød (mm): 3 | ℓ (mm): 0.2 | L (mm): 40
UE502001 ØD (mm): 0.1 | Ød (mm): 4 | ℓ (mm): 0.2 | L (mm): 40
UE5020015 ØD (mm): 0.15 | Ød (mm): 4 | ℓ (mm): 0.3 | L (mm): 40
UE502002S3 ØD (mm): 0.2 | Ød (mm): 3 | ℓ (mm): 0.4 | L (mm): 40
UE502002 ØD (mm): 0.2 | Ød (mm): 4 | ℓ (mm): 0.4 | L (mm): 40
UE5020025 ØD (mm): 0.25 | Ød (mm): 4 | ℓ (mm): 0.5 | L (mm): 40
UE502003S3 ØD (mm): 0.3 | Ød (mm): 3 | ℓ (mm): 0.6 | L (mm): 40
UE502003 ØD (mm): 0.3 | Ød (mm): 4 | ℓ (mm): 0.6 | L (mm): 40
UE5020035 ØD (mm): 0.35 | Ød (mm): 4 | ℓ (mm): 0.7 | L (mm): 40
UE502004S3 ØD (mm): 0.4 | Ød (mm): 3 | ℓ (mm): 0.8 | L (mm): 40
UE502004 ØD (mm): 0.4 | Ød (mm): 4 | ℓ (mm): 0.8 | L (mm): 40
UE5020045 ØD (mm): 0.45 | Ød (mm): 4 | ℓ (mm): 0.9 | L (mm): 40
UE502005S3 ØD (mm): 0.5 | Ød (mm): 3 | ℓ (mm): 1 | L (mm): 40
UE502005 ØD (mm): 0.5 | Ød (mm): 4 | ℓ (mm): 1 | L (mm): 40
UE5020055 ØD (mm): 0.55 | Ød (mm): 4 | ℓ (mm): 1.1 | L (mm): 40
UE502006S3 ØD (mm): 0.6 | Ød (mm): 3 | ℓ (mm): 1.2 | L (mm): 40
UE502006 ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 1.2 | L (mm): 40
UE5020065 ØD (mm): 0.65 | Ød (mm): 4 | ℓ (mm): 1.3 | L (mm): 40
UE502007S3 ØD (mm): 0.7 | Ød (mm): 3 | ℓ (mm): 1.4 | L (mm): 40
UE502007 ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 1.4 | L (mm): 40
UE5020075 ØD (mm): 0.75 | Ød (mm): 4 | ℓ (mm): 1.5 | L (mm): 40
UE502008S3 ØD (mm): 0.8 | Ød (mm): 3 | ℓ (mm): 1.6 | L (mm): 40
UE502008 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 1.6 | L (mm): 40
UE5020085 ØD (mm): 0.85 | Ød (mm): 4 | ℓ (mm): 1.7 | L (mm): 40
UE502009S3 ØD (mm): 0.9 | Ød (mm): 3 | ℓ (mm): 1.8 | L (mm): 40
UE502009 ØD (mm): 0.9 | Ød (mm): 4 | ℓ (mm): 1.8 | L (mm): 40
UE5020095 ØD (mm): 0.95 | Ød (mm): 4 | ℓ (mm): 2 | L (mm): 40
UE502010S3 ØD (mm): 1 | Ød (mm): 3 | ℓ (mm): 2.5 | L (mm): 50
UE502010S4 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 2.5 | L (mm): 50
UE502010 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 50
UE502011S4 ØD (mm): 1.1 | Ød (mm): 4 | ℓ (mm): 3 | L (mm): 50
UE502012S3 ØD (mm): 1.2 | Ød (mm): 3 | ℓ (mm): 3 | L (mm): 50
UE502012S4 ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 3 | L (mm): 50
UE502012 ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 50
UE502013S4 ØD (mm): 1.3 | Ød (mm): 4 | ℓ (mm): 3 | L (mm): 50
UE502014S4 ØD (mm): 1.4 | Ød (mm): 4 | ℓ (mm): 4 | L (mm): 50
UE502015S3 ØD (mm): 1.5 | Ød (mm): 3 | ℓ (mm): 4 | L (mm): 50
UE502015S4 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 4 | L (mm): 50
UE502015 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UE502016S4 ØD (mm): 1.6 | Ød (mm): 4 | ℓ (mm): 4 | L (mm): 50
UE502017S4 ØD (mm): 1.7 | Ød (mm): 4 | ℓ (mm): 4 | L (mm): 50
UE502018S4 ØD (mm): 1.8 | Ød (mm): 4 | ℓ (mm): 5 | L (mm): 50
UE502019S4 ØD (mm): 1.9 | Ød (mm): 4 | ℓ (mm): 5 | L (mm): 50
UE502020S3 ØD (mm): 2 | Ød (mm): 3 | ℓ (mm): 6 | L (mm): 50
UE502020S4 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 6 | L (mm): 50
UE502020 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UE502021S4 ØD (mm): 2.1 | Ød (mm): 4 | ℓ (mm): 6 | L (mm): 50
UE502022S4 ØD (mm): 2.2 | Ød (mm): 4 | ℓ (mm): 6 | L (mm): 50
UE502023S4 ØD (mm): 2.3 | Ød (mm): 4 | ℓ (mm): 6 | L (mm): 50
UE502024S4 ØD (mm): 2.4 | Ød (mm): 4 | ℓ (mm): 6 | L (mm): 50
UE502025S3 ØD (mm): 2.5 | Ød (mm): 3 | ℓ (mm): 7 | L (mm): 50
UE502025 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 7 | L (mm): 50
UE502025S4 ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 8 | L (mm): 50
UE502026S4 ØD (mm): 2.6 | Ød (mm): 4 | ℓ (mm): 8 | L (mm): 50
UE502027S4 ØD (mm): 2.7 | Ød (mm): 4 | ℓ (mm): 8 | L (mm): 50
UE502028S4 ØD (mm): 2.8 | Ød (mm): 4 | ℓ (mm): 8 | L (mm): 50
UE502029S4 ØD (mm): 2.9 | Ød (mm): 4 | ℓ (mm): 8 | L (mm): 50
UE502030S3 ØD (mm): 3 | Ød (mm): 3 | ℓ (mm): 8 | L (mm): 50
UE502030S4 ØD (mm): 3 | Ød (mm): 4 | ℓ (mm): 8 | L (mm): 50
UE502030 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 50
UE502035S4 ØD (mm): 3.5 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 50
UE502035 ØD (mm): 3.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 50
UE502040080S4 ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 80
UE502040S4 ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 50
UE502040 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 50
UE502045 ØD (mm): 4.5 | Ød (mm): 6 | ℓ (mm): 14 | L (mm): 50
UE502050 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
UE502055 ØD (mm): 5.5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
UE502060 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
UE502065 ØD (mm): 6.5 | Ød (mm): 8 | ℓ (mm): 18 | L (mm): 60
UE502070 ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 60
UE502075 ØD (mm): 7.5 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 60
UE502080 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70
UE502085 ØD (mm): 8.5 | Ød (mm): 10 | ℓ (mm): 22 | L (mm): 70
UE502090 ØD (mm): 9 | Ød (mm): 10 | ℓ (mm): 22 | L (mm): 70
UE502095 ØD (mm): 9.5 | Ød (mm): 10 | ℓ (mm): 24 | L (mm): 70
UE502100 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75
UE502105 ØD (mm): 10.5 | Ød (mm): 12 | ℓ (mm): 26 | L (mm): 75
UE502110 ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 75
UE502115 ØD (mm): 11.5 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
UE502120 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
UE502130 ØD (mm): 13 | Ød (mm): 12 | ℓ (mm): 35 | L (mm): 100
UE502140S16 ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 35 | L (mm): 100
UE502140 ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 35 | L (mm): 100
UE502140S12 ØD (mm): 14 | Ød (mm): 12 | ℓ (mm): 35 | L (mm): 100
UE502150 ØD (mm): 15 | Ød (mm): 16 | ℓ (mm): 38 | L (mm): 100
UE502160 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 100
UE502170 ØD (mm): 17 | Ød (mm): 16 | ℓ (mm): 42 | L (mm): 100
UE502180 ØD (mm): 18 | Ød (mm): 18 | ℓ (mm): 45 | L (mm): 100
UE502180S16 ØD (mm): 18 | Ød (mm): 16 | ℓ (mm): 45 | L (mm): 100
UE502190 ØD (mm): 19 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 100
UE502200 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 100
UE502210 ØD (mm): 21 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 100
UE502220 ØD (mm): 22 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 100
UE502230 ØD (mm): 23 | Ød (mm): 25 | ℓ (mm): 50 | L (mm): 120
UE502240 ØD (mm): 24 | Ød (mm): 25 | ℓ (mm): 50 | L (mm): 120
UE502250 ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 50 | L (mm): 120
