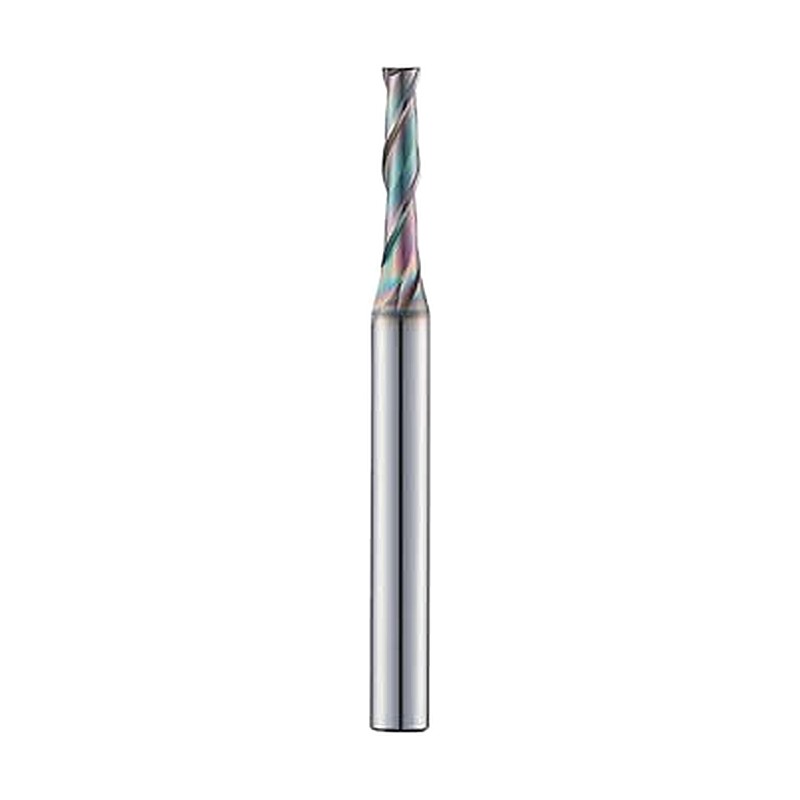

Korloy U-Star 2 Flute Flat End Mill UE522

Korloy U-Star 2 Flute Flat End Mill UE522

Solid carbide end mill of the U-Star series for mold and die machining of HRC30~50 medium hardness steel and die steel.

Key features

  • Carbide substrate for medium hardness steel cutting
  • AlCrN based multilayer coating for wear and oxidation resistance
  • S-curved gash shape disperses cutting force
  • Helix angle 30°
  • h5 shank tolerance

Specifications

Series line U-Star End Mill
Flutes 2
Coating AlCrN
Helix angle 30°
ØD tolerance Ø0.1~Ø6: 0~-0.012mm; Ø6.5~Ø25: 0~-0.015mm
Shank tolerance h5
Workpiece (excellent) Alloy steel HB225~325, Pre-hardened steel HRC30~50
Workpiece (good) Hardened steel SKD61~HRC55, Cast iron ~FCD500
UE52201003 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 60
UE52201004 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 60
UE52201005 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 5 | L (mm): 60
UE52201006 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 60
UE52201007 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 7 | L (mm): 60
UE52201008 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UE52201010 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 60
UE52201012 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 60
UE52201204 ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 60
UE52201206 ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 60
UE52201208 ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UE52201210 ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 60
UE52201212 ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 60
UE52201506 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 60
UE52201508 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UE52201510 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 60
UE52201512 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 60
UE52201514 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 14 | L (mm): 60
UE52201516 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 16 | L (mm): 60
UE52202008 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UE52202010 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 60
UE52202012 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 60
UE52202014 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 14 | L (mm): 60
UE52202016 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 16 | L (mm): 60
UE52202510 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 60
UE52202512 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 60
UE52202516 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 16 | L (mm): 60
UE52202520 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 60
UE52202526 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 26 | L (mm): 60
UE52203010 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UE52203012 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 70
UE52203014 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 14 | L (mm): 70
UE52203016 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 16 | L (mm): 70
UE52203016S3 ØD (mm): 3 | Ød (mm): 3 | ℓ (mm): 16 | L (mm): 100
UE52203020 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 70
UE52203026 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 26 | L (mm): 70
UE52203030 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 30 | L (mm): 70
UE52204012 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 70
UE52204016 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 16 | L (mm): 70
UE52204020 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 70
UE52204020S4 ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 20 | L (mm): 100
UE52204026 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 26 | L (mm): 70
UE52204030 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 30 | L (mm): 70
UE52205015 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 70
UE52205020 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 70
UE52205025100 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 25 | L (mm): 100
UE52205025 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 25 | L (mm): 70
UE52205030 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 30 | L (mm): 80
UE52205035 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 35 | L (mm): 90
UE52205040 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 40 | L (mm): 100
UE52206015080 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 80
UE52206015 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
UE52206020090 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 90
UE52206020 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 70
UE52206025 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 25 | L (mm): 75
UE52206030150 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 30 | L (mm): 150
UE52206030100 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 30 | L (mm): 100
UE52206030 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 30 | L (mm): 80
UE52206035 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 35 | L (mm): 90
UE52206040120 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 40 | L (mm): 120
UE52206040 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 40 | L (mm): 90
UE52206045 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 45 | L (mm): 150
UE52207035 ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 35 | L (mm): 85
UE52208020 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UE52208025 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 25 | L (mm): 80
UE52208030100 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 30 | L (mm): 100
UE52208030 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 30 | L (mm): 80
UE52208035 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 35 | L (mm): 90
UE52208040150 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 40 | L (mm): 150
UE52208040120 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 40 | L (mm): 120
UE52208040 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 40 | L (mm): 90
UE52208045 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 45 | L (mm): 100
UE52208050150 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 50 | L (mm): 150
UE52208050 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 50 | L (mm): 100
UE52209045 ØD (mm): 9 | Ød (mm): 10 | ℓ (mm): 45 | L (mm): 100
UE52210025 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UE52210030100 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 30 | L (mm): 100
UE52210030 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 30 | L (mm): 80
UE52210035 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 35 | L (mm): 90
UE52210040120 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 40 | L (mm): 120
UE52210040 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 40 | L (mm): 90
UE52210045 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 45 | L (mm): 100
UE52210050200 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 50 | L (mm): 200
UE52210050150 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 50 | L (mm): 150
UE52210050 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 50 | L (mm): 100
UE52210055 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 55 | L (mm): 150
UE52210060200 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 60 | L (mm): 200
UE52210060155 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 60 | L (mm): 155
UE52210060 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 60 | L (mm): 110
UE52211050 ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 50 | L (mm): 110
UE52212035 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 35 | L (mm): 90
UE52212040120 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 40 | L (mm): 120
UE52212040 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 40 | L (mm): 100
UE52212045 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 45 | L (mm): 130
UE52212050150 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 50 | L (mm): 150
UE52212050 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 50 | L (mm): 100
UE52212055 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 55 | L (mm): 110
UE52212060200 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 60 | L (mm): 200
UE52212060150 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 60 | L (mm): 150
UE52212060 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 60 | L (mm): 110
UE52212065 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 65 | L (mm): 150
UE52212070200 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 70 | L (mm): 200
UE52212070 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 70 | L (mm): 120
UE52214040 ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 110
UE52214050 ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 50 | L (mm): 110
UE52214060150 ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 60 | L (mm): 150
UE52214060 ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 60 | L (mm): 120
UE52216040150 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 150
UE52216040 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 120
UE52216050150 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 50 | L (mm): 150
UE52216050 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 50 | L (mm): 110
UE52216060 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 60 | L (mm): 120
UE52216070200 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 70 | L (mm): 200
UE52216070150 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 70 | L (mm): 150
UE52216070 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 70 | L (mm): 130
UE52216080 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 80 | L (mm): 150
UE52216090 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 90 | L (mm): 150
UE522160110 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 110 | L (mm): 200
UE522160120 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 120 | L (mm): 250
UE52218050 ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 50 | L (mm): 120
UE52218060 ØD (mm): 18 | Ød (mm): 18 | ℓ (mm): 60 | L (mm): 120
UE52218070 ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 70 | L (mm): 130
UE522180100 ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 100 | L (mm): 200
UE52220050150 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 50 | L (mm): 150
UE52220050 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 50 | L (mm): 110
UE52220060 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 60 | L (mm): 130
UE52220070 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 70 | L (mm): 130
UE52220080 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 80 | L (mm): 150
UE52220090200 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 90 | L (mm): 200
UE52220090 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 90 | L (mm): 150
UE522200110 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 110 | L (mm): 200
UE522200120 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 120 | L (mm): 250
UE52222075 ØD (mm): 22 | Ød (mm): 20 | ℓ (mm): 75 | L (mm): 150
UE522220110 ØD (mm): 22 | Ød (mm): 20 | ℓ (mm): 110 | L (mm): 200
UE52225070 ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 70 | L (mm): 150
UE52225090 ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 90 | L (mm): 150
UE522250110 ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 110 | L (mm): 200
UE522250120 ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 120 | L (mm): 250
End MillsKorloy
138 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy U-Star 2 Flute Flat End Mill UE522

Brand Korloy·End Mills

Available part numbers (138)

UE52201003, UE52201004, UE52201005, UE52201006, UE52201007, UE52201008, UE52201010, UE52201012, UE52201204, UE52201206 + 128 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UE52201003ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 60
UE52201004ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 60
UE52201005ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 5 | L (mm): 60
UE52201006ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 60
UE52201007ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 7 | L (mm): 60
UE52201008ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UE52201010ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 60
UE52201012ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 60
UE52201204ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 60
UE52201206ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 60
UE52201208ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UE52201210ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 60
UE52201212ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 60
UE52201506ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 60
UE52201508ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UE52201510ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 60
UE52201512ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 60
UE52201514ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 14 | L (mm): 60
UE52201516ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 16 | L (mm): 60
UE52202008ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UE52202010ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 60
UE52202012ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 60
UE52202014ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 14 | L (mm): 60
UE52202016ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 16 | L (mm): 60
UE52202510ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 60
UE52202512ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 60
UE52202516ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 16 | L (mm): 60
UE52202520ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 60
UE52202526ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 26 | L (mm): 60
UE52203010ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UE52203012ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 70
UE52203014ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 14 | L (mm): 70
UE52203016ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 16 | L (mm): 70
UE52203016S3ØD (mm): 3 | Ød (mm): 3 | ℓ (mm): 16 | L (mm): 100
UE52203020ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 70
UE52203026ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 26 | L (mm): 70
UE52203030ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 30 | L (mm): 70
UE52204012ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 70
UE52204016ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 16 | L (mm): 70
UE52204020ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 70
UE52204020S4ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 20 | L (mm): 100
UE52204026ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 26 | L (mm): 70
UE52204030ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 30 | L (mm): 70
UE52205015ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 70
UE52205020ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 70
UE52205025100ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 25 | L (mm): 100
UE52205025ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 25 | L (mm): 70
UE52205030ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 30 | L (mm): 80
UE52205035ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 35 | L (mm): 90
UE52205040ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 40 | L (mm): 100
UE52206015080ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 80
UE52206015ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
UE52206020090ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 90
UE52206020ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 70
UE52206025ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 25 | L (mm): 75
UE52206030150ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 30 | L (mm): 150
UE52206030100ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 30 | L (mm): 100
UE52206030ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 30 | L (mm): 80
UE52206035ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 35 | L (mm): 90
UE52206040120ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 40 | L (mm): 120
UE52206040ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 40 | L (mm): 90
UE52206045ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 45 | L (mm): 150
UE52207035ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 35 | L (mm): 85
UE52208020ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UE52208025ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 25 | L (mm): 80
UE52208030100ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 30 | L (mm): 100
UE52208030ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 30 | L (mm): 80
UE52208035ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 35 | L (mm): 90
UE52208040150ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 40 | L (mm): 150
UE52208040120ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 40 | L (mm): 120
UE52208040ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 40 | L (mm): 90
UE52208045ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 45 | L (mm): 100
UE52208050150ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 50 | L (mm): 150
UE52208050ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 50 | L (mm): 100
UE52209045ØD (mm): 9 | Ød (mm): 10 | ℓ (mm): 45 | L (mm): 100
UE52210025ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UE52210030100ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 30 | L (mm): 100
UE52210030ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 30 | L (mm): 80
UE52210035ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 35 | L (mm): 90
UE52210040120ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 40 | L (mm): 120
UE52210040ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 40 | L (mm): 90
UE52210045ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 45 | L (mm): 100
UE52210050200ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 50 | L (mm): 200
UE52210050150ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 50 | L (mm): 150
UE52210050ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 50 | L (mm): 100
UE52210055ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 55 | L (mm): 150
UE52210060200ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 60 | L (mm): 200
UE52210060155ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 60 | L (mm): 155
UE52210060ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 60 | L (mm): 110
UE52211050ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 50 | L (mm): 110
UE52212035ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 35 | L (mm): 90
UE52212040120ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 40 | L (mm): 120
UE52212040ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 40 | L (mm): 100
UE52212045ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 45 | L (mm): 130
UE52212050150ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 50 | L (mm): 150
UE52212050ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 50 | L (mm): 100
UE52212055ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 55 | L (mm): 110
UE52212060200ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 60 | L (mm): 200
UE52212060150ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 60 | L (mm): 150
UE52212060ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 60 | L (mm): 110
UE52212065ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 65 | L (mm): 150
UE52212070200ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 70 | L (mm): 200
UE52212070ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 70 | L (mm): 120
UE52214040ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 110
UE52214050ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 50 | L (mm): 110
UE52214060150ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 60 | L (mm): 150
UE52214060ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 60 | L (mm): 120
UE52216040150ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 150
UE52216040ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 120
UE52216050150ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 50 | L (mm): 150
UE52216050ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 50 | L (mm): 110
UE52216060ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 60 | L (mm): 120
UE52216070200ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 70 | L (mm): 200
UE52216070150ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 70 | L (mm): 150
UE52216070ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 70 | L (mm): 130
UE52216080ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 80 | L (mm): 150
UE52216090ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 90 | L (mm): 150
UE522160110ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 110 | L (mm): 200
UE522160120ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 120 | L (mm): 250
UE52218050ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 50 | L (mm): 120
UE52218060ØD (mm): 18 | Ød (mm): 18 | ℓ (mm): 60 | L (mm): 120
UE52218070ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 70 | L (mm): 130
UE522180100ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 100 | L (mm): 200
UE52220050150ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 50 | L (mm): 150
UE52220050ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 50 | L (mm): 110
UE52220060ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 60 | L (mm): 130
UE52220070ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 70 | L (mm): 130
UE52220080ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 80 | L (mm): 150
UE52220090200ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 90 | L (mm): 200
UE52220090ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 90 | L (mm): 150
UE522200110ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 110 | L (mm): 200
UE522200120ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 120 | L (mm): 250
UE52222075ØD (mm): 22 | Ød (mm): 20 | ℓ (mm): 75 | L (mm): 150
UE522220110ØD (mm): 22 | Ød (mm): 20 | ℓ (mm): 110 | L (mm): 200
UE52225070ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 70 | L (mm): 150
UE52225090ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 90 | L (mm): 150
UE522250110ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 110 | L (mm): 200
UE522250120ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 120 | L (mm): 250

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
