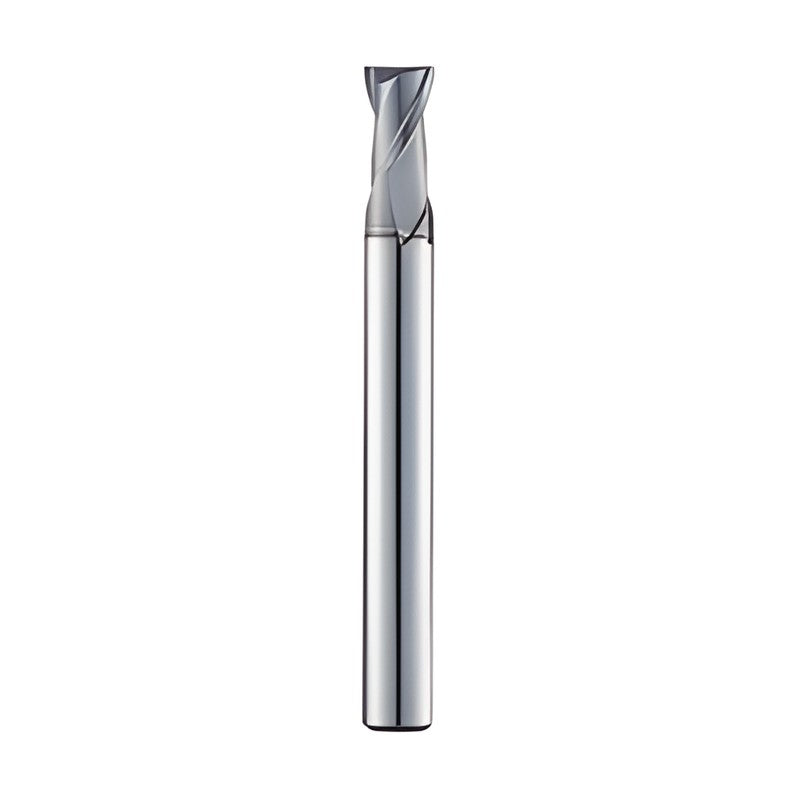

Korloy U-Star 2 Flute Long Neck Flat End Mill UE512

Korloy U-Star 2 Flute Long Neck Flat End Mill UE512

Solid carbide end mill of the U-Star series for mold and die machining of HRC30~50 medium hardness steel and die steel.

Key features

  • Carbide substrate for medium hardness steel cutting
  • AlCrN based multilayer coating for wear and oxidation resistance
  • S-curved gash shape disperses cutting force
  • Helix angle 30°
  • h5 shank tolerance

Specifications

Series line U-Star End Mill
Flutes 2
Coating AlCrN
Helix angle 30°
ØD tolerance Ø0.1~Ø6: 0~-0.012mm; Ø8~Ø12: 0~-0.015mm
Shank tolerance h5
Workpiece (excellent) Alloy steel HB225~325, Pre-hardened steel HRC30~50
Workpiece (good) Hardened steel SKD61~HRC55, Cast iron ~FCD500
UE512001003 ØD (mm): 0.1 | Ød (mm): 4 | ℓ1 (mm): 0.15 | ℓ2 (mm): 0.3 | L (mm): 40
UE512001005 ØD (mm): 0.1 | Ød (mm): 4 | ℓ1 (mm): 0.15 | ℓ2 (mm): 0.5 | L (mm): 40
UE51200101 ØD (mm): 0.1 | Ød (mm): 4 | ℓ1 (mm): 0.15 | ℓ2 (mm): 1 | L (mm): 40
UE512002005 ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 0.5 | L (mm): 40
UE51200201 ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 1 | L (mm): 40
UE512002015 ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 1.5 | L (mm): 40
UE51200202 ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 2 | L (mm): 40
UE51200301 ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 1 | L (mm): 40
UE512003015 ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 1.5 | L (mm): 40
UE51200302 ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2 | L (mm): 40
UE512003025 ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2.5 | L (mm): 40
UE51200303 ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 3 | L (mm): 40
UE51200304 ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 4 | L (mm): 40
UE51200305 ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 5 | L (mm): 40
UE51200401 ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 1 | L (mm): 40
UE512004015 ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 1.5 | L (mm): 40
UE51200402 ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 2 | L (mm): 40
UE512004025 ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 2.5 | L (mm): 40
UE51200403 ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 3 | L (mm): 40
UE51200404 ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 4 | L (mm): 40
UE51200405 ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 5 | L (mm): 40
UE51200406 ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 6 | L (mm): 40
UE51200408 ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 8 | L (mm): 40
UE51200410 ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 10 | L (mm): 40
UE51200501 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 1 | L (mm): 45
UE512005015 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 1.5 | L (mm): 45
UE51200502 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 2 | L (mm): 45
UE512005025 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 2.5 | L (mm): 45
UE51200503 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 3 | L (mm): 45
UE51200504 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 4 | L (mm): 45
UE51200505 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 5 | L (mm): 45
UE51200506 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 6 | L (mm): 45
UE51200508 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 8 | L (mm): 45
UE51200510 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 10 | L (mm): 45
UE51200512 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 12 | L (mm): 45
UE51200514 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 14 | L (mm): 45
UE51200516 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 16 | L (mm): 45
UE51200602 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 2 | L (mm): 45
UE51200603 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 3 | L (mm): 45
UE51200604 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 4 | L (mm): 45
UE51200605 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 5 | L (mm): 45
UE51200606 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 6 | L (mm): 45
UE51200608 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 8 | L (mm): 45
UE51200610 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 10 | L (mm): 45
UE51200612 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 12 | L (mm): 45
UE51200614 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 14 | L (mm): 45
UE51200616 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 16 | L (mm): 45
UE51200702 ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 2 | L (mm): 45
UE51200704 ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
UE51200706 ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
UE51200708 ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
UE51200710 ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 45
UE51200712 ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 45
UE51200802 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 2 | L (mm): 45
UE51200803 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 3 | L (mm): 45
UE51200804 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
UE51200805 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 5 | L (mm): 45
UE51200806 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
UE51200808 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
UE51200810 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 45
UE51200812 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 45
UE51200814 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 14 | L (mm): 45
UE51200816 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 16 | L (mm): 45
UE51200820 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 20 | L (mm): 45
UE51200906 ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 1.3 | ℓ2 (mm): 6 | L (mm): 45
UE51200908 ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 1.3 | ℓ2 (mm): 8 | L (mm): 45
UE51200910 ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 1.3 | ℓ2 (mm): 10 | L (mm): 45
UE51201002 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 2 | L (mm): 50
UE51201003 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 3 | L (mm): 50
UE51201004 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 50
UE51201005 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 5 | L (mm): 50
UE51201006 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 50
UE51201007 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 7 | L (mm): 50
UE51201008 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 50
UE51201010 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
UE51201012 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
UE51201014 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
UE51201016 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
UE51201018 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 18 | L (mm): 50
UE51201020 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
UE51201022 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 22 | L (mm): 60
UE51201026 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 26 | L (mm): 60
UE51201030 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 30 | L (mm): 70
UE51201040 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 40 | L (mm): 80
UE51201050 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 50 | L (mm): 100
UE51201204 ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 4 | L (mm): 50
UE51201206 ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 6 | L (mm): 50
UE51201208 ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 8 | L (mm): 50
UE51201210 ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 10 | L (mm): 50
UE51201212 ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 12 | L (mm): 50
UE51201214 ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 14 | L (mm): 50
UE51201216 ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 16 | L (mm): 50
UE51201220 ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 20 | L (mm): 50
UE51201226 ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 26 | L (mm): 60
UE51201230 ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 30 | L (mm): 70
UE51201406 ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 2.1 | ℓ2 (mm): 6 | L (mm): 50
UE51201408 ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 2.1 | ℓ2 (mm): 8 | L (mm): 50
UE51201410 ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 2.1 | ℓ2 (mm): 10 | L (mm): 50
UE51201414 ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 2.1 | ℓ2 (mm): 14 | L (mm): 50
UE51201416 ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 2.1 | ℓ2 (mm): 16 | L (mm): 50
UE51201420 ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 2.1 | ℓ2 (mm): 20 | L (mm): 50
UE51201504 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 4 | L (mm): 50
UE51201505 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 5 | L (mm): 50
UE51201506 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 6 | L (mm): 50
UE51201507 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 7 | L (mm): 50
UE51201508 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 8 | L (mm): 50
UE51201510 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 10 | L (mm): 50
UE51201512 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 12 | L (mm): 50
UE51201514 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 14 | L (mm): 50
UE51201516 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 16 | L (mm): 50
UE51201518 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 18 | L (mm): 50
UE51201520 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 20 | L (mm): 50
UE51201522 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 22 | L (mm): 60
UE51201526 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 26 | L (mm): 60
UE51201530 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 30 | L (mm): 70
UE51201608 ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 8 | L (mm): 50
UE51201610 ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 10 | L (mm): 50
UE51201612 ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 12 | L (mm): 50
UE51201616 ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 16 | L (mm): 50
UE51201620 ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 20 | L (mm): 50
UE51201808 ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 2.7 | ℓ2 (mm): 8 | L (mm): 50
UE51201810 ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 2.7 | ℓ2 (mm): 10 | L (mm): 50
UE51201812 ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 2.7 | ℓ2 (mm): 12 | L (mm): 50
UE51201816 ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 2.7 | ℓ2 (mm): 16 | L (mm): 50
UE51201820 ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 2.7 | ℓ2 (mm): 20 | L (mm): 50
UE51202006 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 6 | L (mm): 50
UE51202008 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 50
UE51202010 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
UE51202012 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
UE51202014 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 14 | L (mm): 50
UE51202016 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 50
UE51202018 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 18 | L (mm): 50
UE51202020 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 50
UE51202022 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 22 | L (mm): 60
UE51202026 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 26 | L (mm): 60
UE51202030 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
UE51202035 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 35 | L (mm): 70
UE51202040 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 40 | L (mm): 80
UE51202045 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 45 | L (mm): 90
UE51202050 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 50 | L (mm): 100
UE51202060 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 60 | L (mm): 110
UE51202508 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 8 | L (mm): 50
UE51202510 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
UE51202512 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
UE51202514 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 14 | L (mm): 50
UE51202516 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 50
UE51202518 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 18 | L (mm): 50
UE51202520 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 50
UE51202522 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 22 | L (mm): 60
UE51202526 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 26 | L (mm): 60
UE51202530 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
UE51202535 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 35 | L (mm): 70
UE51202540 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 40 | L (mm): 80
UE51202545 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 45 | L (mm): 90
UE51202550 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 50 | L (mm): 100
UE51203006 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 6 | L (mm): 50
UE51203008 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 8 | L (mm): 50
UE51203010 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 10 | L (mm): 50
UE51203012 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 12 | L (mm): 50
UE51203014 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 14 | L (mm): 60
UE51203016 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 16 | L (mm): 60
UE51203018 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 18 | L (mm): 60
UE51203020 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 20 | L (mm): 60
UE51203022 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 22 | L (mm): 65
UE51203026 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 26 | L (mm): 65
UE51203030 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 30 | L (mm): 70
UE51203035 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 35 | L (mm): 70
UE51203040 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 40 | L (mm): 80
UE51203045 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 45 | L (mm): 90
UE51203050 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 50 | L (mm): 100
UE51203060 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 60 | L (mm): 100
UE51204008 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 8 | L (mm): 50
UE51204010 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 10 | L (mm): 50
UE51204012 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 12 | L (mm): 50
UE51204014 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 14 | L (mm): 60
UE51204016 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 16 | L (mm): 60
UE51204018 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 18 | L (mm): 60
UE51204020 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 20 | L (mm): 60
UE51204022 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 22 | L (mm): 65
UE51204026 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 26 | L (mm): 65
UE51204030 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 30 | L (mm): 70
UE51204035 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 35 | L (mm): 70
UE51204040 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 40 | L (mm): 80
UE51204045 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 45 | L (mm): 90
UE51204050 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 50 | L (mm): 100
UE51204060 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 60 | L (mm): 100
UE51205016 ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 16 | L (mm): 60
UE51205020 ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 20 | L (mm): 60
UE51205026 ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 26 | L (mm): 65
UE51205030 ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 30 | L (mm): 70
UE51205035 ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 35 | L (mm): 75
UE51205040 ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 40 | L (mm): 80
UE51205050 ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 50 | L (mm): 90
UE51205060 ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 60 | L (mm): 100
UE51206015 ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 15 | L (mm): 60
UE51206020 ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 20 | L (mm): 60
UE51206030 ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 30 | L (mm): 70
UE51206032 ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 32 | L (mm): 90
UE51208025 ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 25 | L (mm): 70
UE51208030 ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 30 | L (mm): 80
UE51208042 ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 42 | L (mm): 100
UE51210030 ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 30 | L (mm): 75
UE51210035 ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 35 | L (mm): 80
UE51210045 ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 45 | L (mm): 100
UE51212035 ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 20 | ℓ2 (mm): 35 | L (mm): 80
UE51212040 ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 20 | ℓ2 (mm): 40 | L (mm): 90
UE51212050 ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 20 | ℓ2 (mm): 50 | L (mm): 110
End MillsKorloy
207 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy U-Star 2 Flute Long Neck Flat End Mill UE512

Brand Korloy·End Mills

Available part numbers (207)

UE512001003, UE512001005, UE51200101, UE512002005, UE51200201, UE512002015, UE51200202, UE51200301, UE512003015, UE51200302 + 197 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UE512001003ØD (mm): 0.1 | Ød (mm): 4 | ℓ1 (mm): 0.15 | ℓ2 (mm): 0.3 | L (mm): 40
UE512001005ØD (mm): 0.1 | Ød (mm): 4 | ℓ1 (mm): 0.15 | ℓ2 (mm): 0.5 | L (mm): 40
UE51200101ØD (mm): 0.1 | Ød (mm): 4 | ℓ1 (mm): 0.15 | ℓ2 (mm): 1 | L (mm): 40
UE512002005ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 0.5 | L (mm): 40
UE51200201ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 1 | L (mm): 40
UE512002015ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 1.5 | L (mm): 40
UE51200202ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 2 | L (mm): 40
UE51200301ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 1 | L (mm): 40
UE512003015ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 1.5 | L (mm): 40
UE51200302ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2 | L (mm): 40
UE512003025ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2.5 | L (mm): 40
UE51200303ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 3 | L (mm): 40
UE51200304ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 4 | L (mm): 40
UE51200305ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 5 | L (mm): 40
UE51200401ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 1 | L (mm): 40
UE512004015ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 1.5 | L (mm): 40
UE51200402ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 2 | L (mm): 40
UE512004025ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 2.5 | L (mm): 40
UE51200403ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 3 | L (mm): 40
UE51200404ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 4 | L (mm): 40
UE51200405ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 5 | L (mm): 40
UE51200406ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 6 | L (mm): 40
UE51200408ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 8 | L (mm): 40
UE51200410ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 10 | L (mm): 40
UE51200501ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 1 | L (mm): 45
UE512005015ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 1.5 | L (mm): 45
UE51200502ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 2 | L (mm): 45
UE512005025ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 2.5 | L (mm): 45
UE51200503ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 3 | L (mm): 45
UE51200504ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 4 | L (mm): 45
UE51200505ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 5 | L (mm): 45
UE51200506ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 6 | L (mm): 45
UE51200508ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 8 | L (mm): 45
UE51200510ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 10 | L (mm): 45
UE51200512ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 12 | L (mm): 45
UE51200514ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 14 | L (mm): 45
UE51200516ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 16 | L (mm): 45
UE51200602ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 2 | L (mm): 45
UE51200603ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 3 | L (mm): 45
UE51200604ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 4 | L (mm): 45
UE51200605ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 5 | L (mm): 45
UE51200606ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 6 | L (mm): 45
UE51200608ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 8 | L (mm): 45
UE51200610ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 10 | L (mm): 45
UE51200612ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 12 | L (mm): 45
UE51200614ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 14 | L (mm): 45
UE51200616ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 16 | L (mm): 45
UE51200702ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 2 | L (mm): 45
UE51200704ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
UE51200706ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
UE51200708ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
UE51200710ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 45
UE51200712ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 45
UE51200802ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 2 | L (mm): 45
UE51200803ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 3 | L (mm): 45
UE51200804ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
UE51200805ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 5 | L (mm): 45
UE51200806ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
UE51200808ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
UE51200810ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 45
UE51200812ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 45
UE51200814ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 14 | L (mm): 45
UE51200816ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 16 | L (mm): 45
UE51200820ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 20 | L (mm): 45
UE51200906ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 1.3 | ℓ2 (mm): 6 | L (mm): 45
UE51200908ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 1.3 | ℓ2 (mm): 8 | L (mm): 45
UE51200910ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 1.3 | ℓ2 (mm): 10 | L (mm): 45
UE51201002ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 2 | L (mm): 50
UE51201003ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 3 | L (mm): 50
UE51201004ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 50
UE51201005ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 5 | L (mm): 50
UE51201006ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 50
UE51201007ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 7 | L (mm): 50
UE51201008ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 50
UE51201010ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
UE51201012ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
UE51201014ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
UE51201016ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
UE51201018ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 18 | L (mm): 50
UE51201020ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
UE51201022ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 22 | L (mm): 60
UE51201026ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 26 | L (mm): 60
UE51201030ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 30 | L (mm): 70
UE51201040ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 40 | L (mm): 80
UE51201050ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 50 | L (mm): 100
UE51201204ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 4 | L (mm): 50
UE51201206ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 6 | L (mm): 50
UE51201208ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 8 | L (mm): 50
UE51201210ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 10 | L (mm): 50
UE51201212ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 12 | L (mm): 50
UE51201214ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 14 | L (mm): 50
UE51201216ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 16 | L (mm): 50
UE51201220ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 20 | L (mm): 50
UE51201226ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 26 | L (mm): 60
UE51201230ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 30 | L (mm): 70
UE51201406ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 2.1 | ℓ2 (mm): 6 | L (mm): 50
UE51201408ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 2.1 | ℓ2 (mm): 8 | L (mm): 50
UE51201410ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 2.1 | ℓ2 (mm): 10 | L (mm): 50
UE51201414ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 2.1 | ℓ2 (mm): 14 | L (mm): 50
UE51201416ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 2.1 | ℓ2 (mm): 16 | L (mm): 50
UE51201420ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 2.1 | ℓ2 (mm): 20 | L (mm): 50
UE51201504ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 4 | L (mm): 50
UE51201505ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 5 | L (mm): 50
UE51201506ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 6 | L (mm): 50
UE51201507ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 7 | L (mm): 50
UE51201508ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 8 | L (mm): 50
UE51201510ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 10 | L (mm): 50
UE51201512ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 12 | L (mm): 50
UE51201514ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 14 | L (mm): 50
UE51201516ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 16 | L (mm): 50
UE51201518ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 18 | L (mm): 50
UE51201520ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 20 | L (mm): 50
UE51201522ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 22 | L (mm): 60
UE51201526ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 26 | L (mm): 60
UE51201530ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 30 | L (mm): 70
UE51201608ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 8 | L (mm): 50
UE51201610ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 10 | L (mm): 50
UE51201612ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 12 | L (mm): 50
UE51201616ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 16 | L (mm): 50
UE51201620ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 20 | L (mm): 50
UE51201808ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 2.7 | ℓ2 (mm): 8 | L (mm): 50
UE51201810ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 2.7 | ℓ2 (mm): 10 | L (mm): 50
UE51201812ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 2.7 | ℓ2 (mm): 12 | L (mm): 50
UE51201816ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 2.7 | ℓ2 (mm): 16 | L (mm): 50
UE51201820ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 2.7 | ℓ2 (mm): 20 | L (mm): 50
UE51202006ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 6 | L (mm): 50
UE51202008ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 50
UE51202010ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
UE51202012ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
UE51202014ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 14 | L (mm): 50
UE51202016ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 50
UE51202018ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 18 | L (mm): 50
UE51202020ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 50
UE51202022ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 22 | L (mm): 60
UE51202026ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 26 | L (mm): 60
UE51202030ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
UE51202035ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 35 | L (mm): 70
UE51202040ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 40 | L (mm): 80
UE51202045ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 45 | L (mm): 90
UE51202050ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 50 | L (mm): 100
UE51202060ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 60 | L (mm): 110
UE51202508ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 8 | L (mm): 50
UE51202510ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
UE51202512ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
UE51202514ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 14 | L (mm): 50
UE51202516ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 50
UE51202518ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 18 | L (mm): 50
UE51202520ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 50
UE51202522ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 22 | L (mm): 60
UE51202526ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 26 | L (mm): 60
UE51202530ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
UE51202535ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 35 | L (mm): 70
UE51202540ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 40 | L (mm): 80
UE51202545ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 45 | L (mm): 90
UE51202550ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 50 | L (mm): 100
UE51203006ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 6 | L (mm): 50
UE51203008ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 8 | L (mm): 50
UE51203010ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 10 | L (mm): 50
UE51203012ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 12 | L (mm): 50
UE51203014ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 14 | L (mm): 60
UE51203016ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 16 | L (mm): 60
UE51203018ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 18 | L (mm): 60
UE51203020ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 20 | L (mm): 60
UE51203022ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 22 | L (mm): 65
UE51203026ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 26 | L (mm): 65
UE51203030ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 30 | L (mm): 70
UE51203035ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 35 | L (mm): 70
UE51203040ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 40 | L (mm): 80
UE51203045ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 45 | L (mm): 90
UE51203050ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 50 | L (mm): 100
UE51203060ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 60 | L (mm): 100
UE51204008ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 8 | L (mm): 50
UE51204010ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 10 | L (mm): 50
UE51204012ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 12 | L (mm): 50
UE51204014ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 14 | L (mm): 60
UE51204016ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 16 | L (mm): 60
UE51204018ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 18 | L (mm): 60
UE51204020ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 20 | L (mm): 60
UE51204022ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 22 | L (mm): 65
UE51204026ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 26 | L (mm): 65
UE51204030ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 30 | L (mm): 70
UE51204035ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 35 | L (mm): 70
UE51204040ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 40 | L (mm): 80
UE51204045ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 45 | L (mm): 90
UE51204050ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 50 | L (mm): 100
UE51204060ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 60 | L (mm): 100
UE51205016ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 16 | L (mm): 60
UE51205020ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 20 | L (mm): 60
UE51205026ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 26 | L (mm): 65
UE51205030ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 30 | L (mm): 70
UE51205035ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 35 | L (mm): 75
UE51205040ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 40 | L (mm): 80
UE51205050ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 50 | L (mm): 90
UE51205060ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 60 | L (mm): 100
UE51206015ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 15 | L (mm): 60
UE51206020ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 20 | L (mm): 60
UE51206030ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 30 | L (mm): 70
UE51206032ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 32 | L (mm): 90
UE51208025ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 25 | L (mm): 70
UE51208030ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 30 | L (mm): 80
UE51208042ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 42 | L (mm): 100
UE51210030ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 30 | L (mm): 75
UE51210035ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 35 | L (mm): 80
UE51210045ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 45 | L (mm): 100
UE51212035ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 20 | ℓ2 (mm): 35 | L (mm): 80
UE51212040ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 20 | ℓ2 (mm): 40 | L (mm): 90
UE51212050ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 20 | ℓ2 (mm): 50 | L (mm): 110

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
