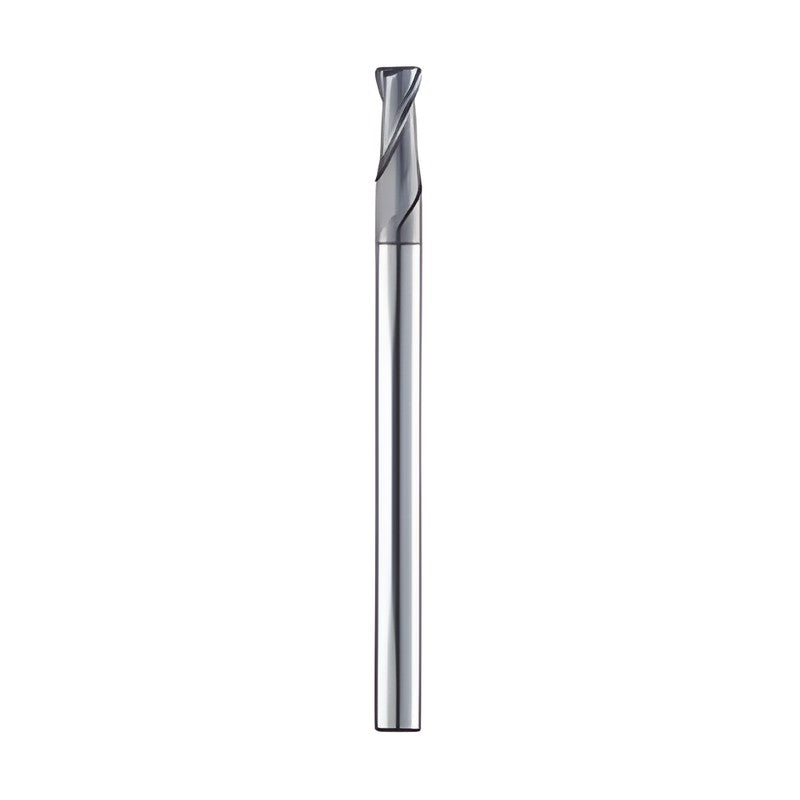

• Korloy U-Star 2 Flute Radius End Mill UR502
1 1

Korloy U-Star 2 Flute Radius End Mill UR502

Korloy U-Star 2 Flute Radius End Mill UR502

Solid carbide end mill of the U-Star series for mold and die machining of HRC30~50 medium hardness steel and die steel.

Key features

  • Carbide substrate for medium hardness steel cutting
  • AlCrN based multilayer coating for wear and oxidation resistance
  • S-curved gash shape disperses cutting force
  • Helix angle 30°
  • Radius tolerance ±0.01; ±0.01
  • h5 shank tolerance

Specifications

Series line U-Star End Mill
Flutes 2
Coating AlCrN
Helix angle 30°
ØD tolerance Ø0.2~Ø6: 0~-0.012mm; Ø7~Ø20: 0~-0.015mm
Shank tolerance h5
Radius tolerance ±0.01; ±0.01
Workpiece (excellent) Alloy steel HB225~325, Pre-hardened steel HRC30~50
Workpiece (good) Carbon steel ~ HB225, Hardened steel SKD61~HRC55, Cast iron ~FCD500
UR502002002 R (mm): 0.02 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ (mm): 0.4 | L (mm): 40
UR502002005 R (mm): 0.05 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ (mm): 0.4 | L (mm): 40
UR502003002 R (mm): 0.02 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ (mm): 0.6 | L (mm): 40
UR502003005 R (mm): 0.05 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ (mm): 0.6 | L (mm): 40
UR502004005 R (mm): 0.05 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ (mm): 0.8 | L (mm): 40
UR50200401 R (mm): 0.1 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ (mm): 0.8 | L (mm): 40
UR502005005 R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ (mm): 1 | L (mm): 40
UR50200501 R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ (mm): 1 | L (mm): 40
UR502006005 R (mm): 0.05 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 1.2 | L (mm): 40
UR50200601 R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 1.2 | L (mm): 40
UR50200602 R (mm): 0.2 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 1.2 | L (mm): 40
UR502007005 R (mm): 0.05 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 1.4 | L (mm): 40
UR50200701 R (mm): 0.1 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 1.4 | L (mm): 40
UR50200702 R (mm): 0.2 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 1.4 | L (mm): 40
UR502008005 R (mm): 0.05 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 1.6 | L (mm): 40
UR50200801 R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 1.6 | L (mm): 40
UR50200802 R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 1.6 | L (mm): 40
UR502009005 R (mm): 0.05 | ØD (mm): 0.9 | Ød (mm): 4 | ℓ (mm): 1.8 | L (mm): 40
UR50200901 R (mm): 0.1 | ØD (mm): 0.9 | Ød (mm): 4 | ℓ (mm): 1.8 | L (mm): 40
UR502010005 R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 50
UR50201001 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 50
UR50201002 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 50
UR50201003 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 50
UR502012005 R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 50
UR50201201 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 50
UR50201202 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 50
UR50201203 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 50
UR502015005 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UR50201501 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UR50201502 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UR50201503 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UR50201505 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UR50202001 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UR50202002 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UR50202003 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UR50202005 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UR50202501 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 7 | L (mm): 60
UR50202502 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 7 | L (mm): 60
UR50202503 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 7 | L (mm): 60
UR50202505 R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 7 | L (mm): 60
UR50203001 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UR50203002 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UR50203003 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UR50203005 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UR50203010 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UR50203501 R (mm): 0.1 | ØD (mm): 3.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UR50203502 R (mm): 0.2 | ØD (mm): 3.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UR50203503 R (mm): 0.3 | ØD (mm): 3.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UR50203505 R (mm): 0.5 | ØD (mm): 3.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UR50204001 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UR50204001100S4 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 100
UR50204001S4 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 70
UR50204002 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UR50204002100S4 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 100
UR50204002S4 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 70
UR50204003 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UR50204003100S4 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 100
UR50204003S4 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 70
UR50204005 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UR50204005100S4 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 100
UR50204005S4 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 70
UR50204010 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UR50204010100S4 R (mm): 1 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 100
UR50204010S4 R (mm): 1 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 70
UR50204501 R (mm): 0.1 | ØD (mm): 4.5 | Ød (mm): 6 | ℓ (mm): 11 | L (mm): 80
UR50204502 R (mm): 0.2 | ØD (mm): 4.5 | Ød (mm): 6 | ℓ (mm): 11 | L (mm): 80
UR50204503 R (mm): 0.3 | ØD (mm): 4.5 | Ød (mm): 6 | ℓ (mm): 11 | L (mm): 80
UR50204505 R (mm): 0.5 | ØD (mm): 4.5 | Ød (mm): 6 | ℓ (mm): 11 | L (mm): 80
UR50205001 R (mm): 0.1 | ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UR50205002 R (mm): 0.2 | ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UR50205003 R (mm): 0.3 | ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UR50205005 R (mm): 0.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UR50205010 R (mm): 1 | ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UR50205501 R (mm): 0.1 | ØD (mm): 5.5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UR50205502 R (mm): 0.2 | ØD (mm): 5.5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UR50205503 R (mm): 0.3 | ØD (mm): 5.5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UR50205505 R (mm): 0.5 | ØD (mm): 5.5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UR50205510 R (mm): 1 | ØD (mm): 5.5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UR50206001 R (mm): 0.1 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UR50206002 R (mm): 0.2 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UR50206003 R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UR5020600360 R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
UR50206005 R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UR50206005110 R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 110
UR50206005130 R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 130
UR5020600560 R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
UR50206010 R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UR50206010110 R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 110
UR50206010130 R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 130
UR5020601060 R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
UR50206015 R (mm): 1.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UR50206020 R (mm): 2 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UR50207001 R (mm): 0.1 | ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 90
UR50207002 R (mm): 0.2 | ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 90
UR50207003 R (mm): 0.3 | ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 90
UR50207005 R (mm): 0.5 | ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 90
UR50207010 R (mm): 1 | ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 90
UR50207020 R (mm): 2 | ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 90
UR50208001 R (mm): 0.1 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UR50208002 R (mm): 0.2 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UR50208003 R (mm): 0.3 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UR5020800370 R (mm): 0.3 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70
UR50208005 R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UR50208005120 R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 120
UR50208005150 R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 150
UR5020800570 R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70
UR50208010 R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UR50208010120 R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 120
UR50208010150 R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 150
UR5020801070 R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70
UR50208015 R (mm): 1.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UR50208020 R (mm): 2 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UR50208025 R (mm): 2.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UR50208030 R (mm): 3 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UR50210001 R (mm): 0.1 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UR50210002 R (mm): 0.2 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UR50210003 R (mm): 0.3 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UR5021000375 R (mm): 0.3 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75
UR50210005 R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UR50210005130 R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 130
UR50210005150 R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 150
UR5021000575 R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75
UR50210010 R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UR50210010130 R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 130
UR50210010150 R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 150
UR5021001075 R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75
UR50210015 R (mm): 1.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UR50210020 R (mm): 2 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UR50210025 R (mm): 2.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UR50210030 R (mm): 3 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UR50210040 R (mm): 4 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UR50211002 R (mm): 0.2 | ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 25 | L (mm): 110
UR50211003 R (mm): 0.3 | ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 25 | L (mm): 110
UR50211005 R (mm): 0.5 | ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 25 | L (mm): 110
UR50211010 R (mm): 1 | ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 25 | L (mm): 110
UR50211020 R (mm): 2 | ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 25 | L (mm): 110
UR50212001 R (mm): 0.1 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UR50212002 R (mm): 0.2 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UR50212003 R (mm): 0.3 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UR5021200380 R (mm): 0.3 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
UR50212005 R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UR50212005130 R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 130
UR50212005150 R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 150
UR5021200580 R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
UR50212010 R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UR50212010130 R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 130
UR50212010150 R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 150
UR5021201080 R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
UR50212015 R (mm): 1.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UR50212020 R (mm): 2 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UR50212025 R (mm): 2.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UR50212030 R (mm): 3 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UR50212040 R (mm): 4 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UR50212050 R (mm): 5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UR50214005 R (mm): 0.5 | ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 30 | L (mm): 150
UR50214010 R (mm): 1 | ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 30 | L (mm): 150
UR50214020 R (mm): 2 | ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 30 | L (mm): 150
UR50216005 R (mm): 0.5 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 32 | L (mm): 150
UR50216010 R (mm): 1 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 32 | L (mm): 150
UR50216015 R (mm): 1.5 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 32 | L (mm): 150
End MillsKorloy
160 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy U-Star 2 Flute Radius End Mill UR502

Brand Korloy·End Mills

Available part numbers (160)

UR502002002, UR502002005, UR502003002, UR502003005, UR502004005, UR50200401, UR502005005, UR50200501, UR502006005, UR50200601 + 150 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UR502002002R (mm): 0.02 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ (mm): 0.4 | L (mm): 40
UR502002005R (mm): 0.05 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ (mm): 0.4 | L (mm): 40
UR502003002R (mm): 0.02 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ (mm): 0.6 | L (mm): 40
UR502003005R (mm): 0.05 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ (mm): 0.6 | L (mm): 40
UR502004005R (mm): 0.05 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ (mm): 0.8 | L (mm): 40
UR50200401R (mm): 0.1 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ (mm): 0.8 | L (mm): 40
UR502005005R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ (mm): 1 | L (mm): 40
UR50200501R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ (mm): 1 | L (mm): 40
UR502006005R (mm): 0.05 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 1.2 | L (mm): 40
UR50200601R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 1.2 | L (mm): 40
UR50200602R (mm): 0.2 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 1.2 | L (mm): 40
UR502007005R (mm): 0.05 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 1.4 | L (mm): 40
UR50200701R (mm): 0.1 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 1.4 | L (mm): 40
UR50200702R (mm): 0.2 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 1.4 | L (mm): 40
UR502008005R (mm): 0.05 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 1.6 | L (mm): 40
UR50200801R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 1.6 | L (mm): 40
UR50200802R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 1.6 | L (mm): 40
UR502009005R (mm): 0.05 | ØD (mm): 0.9 | Ød (mm): 4 | ℓ (mm): 1.8 | L (mm): 40
UR50200901R (mm): 0.1 | ØD (mm): 0.9 | Ød (mm): 4 | ℓ (mm): 1.8 | L (mm): 40
UR502010005R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 50
UR50201001R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 50
UR50201002R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 50
UR50201003R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 50
UR502012005R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 50
UR50201201R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 50
UR50201202R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 50
UR50201203R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 50
UR502015005R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UR50201501R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UR50201502R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UR50201503R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UR50201505R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UR50202001R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UR50202002R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UR50202003R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UR50202005R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UR50202501R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 7 | L (mm): 60
UR50202502R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 7 | L (mm): 60
UR50202503R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 7 | L (mm): 60
UR50202505R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 7 | L (mm): 60
UR50203001R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UR50203002R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UR50203003R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UR50203005R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UR50203010R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UR50203501R (mm): 0.1 | ØD (mm): 3.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UR50203502R (mm): 0.2 | ØD (mm): 3.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UR50203503R (mm): 0.3 | ØD (mm): 3.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UR50203505R (mm): 0.5 | ØD (mm): 3.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UR50204001R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UR50204001100S4R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 100
UR50204001S4R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 70
UR50204002R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UR50204002100S4R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 100
UR50204002S4R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 70
UR50204003R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UR50204003100S4R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 100
UR50204003S4R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 70
UR50204005R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UR50204005100S4R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 100
UR50204005S4R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 70
UR50204010R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UR50204010100S4R (mm): 1 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 100
UR50204010S4R (mm): 1 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 70
UR50204501R (mm): 0.1 | ØD (mm): 4.5 | Ød (mm): 6 | ℓ (mm): 11 | L (mm): 80
UR50204502R (mm): 0.2 | ØD (mm): 4.5 | Ød (mm): 6 | ℓ (mm): 11 | L (mm): 80
UR50204503R (mm): 0.3 | ØD (mm): 4.5 | Ød (mm): 6 | ℓ (mm): 11 | L (mm): 80
UR50204505R (mm): 0.5 | ØD (mm): 4.5 | Ød (mm): 6 | ℓ (mm): 11 | L (mm): 80
UR50205001R (mm): 0.1 | ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UR50205002R (mm): 0.2 | ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UR50205003R (mm): 0.3 | ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UR50205005R (mm): 0.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UR50205010R (mm): 1 | ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UR50205501R (mm): 0.1 | ØD (mm): 5.5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UR50205502R (mm): 0.2 | ØD (mm): 5.5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UR50205503R (mm): 0.3 | ØD (mm): 5.5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UR50205505R (mm): 0.5 | ØD (mm): 5.5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UR50205510R (mm): 1 | ØD (mm): 5.5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UR50206001R (mm): 0.1 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UR50206002R (mm): 0.2 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UR50206003R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UR5020600360R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
UR50206005R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UR50206005110R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 110
UR50206005130R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 130
UR5020600560R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
UR50206010R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UR50206010110R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 110
UR50206010130R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 130
UR5020601060R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
UR50206015R (mm): 1.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UR50206020R (mm): 2 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UR50207001R (mm): 0.1 | ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 90
UR50207002R (mm): 0.2 | ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 90
UR50207003R (mm): 0.3 | ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 90
UR50207005R (mm): 0.5 | ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 90
UR50207010R (mm): 1 | ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 90
UR50207020R (mm): 2 | ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 90
UR50208001R (mm): 0.1 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UR50208002R (mm): 0.2 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UR50208003R (mm): 0.3 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UR5020800370R (mm): 0.3 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70
UR50208005R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UR50208005120R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 120
UR50208005150R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 150
UR5020800570R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70
UR50208010R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UR50208010120R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 120
UR50208010150R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 150
UR5020801070R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70
UR50208015R (mm): 1.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UR50208020R (mm): 2 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UR50208025R (mm): 2.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UR50208030R (mm): 3 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UR50210001R (mm): 0.1 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UR50210002R (mm): 0.2 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UR50210003R (mm): 0.3 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UR5021000375R (mm): 0.3 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75
UR50210005R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UR50210005130R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 130
UR50210005150R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 150
UR5021000575R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75
UR50210010R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UR50210010130R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 130
UR50210010150R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 150
UR5021001075R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75
UR50210015R (mm): 1.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UR50210020R (mm): 2 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UR50210025R (mm): 2.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UR50210030R (mm): 3 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UR50210040R (mm): 4 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UR50211002R (mm): 0.2 | ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 25 | L (mm): 110
UR50211003R (mm): 0.3 | ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 25 | L (mm): 110
UR50211005R (mm): 0.5 | ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 25 | L (mm): 110
UR50211010R (mm): 1 | ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 25 | L (mm): 110
UR50211020R (mm): 2 | ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 25 | L (mm): 110
UR50212001R (mm): 0.1 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UR50212002R (mm): 0.2 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UR50212003R (mm): 0.3 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UR5021200380R (mm): 0.3 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
UR50212005R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UR50212005130R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 130
UR50212005150R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 150
UR5021200580R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
UR50212010R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UR50212010130R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 130
UR50212010150R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 150
UR5021201080R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
UR50212015R (mm): 1.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UR50212020R (mm): 2 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UR50212025R (mm): 2.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UR50212030R (mm): 3 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UR50212040R (mm): 4 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UR50212050R (mm): 5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UR50214005R (mm): 0.5 | ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 30 | L (mm): 150
UR50214010R (mm): 1 | ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 30 | L (mm): 150
UR50214020R (mm): 2 | ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 30 | L (mm): 150
UR50216005R (mm): 0.5 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 32 | L (mm): 150
UR50216010R (mm): 1 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 32 | L (mm): 150
UR50216015R (mm): 1.5 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 32 | L (mm): 150

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
