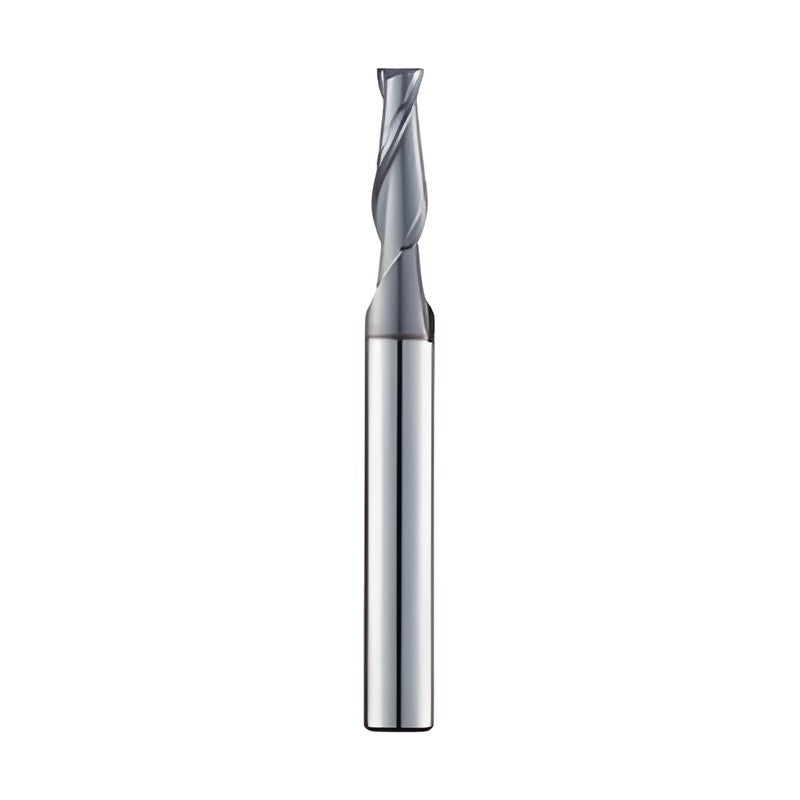

Korloy U-Star 2 Flute Tapered Flat End Mill UTE502

Korloy U-Star 2 Flute Tapered Flat End Mill UTE502

Solid carbide end mill of the U-Star series for mold and die machining of HRC30~50 medium hardness steel and die steel.

Key features

  • Carbide substrate for medium hardness steel cutting
  • AlCrN based multilayer coating for wear and oxidation resistance
  • S-curved gash shape disperses cutting force
  • Helix angle 30°
  • h5 shank tolerance

Specifications

Series line U-Star End Mill
Flutes 2
Coating AlCrN
Helix angle 30°
ØD tolerance Ø1~Ø12: 0~-0.03mm
Shank tolerance h5
Workpiece (excellent) Alloy steel HB225~325, Pre-hardened steel HRC30~50
Workpiece (good) Carbon steel ~ HB225, Hardened steel SKD61~HRC55, Cast iron ~FCD500
UTE502003005 ØD (mm): 0.3 | Ød (mm): 4 | ℓ (mm): 1.2 | θ (deg): 0.5 | L (mm): 40
UTE50200301 ØD (mm): 0.3 | Ød (mm): 4 | ℓ (mm): 1.2 | θ (deg): 1 | L (mm): 40
UTE502003015 ØD (mm): 0.3 | Ød (mm): 4 | ℓ (mm): 1.2 | θ (deg): 1.5 | L (mm): 40
UTE50200302 ØD (mm): 0.3 | Ød (mm): 4 | ℓ (mm): 1.2 | θ (deg): 2 | L (mm): 40
UTE50200303 ØD (mm): 0.3 | Ød (mm): 4 | ℓ (mm): 1.5 | θ (deg): 3 | L (mm): 40
UTE50200305 ØD (mm): 0.3 | Ød (mm): 4 | ℓ (mm): 1.5 | θ (deg): 5 | L (mm): 40
UTE50200307 ØD (mm): 0.3 | Ød (mm): 4 | ℓ (mm): 1.5 | θ (deg): 7 | L (mm): 40
UTE50200310 ØD (mm): 0.3 | Ød (mm): 4 | ℓ (mm): 1.5 | θ (deg): 10 | L (mm): 40
UTE502004005 ØD (mm): 0.4 | Ød (mm): 4 | ℓ (mm): 1.6 | θ (deg): 0.5 | L (mm): 40
UTE50200401 ØD (mm): 0.4 | Ød (mm): 4 | ℓ (mm): 1.6 | θ (deg): 1 | L (mm): 40
UTE502004015 ØD (mm): 0.4 | Ød (mm): 4 | ℓ (mm): 1.6 | θ (deg): 1.5 | L (mm): 40
UTE50200402 ØD (mm): 0.4 | Ød (mm): 4 | ℓ (mm): 1.6 | θ (deg): 2 | L (mm): 40
UTE50200403 ØD (mm): 0.4 | Ød (mm): 4 | ℓ (mm): 1.6 | θ (deg): 3 | L (mm): 40
UTE50200405 ØD (mm): 0.4 | Ød (mm): 4 | ℓ (mm): 2 | θ (deg): 5 | L (mm): 40
UTE50200407 ØD (mm): 0.4 | Ød (mm): 4 | ℓ (mm): 2 | θ (deg): 7 | L (mm): 40
UTE50200410 ØD (mm): 0.4 | Ød (mm): 4 | ℓ (mm): 2 | θ (deg): 10 | L (mm): 40
UTE502005005 ØD (mm): 0.5 | Ød (mm): 4 | ℓ (mm): 2 | θ (deg): 0.5 | L (mm): 45
UTE50200501 ØD (mm): 0.5 | Ød (mm): 4 | ℓ (mm): 2 | θ (deg): 1 | L (mm): 45
UTE502005015 ØD (mm): 0.5 | Ød (mm): 4 | ℓ (mm): 2 | θ (deg): 1.5 | L (mm): 45
UTE50200502 ØD (mm): 0.5 | Ød (mm): 4 | ℓ (mm): 2 | θ (deg): 2 | L (mm): 45
UTE50200503 ØD (mm): 0.5 | Ød (mm): 4 | ℓ (mm): 2 | θ (deg): 3 | L (mm): 45
UTE50200505 ØD (mm): 0.5 | Ød (mm): 4 | ℓ (mm): 2.5 | θ (deg): 5 | L (mm): 45
UTE50200507 ØD (mm): 0.5 | Ød (mm): 4 | ℓ (mm): 2.5 | θ (deg): 7 | L (mm): 45
UTE50200510 ØD (mm): 0.5 | Ød (mm): 4 | ℓ (mm): 2.5 | θ (deg): 10 | L (mm): 45
UTE502006005 ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 2.4 | θ (deg): 0.5 | L (mm): 45
UTE50200601 ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 2.4 | θ (deg): 1 | L (mm): 45
UTE502006015 ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 2.4 | θ (deg): 1.5 | L (mm): 45
UTE50200602 ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 2.4 | θ (deg): 2 | L (mm): 45
UTE50200603 ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 2.4 | θ (deg): 3 | L (mm): 45
UTE50200605 ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 3 | θ (deg): 5 | L (mm): 45
UTE50200607 ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 3 | θ (deg): 7 | L (mm): 45
UTE50200610 ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 3 | θ (deg): 10 | L (mm): 45
UTE502007005 ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 2.8 | θ (deg): 0.5 | L (mm): 45
UTE50200701 ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 2.8 | θ (deg): 1 | L (mm): 45
UTE502007015 ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 2.8 | θ (deg): 1.5 | L (mm): 45
UTE50200702 ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 2.8 | θ (deg): 2 | L (mm): 45
UTE50200703 ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 2.8 | θ (deg): 3 | L (mm): 45
UTE50200705 ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 3.5 | θ (deg): 5 | L (mm): 45
UTE50200707 ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 3.5 | θ (deg): 7 | L (mm): 45
UTE50200710 ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 3.5 | θ (deg): 10 | L (mm): 45
UTE502008005 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 3.2 | θ (deg): 0.5 | L (mm): 45
UTE50200801 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 3.2 | θ (deg): 1 | L (mm): 45
UTE502008015 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 3.2 | θ (deg): 1.5 | L (mm): 45
UTE50200802 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 3.2 | θ (deg): 2 | L (mm): 45
UTE50200803 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 3.2 | θ (deg): 3 | L (mm): 45
UTE50200805 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 5 | L (mm): 45
UTE50200807 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 7 | L (mm): 45
UTE50200810 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 10 | L (mm): 45
UTE502010005 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 0.5 | L (mm): 50
UTE50201001 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 1 | L (mm): 50
UTE502010015 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 1.5 | L (mm): 50
UTE50201002 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 2 | L (mm): 50
UTE50201003 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 3 | L (mm): 50
UTE50201005 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 5 | L (mm): 50
UTE50201007 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 7 | L (mm): 50
UTE50201010 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 10 | L (mm): 50
UTE502015005 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 0.5 | L (mm): 50
UTE50201501 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 1 | L (mm): 50
UTE502015015 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 1.5 | L (mm): 50
UTE50201502 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 2 | L (mm): 50
UTE50201503 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 3 | L (mm): 50
UTE50201505 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 5 | L (mm): 50
UTE50201507 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 7 | L (mm): 50
UTE50201510 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 10 | θ (deg): 10 | L (mm): 50
UTE502020005 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 0.5 | L (mm): 50
UTE50202001 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 1 | L (mm): 50
UTE502020015 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 1.5 | L (mm): 50
UTE50202002 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 2 | L (mm): 50
UTE50202003 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 3 | L (mm): 50
UTE50202005 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 12 | θ (deg): 5 | L (mm): 50
UTE50202007 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 12 | θ (deg): 7 | L (mm): 50
UTE50202010 ØD (mm): 2 | Ød (mm): 8 | ℓ (mm): 12 | θ (deg): 10 | L (mm): 50
UTE502025005 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 10 | θ (deg): 0.5 | L (mm): 50
UTE50202501 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 10 | θ (deg): 1 | L (mm): 50
UTE502025015 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 10 | θ (deg): 1.5 | L (mm): 50
UTE50202502 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 12 | θ (deg): 2 | L (mm): 50
UTE50202503 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 12 | θ (deg): 3 | L (mm): 50
UTE50202505 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 14 | θ (deg): 5 | L (mm): 50
UTE50202507 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 14 | θ (deg): 7 | L (mm): 50
UTE50202510 ØD (mm): 2.5 | Ød (mm): 8 | ℓ (mm): 14 | θ (deg): 10 | L (mm): 50
UTE502030005 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 12 | θ (deg): 0.5 | L (mm): 50
UTE50203001 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 12 | θ (deg): 1 | L (mm): 50
UTE502030015 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 12 | θ (deg): 1.5 | L (mm): 50
UTE50203002 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 14 | θ (deg): 2 | L (mm): 50
UTE50203003 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 14 | θ (deg): 3 | L (mm): 50
UTE50203005 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 16 | θ (deg): 5 | L (mm): 50
UTE50203007 ØD (mm): 3 | Ød (mm): 8 | ℓ (mm): 16 | θ (deg): 7 | L (mm): 50
UTE50203010 ØD (mm): 3 | Ød (mm): 10 | ℓ (mm): 16 | θ (deg): 10 | L (mm): 50
UTE502040005 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 16 | θ (deg): 0.5 | L (mm): 60
UTE50204001 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 16 | θ (deg): 1 | L (mm): 60
UTE502040015 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 16 | θ (deg): 1.5 | L (mm): 60
UTE50204002 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 16 | θ (deg): 2 | L (mm): 60
UTE50204003 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 19 | θ (deg): 3 | L (mm): 60
UTE50204005 ØD (mm): 4 | Ød (mm): 8 | ℓ (mm): 22 | θ (deg): 5 | L (mm): 65
UTE50204007 ØD (mm): 4 | Ød (mm): 8 | ℓ (mm): 16 | θ (deg): 7 | L (mm): 65
UTE50204010 ØD (mm): 4 | Ød (mm): 10 | ℓ (mm): 17 | θ (deg): 10 | L (mm): 65
UTE502060005 ØD (mm): 6 | Ød (mm): 8 | ℓ (mm): 20 | θ (deg): 0.5 | L (mm): 65
UTE50206001 ØD (mm): 6 | Ød (mm): 8 | ℓ (mm): 20 | θ (deg): 1 | L (mm): 65
UTE502060015 ØD (mm): 6 | Ød (mm): 8 | ℓ (mm): 20 | θ (deg): 1.5 | L (mm): 65
UTE50206002 ØD (mm): 6 | Ød (mm): 8 | ℓ (mm): 20 | θ (deg): 2 | L (mm): 65
UTE50206003 ØD (mm): 6 | Ød (mm): 8 | ℓ (mm): 19 | θ (deg): 3 | L (mm): 65
UTE50206005 ØD (mm): 6 | Ød (mm): 10 | ℓ (mm): 22 | θ (deg): 5 | L (mm): 75
UTE50206007 ØD (mm): 6 | Ød (mm): 12 | ℓ (mm): 24 | θ (deg): 7 | L (mm): 75
UTE50206010 ØD (mm): 6 | Ød (mm): 12 | ℓ (mm): 17 | θ (deg): 10 | L (mm): 75
UTE502070005 ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 28 | θ (deg): 0.5 | L (mm): 70
UTE50207001 ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 28 | θ (deg): 1 | L (mm): 70
UTE502070015 ØD (mm): 7 | Ød (mm): 10 | ℓ (mm): 28 | θ (deg): 1.5 | L (mm): 70
UTE50207002 ØD (mm): 7 | Ød (mm): 10 | ℓ (mm): 28 | θ (deg): 2 | L (mm): 80
UTE50207003 ØD (mm): 7 | Ød (mm): 10 | ℓ (mm): 28 | θ (deg): 3 | L (mm): 80
UTE50207005 ØD (mm): 7 | Ød (mm): 12 | ℓ (mm): 28 | θ (deg): 5 | L (mm): 80
UTE502080005 ØD (mm): 8 | Ød (mm): 10 | ℓ (mm): 35 | θ (deg): 0.5 | L (mm): 90
UTE50208001 ØD (mm): 8 | Ød (mm): 10 | ℓ (mm): 35 | θ (deg): 1 | L (mm): 90
UTE502080015 ØD (mm): 8 | Ød (mm): 10 | ℓ (mm): 35 | θ (deg): 1.5 | L (mm): 90
UTE50208002 ØD (mm): 8 | Ød (mm): 10 | ℓ (mm): 28 | θ (deg): 2 | L (mm): 90
UTE50208003 ØD (mm): 8 | Ød (mm): 12 | ℓ (mm): 38 | θ (deg): 3 | L (mm): 90
UTE50208005 ØD (mm): 8 | Ød (mm): 16 | ℓ (mm): 45 | θ (deg): 5 | L (mm): 100
UTE50208007 ØD (mm): 8 | Ød (mm): 16 | ℓ (mm): 32 | θ (deg): 7 | L (mm): 90
UTE50208010 ØD (mm): 8 | Ød (mm): 20 | ℓ (mm): 34 | θ (deg): 10 | L (mm): 100
UTE50208010S25 ØD (mm): 8 | Ød (mm): 25 | ℓ (mm): 48 | θ (deg): 10 | L (mm): 150
UTE502100005 ØD (mm): 10 | Ød (mm): 12 | ℓ (mm): 40 | θ (deg): 0.5 | L (mm): 90
UTE50210001 ØD (mm): 10 | Ød (mm): 12 | ℓ (mm): 40 | θ (deg): 1 | L (mm): 90
UTE502100015 ØD (mm): 10 | Ød (mm): 12 | ℓ (mm): 38 | θ (deg): 1.5 | L (mm): 90
UTE50210002 ØD (mm): 10 | Ød (mm): 16 | ℓ (mm): 40 | θ (deg): 2 | L (mm): 75
UTE50210003 ØD (mm): 10 | Ød (mm): 16 | ℓ (mm): 40 | θ (deg): 3 | L (mm): 100
UTE50210005 ØD (mm): 10 | Ød (mm): 16 | ℓ (mm): 34 | θ (deg): 5 | L (mm): 100
UTE50210007 ØD (mm): 10 | Ød (mm): 20 | ℓ (mm): 40 | θ (deg): 7 | L (mm): 90
UTE50210010 ØD (mm): 10 | Ød (mm): 25 | ℓ (mm): 42 | θ (deg): 10 | L (mm): 100
End MillsKorloy
127 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy U-Star 2 Flute Tapered Flat End Mill UTE502

Brand Korloy·End Mills

Available part numbers (127)

UTE502003005, UTE50200301, UTE502003015, UTE50200302, UTE50200303, UTE50200305, UTE50200307, UTE50200310, UTE502004005, UTE50200401 + 117 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UTE502003005ØD (mm): 0.3 | Ød (mm): 4 | ℓ (mm): 1.2 | θ (deg): 0.5 | L (mm): 40
UTE50200301ØD (mm): 0.3 | Ød (mm): 4 | ℓ (mm): 1.2 | θ (deg): 1 | L (mm): 40
UTE502003015ØD (mm): 0.3 | Ød (mm): 4 | ℓ (mm): 1.2 | θ (deg): 1.5 | L (mm): 40
UTE50200302ØD (mm): 0.3 | Ød (mm): 4 | ℓ (mm): 1.2 | θ (deg): 2 | L (mm): 40
UTE50200303ØD (mm): 0.3 | Ød (mm): 4 | ℓ (mm): 1.5 | θ (deg): 3 | L (mm): 40
UTE50200305ØD (mm): 0.3 | Ød (mm): 4 | ℓ (mm): 1.5 | θ (deg): 5 | L (mm): 40
UTE50200307ØD (mm): 0.3 | Ød (mm): 4 | ℓ (mm): 1.5 | θ (deg): 7 | L (mm): 40
UTE50200310ØD (mm): 0.3 | Ød (mm): 4 | ℓ (mm): 1.5 | θ (deg): 10 | L (mm): 40
UTE502004005ØD (mm): 0.4 | Ød (mm): 4 | ℓ (mm): 1.6 | θ (deg): 0.5 | L (mm): 40
UTE50200401ØD (mm): 0.4 | Ød (mm): 4 | ℓ (mm): 1.6 | θ (deg): 1 | L (mm): 40
UTE502004015ØD (mm): 0.4 | Ød (mm): 4 | ℓ (mm): 1.6 | θ (deg): 1.5 | L (mm): 40
UTE50200402ØD (mm): 0.4 | Ød (mm): 4 | ℓ (mm): 1.6 | θ (deg): 2 | L (mm): 40
UTE50200403ØD (mm): 0.4 | Ød (mm): 4 | ℓ (mm): 1.6 | θ (deg): 3 | L (mm): 40
UTE50200405ØD (mm): 0.4 | Ød (mm): 4 | ℓ (mm): 2 | θ (deg): 5 | L (mm): 40
UTE50200407ØD (mm): 0.4 | Ød (mm): 4 | ℓ (mm): 2 | θ (deg): 7 | L (mm): 40
UTE50200410ØD (mm): 0.4 | Ød (mm): 4 | ℓ (mm): 2 | θ (deg): 10 | L (mm): 40
UTE502005005ØD (mm): 0.5 | Ød (mm): 4 | ℓ (mm): 2 | θ (deg): 0.5 | L (mm): 45
UTE50200501ØD (mm): 0.5 | Ød (mm): 4 | ℓ (mm): 2 | θ (deg): 1 | L (mm): 45
UTE502005015ØD (mm): 0.5 | Ød (mm): 4 | ℓ (mm): 2 | θ (deg): 1.5 | L (mm): 45
UTE50200502ØD (mm): 0.5 | Ød (mm): 4 | ℓ (mm): 2 | θ (deg): 2 | L (mm): 45
UTE50200503ØD (mm): 0.5 | Ød (mm): 4 | ℓ (mm): 2 | θ (deg): 3 | L (mm): 45
UTE50200505ØD (mm): 0.5 | Ød (mm): 4 | ℓ (mm): 2.5 | θ (deg): 5 | L (mm): 45
UTE50200507ØD (mm): 0.5 | Ød (mm): 4 | ℓ (mm): 2.5 | θ (deg): 7 | L (mm): 45
UTE50200510ØD (mm): 0.5 | Ød (mm): 4 | ℓ (mm): 2.5 | θ (deg): 10 | L (mm): 45
UTE502006005ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 2.4 | θ (deg): 0.5 | L (mm): 45
UTE50200601ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 2.4 | θ (deg): 1 | L (mm): 45
UTE502006015ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 2.4 | θ (deg): 1.5 | L (mm): 45
UTE50200602ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 2.4 | θ (deg): 2 | L (mm): 45
UTE50200603ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 2.4 | θ (deg): 3 | L (mm): 45
UTE50200605ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 3 | θ (deg): 5 | L (mm): 45
UTE50200607ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 3 | θ (deg): 7 | L (mm): 45
UTE50200610ØD (mm): 0.6 | Ød (mm): 4 | ℓ (mm): 3 | θ (deg): 10 | L (mm): 45
UTE502007005ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 2.8 | θ (deg): 0.5 | L (mm): 45
UTE50200701ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 2.8 | θ (deg): 1 | L (mm): 45
UTE502007015ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 2.8 | θ (deg): 1.5 | L (mm): 45
UTE50200702ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 2.8 | θ (deg): 2 | L (mm): 45
UTE50200703ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 2.8 | θ (deg): 3 | L (mm): 45
UTE50200705ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 3.5 | θ (deg): 5 | L (mm): 45
UTE50200707ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 3.5 | θ (deg): 7 | L (mm): 45
UTE50200710ØD (mm): 0.7 | Ød (mm): 4 | ℓ (mm): 3.5 | θ (deg): 10 | L (mm): 45
UTE502008005ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 3.2 | θ (deg): 0.5 | L (mm): 45
UTE50200801ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 3.2 | θ (deg): 1 | L (mm): 45
UTE502008015ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 3.2 | θ (deg): 1.5 | L (mm): 45
UTE50200802ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 3.2 | θ (deg): 2 | L (mm): 45
UTE50200803ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 3.2 | θ (deg): 3 | L (mm): 45
UTE50200805ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 5 | L (mm): 45
UTE50200807ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 7 | L (mm): 45
UTE50200810ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 10 | L (mm): 45
UTE502010005ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 0.5 | L (mm): 50
UTE50201001ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 1 | L (mm): 50
UTE502010015ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 1.5 | L (mm): 50
UTE50201002ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 2 | L (mm): 50
UTE50201003ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 3 | L (mm): 50
UTE50201005ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 5 | L (mm): 50
UTE50201007ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 7 | L (mm): 50
UTE50201010ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 10 | L (mm): 50
UTE502015005ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 0.5 | L (mm): 50
UTE50201501ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 1 | L (mm): 50
UTE502015015ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 1.5 | L (mm): 50
UTE50201502ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 2 | L (mm): 50
UTE50201503ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 3 | L (mm): 50
UTE50201505ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 5 | L (mm): 50
UTE50201507ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 7 | L (mm): 50
UTE50201510ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 10 | θ (deg): 10 | L (mm): 50
UTE502020005ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 0.5 | L (mm): 50
UTE50202001ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 1 | L (mm): 50
UTE502020015ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 1.5 | L (mm): 50
UTE50202002ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 2 | L (mm): 50
UTE50202003ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 3 | L (mm): 50
UTE50202005ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 12 | θ (deg): 5 | L (mm): 50
UTE50202007ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 12 | θ (deg): 7 | L (mm): 50
UTE50202010ØD (mm): 2 | Ød (mm): 8 | ℓ (mm): 12 | θ (deg): 10 | L (mm): 50
UTE502025005ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 10 | θ (deg): 0.5 | L (mm): 50
UTE50202501ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 10 | θ (deg): 1 | L (mm): 50
UTE502025015ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 10 | θ (deg): 1.5 | L (mm): 50
UTE50202502ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 12 | θ (deg): 2 | L (mm): 50
UTE50202503ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 12 | θ (deg): 3 | L (mm): 50
UTE50202505ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 14 | θ (deg): 5 | L (mm): 50
UTE50202507ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 14 | θ (deg): 7 | L (mm): 50
UTE50202510ØD (mm): 2.5 | Ød (mm): 8 | ℓ (mm): 14 | θ (deg): 10 | L (mm): 50
UTE502030005ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 12 | θ (deg): 0.5 | L (mm): 50
UTE50203001ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 12 | θ (deg): 1 | L (mm): 50
UTE502030015ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 12 | θ (deg): 1.5 | L (mm): 50
UTE50203002ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 14 | θ (deg): 2 | L (mm): 50
UTE50203003ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 14 | θ (deg): 3 | L (mm): 50
UTE50203005ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 16 | θ (deg): 5 | L (mm): 50
UTE50203007ØD (mm): 3 | Ød (mm): 8 | ℓ (mm): 16 | θ (deg): 7 | L (mm): 50
UTE50203010ØD (mm): 3 | Ød (mm): 10 | ℓ (mm): 16 | θ (deg): 10 | L (mm): 50
UTE502040005ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 16 | θ (deg): 0.5 | L (mm): 60
UTE50204001ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 16 | θ (deg): 1 | L (mm): 60
UTE502040015ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 16 | θ (deg): 1.5 | L (mm): 60
UTE50204002ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 16 | θ (deg): 2 | L (mm): 60
UTE50204003ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 19 | θ (deg): 3 | L (mm): 60
UTE50204005ØD (mm): 4 | Ød (mm): 8 | ℓ (mm): 22 | θ (deg): 5 | L (mm): 65
UTE50204007ØD (mm): 4 | Ød (mm): 8 | ℓ (mm): 16 | θ (deg): 7 | L (mm): 65
UTE50204010ØD (mm): 4 | Ød (mm): 10 | ℓ (mm): 17 | θ (deg): 10 | L (mm): 65
UTE502060005ØD (mm): 6 | Ød (mm): 8 | ℓ (mm): 20 | θ (deg): 0.5 | L (mm): 65
UTE50206001ØD (mm): 6 | Ød (mm): 8 | ℓ (mm): 20 | θ (deg): 1 | L (mm): 65
UTE502060015ØD (mm): 6 | Ød (mm): 8 | ℓ (mm): 20 | θ (deg): 1.5 | L (mm): 65
UTE50206002ØD (mm): 6 | Ød (mm): 8 | ℓ (mm): 20 | θ (deg): 2 | L (mm): 65
UTE50206003ØD (mm): 6 | Ød (mm): 8 | ℓ (mm): 19 | θ (deg): 3 | L (mm): 65
UTE50206005ØD (mm): 6 | Ød (mm): 10 | ℓ (mm): 22 | θ (deg): 5 | L (mm): 75
UTE50206007ØD (mm): 6 | Ød (mm): 12 | ℓ (mm): 24 | θ (deg): 7 | L (mm): 75
UTE50206010ØD (mm): 6 | Ød (mm): 12 | ℓ (mm): 17 | θ (deg): 10 | L (mm): 75
UTE502070005ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 28 | θ (deg): 0.5 | L (mm): 70
UTE50207001ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 28 | θ (deg): 1 | L (mm): 70
UTE502070015ØD (mm): 7 | Ød (mm): 10 | ℓ (mm): 28 | θ (deg): 1.5 | L (mm): 70
UTE50207002ØD (mm): 7 | Ød (mm): 10 | ℓ (mm): 28 | θ (deg): 2 | L (mm): 80
UTE50207003ØD (mm): 7 | Ød (mm): 10 | ℓ (mm): 28 | θ (deg): 3 | L (mm): 80
UTE50207005ØD (mm): 7 | Ød (mm): 12 | ℓ (mm): 28 | θ (deg): 5 | L (mm): 80
UTE502080005ØD (mm): 8 | Ød (mm): 10 | ℓ (mm): 35 | θ (deg): 0.5 | L (mm): 90
UTE50208001ØD (mm): 8 | Ød (mm): 10 | ℓ (mm): 35 | θ (deg): 1 | L (mm): 90
UTE502080015ØD (mm): 8 | Ød (mm): 10 | ℓ (mm): 35 | θ (deg): 1.5 | L (mm): 90
UTE50208002ØD (mm): 8 | Ød (mm): 10 | ℓ (mm): 28 | θ (deg): 2 | L (mm): 90
UTE50208003ØD (mm): 8 | Ød (mm): 12 | ℓ (mm): 38 | θ (deg): 3 | L (mm): 90
UTE50208005ØD (mm): 8 | Ød (mm): 16 | ℓ (mm): 45 | θ (deg): 5 | L (mm): 100
UTE50208007ØD (mm): 8 | Ød (mm): 16 | ℓ (mm): 32 | θ (deg): 7 | L (mm): 90
UTE50208010ØD (mm): 8 | Ød (mm): 20 | ℓ (mm): 34 | θ (deg): 10 | L (mm): 100
UTE50208010S25ØD (mm): 8 | Ød (mm): 25 | ℓ (mm): 48 | θ (deg): 10 | L (mm): 150
UTE502100005ØD (mm): 10 | Ød (mm): 12 | ℓ (mm): 40 | θ (deg): 0.5 | L (mm): 90
UTE50210001ØD (mm): 10 | Ød (mm): 12 | ℓ (mm): 40 | θ (deg): 1 | L (mm): 90
UTE502100015ØD (mm): 10 | Ød (mm): 12 | ℓ (mm): 38 | θ (deg): 1.5 | L (mm): 90
UTE50210002ØD (mm): 10 | Ød (mm): 16 | ℓ (mm): 40 | θ (deg): 2 | L (mm): 75
UTE50210003ØD (mm): 10 | Ød (mm): 16 | ℓ (mm): 40 | θ (deg): 3 | L (mm): 100
UTE50210005ØD (mm): 10 | Ød (mm): 16 | ℓ (mm): 34 | θ (deg): 5 | L (mm): 100
UTE50210007ØD (mm): 10 | Ød (mm): 20 | ℓ (mm): 40 | θ (deg): 7 | L (mm): 90
UTE50210010ØD (mm): 10 | Ød (mm): 25 | ℓ (mm): 42 | θ (deg): 10 | L (mm): 100

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
