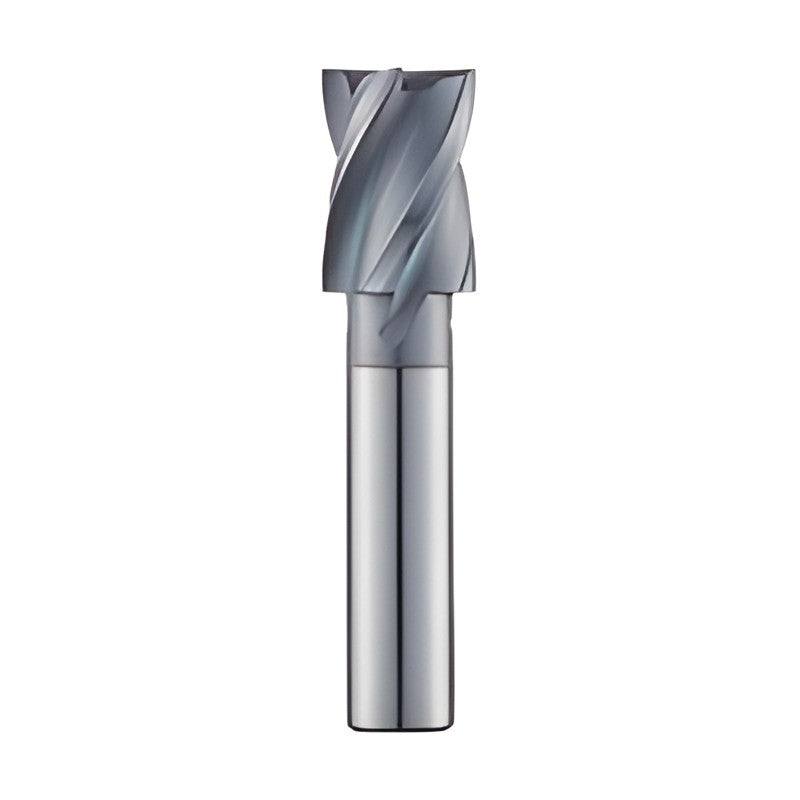

Korloy U-Star 4 Flute Automatic CNC Flat End Mill ULE504

Korloy U-Star 4 Flute Automatic CNC Flat End Mill ULE504

Solid carbide end mill of the U-Star series for mold and die machining of HRC30~50 medium hardness steel and die steel.

Key features

  • Carbide substrate for medium hardness steel cutting
  • AlCrN based multilayer coating for wear and oxidation resistance
  • S-curved gash shape disperses cutting force
  • Helix angle 30°
  • h5 shank tolerance

Specifications

Series line U-Star End Mill
Flutes 4
Coating AlCrN
Helix angle 30°
ØD tolerance Ø3~Ø16: 0~-0.02mm
Shank tolerance h5
Workpiece (excellent) Alloy steel HB225~325, Pre-hardened steel HRC30~50
Workpiece (good) Hardened steel SKD61~HRC55, Cast iron ~FCD500
ULE504030S04 ØD (mm): 3 | Ød (mm): 4 | ℓ (mm): 3 | L (mm): 35
ULE504040S04 ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 4 | L (mm): 35
ULE504060S06 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 35
ULE504070S07 ØD (mm): 7 | Ød (mm): 7 | ℓ (mm): 20 | L (mm): 45
ULE504080S08 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 8 | L (mm): 45
ULE504080S06 ØD (mm): 8 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 35
ULE504080S07 ØD (mm): 8 | Ød (mm): 7 | ℓ (mm): 15 | L (mm): 45
ULE504090S07 ØD (mm): 9 | Ød (mm): 7 | ℓ (mm): 15 | L (mm): 45
ULE504100S06 ØD (mm): 10 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 35
ULE504100S10 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 15 | L (mm): 45
ULE504100S07 ØD (mm): 10 | Ød (mm): 7 | ℓ (mm): 15 | L (mm): 45
ULE504110S07 ØD (mm): 11 | Ød (mm): 7 | ℓ (mm): 15 | L (mm): 45
ULE504120S10 ØD (mm): 12 | Ød (mm): 10 | ℓ (mm): 12 | L (mm): 45
ULE504120S06 ØD (mm): 12 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 35
ULE504120S07 ØD (mm): 12 | Ød (mm): 7 | ℓ (mm): 15 | L (mm): 45
ULE504120-25S10 ØD (mm): 12 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 55
ULE504130S10 ØD (mm): 13 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 55
ULE504140S10 ØD (mm): 14 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 55
ULE504140S07 ØD (mm): 14 | Ød (mm): 7 | ℓ (mm): 25 | L (mm): 55
ULE504160S10 ØD (mm): 16 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 60
End MillsKorloy
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy U-Star 4 Flute Automatic CNC Flat End Mill ULE504

Brand Korloy·End Mills

Available part numbers (20)

ULE504030S04, ULE504040S04, ULE504060S06, ULE504070S07, ULE504080S08, ULE504080S06, ULE504080S07, ULE504090S07, ULE504100S06, ULE504100S10 + 10 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ULE504030S04ØD (mm): 3 | Ød (mm): 4 | ℓ (mm): 3 | L (mm): 35
ULE504040S04ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 4 | L (mm): 35
ULE504060S06ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 35
ULE504070S07ØD (mm): 7 | Ød (mm): 7 | ℓ (mm): 20 | L (mm): 45
ULE504080S08ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 8 | L (mm): 45
ULE504080S06ØD (mm): 8 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 35
ULE504080S07ØD (mm): 8 | Ød (mm): 7 | ℓ (mm): 15 | L (mm): 45
ULE504090S07ØD (mm): 9 | Ød (mm): 7 | ℓ (mm): 15 | L (mm): 45
ULE504100S06ØD (mm): 10 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 35
ULE504100S10ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 15 | L (mm): 45
ULE504100S07ØD (mm): 10 | Ød (mm): 7 | ℓ (mm): 15 | L (mm): 45
ULE504110S07ØD (mm): 11 | Ød (mm): 7 | ℓ (mm): 15 | L (mm): 45
ULE504120S10ØD (mm): 12 | Ød (mm): 10 | ℓ (mm): 12 | L (mm): 45
ULE504120S06ØD (mm): 12 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 35
ULE504120S07ØD (mm): 12 | Ød (mm): 7 | ℓ (mm): 15 | L (mm): 45
ULE504120-25S10ØD (mm): 12 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 55
ULE504130S10ØD (mm): 13 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 55
ULE504140S10ØD (mm): 14 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 55
ULE504140S07ØD (mm): 14 | Ød (mm): 7 | ℓ (mm): 25 | L (mm): 55
ULE504160S10ØD (mm): 16 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 60
