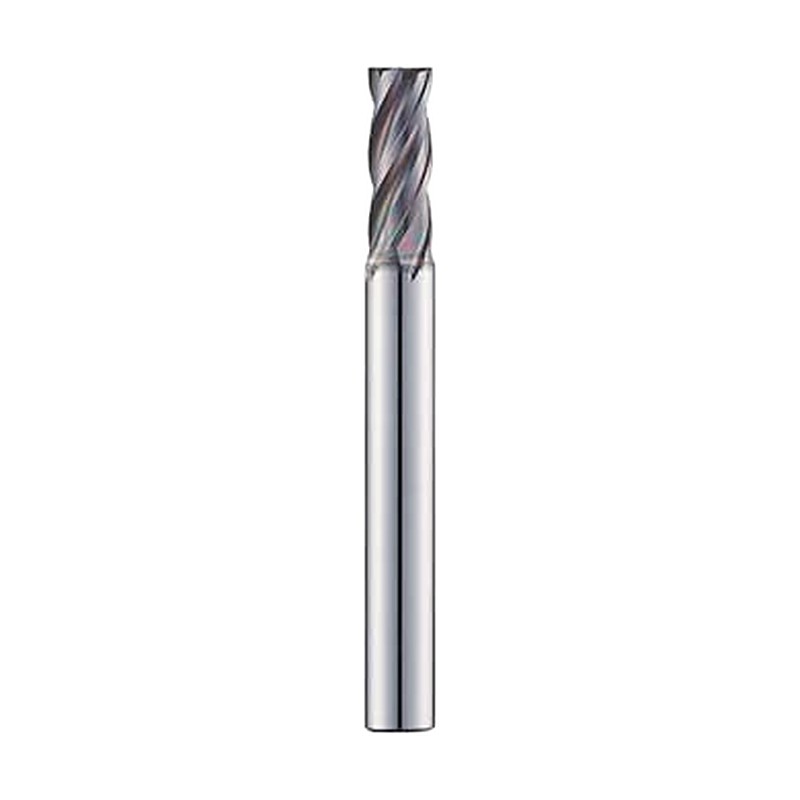

Korloy U-Star 4 Flute Flat End Mill for Heavy Cuts UXE504

Korloy U-Star 4 Flute Flat End Mill for Heavy Cuts UXE504

Solid carbide end mill of the U-Star series for mold and die machining of HRC30~50 medium hardness steel and die steel.

Key features

  • Carbide substrate for medium hardness steel cutting
  • AlCrN based multilayer coating for wear and oxidation resistance
  • S-curved gash shape disperses cutting force
  • Helix angle 36° / 34°
  • h5 shank tolerance

Specifications

Series line U-Star End Mill
Flutes 4
Coating AlCrN
Helix angle 36° / 34°
ØD tolerance Ø1~Ø25: 0~-0.03mm
Shank tolerance h5
Workpiece (excellent) Alloy steel HB225~325, Pre-hardened steel HRC30~50
Workpiece (good) Hardened steel SKD61~HRC55, Cast iron ~FCD500
UXE50401001 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 1 | L (mm): 40
UXE50401002 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2 | L (mm): 40
UXE504010 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 50
UXE50401003 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 50
UXE50401004 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UXE50401006 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UXE50401202 ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 2 | L (mm): 40
UXE504012 ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 50
UXE50401204 ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UXE50401206 ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UXE504015015 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 1.5 | L (mm): 40
UXE50401503 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 40
UXE504015 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UXE50401506 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UXE50401508 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 50
UXE50401510 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 50
UXE50402002 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 2 | L (mm): 40
UXE50402004 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 40
UXE504020 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UXE50402008 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 50
UXE50402010 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 50
UXE50402012 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 50
UXE504025025 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 40
UXE50402505 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 5 | L (mm): 40
UXE504025 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 7 | L (mm): 50
UXE50402510 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 50
UXE50402512 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 50
UXE50403003 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 40
UXE50403006 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 40
UXE504030 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 50
UXE50403010 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 50
UXE50403012 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 50
UXE50403014 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 14 | L (mm): 50
UXE50404004 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 40
UXE50404008 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 40
UXE504040 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 50
UXE50404012 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 50
UXE50404014 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 14 | L (mm): 50
UXE50404016 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 16 | L (mm): 50
UXE50405005 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 5 | L (mm): 50
UXE50405010 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 50
UXE504050 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
UXE50405020 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 60
UXE50405025 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 25 | L (mm): 60
UXE50406006 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UXE50406012 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 50
UXE504060 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
UXE50406020 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 60
UXE50406025 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 25 | L (mm): 60
UXE50408016 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 60
UXE504080 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70
UXE50408025 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 25 | L (mm): 70
UXE50408030 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 30 | L (mm): 70
UXE50410022 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 22 | L (mm): 65
UXE504100 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75
UXE50410030 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 30 | L (mm): 75
UXE50410035 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 35 | L (mm): 75
UXE50412026 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 26 | L (mm): 70
UXE504120 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
UXE50412035 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 35 | L (mm): 80
UXE50412040 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 40 | L (mm): 80
UXE504140 ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 35 | L (mm): 100
UXE50416032 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 32 | L (mm): 100
UXE504160 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 100
UXE504180 ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 100
UXE504200 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 100
